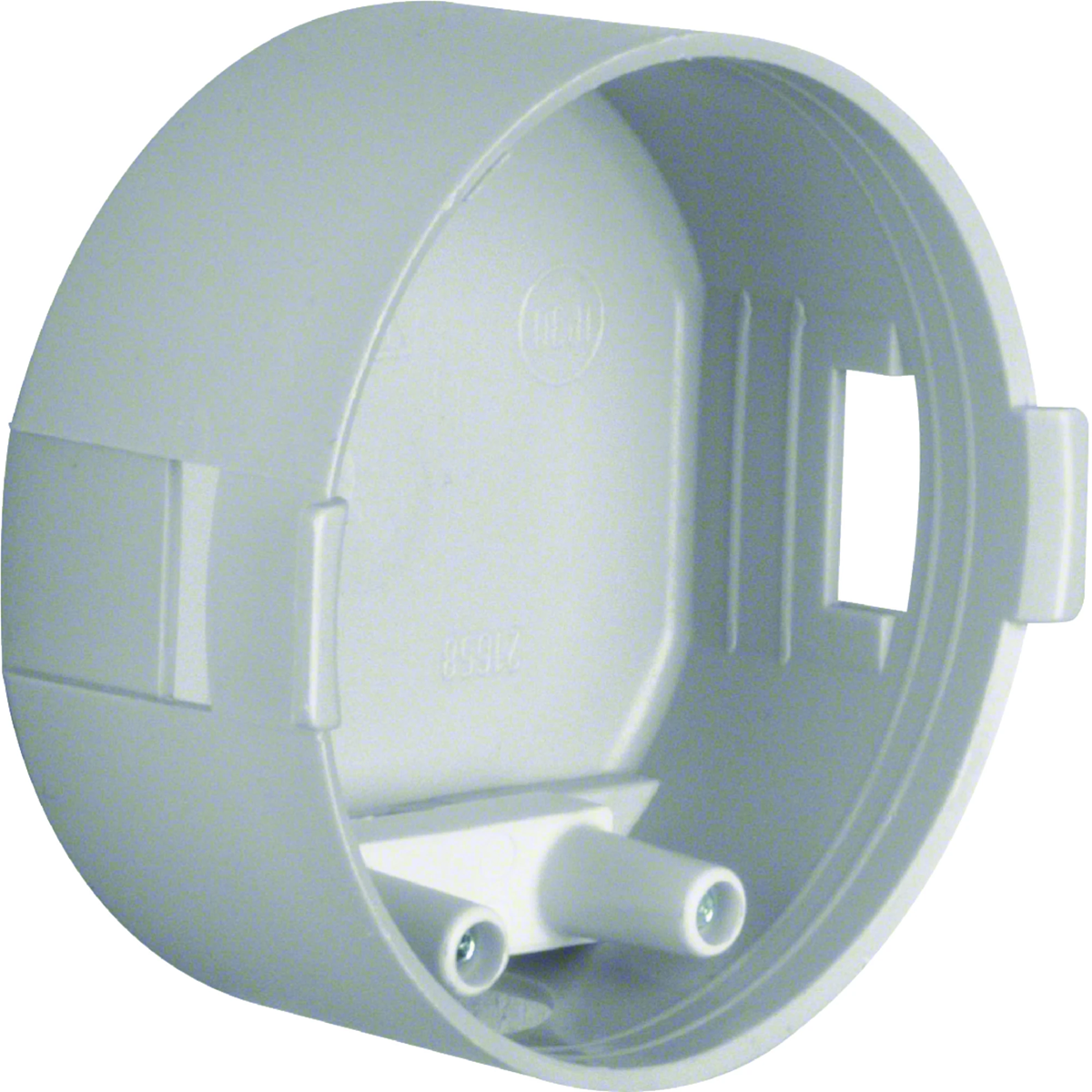

INTEGRO FLOW Flush-mounted box fi45mm, shallow grey 9182001

local index:
MVP005BERK
Catalog No:
9182001
EAN code:
4011334053132
Manufacturer: BERKER
Halogen free: Yes
Depth [mm]: 22
Number of terminals: 1
Price:
2,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted box

  • With fixing clamp.
  • The fixing clamp is not intended for flat cables.
  • Flame retardant: according to VDE 0606-1.
  • With cable entry.
  • Only for fittings.

Integro Flow series Integro Flow < /p>

Technical data

  • Halogen free
    Yes
  • Number of terminals
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Level of security
    IP20
  • Type
    For attachments
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    850
  • Number of slots
    1
  • PKWIU
    27.12.40.0
  • Depth [mm]
    22
  • Color
    Gray
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    INTEGRA FLOW
  • Cable diameter [mm]
    ≤10
  • Accurate color
    light gray
  • Number of segments
    1
  • For modular equipment
    K45
  • Attachment diameter [mm]
    45

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Couplable
    No
  • Diameter
    45 mm
  • Depth
    22 ... 22 mm
  • For number of electric fittings
    1
  • With screws
    No
  • Pipe locking
    No
  • Number of inlets
    1
  • Halogen free
    Yes
  • Colour
    Grey
  • Transparent cover
    No
  • With screening
    No
  • Max. conductor cross section
    2.5 mm²
  • Clamp position fixed
    No
  • Nozzle
    Other
  • Shape
    Round
  • Model
    Single
  • Equipped with
    None
  • Width
    45 mm
  • Inner depth
    22 mm
  • Mounting switching equipment
    Screwing
  • Suitable for cable diameter
    12 ... 12 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP20
  • Sealable
    No
  • Air tight
    No
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 200 pcs. 200 pcs. 6400 pcs.
Weight (kg) 0,005 1,363 1,363 66,144
Width (m) 0,045 0,290 0,300 0,800
Length (m) 0,023 0,227 0,225 1,050
Depth (m) 0,045 0,390 0,400 1,200
