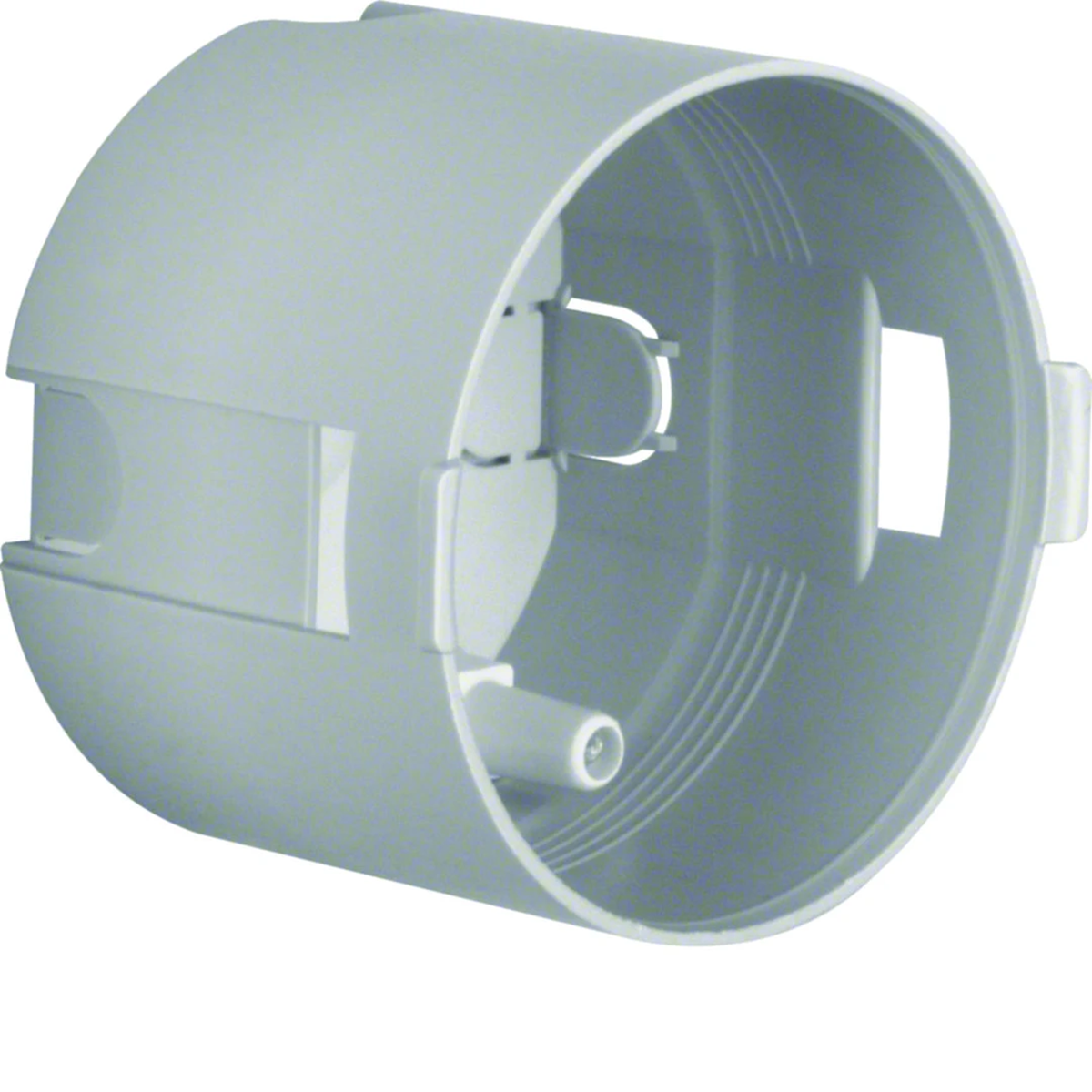

INTEGRO FLOW Flush-mounted box fi45mm grey 91820

local index:
MVP004BERK
Catalog No:
91820
EAN code:
4011334053125
Manufacturer: BERKER
Halogen free: Yes
Depth [mm]: 35.5
Number of terminals: 1
Price:
2,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted box

  • With fixing clamp.
  • The fixing clamp is not intended for flat cables.
  • Flame retardant: according to VDE 0606-1.
  • With 4 cable entries.
  • 3 knock-out openings for plugs.

Series < strong>Integro Flow is an ideal solution for use in kitchen furniture, in sanitary industry and everywhere where compact construction and versatile functionality are required, all thanks to minimalist design and quick and easy  ;installation.

Technical data

  • Halogen free
    Yes
  • Number of terminals
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Level of security
    IP20
  • Type
    For attachments
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    850
  • Number of slots
    4
  • PKWIU
    27.12.40.0
  • Depth [mm]
    35.5
  • Color
    Gray
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    INTEGRA FLOW
  • Cable diameter [mm]
    ≤10
  • Accurate color
    light gray
  • Number of segments
    1
  • For modular equipment
    K45
  • Attachment diameter [mm]
    45

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Couplable
    No
  • Diameter
    45 mm
  • Depth
    35.5 ... 35.5 mm
  • For number of electric fittings
    1
  • With screws
    No
  • Pipe locking
    No
  • Number of inlets
    4
  • Halogen free
    Yes
  • Colour
    Grey
  • Transparent cover
    No
  • With screening
    No
  • Max. conductor cross section
    2.5 mm²
  • Clamp position fixed
    No
  • Nozzle
    Other
  • Shape
    Round
  • Model
    Single
  • Equipped with
    None
  • Width
    45 mm
  • Inner depth
    35.5 mm
  • Mounting switching equipment
    Screwing
  • Suitable for cable diameter
    12 ... 12 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP20
  • Sealable
    No
  • Air tight
    No
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 200 pcs. 200 pcs. 6400 pcs.
Weight (kg) 0,009 2,163 2,163 91,744
Width (m) 0,045 0,290 0,300 0,800
Length (m) 0,037 0,227 0,225 1,050
Depth (m) 0,045 0,390 0,400 1,200
