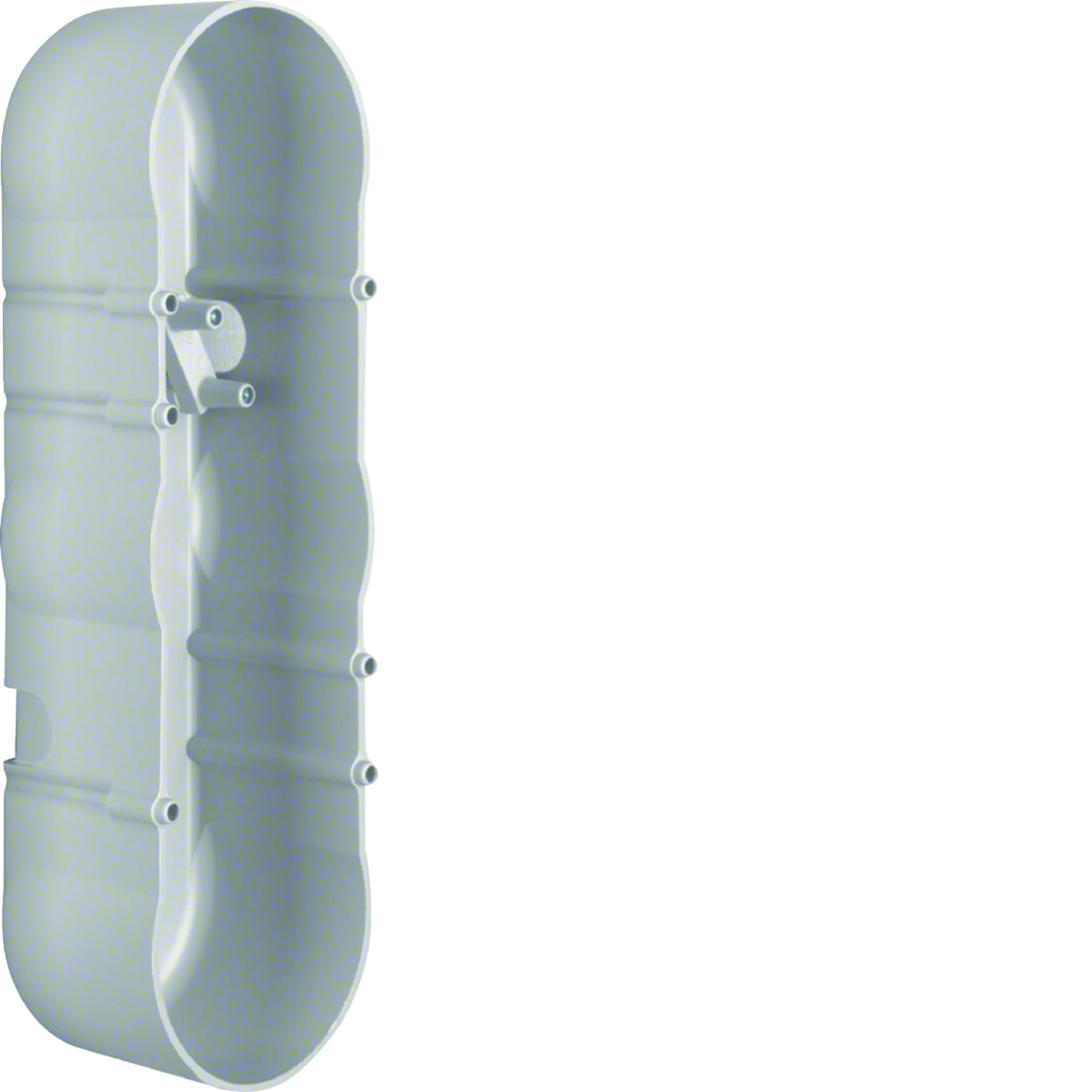

INTEGRO FLOW 3-gang flush-mounted box fi45mm grey 91933

Lokaler Index:
MVP010BERK
Katalognummer:
91933
EAN-Code:
4011334195276
Hersteller: BERKER
Halogen free: Yes
Depth [mm]: 38
Number of terminals: 1
Preis:
35,90 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Flush-mounted box

  • With 1 fixing clamp.
  • The fixing clamp is not intended for flat cables.
  • < li>With the mounting clip on the front side, the mounting options are limited.
  • All devices can be placed vertically or horizontally.
  • Only for 3-gang frames.
  • < li> Flame retardant: according to VDE 0606-1.
  • 5 knock-out openings.
  • With 6 cable entries, 1 per side, top, bottom and 2 from the back.

The Integro Flow series is an ideal solution for use in kitchen furniture, in the sanitary industry and everywhere where a compact design and versatile functionality, all thanks to minimalist design and quick and easy installation.

Technische Daten

  • Halogen free
    Yes
  • Number of terminals
    1
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Level of security
    IP20
  • Cable diameter [mm]
    ≤10
  • Height [mm]
    168
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    850
  • Number of slots
    6
  • PKWIU
    27.12.40.0
  • Depth [mm]
    38
  • Color
    Gray
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    INTEGRA FLOW
  • Width [mm]
    49
  • Type
    For attachments
  • Accurate color
    light gray
  • Number of segments
    3
  • For modular equipment
    K45
  • Attachment diameter [mm]
    45

Weitere technische Daten

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Couplable
    No
  • Length
    168 mm
  • Depth
    38 ... 38 mm
  • For number of electric fittings
    3
  • With screws
    No
  • Pipe locking
    No
  • Number of inlets
    6
  • Halogen free
    Yes
  • Colour
    Grey
  • Transparent cover
    No
  • With screening
    No
  • Max. conductor cross section
    2.5 mm²
  • Clamp position fixed
    No
  • Nozzle
    Other
  • Shape
    Rectangular
  • Model
    Single
  • Equipped with
    None
  • Width
    168 mm
  • Inner depth
    38 mm
  • Mounting switching equipment
    Screwing
  • Suitable for cable diameter
    12 ... 12 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP20
  • Sealable
    No
  • Air tight
    No
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Hersteller-Details

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 10 stk. 30 stk. 960 stk.
Gewicht (kg) 0,300 0,900 28,800
Breite (m) 0,190 0,300 0,800
Länge (m) 0,090 0,230 1,050
Tiefe (m) 0,290 0,400 1,200
