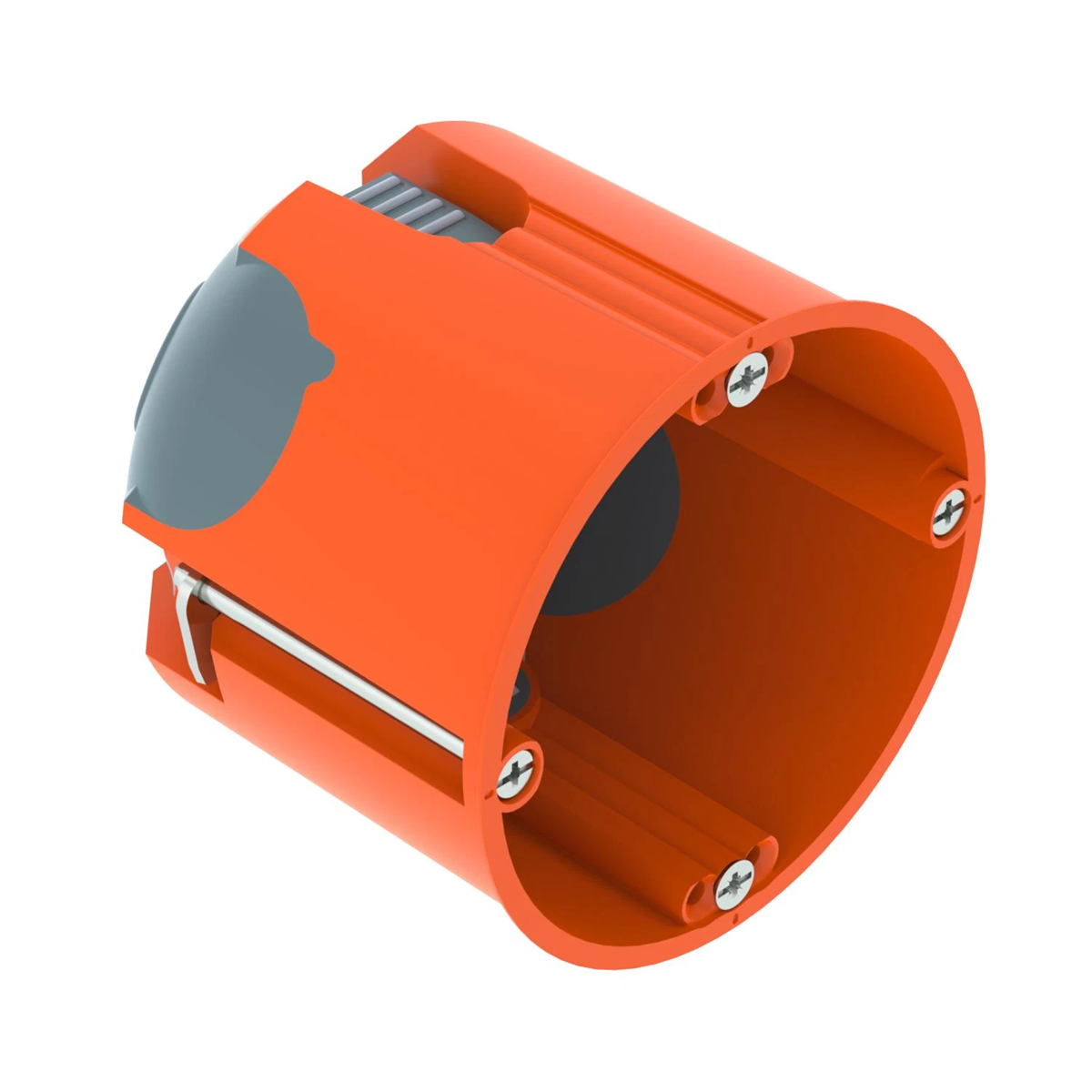

Slab wall box with hermetic membrane entries, for use in walls with an installation depth of at least 61 mm and a board thickness of 5 - 40 mm.
• 2 x 3 screw domes
• Hardware Screws, Collet Chucks
• 2 Ø 20 and 25mm
• 4 x 3 x 1.5mm NYM cable entries
• 2 x NYM 3 x 2.5mm² or 5 x 1.5mm²
• 2 x NYM 5 x 2.5mm² or 7 x 1.5mm²
• Hermetic connection to other boxes with connectors type ZH 11-V
Delivery accessories: 10 x connector type ZH 11-V

Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Manufacturer details

Manufacturer

OBO Bettermann Polska Sp. z o.o.
Address

02-495 Warszawa Kazimierza Gierdziejewskiego 7
Tax identification number

5211001039
GLN

5900009931563

A kind of package	Torebka	Karton	Paleta
Quantity	25 pcs.	200 pcs.	1600 pcs.
Weight (kg)	0,689	6,156	71,748
Volume (m3)	0,013	0,085	0,912
Width (m)	0,330	0,385	0,800
Length (m)	0,580	0,590	1,200
Depth (m)	0,070	0,375	0,950
