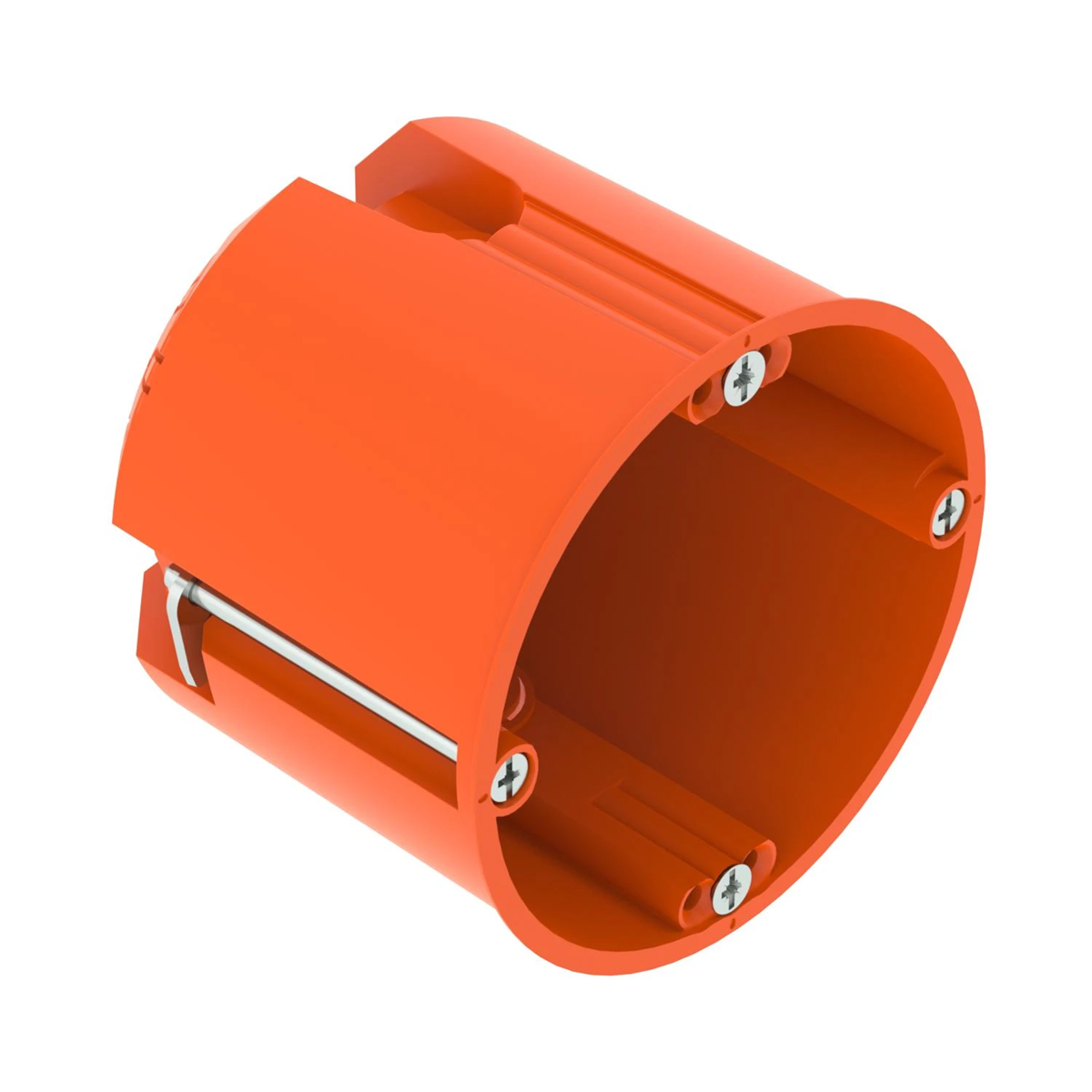

Installation box HG 61 for panel walls with screws orange 2003804
local index:
MVN008OBOB
Catalog No:
2003804
EAN code:
4012196687084
Manufacturer:
OBO BETTERMANN
Price:
0,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

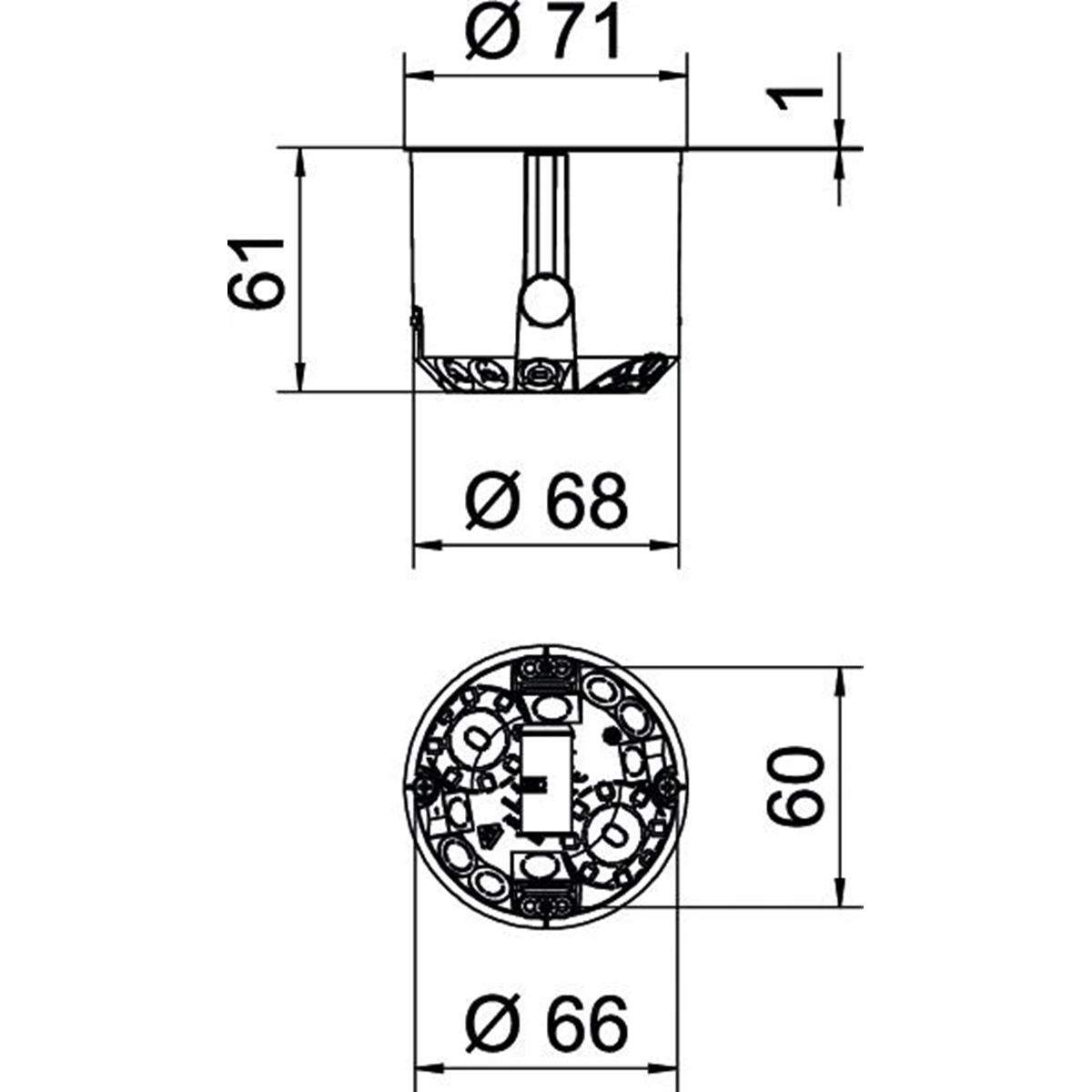

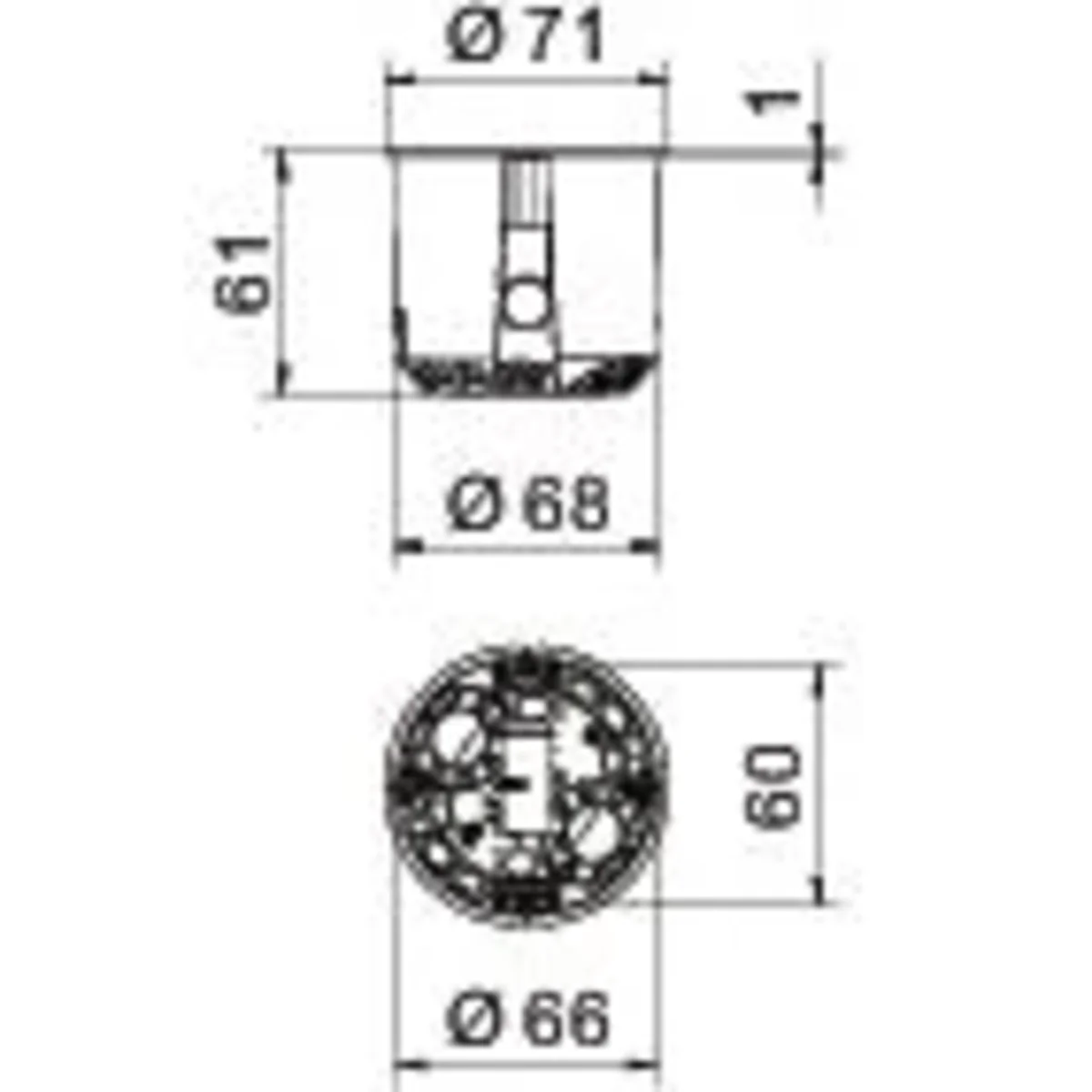

Slab wall box for use in walls with a depth of at least 61 mm and a panel thickness of 5 - 40 mm.
• 2 x 3 screw domes
• Hardware Screws, Collet Chucks
• 2 Ø 20 and 25mm
• 4 x 3 x 1.5mm NYM cable entries
• 2 x NYM 3 x 2.5mm² or 5 x 1.5mm²
• 2 x NYM 5 x 2.5mm² or 7 x 1.5mm²
• Connection to other boxes usingów…
Bulk packaging
| A kind of package | Torebka | Karton | Paleta |
| Quantity | 25 pcs. | 200 pcs. | 1600 pcs. |
| Weight (kg) | 0,626 | 5,652 | 67,716 |
| Volume (m3) | 0,013 | 0,085 | 0,912 |
| Width (m) | 0,330 | 0,385 | 0,800 |
| Length (m) | 0,580 | 0,590 | 1,200 |
| Depth (m) | 0,070 | 0,375 | 0,950 |
