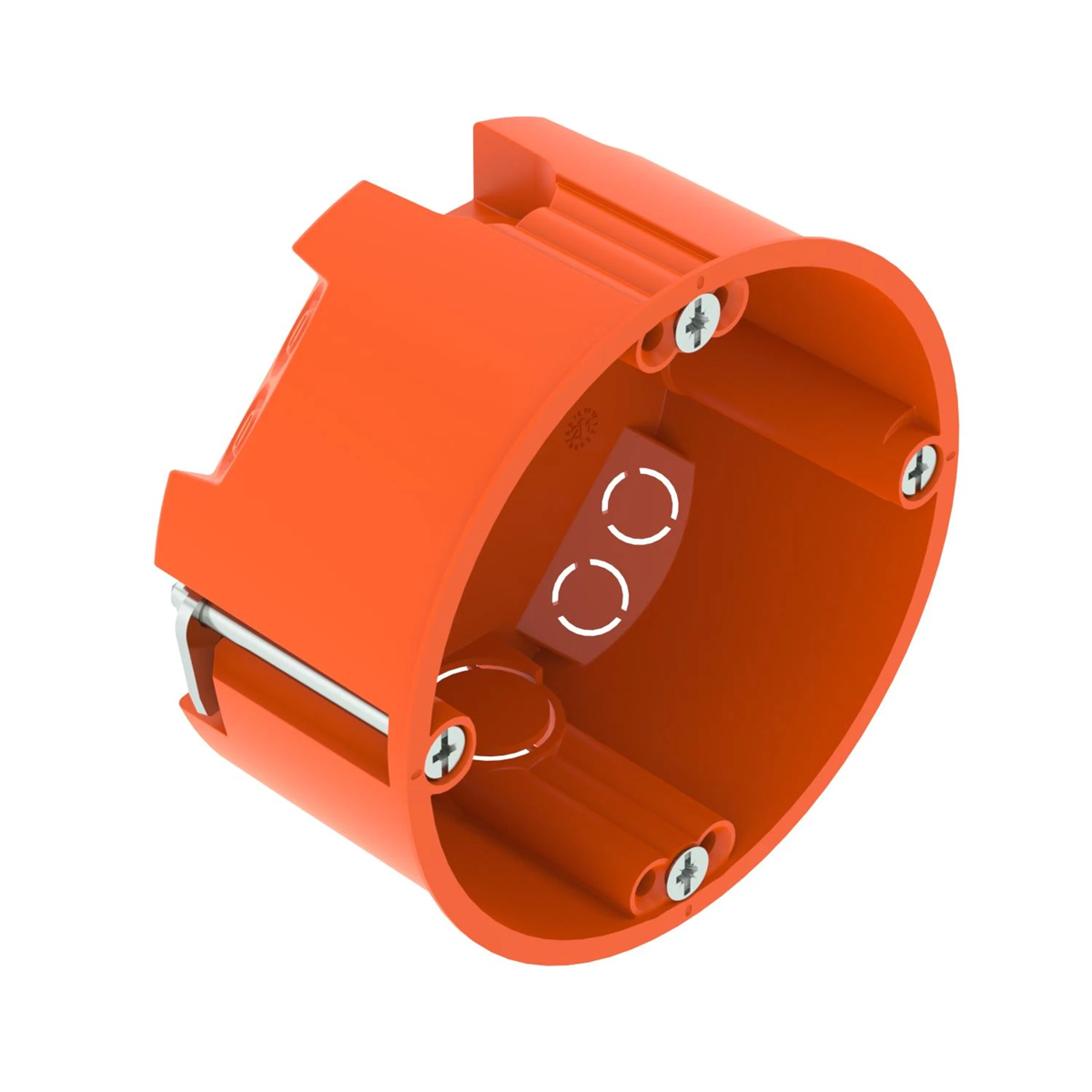

Installation box HG 35 for panel walls orange 2003800

local index:
MVN014OBOB
Catalog No:
2003800
EAN code:
4012196687060
Price:
0,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 35 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

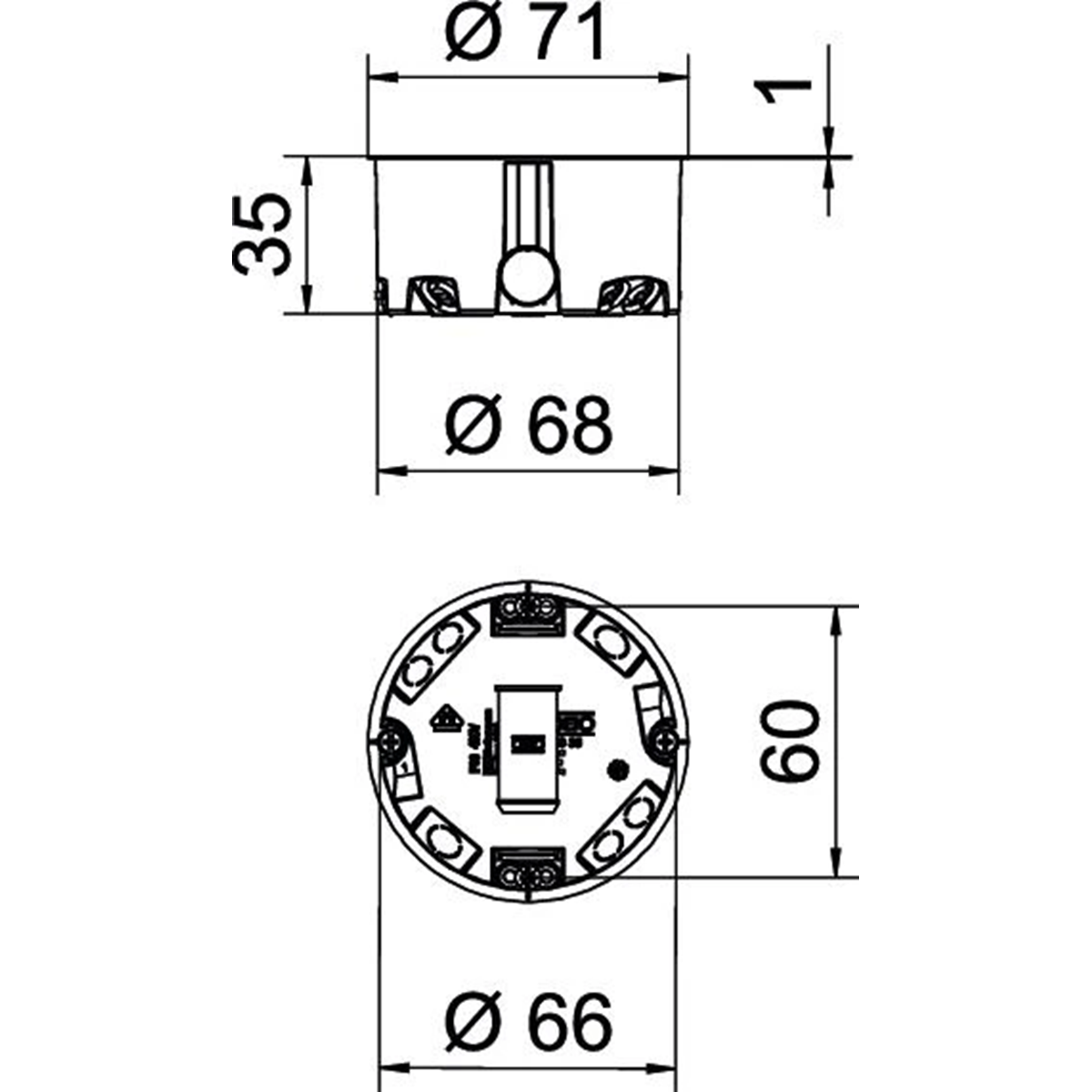

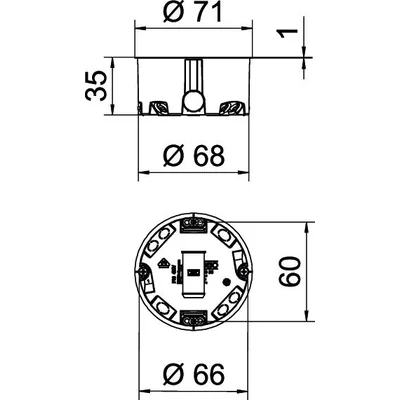

Slab wall box for use in walls with a depth of at least 35 mm and a board thickness of 5 - 28 mm.
• 2 x 3 screw domes
• Hardware Screws, Collet Chucks
• 4 x 3 x 1.5mm NYM cable entries
• 2 x NYM 3 x 2.5mm² or 5 x 1.5mm²
• Connection to other HG 35 boxes via connector type ZH 11-V
Delivery accessories: 10 x connector type ZH 11-V

Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 25 pcs. 300 pcs. 2400 pcs.
Weight (kg) 0,461 6,176 71,908
Volume (m3) 0,010 0,085 0,912
Width (m) 0,330 0,385 0,800
Length (m) 0,420 0,590 1,200
Depth (m) 0,070 0,375 0,950
