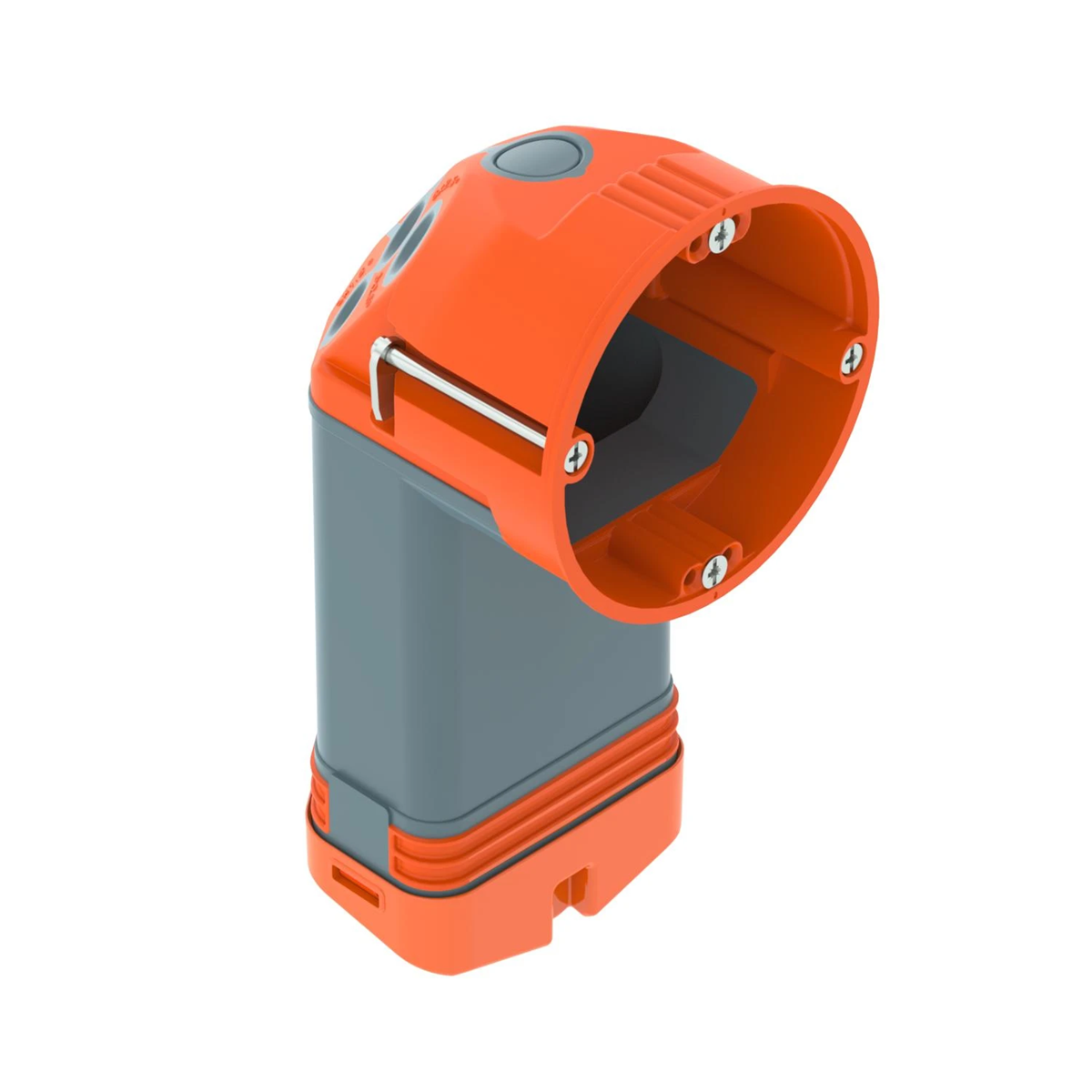

Installation box HE 74-L for hermetic electronics with an elastomer sleeve 2003828

local index:
MVP005OBOB
Catalog No:
2003828
EAN code:
4012197276676
Price:
5,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 244 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

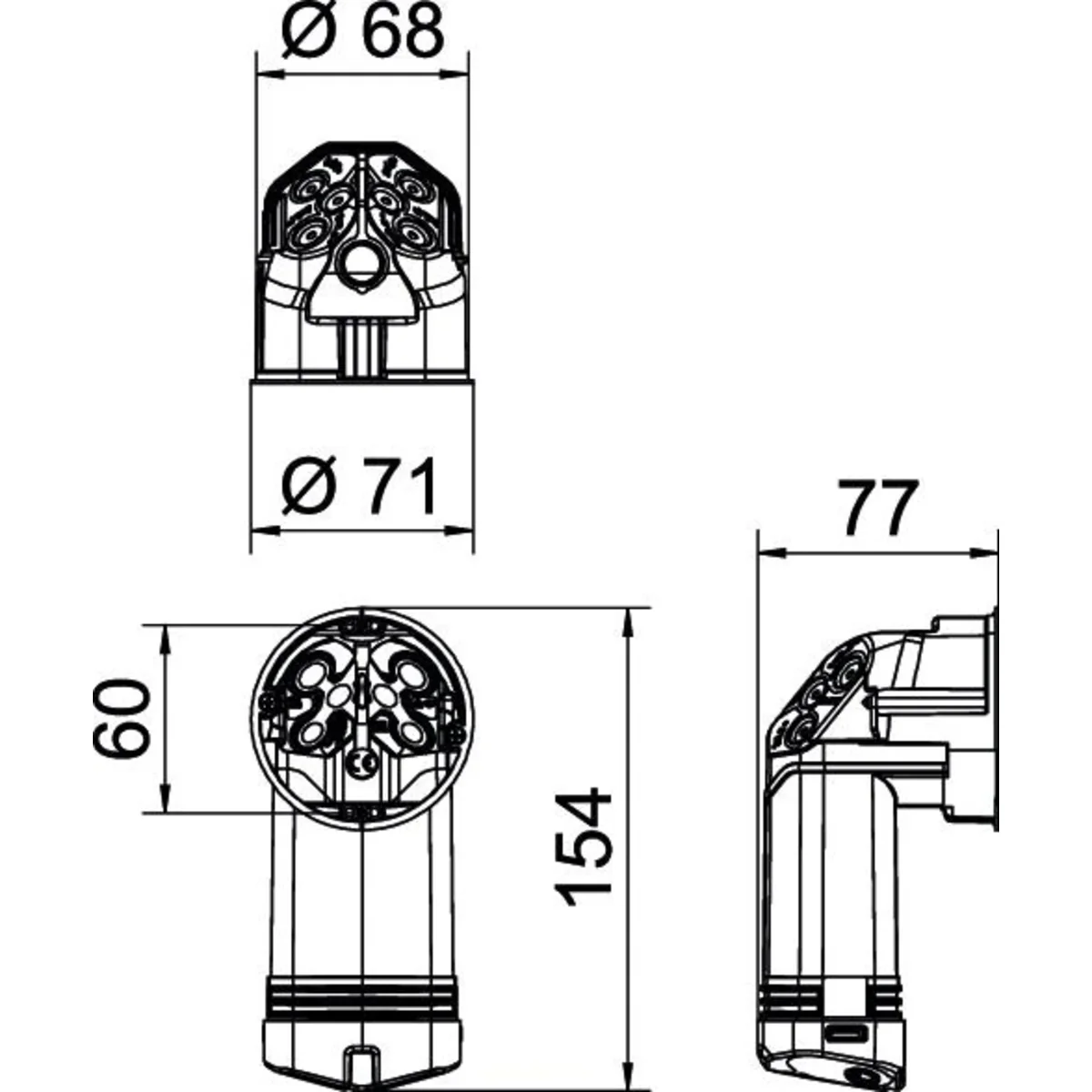

Electronics box for panel walls with membrane grommets and additional space for wiring, for use in walls with a minimum installation depth of 75 mm and a panel thickness of 5 - 35 mm.
• 2 x 3 screw domes
• Hardware Screws, Collet Chucks
• 2 x 3 x 1.5mm NYM cable entries²
• 2 x NYM 3 x 2.5mm² or 5 x 1.5mm²
• 2 x NYM 5 x 2.5mm² or 7 x 1.5mm²
• 2  combination pipe penetrations for Ø 20 and 25 mm at the bottom of the elastomer sleeve

Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 10 pcs. 100 pcs. 800 pcs.
Weight (kg) 0,446 5,104 63,332
Volume (m3) 0,018 0,085 0,912
Width (m) 0,380 0,385 0,800
Length (m) 0,580 0,590 1,200
Depth (m) 0,080 0,375 0,950
