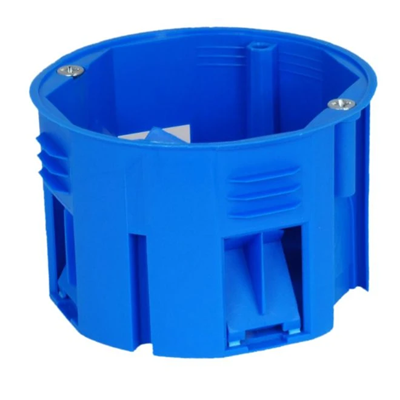

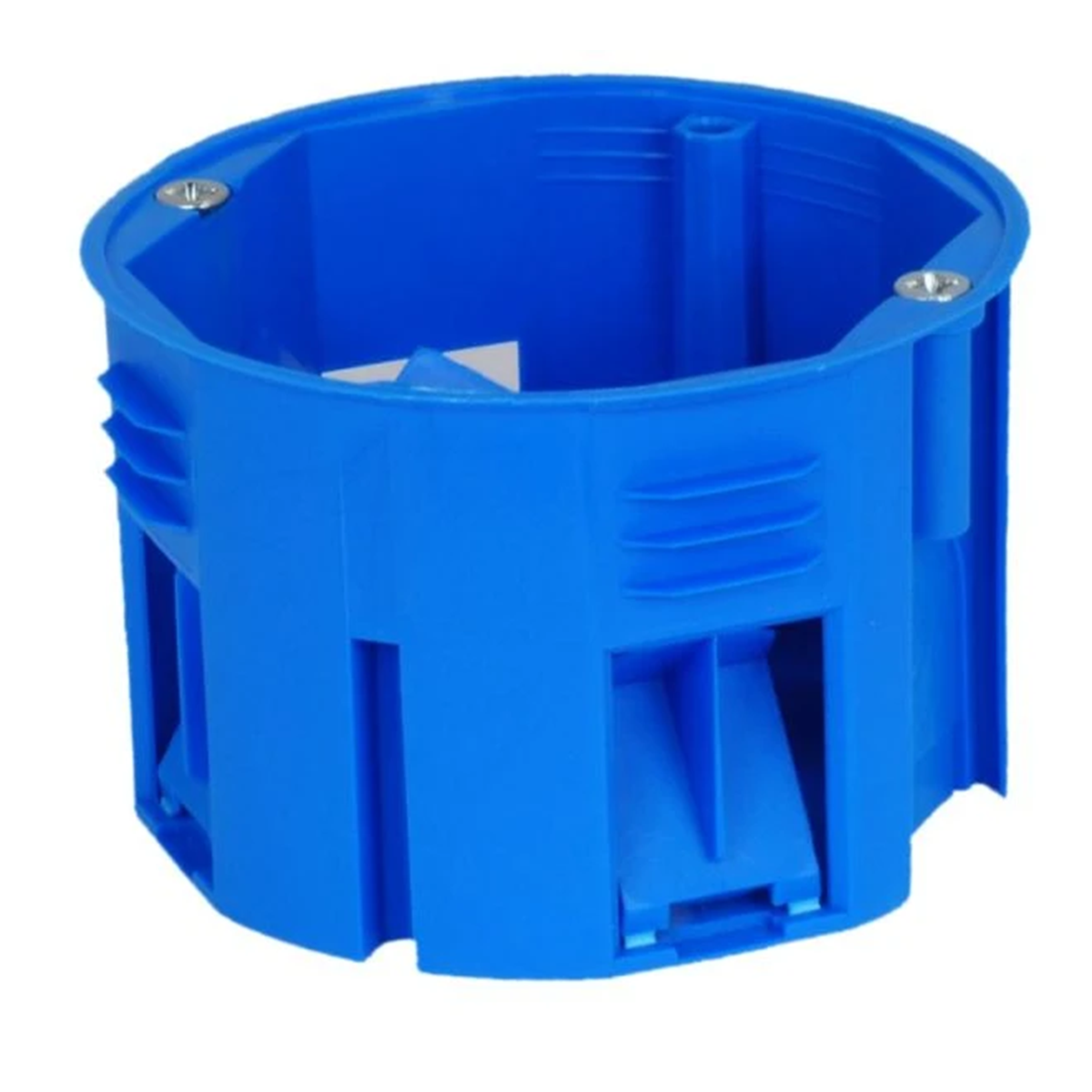

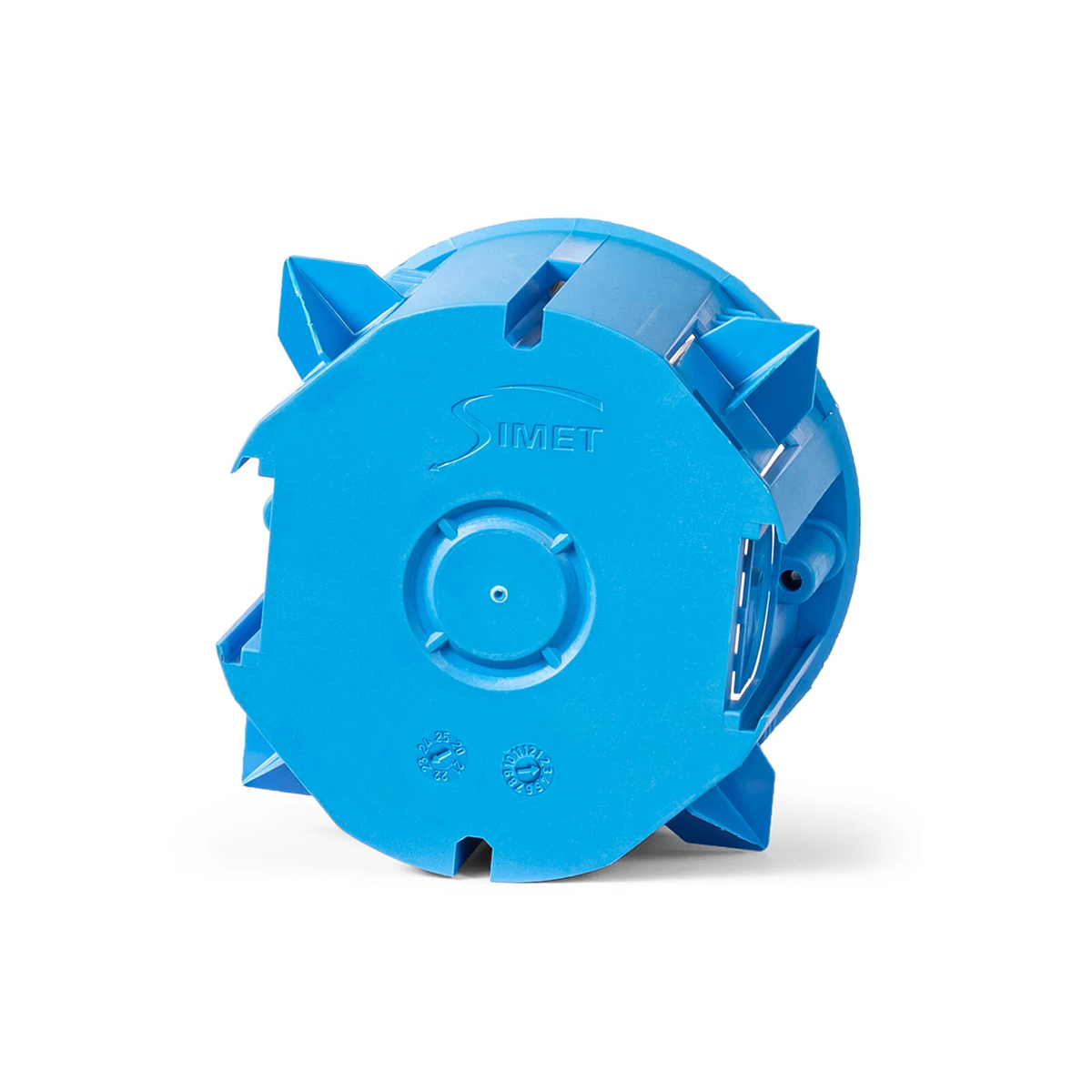

Installation box for walls with polystyrene combined PST60 fi60mm blue 32273003

local index:
MVP019SIME
Catalog No:
32273003
EAN code:
5907813221170
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 46
Color: Blue
Price:
3,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 165 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical installation box for walls with 60mm polystyrene, combined. Just drill a 68mm hole, push the box in, expand the internal struts to the outside of the box and you're done. For a better hold of the box in the wall - the sides can be covered with construction acrylic or 251-KL assembly adhesive.

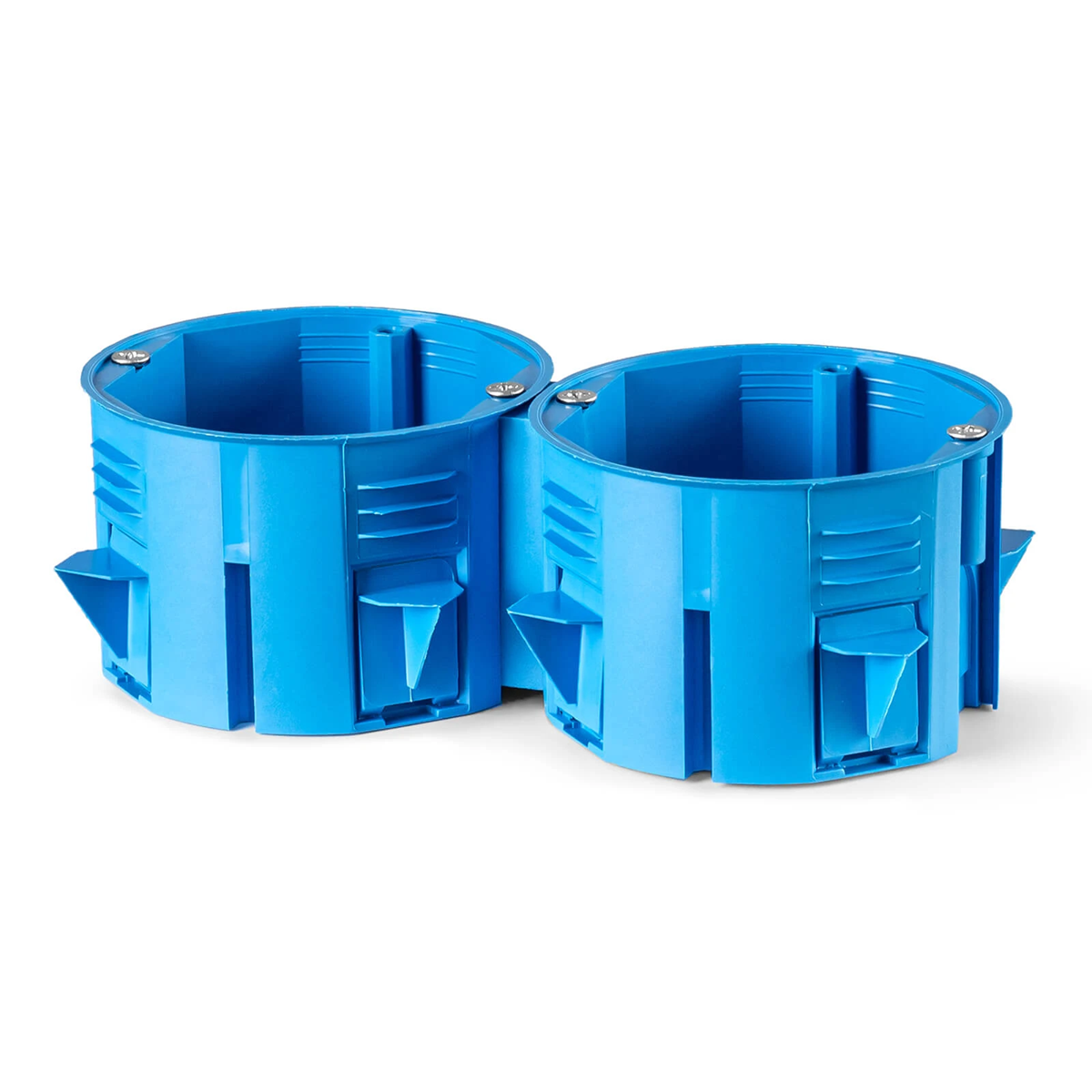

  • Assembly corridor for the installation of the KD71 connector. It is used to connect boxes in a 71mm frame system.

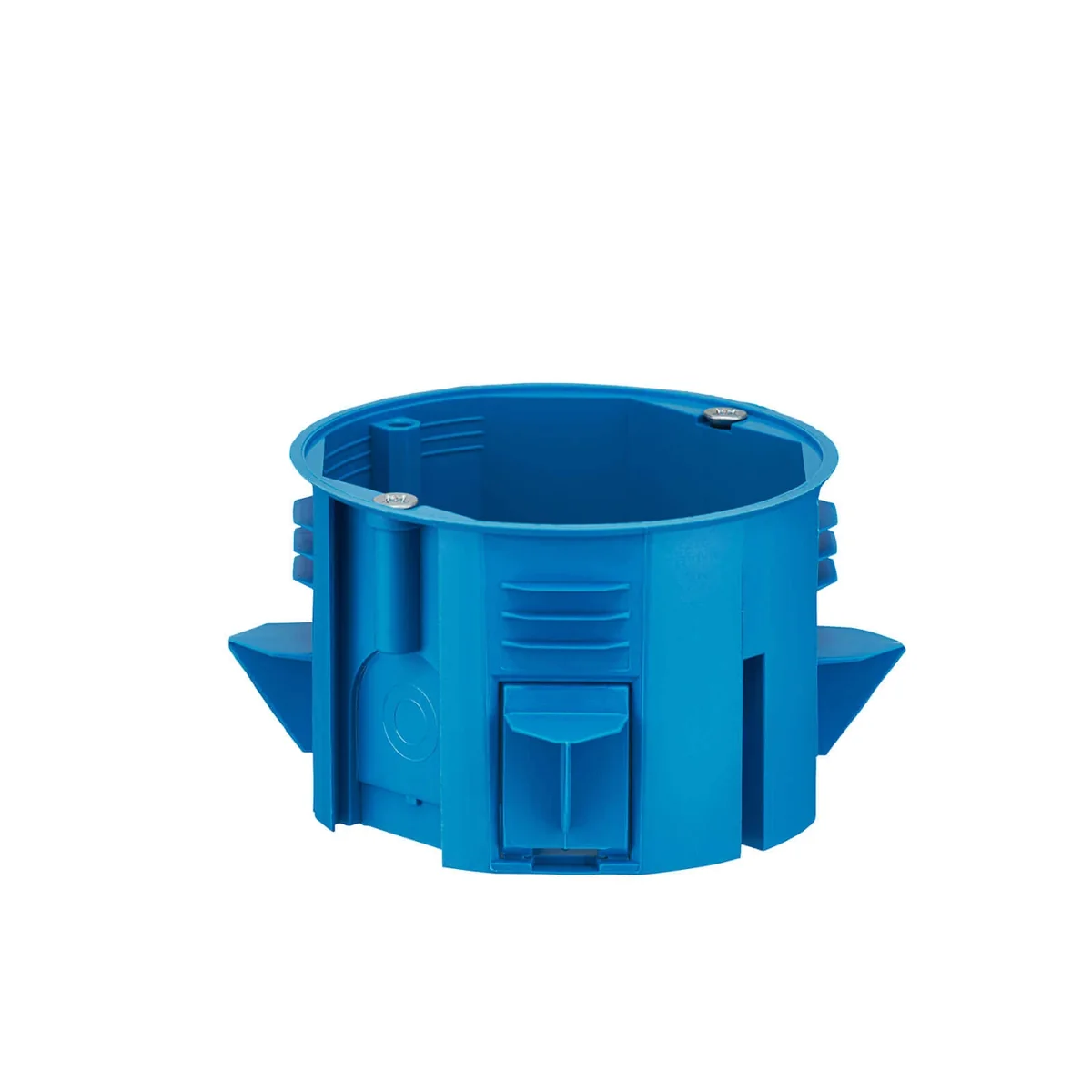

  • Mounting spacers to be embedded in polystyrene. Just stuff them with your thumb from the inside to the outside of the can.

Technical data

  • Halogen free
    Yes
  • Color
    Blue
  • Material
    Polyamide
  • Cover
    NO
  • Width [mm]
    68
  • Self-extinguishing
    Yes
  • Number of segments
    1
  • Fire resistance [°C]
    960
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0
  • Depth [mm]
    46
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For Styrofoam
  • Type
    For attachments
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Exact material
    PA6

Other technical data

  • Mounting method
    Other
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Mounting plate
  • Length
    68 mm
  • Depth
    46 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    1 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP30
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Round
  • Model
    Other
  • Diameter
    66,6 mm
  • Width
    68 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    5
  • Halogen free
    Yes
  • Colour
    Blue
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Max. conductor cross section
    16 mm²
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
