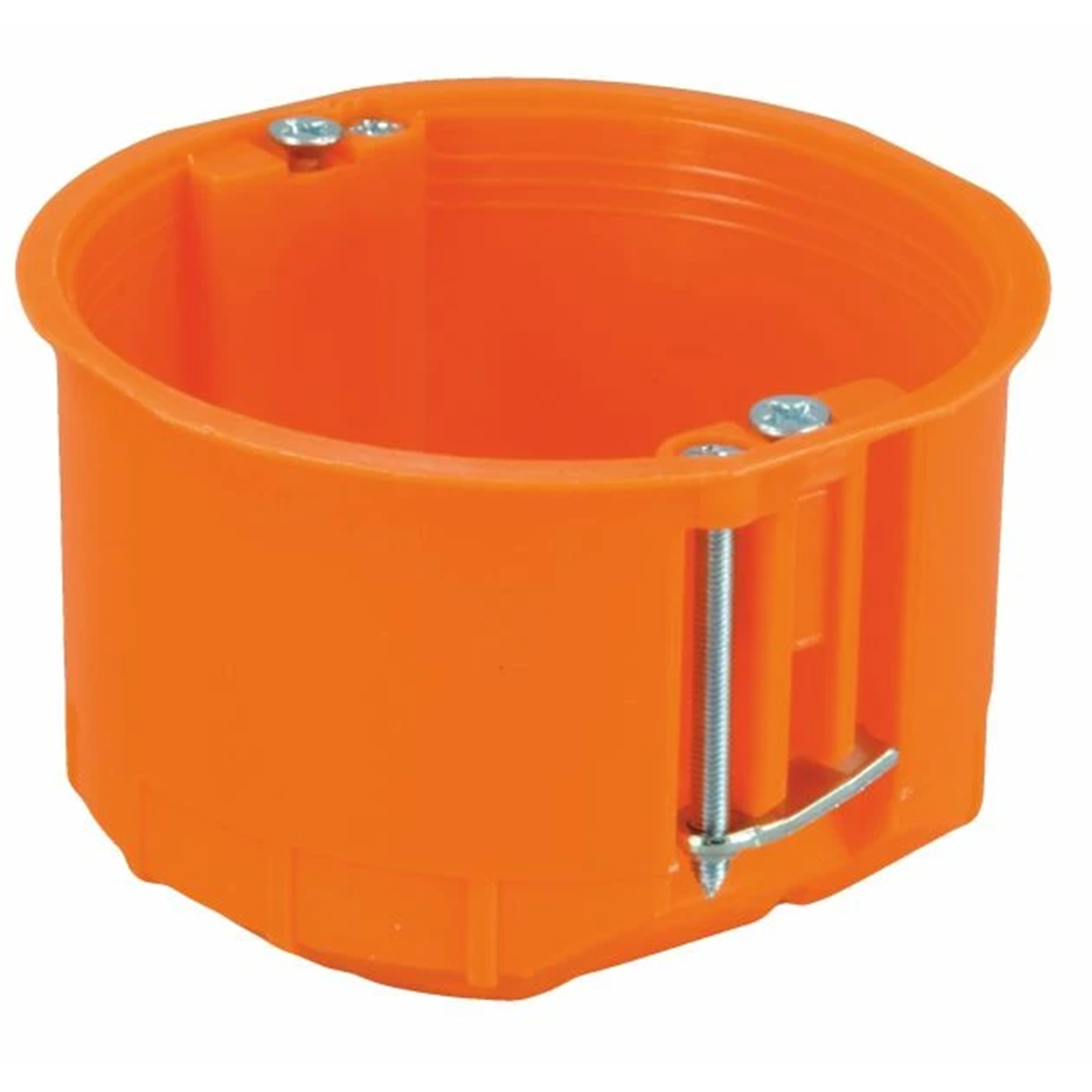

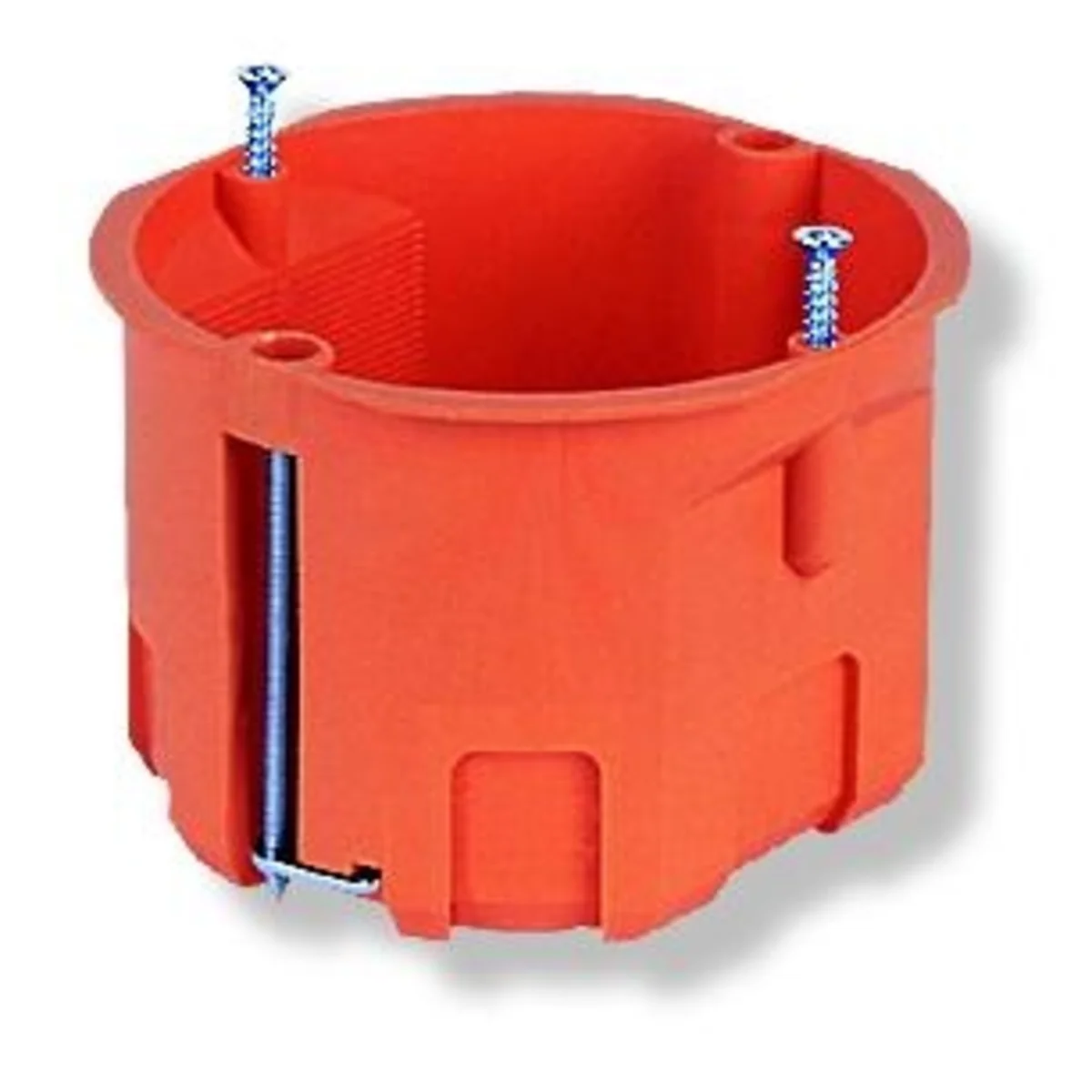

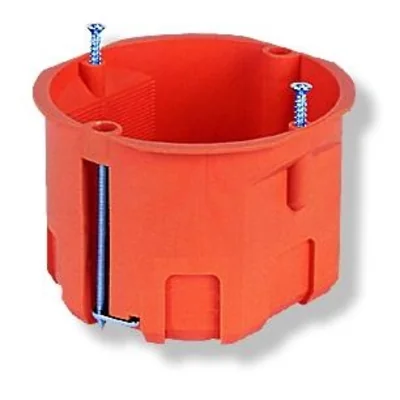

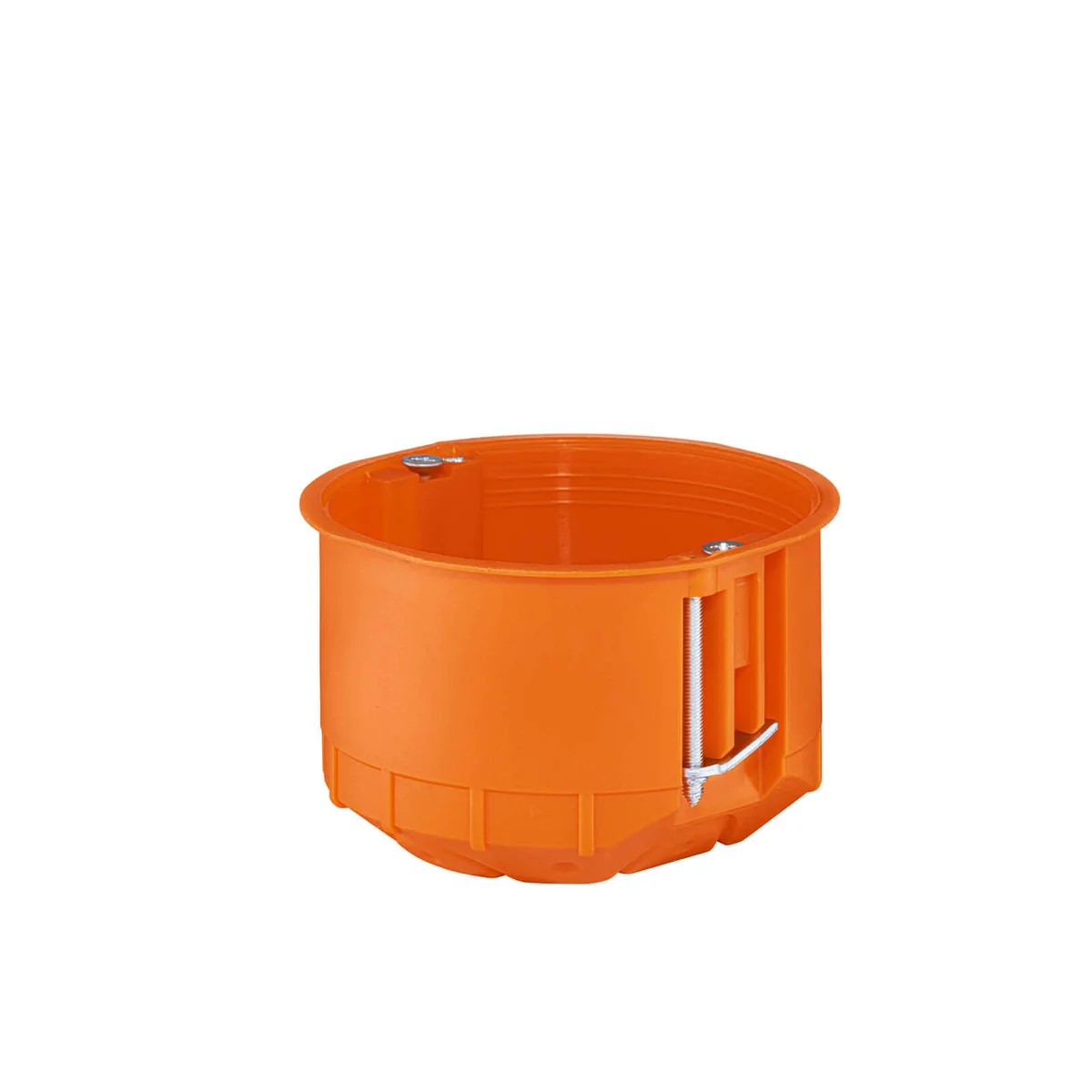

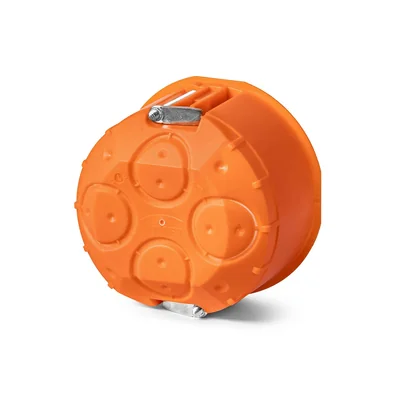

Installation box for hollow walls P60KF 60mm orange tile 31040008

local index:
MVP003SIME
Catalog No:
31040008
EAN code:
5907813237645
Manufacturer: SIMET
Depth [mm]: 45.5
Color: Orange
Shape: Round
Price:
1,03 €
gross / pcs.
(including VAT 23%)
44,98 € gross/kg.
Delivery in 3h
Accessible 1819 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Accessory box for switches and sockets. Adapted for mounting accessories with a spacing of 60mm mounting holes. Mounted on a 68mm mounting hole. The body of the box is made of safe plastic for mounting in plasterboard and other flammable materials.

  • Using temperature: 850°C.
  • Solid screws for firmly embedding connectors and sockets.
  • Clips for embedding boxes in plasterboard, paneling and other walls.

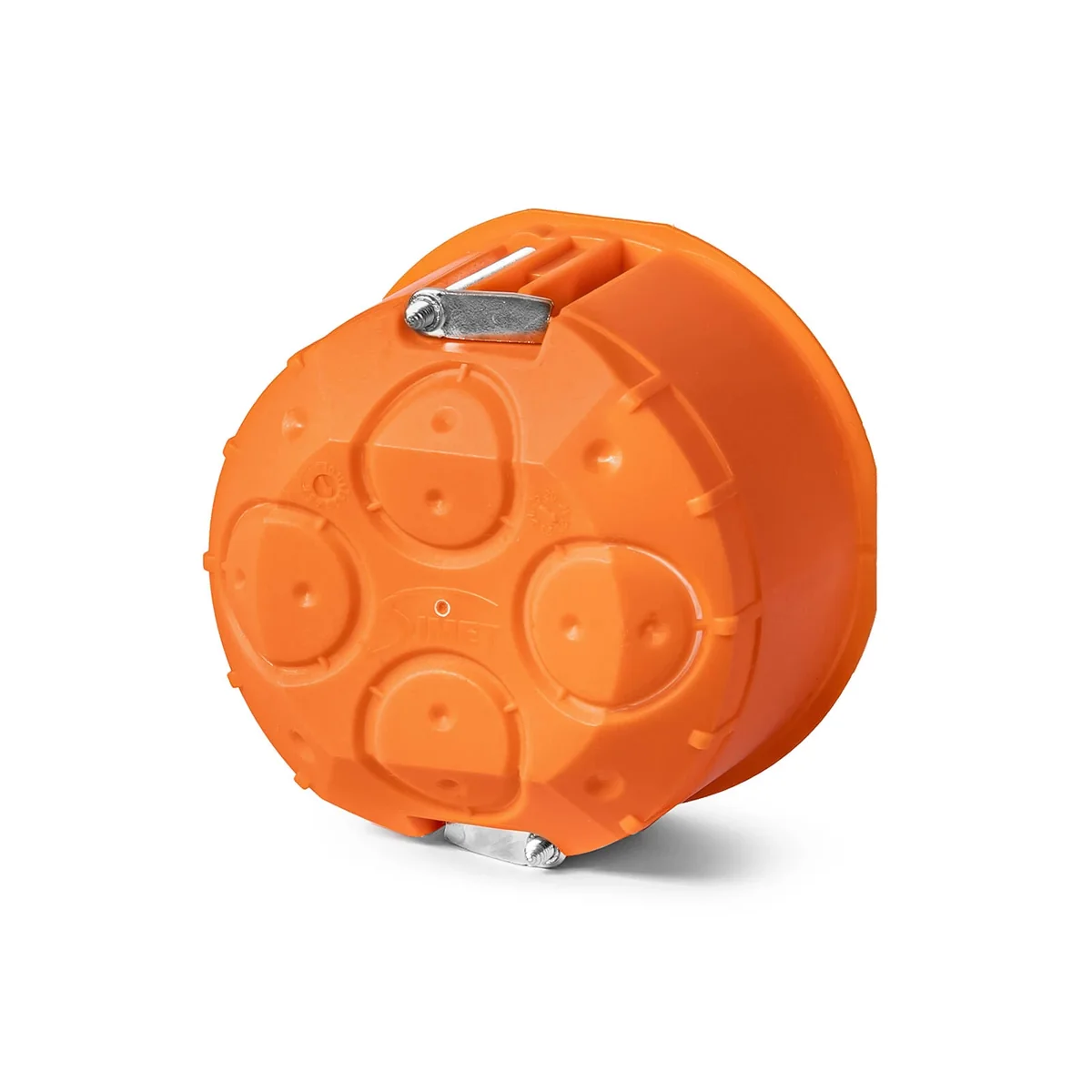

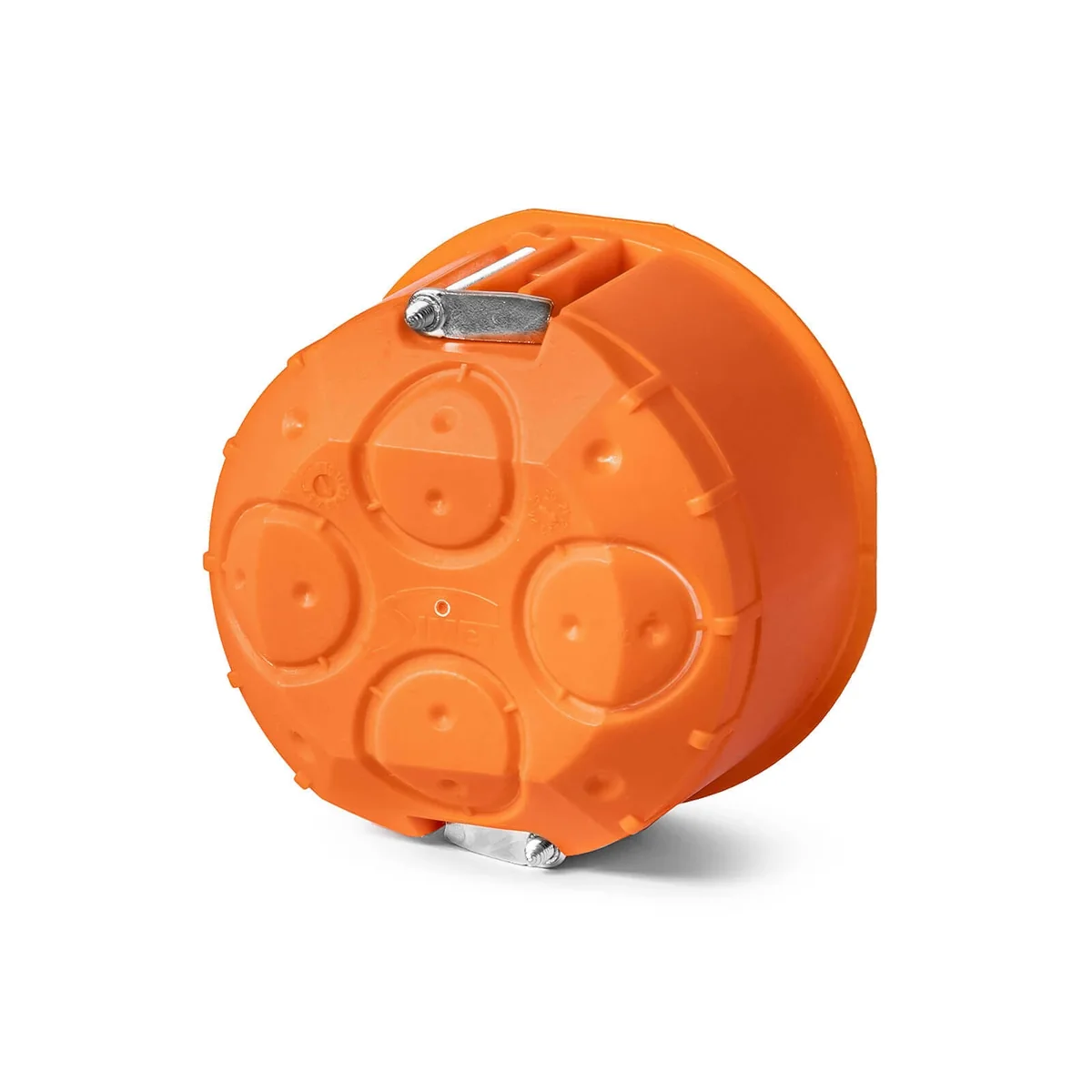

  • Number of knockouts for inserting pipes and wires:
    • 4 knockouts for pipes ø 18 mm
    • 2 knockouts for ø 14 mm
    • 2 weakouts for ø 16mm

Technical data

  • Depth [mm]
    45.5
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    68
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V2
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Level of security
    IP20
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    22.9
  • Number of bolts/screws
    2
  • Number of segments
    1
  • Fire resistance [°C]
    850
  • Number of slots
    8
  • PKWIU
    27.33.13.0

Other technical data

  • Provided with revolving ring
    2
  • Housing feed-through by break-out opening
    1
  • Housing feed-through by nozzle
    2
  • Pipe locking optional
    2
  • Special application
    None
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    68 mm
  • Inner depth
    46 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    14 ... 18 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Couplable
    2
  • Housing feed-through by seal membrane
    2
  • Housing feed-through by step membrane
  • Number of included spouts
    0
  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    68 mm
  • Depth
    46 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    16 mm
  • Pipe locking
    No
  • Number of inlets
    8
  • Halogen free
    No
  • Colour
    Orange
  • Cover attachment
    Snapped on
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
