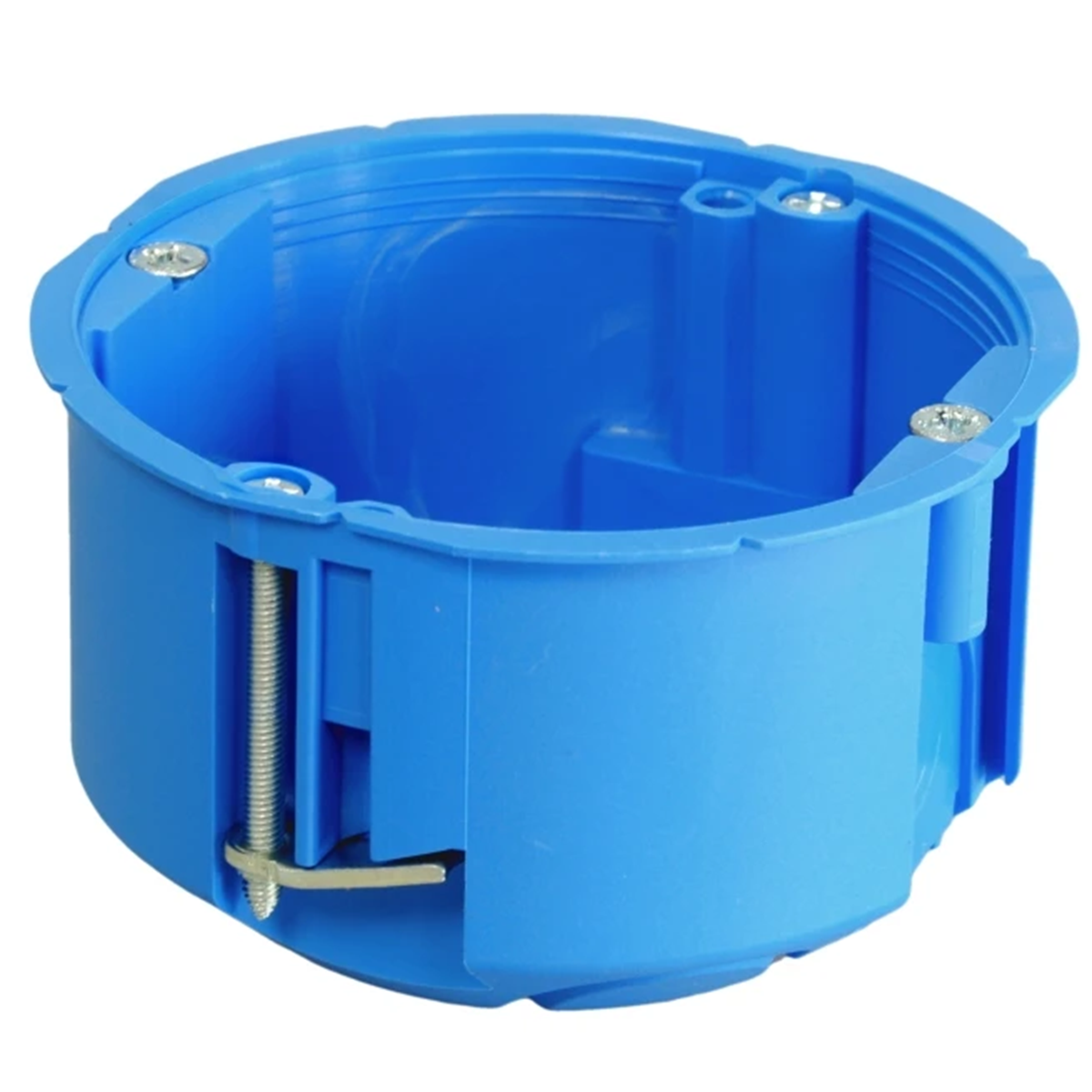

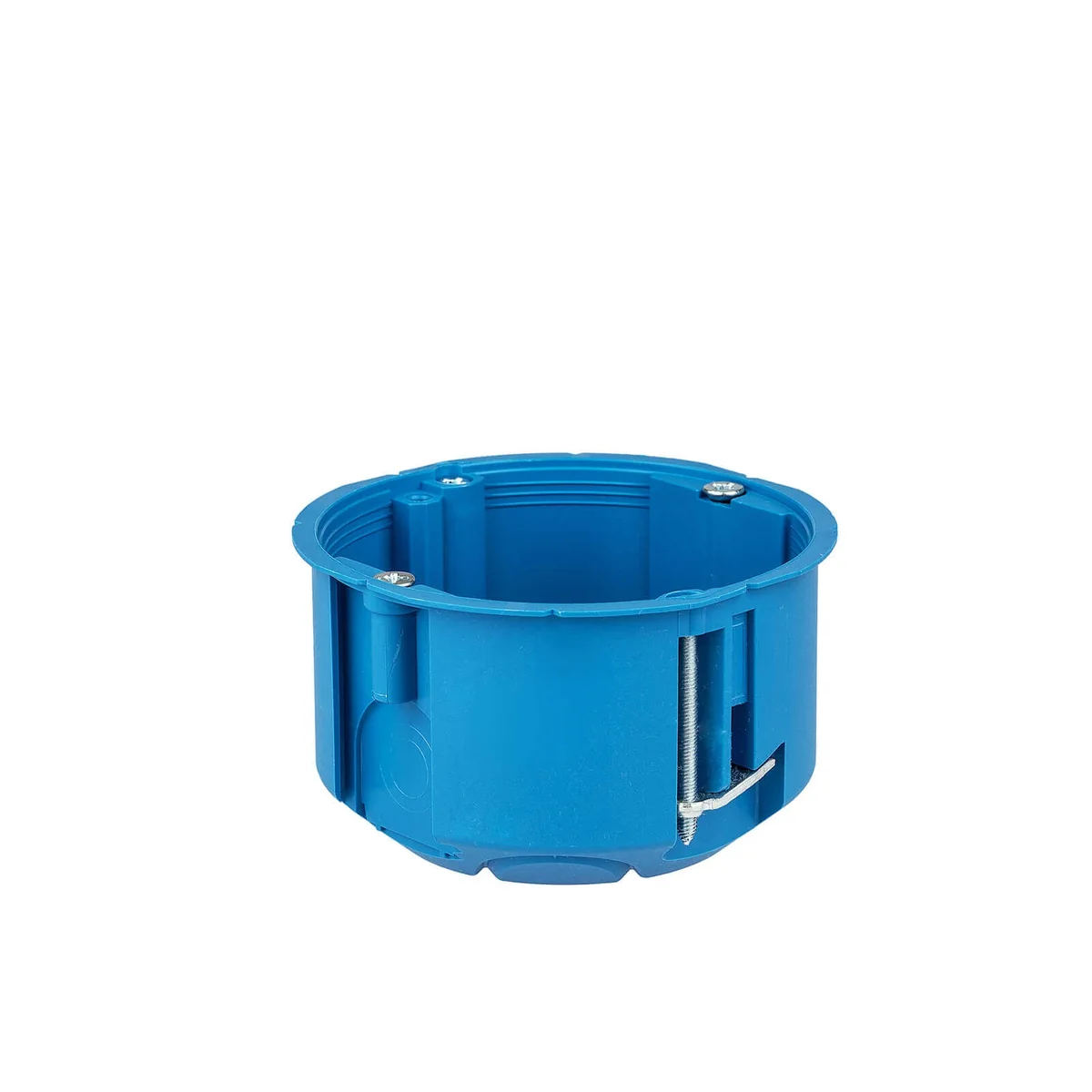

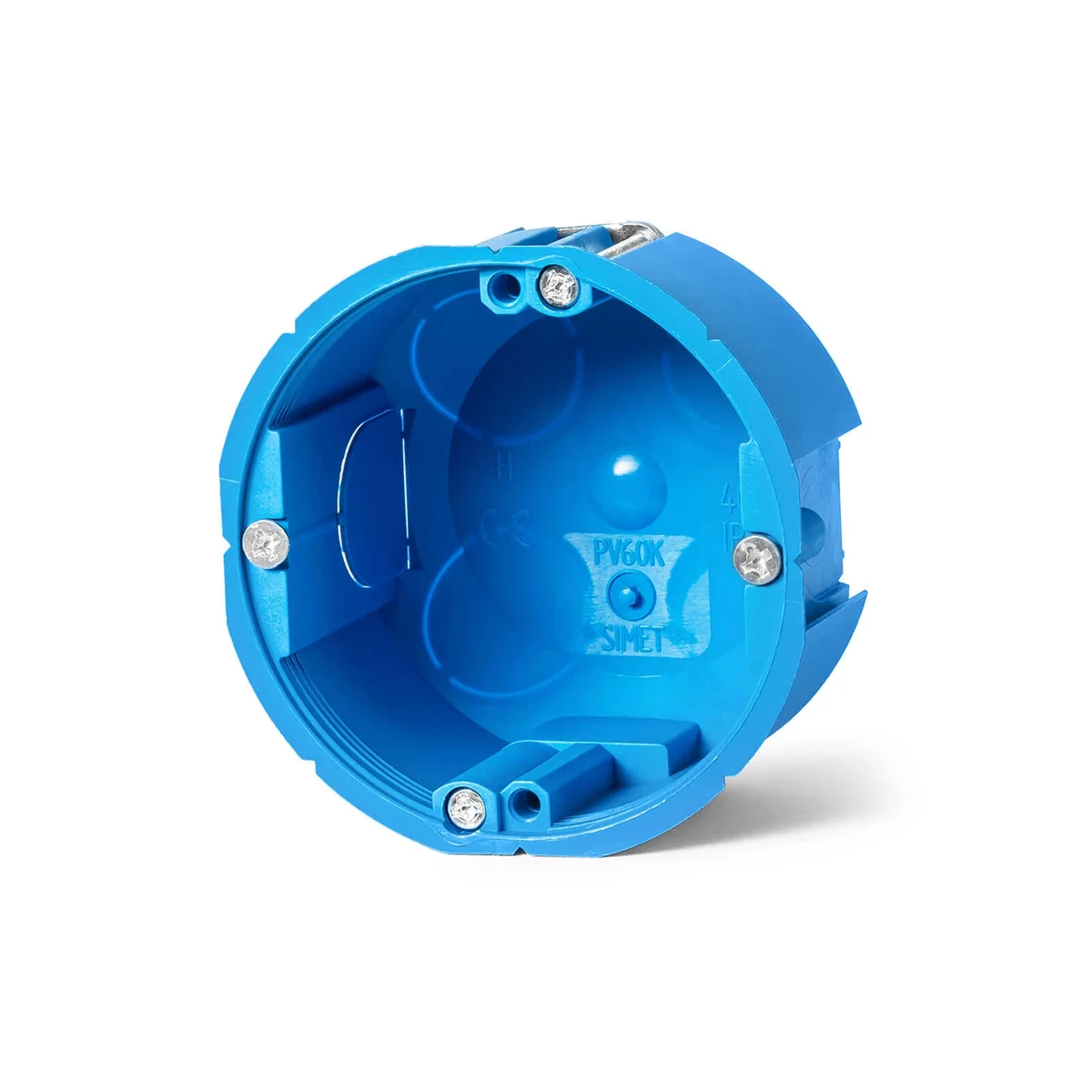

Installation box for hollow walls combined PV60K fi60 blue plate 32017203

Indice locale:
MVP007SIME
Numero di catalogo:
32017203
Codice EAN:
5907813237638
Produttore: SIMET
Halogen free: Yes
Depth [mm]: 38.5
Color: Blue
Prezzo:
91,44 €
gross / conf.
(inclusa IVA 23%)
1,52 € gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

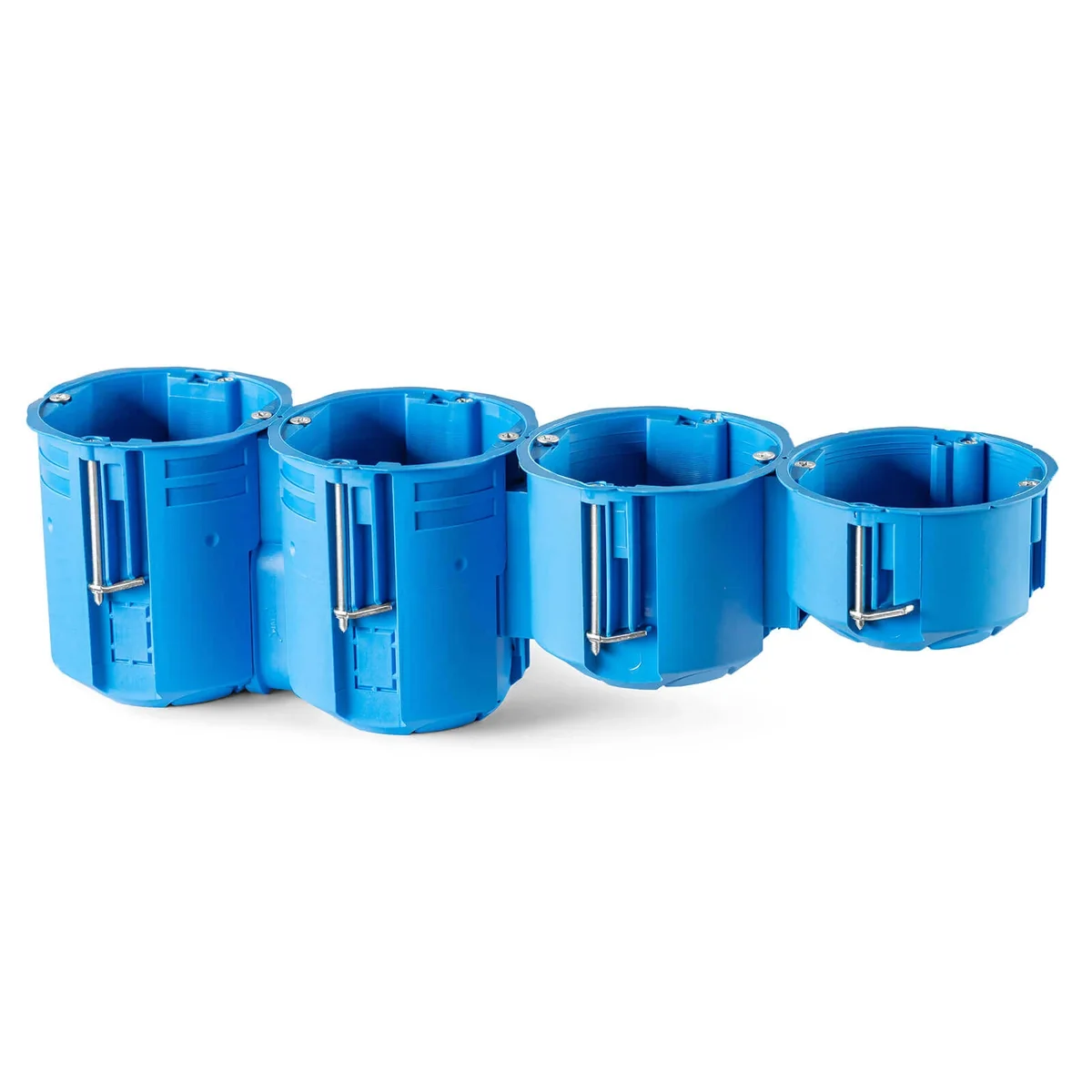

Junction box for empty walls, connected with the connector KD71.

  • Wide flange - more secure seating in the mounting hole.
  • Markers - for precise marking of the location for marking the drilling axis.
  • Wide surface - for mounting accessories with "claws".
  • Centering mark - for a step drill. < /li>
  • Easier hole punching.
  • Coupling and cover in position 316 and 317.

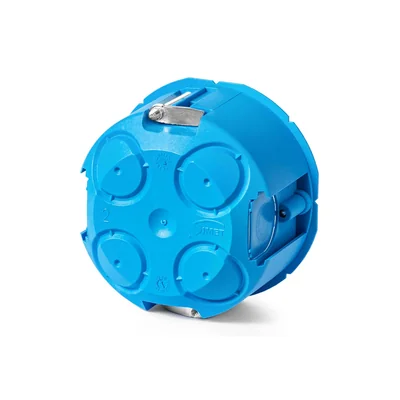

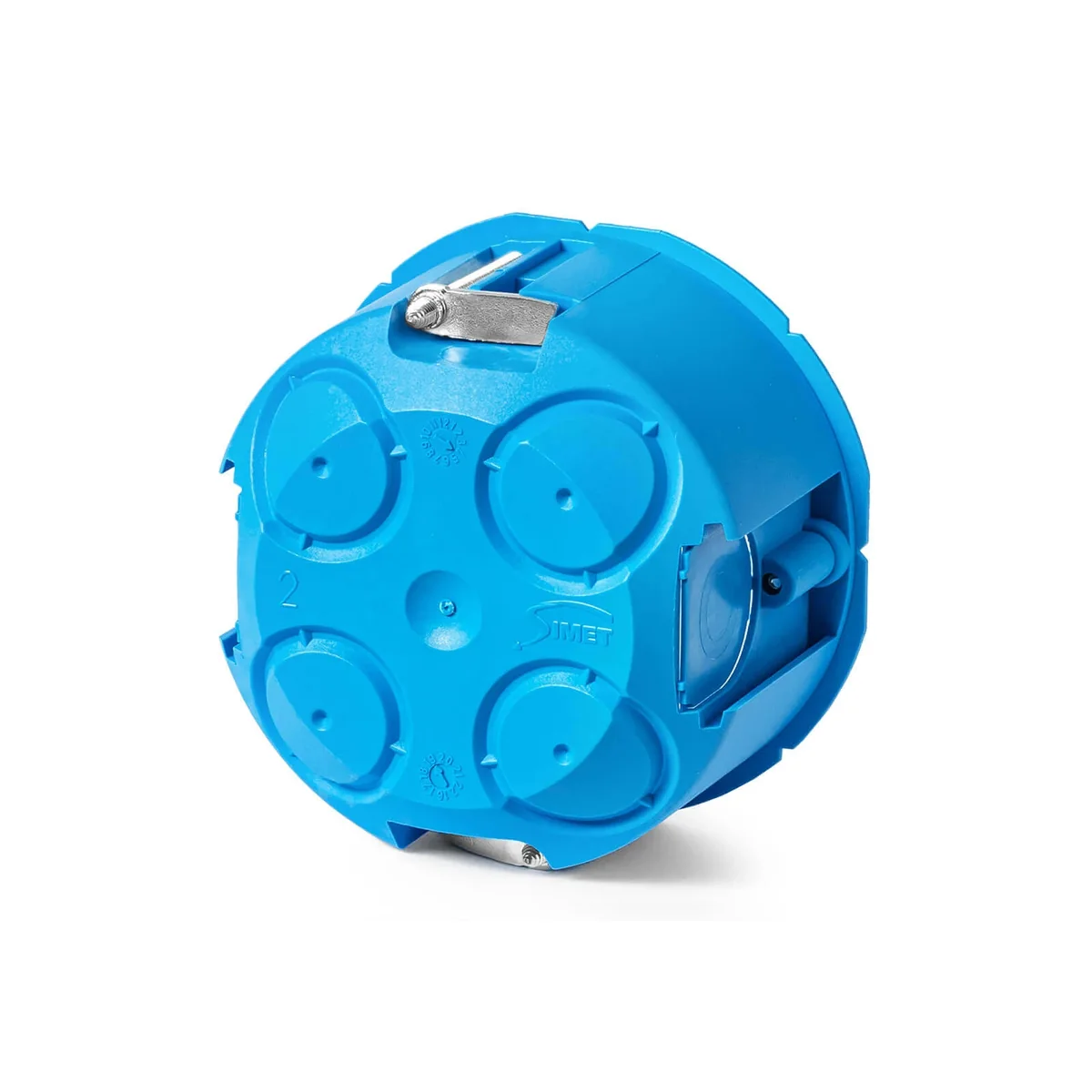

  • 2 knockouts for ø 20.
  • 4 ø 10.
  • Includes 2 screws for mounting the accessories.

Accessories matching the box:

  • PL60 cover (mounted inside - not protrudes above the box flange),
  • KD71 connector (also for connecting PV60K, PV60D, PV70, PV80 boxes),
  • PD60x30 spacer ring

Dati tecnici

  • Halogen free
    Yes
  • Color
    Blue
  • Material
    Polyamide
  • Cover
    NO
  • Level of security
    IP20
  • Pieces in the package
    60
  • Type
    For attachments
  • Number of bolts/screws
    2
  • Number of segments
    1
  • Fire resistance [°C]
    960
  • Number of slots
    6
  • Exact material
    PA6
  • Depth [mm]
    38.5
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    68
  • Mounting hole diameter [mm]
    71
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Mounting method
    Hollow wall
  • Construction type
    Cable junction box
  • Equipped with
    Other
  • Width
    68 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    8
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Depth
    40 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    10 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None

Dettagli del produttore

  • Produttore
    SIMET S.A.
  • Indirizzo
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska
