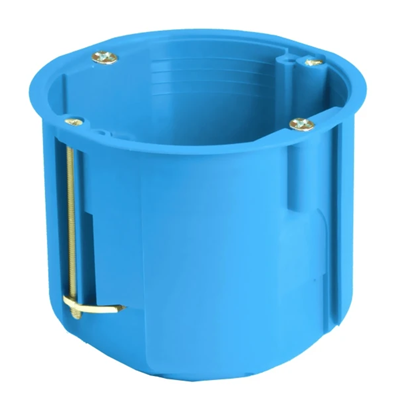

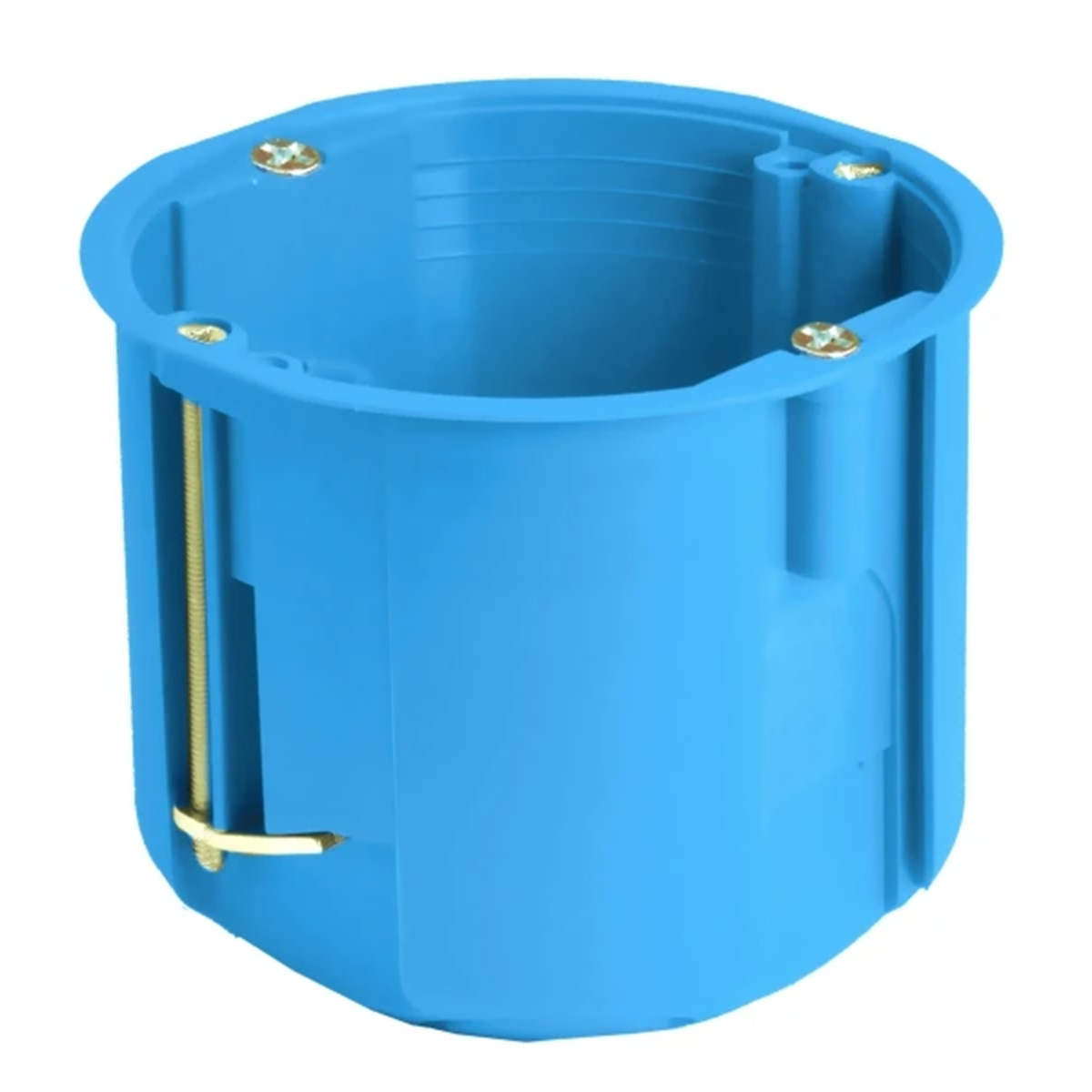

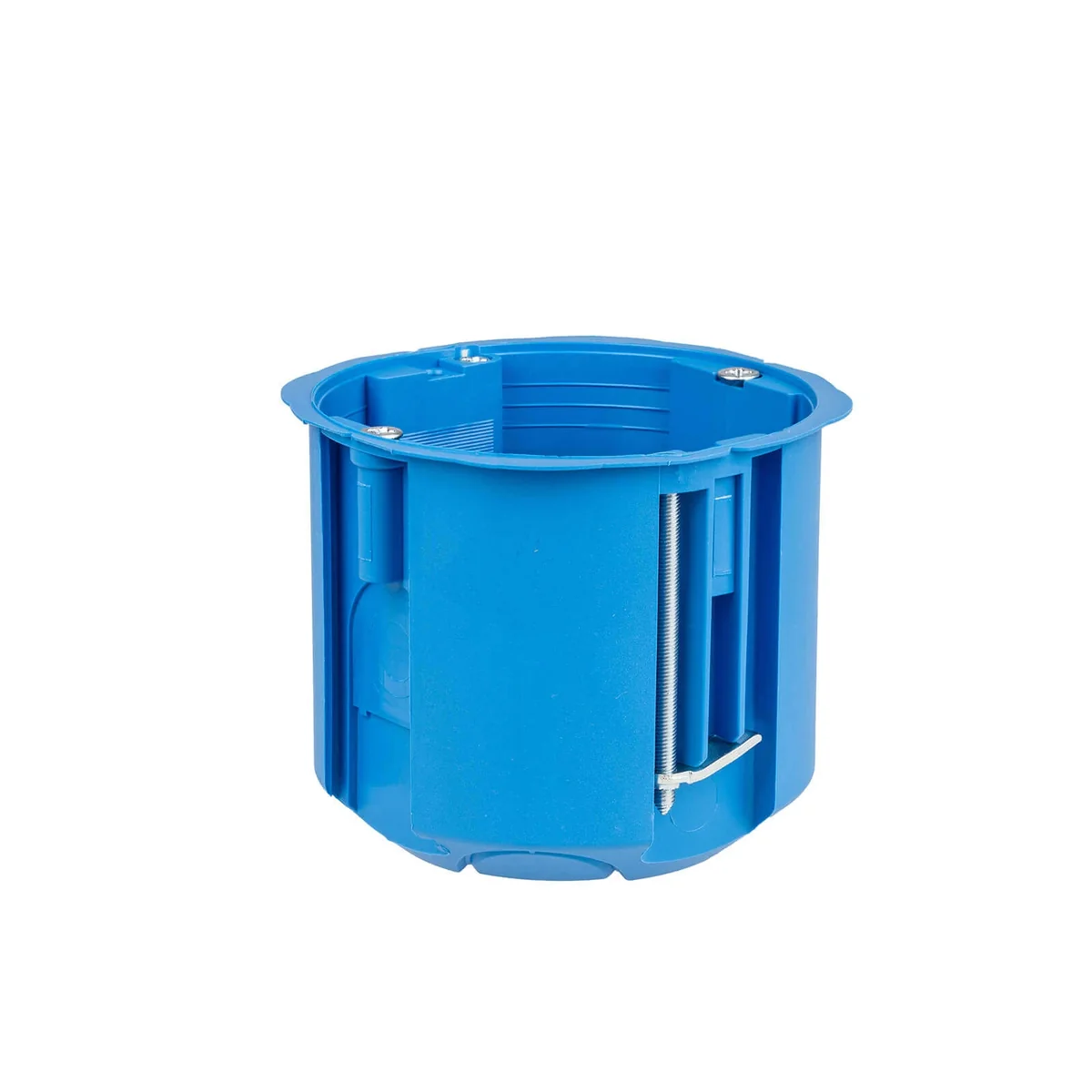

Installation box for hollow walls combined PV60D fi60 deep blue 32013203

local index:
MVP006SIME
Catalog No:
32013203
EAN code:
5907813236686
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 58.5
Color: Blue
Price:
1,60 €
gross / pcs.
(including VAT 23%)
46,11 € gross/kg.
Delivery in 3h
Accessible 1754 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

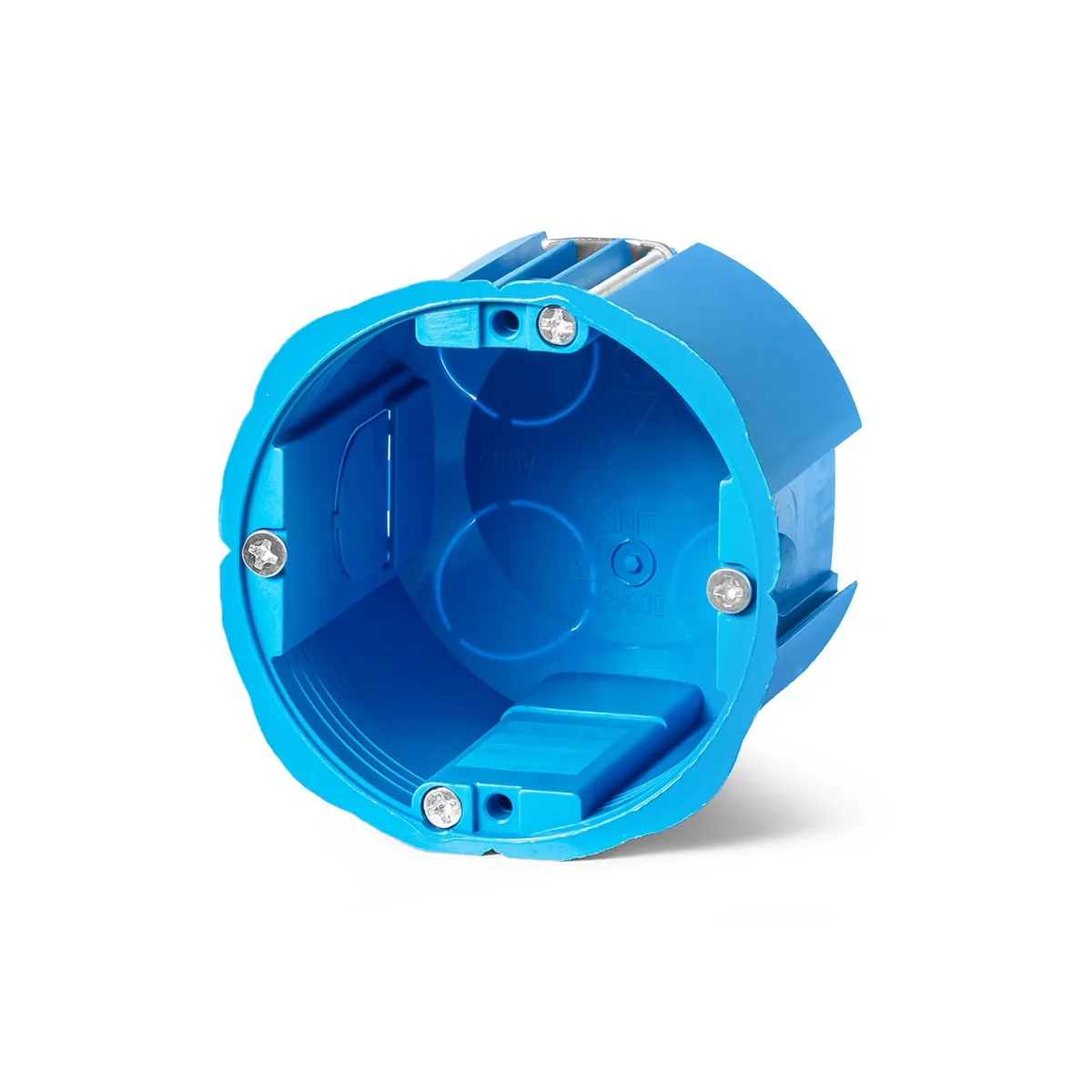

Junction box for empty walls, connected with the connector KD71.

  • Wide flange - more secure seating in the mounting hole.
  • Markers - for precise marking of the location for marking the drilling axis.
  • Wide surface - for mounting accessories with "claws".
  • Centering mark - for a step drill. < /li>
  • Easier hole punching.
  • Coupling and cover in position 316 and 317.

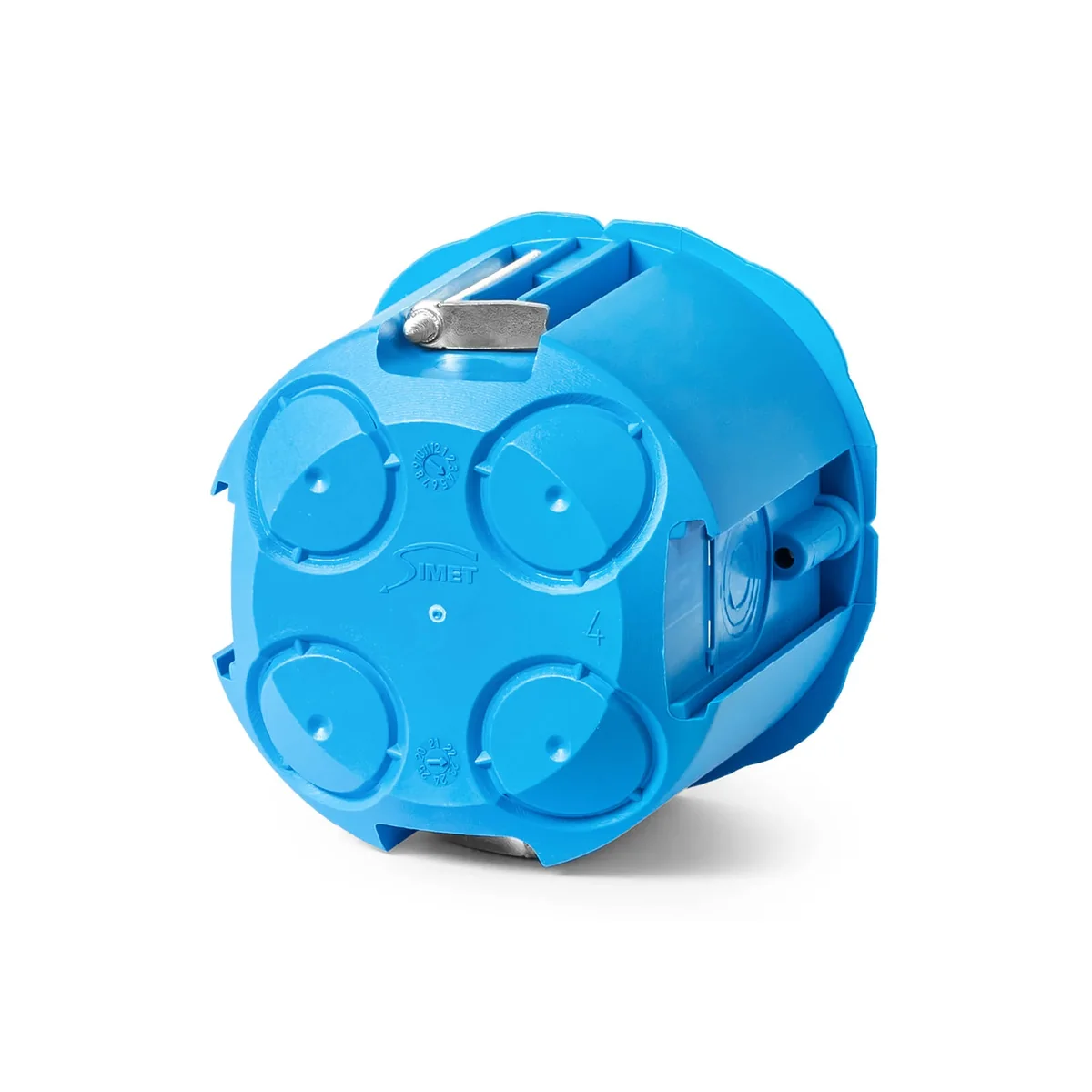

  • 5 knockouts for ø 20.
  • 4 ø 10.
  • Includes 2 screws for mounting the accessories.

Accessories matching the box:

  • PL60 cover (mounted inside - not protrudes above the box flange),

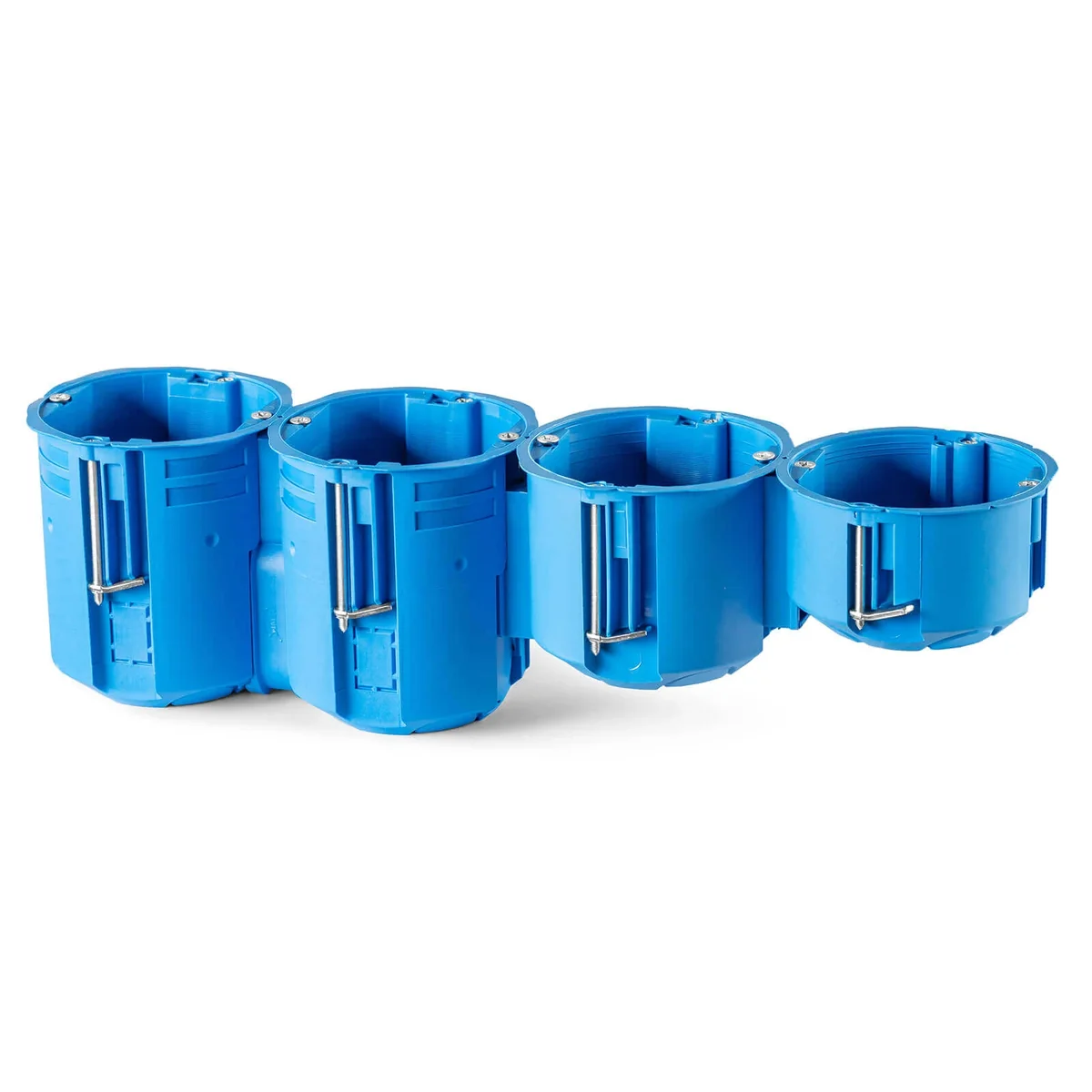

  • KD71 connector (also for connecting PV60K, PV60D, PV70, PV80 boxes),
  • PD60x30 spacer ring

Technical data

  • Halogen free
    Yes
  • Color
    Blue
  • Material
    Polyamide
  • Cover
    NO
  • Level of security
    IP20
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    34.7
  • Number of bolts/screws
    2
  • Number of segments
    1
  • Fire resistance [°C]
    960
  • Number of slots
    9
  • Exact material
    PA6
  • Depth [mm]
    58.5
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    68
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Cable junction box
  • Equipped with
    Other
  • Width
    68 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    8
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Depth
    60 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    10 ... 20 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
