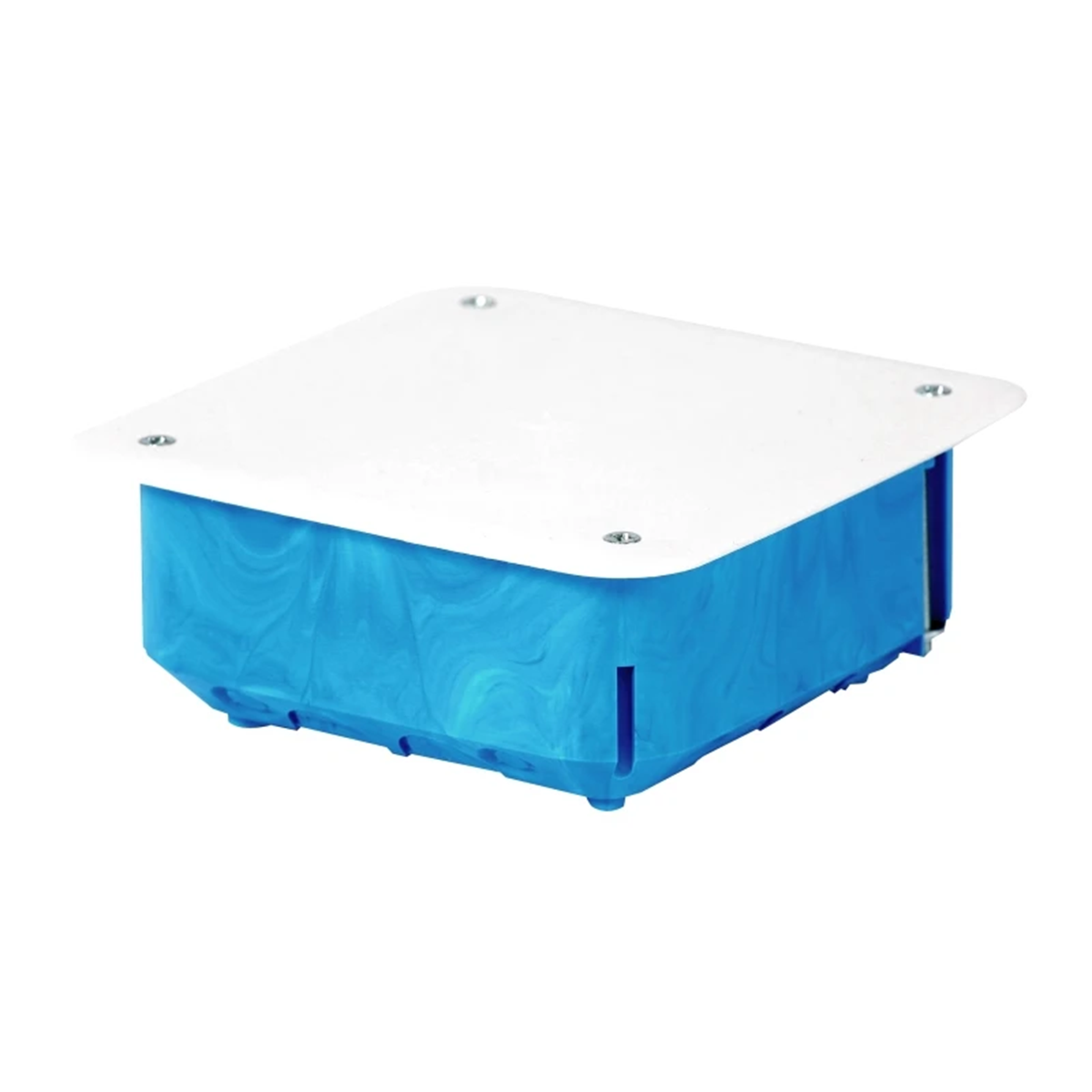

Installation box for empty walls with screwed cover P110 45x115x115mm blue 32042203

Indice locale:
MVP001SIME
Numero di catalogo:
32042203
Codice EAN:
5907813213816
Produttore: SIMET
Halogen free: Yes
Depth [mm]: 45
Color: Blue | White
Prezzo:
70,25 €
gross / conf.
(inclusa IVA 23%)
7,03 € gross/pezzi
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

P110 is a plasterboard box for placing current branches as well as electrotechnical and electronic components.

  • The box's body is made of self-extinguishing, halogen-free material.
  • A tight lid allows the box to be used also outside buildings.
  • Clips for mounting boxes in plasterboard, wood paneling and other hollow walls.

Dati tecnici

  • Halogen free
    Yes
  • Color
    Blue White
  • Material
    Polyamide
  • Cover
    Yes
  • Width [mm]
    115
  • Type
    For branch plates
  • Height [mm]
    115
  • Fire resistance
    Non-flammable
  • For modular equipment
    Not applicable
  • Exact material
    PA6
  • Depth [mm]
    45
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Pieces in the package
    10
  • Weight [g]
    91
  • Self-extinguishing
    Yes
  • Fire resistance [°C]
    960
  • Number of slots
    16
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Mounting method
    Hollow wall
  • Construction type
    Cable junction box
  • Equipped with
    Other
  • Width
    115 mm
  • For number of electric fittings
    1
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    10 ... 20 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Rectangular
  • Model
    Single
  • Length
    115 mm
  • Depth
    45 mm
  • With screws
    No
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    16
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Dettagli del produttore

  • Produttore
    SIMET S.A.
  • Indirizzo
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska
