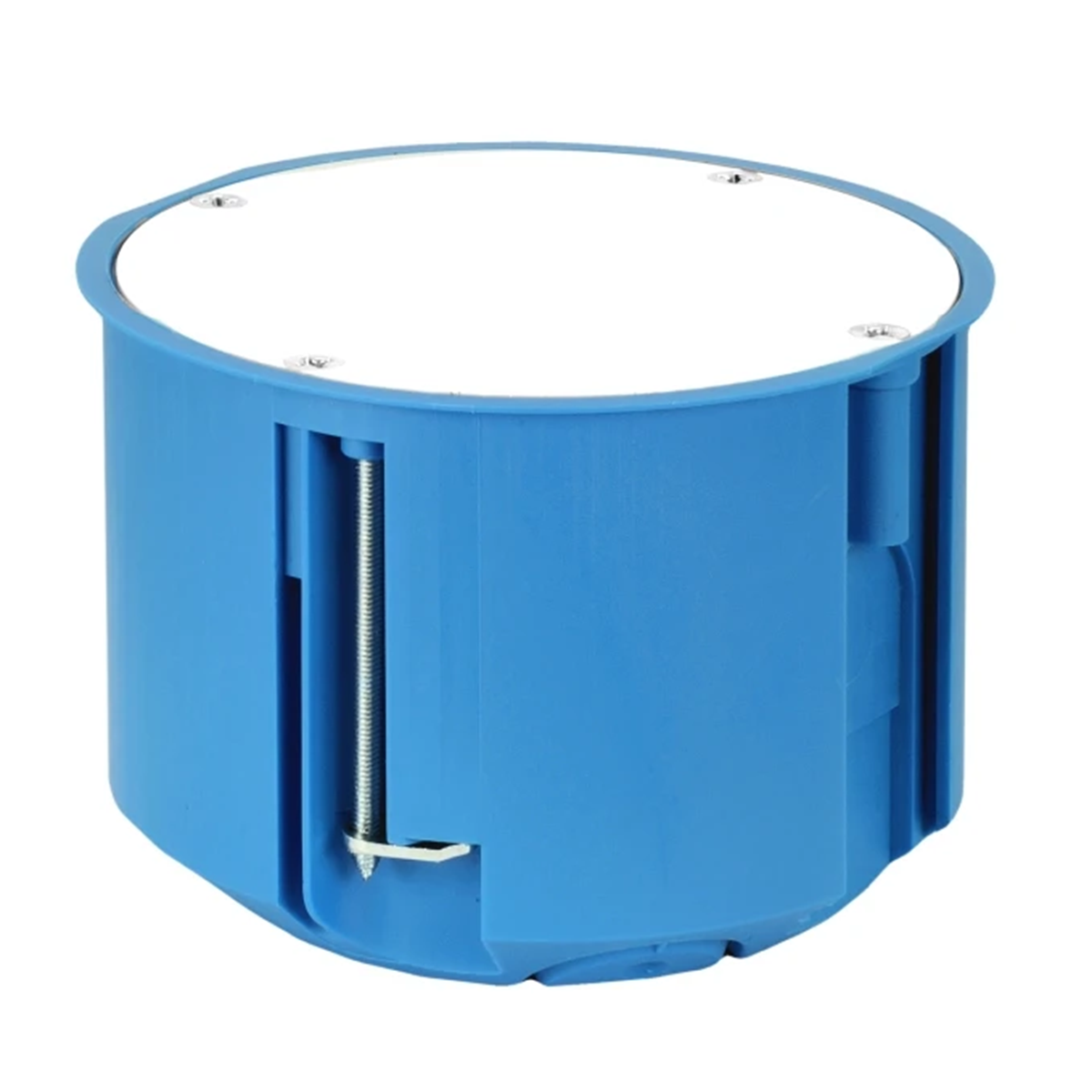

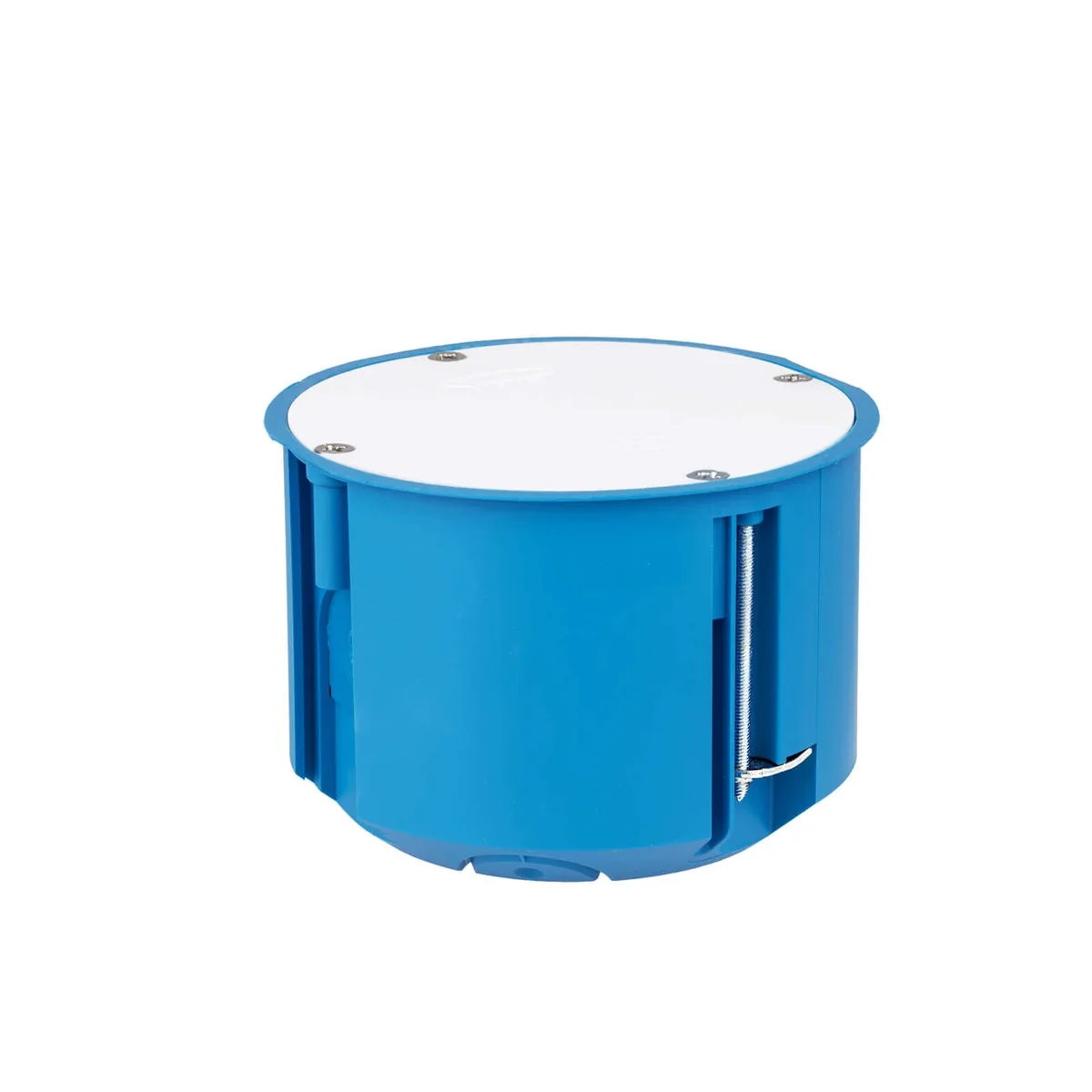

Installation box for empty walls with cover PV80 fi80mm blue 32087203

local index:
MVP011SIME
Catalog No:
32087203
EAN code:
5907813218668
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 58.5
Color: Blue | White
Price:
22,36 €
gross / pkg.
(including VAT 23%)
2,24 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

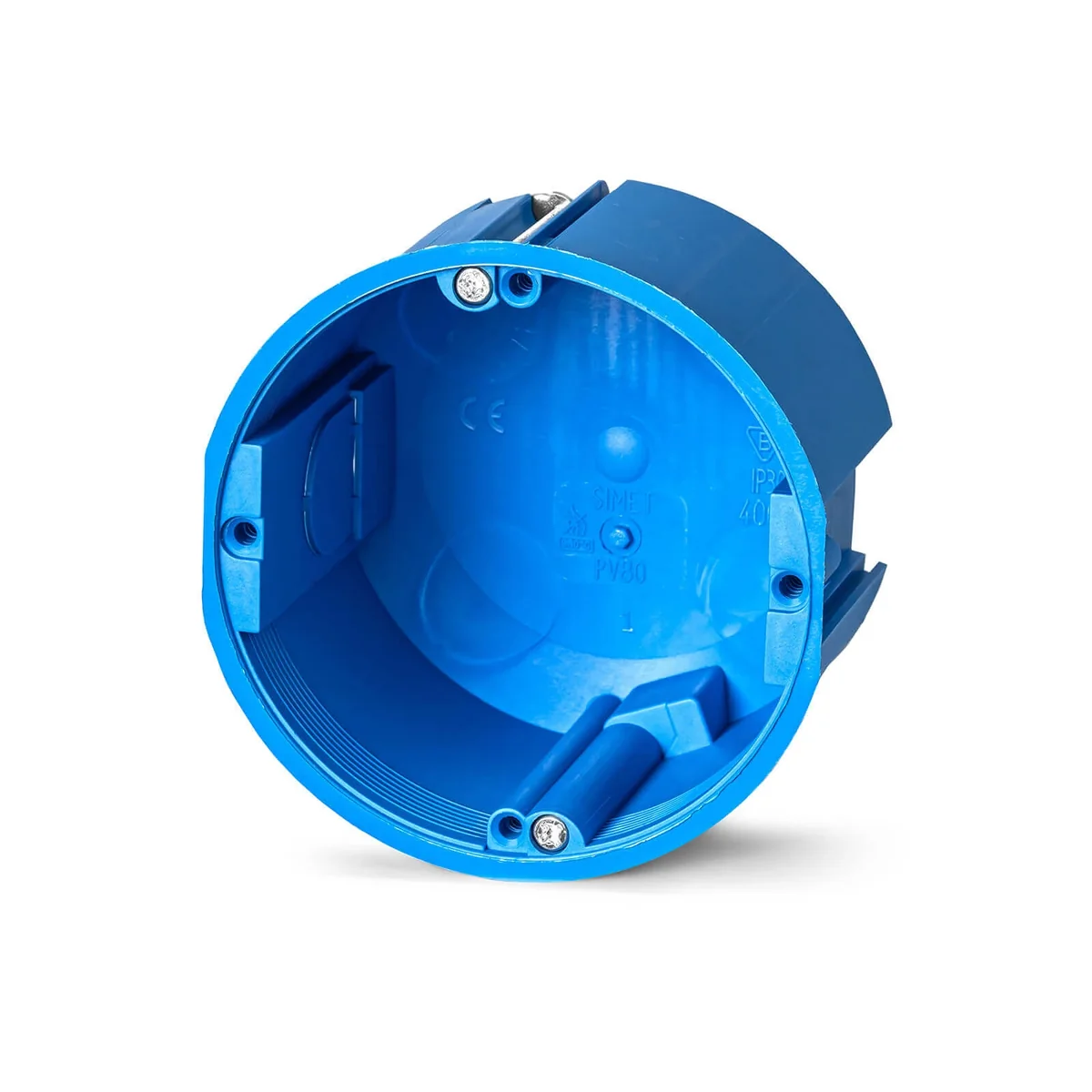

Installation boxfor empty plasterboard walls.

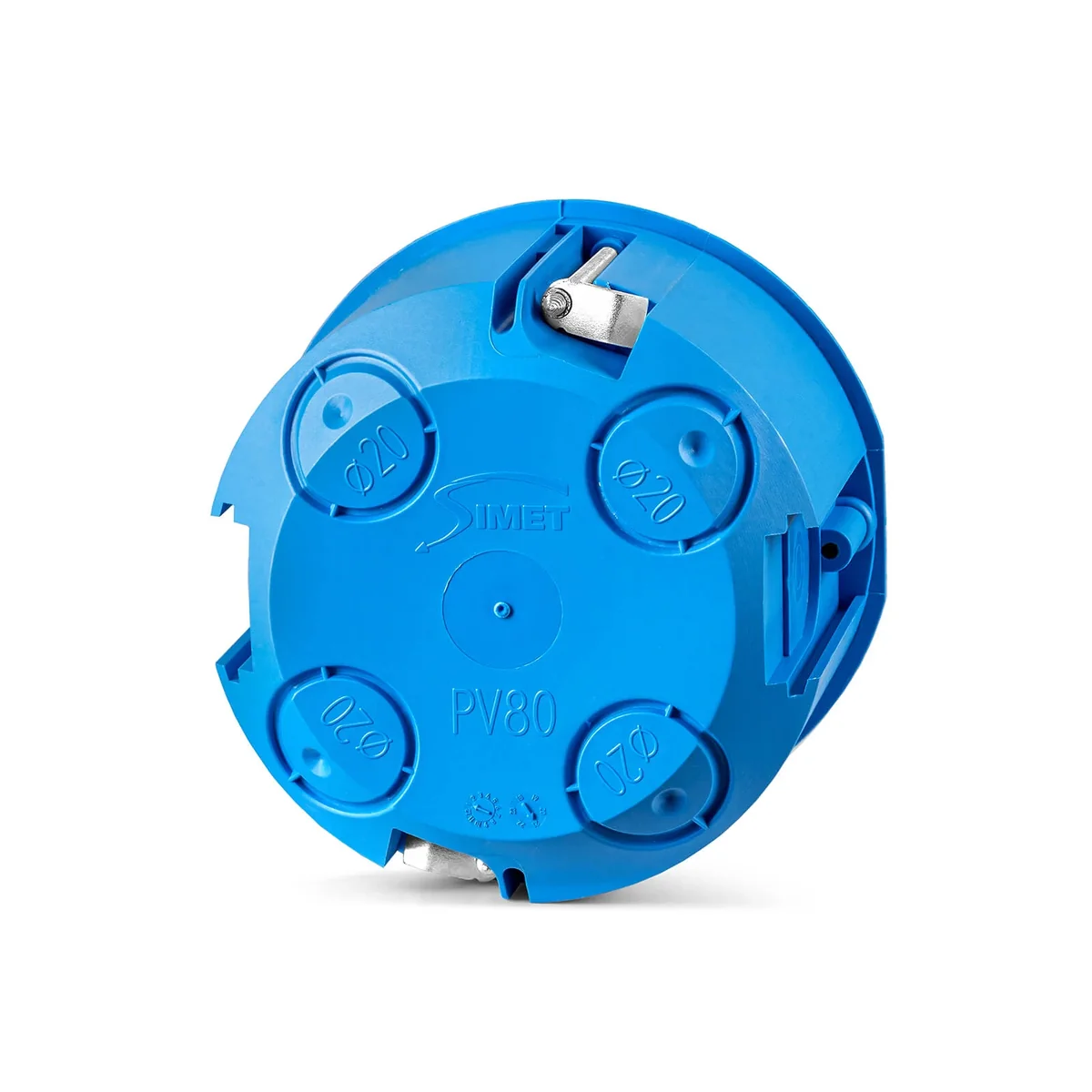

  • 4 knockouts for ø 20 pipes.
  • The set includes a protective cover screwed with 4 acid-resistant screws.

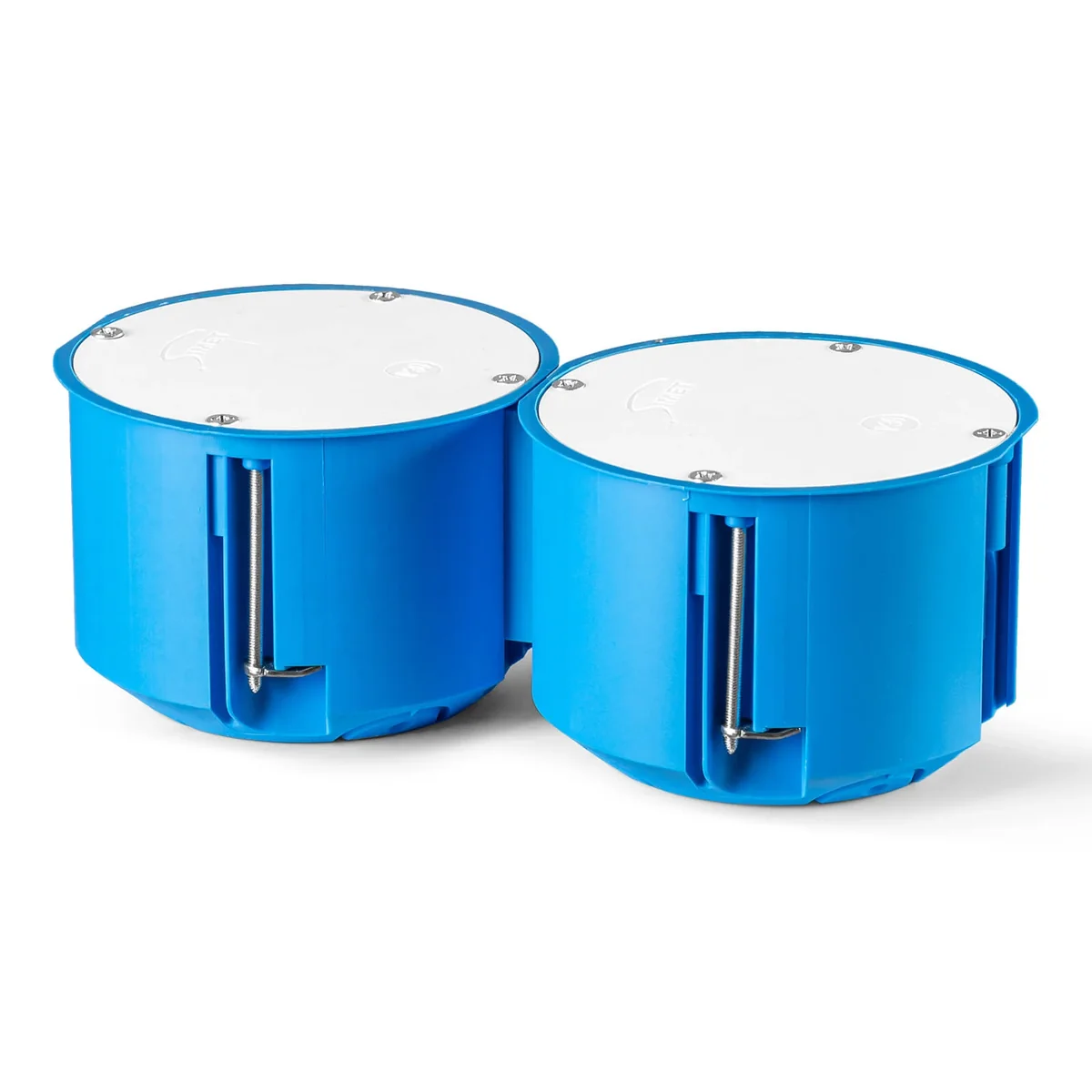

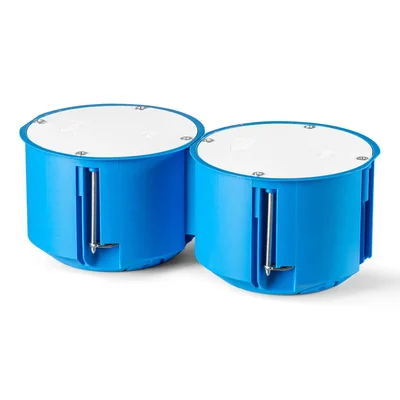

  • The box can be combined into sets with the kD71 connector.
  • The screwed cover enters the inside of the box at the level of the upper flange.
  • Connected with the KD71 connector.
  • Branching.

Technical data

  • Halogen free
    Yes
  • Color
    Blue White
  • Material
    Polyamide
  • Cover
    Yes
  • Level of security
    IP30
  • Pieces in the package
    10
  • Weight [g]
    83
  • Number of bolts/screws
    4
  • Number of segments
    1
  • Fire resistance [°C]
    960
  • Number of slots
    4
  • Exact material
    PA6
  • Depth [mm]
    58.5
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    83
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    80
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Width
    83 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    4
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
  • Shape
    Round
  • Model
    Single
  • Diameter
    80 mm
  • Depth
    60 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
