Installation box for empty walls with a screwed inner cover P70F fi70mm orange 33242008

Name: Installation box for empty walls with a screwed inner cover P70F fi70mm orange
Brand: SIMET
SKU: MVP039SIME
Price: 6.43 PLN
Availability: BackOrder

Índice local:

MVP039SIME

Número de catálogo:

33242008

Código EAN:

5907813218842

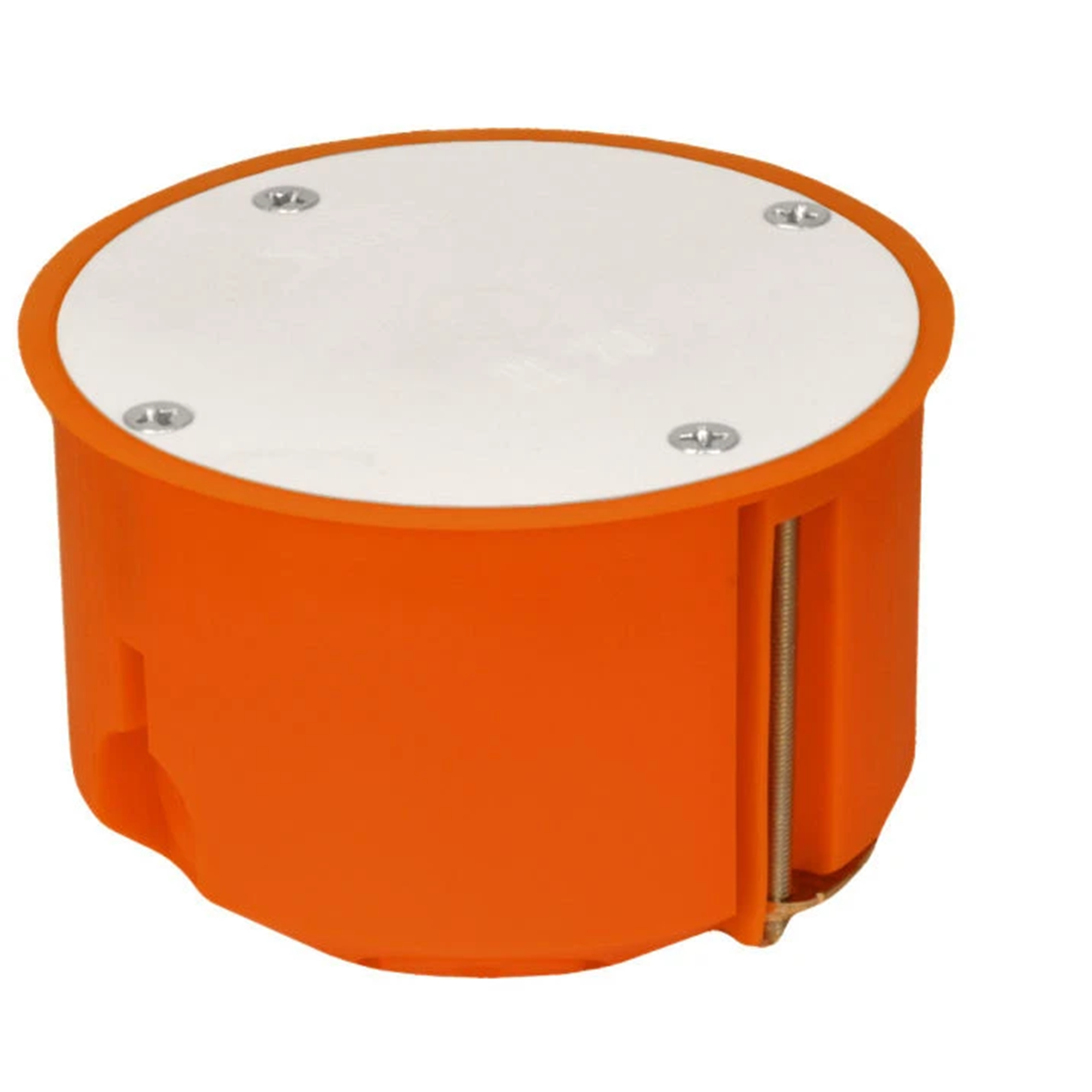

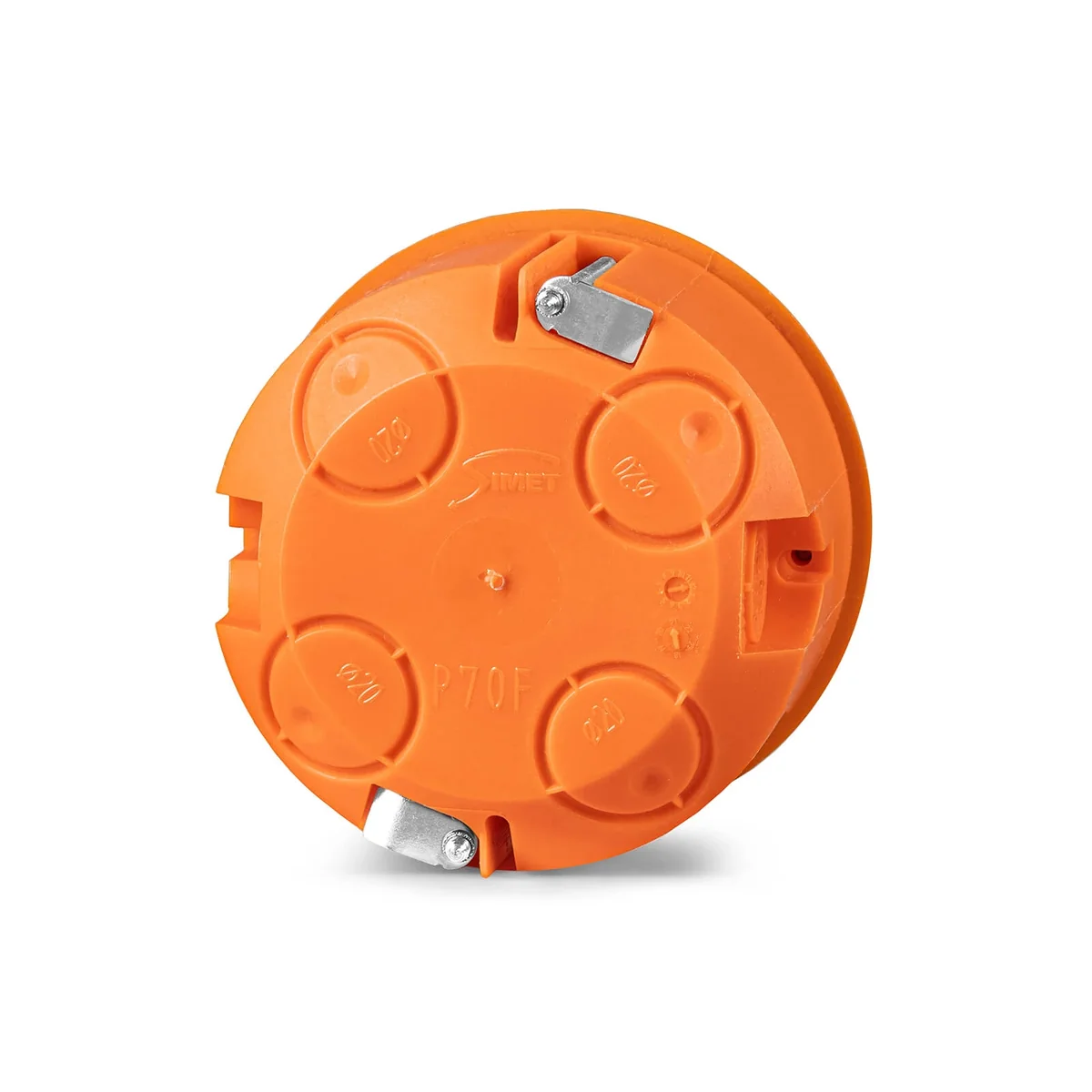

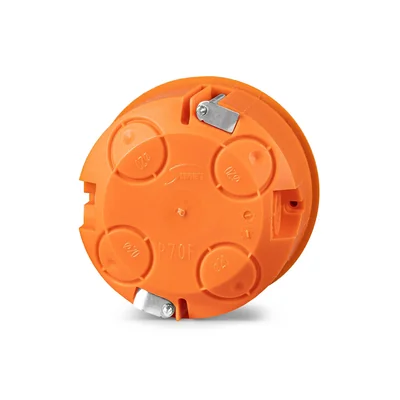

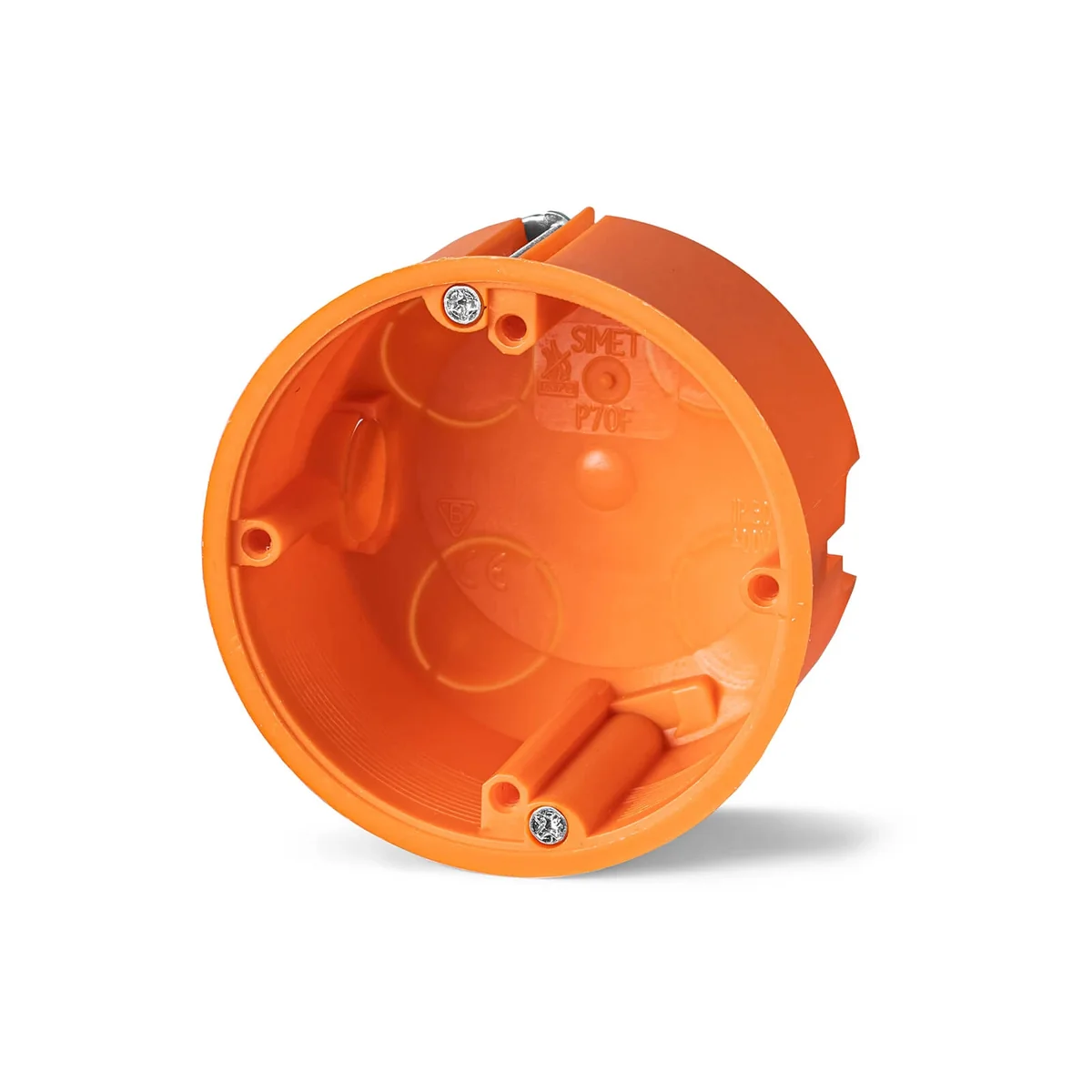

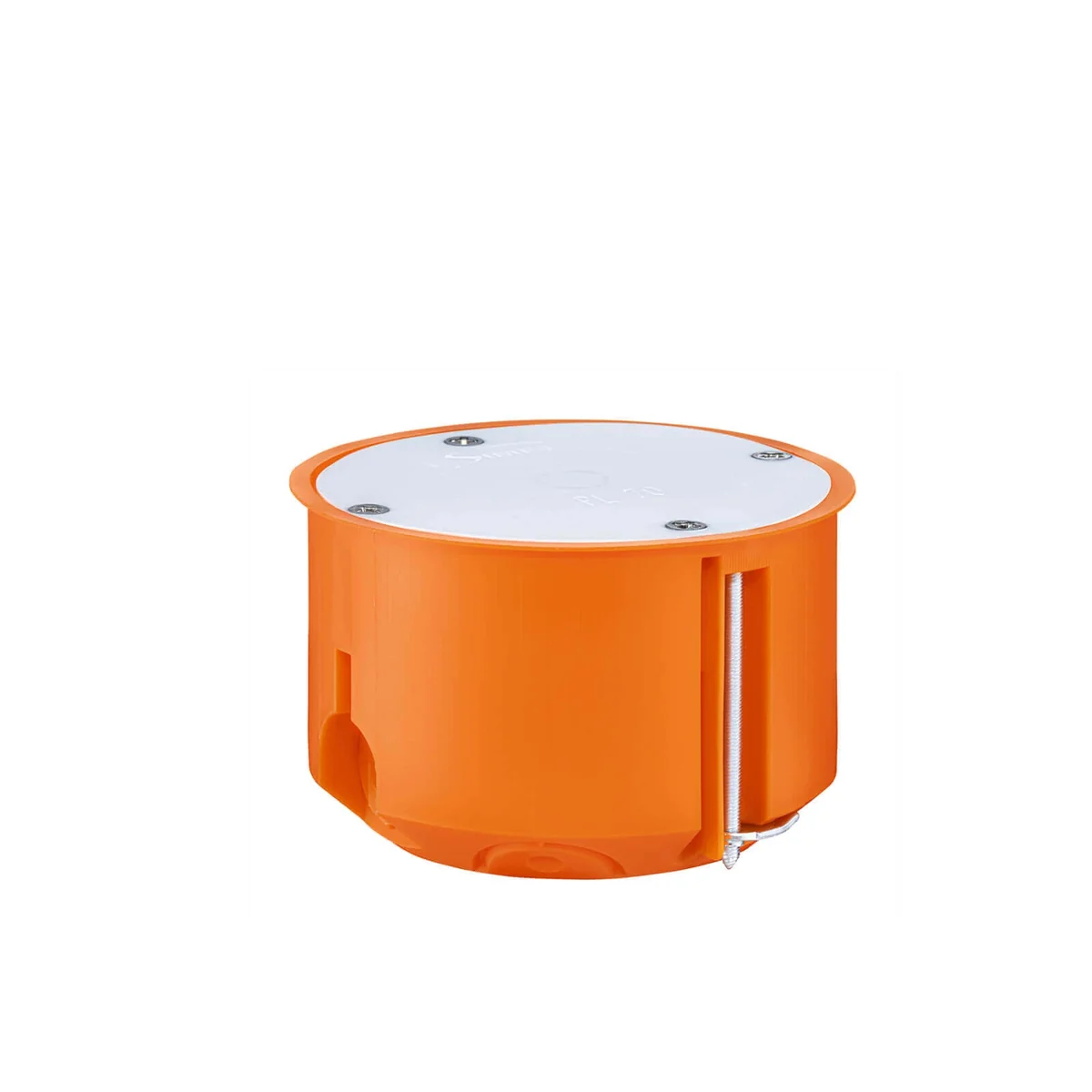

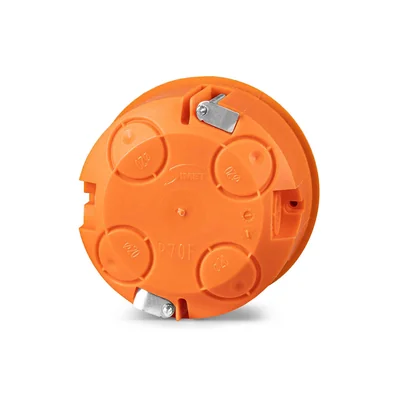

Installation box for empty walls with a screwed inner cover P70F fi70mm orange

Haga clic en la foto para ampliar

Fabricante: SIMET

Depth [mm]: 48

Color: Orange | White

Shape: Round

Ver descripción completa

Precio:

6,43 zł

gross / uds.

(IVA incluido 23%)

174,73 zł gross/kg.

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Archivos para descargar

Descripción del producto

Recessed box with cover.

4 knockouts for ø 20mm.
2 knockouts for ø 16mm.
The set includes a protective cover screwed with 4 acid-proof screws.
The box has 2 special knockouts for passing cables between two boxes located next to each other using the ø 16mm.

Datos técnicos

Depth [mm]

48
Shape

Round
Installation

Flush-mounted
Type

For plasterboards
Type

For attachments
Self-extinguishing

Yes
Fire resistance

Non-flammable
Flammability class

V2
For modular equipment

Not applicable
Attachment diameter [mm]

70

Color

Orange White
Material

PP
Cover

Yes
Width [mm]

73
Weight [g]

36.8
Number of bolts/screws

4
Number of segments

1
Fire resistance [°C]

850
Number of slots

6
PKWIU

27.33.13.0

Otros datos técnicos

Mounting method

Hollow wall
Construction type

Built-in installation box (device box)
Equipped with

Other
Width

73 mm
For number of electric fittings

1
With screws

Yes
For tube diameter

20 mm
Pipe locking

No
Number of inlets

6
Halogen free

No
Colour

Orange
Cover attachment

Screwed
Circuit integrity

None
Air tight

No
Luminaire hook mounting

No
Z zaczepami pazurkowatymi

Yes

Shape

Round
Model

Single
Diameter

70 mm
Depth

47 mm
Mounting switching equipment

Screwing
Type of housing feed-through

Preembossing
Suitable for cable diameter

16 ... 20 mm
Inlet from the rear

Yes
Material

Plastic
Surface protection

Other
Pokrywa

Nieprzezroczyste
Sealable

No
With screening

No
Clamp position fixed

No
Nozzle

None

Detalles del fabricante

Fabricante

SIMET S.A.
Dirección

58-506 Jelenia Góra al. Jana Pawła II 33 Polska
Email

sprzedaz@simet.com.pl

Archivos para descargar

8631-pl.pdf
