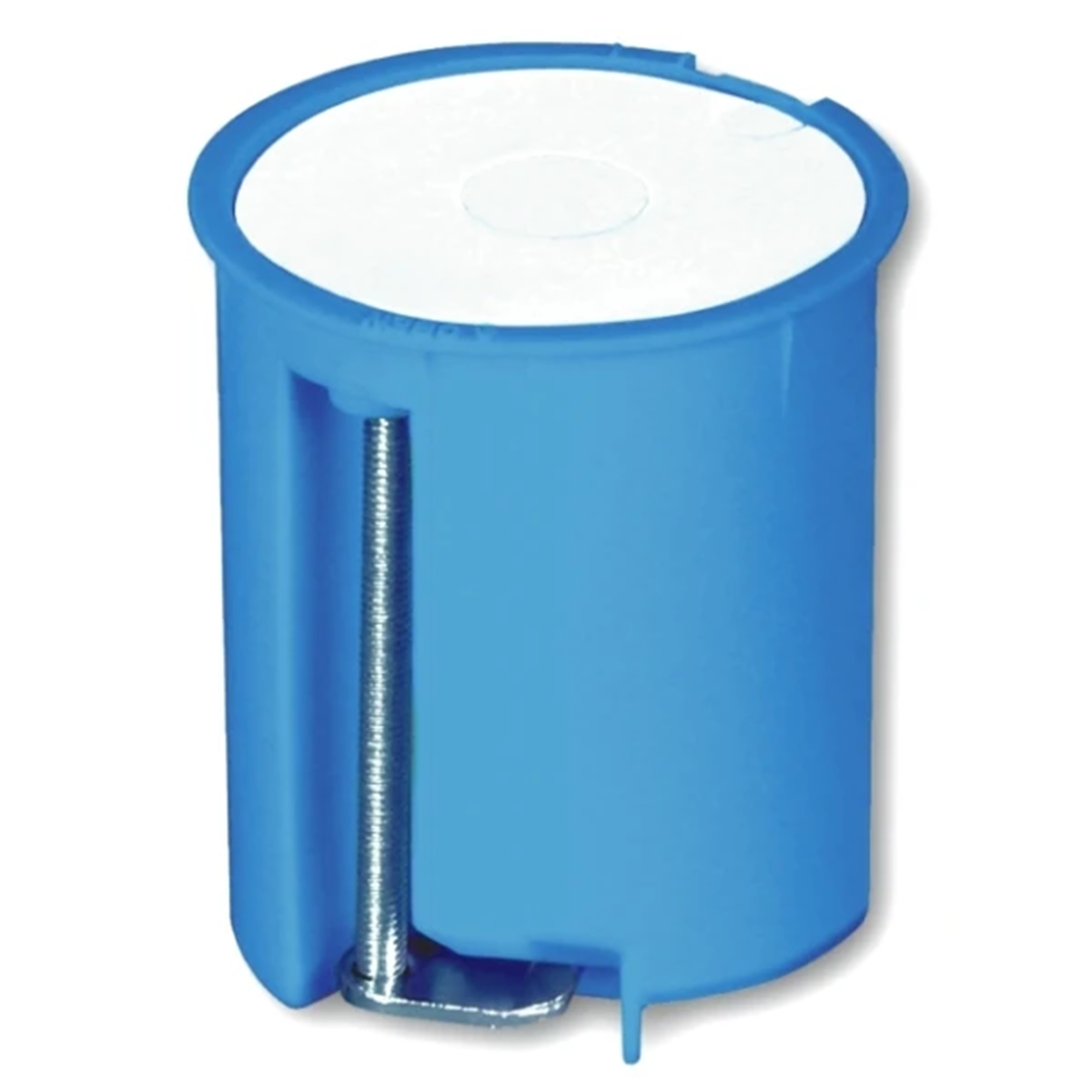

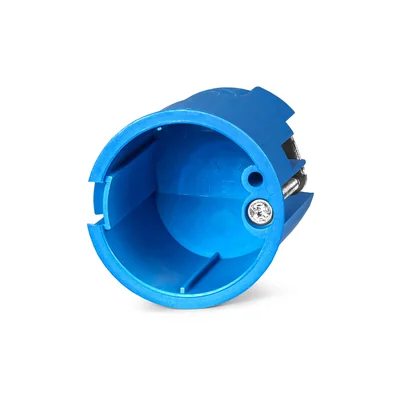

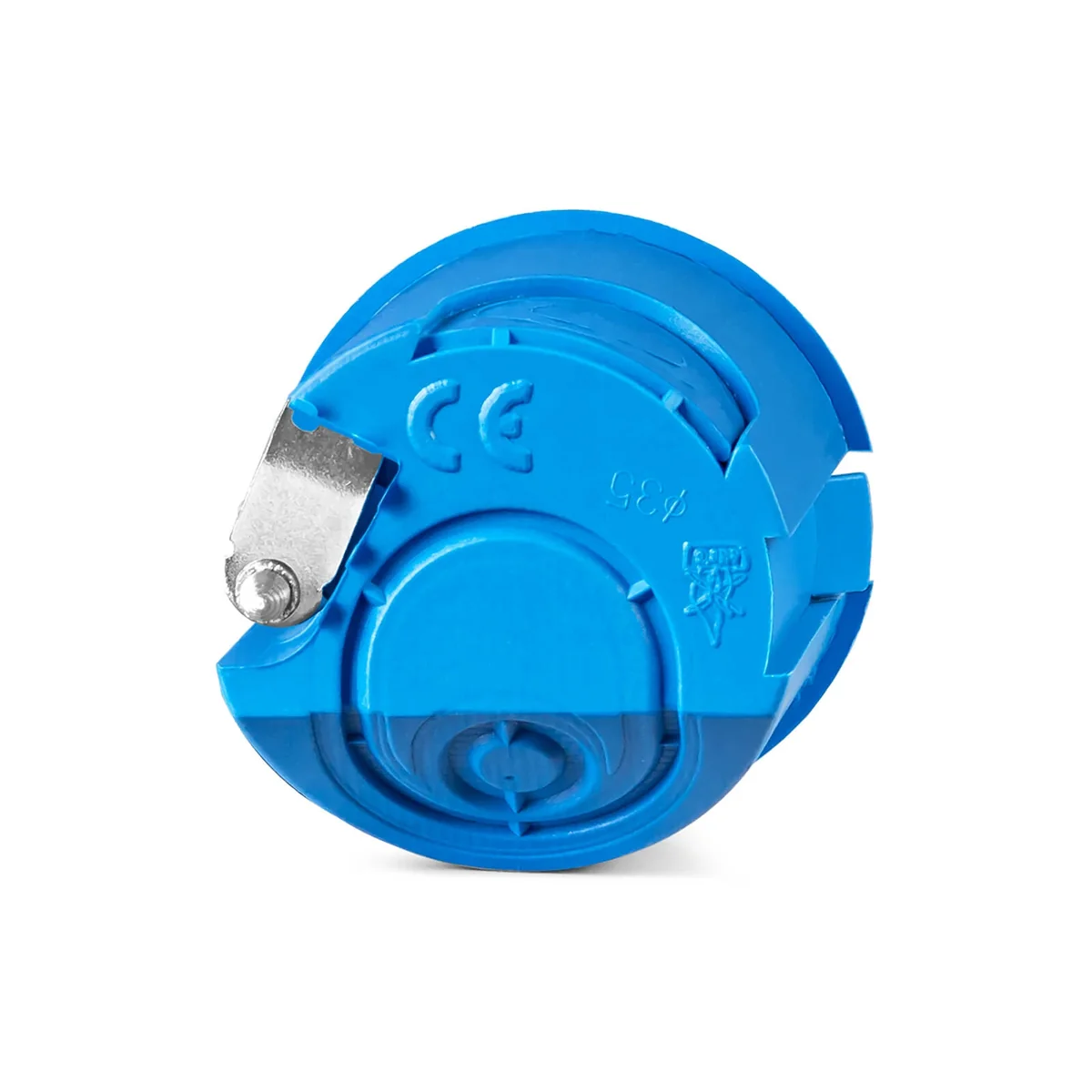

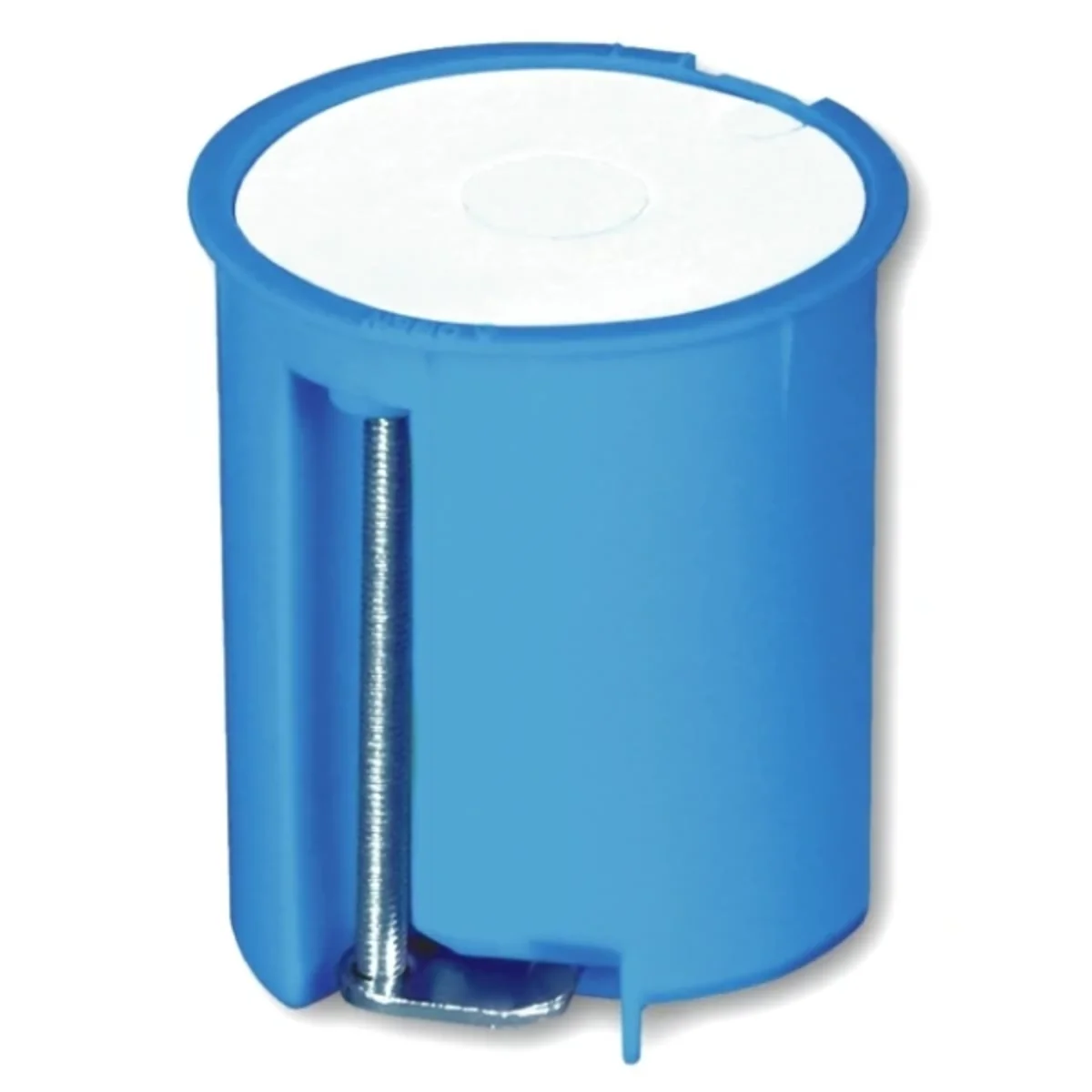

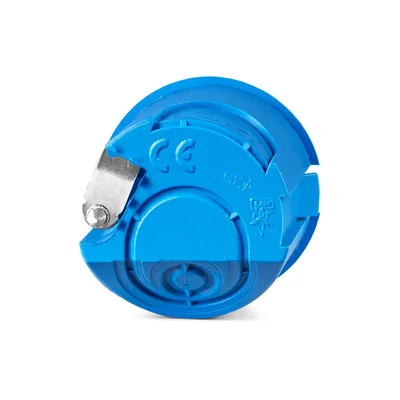

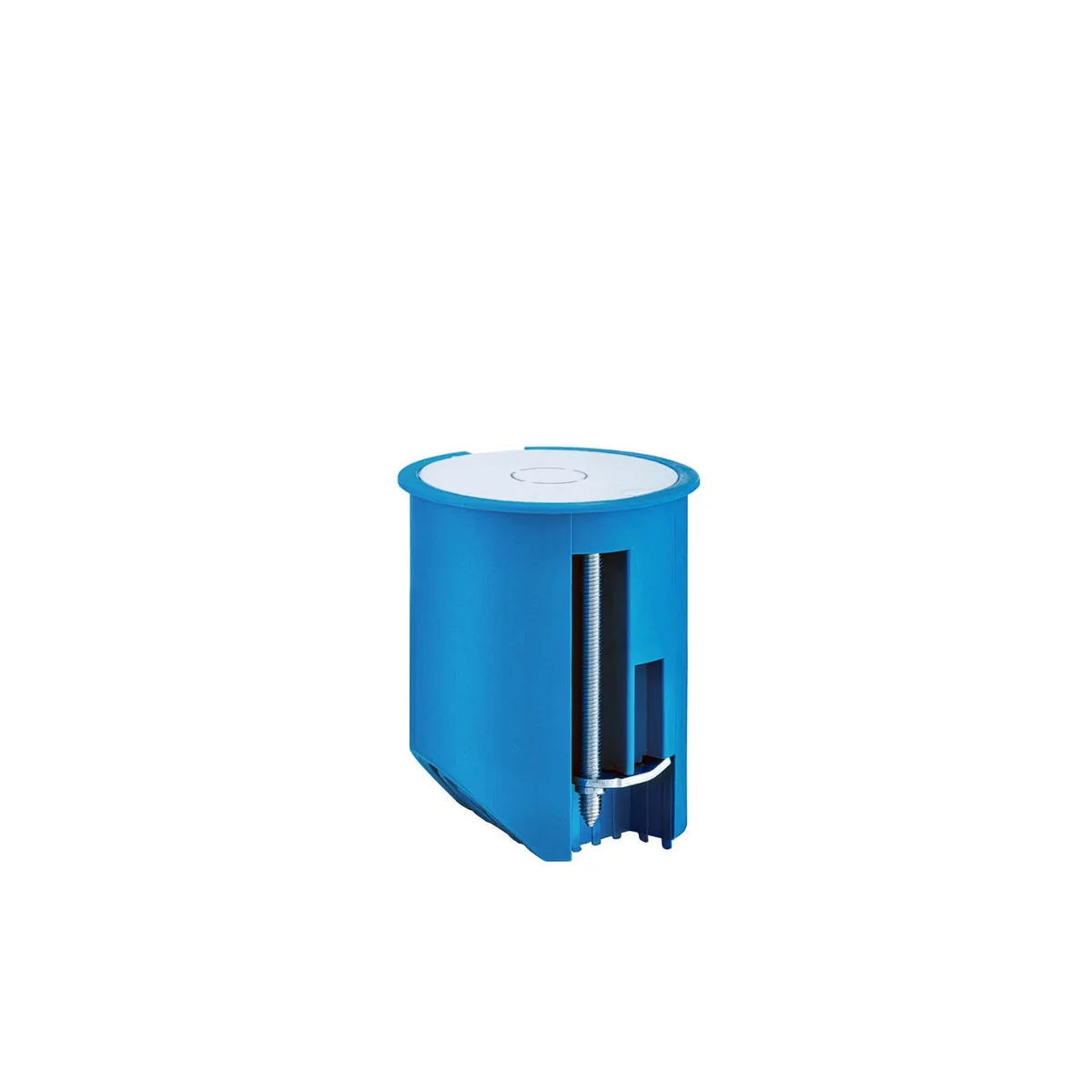

Installation box for empty walls P32 fi32mm sconce blue 32020203

local index:
MVP008SIME
Catalog No:
32020203
EAN code:
5907813229213
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 44
Color: Blue | White
Price:
1,35 €
gross / pcs.
(including VAT 23%)
112,50 € gross/kg.
Delivery in 3h
Accessible 236 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Sconce box – is the smallest of the range of electrical installation boxes. Adapted for installation in plasterboard walls for leading out and branching wires to connect lighting, or leading them outside. It is also used in embedding motion detectors, smoke detectors, cameras, etc. Embedded in a mounting hole with a diameter of 35mm.

  • Holders for embedding boxes in plasterboard, wood paneling and other walls.
  • < li>Attenuation in the bottom for inserting pipes and wires (max. 20mm).
  • Press-fitted cover with a weakening for leading out wires.

Technical data

  • Halogen free
    Yes
  • Color
    Blue White
  • Material
    Polyamide
  • Cover
    Yes
  • Width [mm]
    38
  • Weight [g]
    12
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    35
  • PKWIU
    27.33.13.0
  • Depth [mm]
    44
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Number of segments
    1
  • Fire resistance [°C]
    960
  • Number of slots
    1
  • Exact material
    PA6

Other technical data

  • Mounting method
    Hollow ceiling
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Width
    35 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    1
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Snapped on
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
  • Shape
    Round
  • Model
    Single
  • Diameter
    32 mm
  • Depth
    45 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
