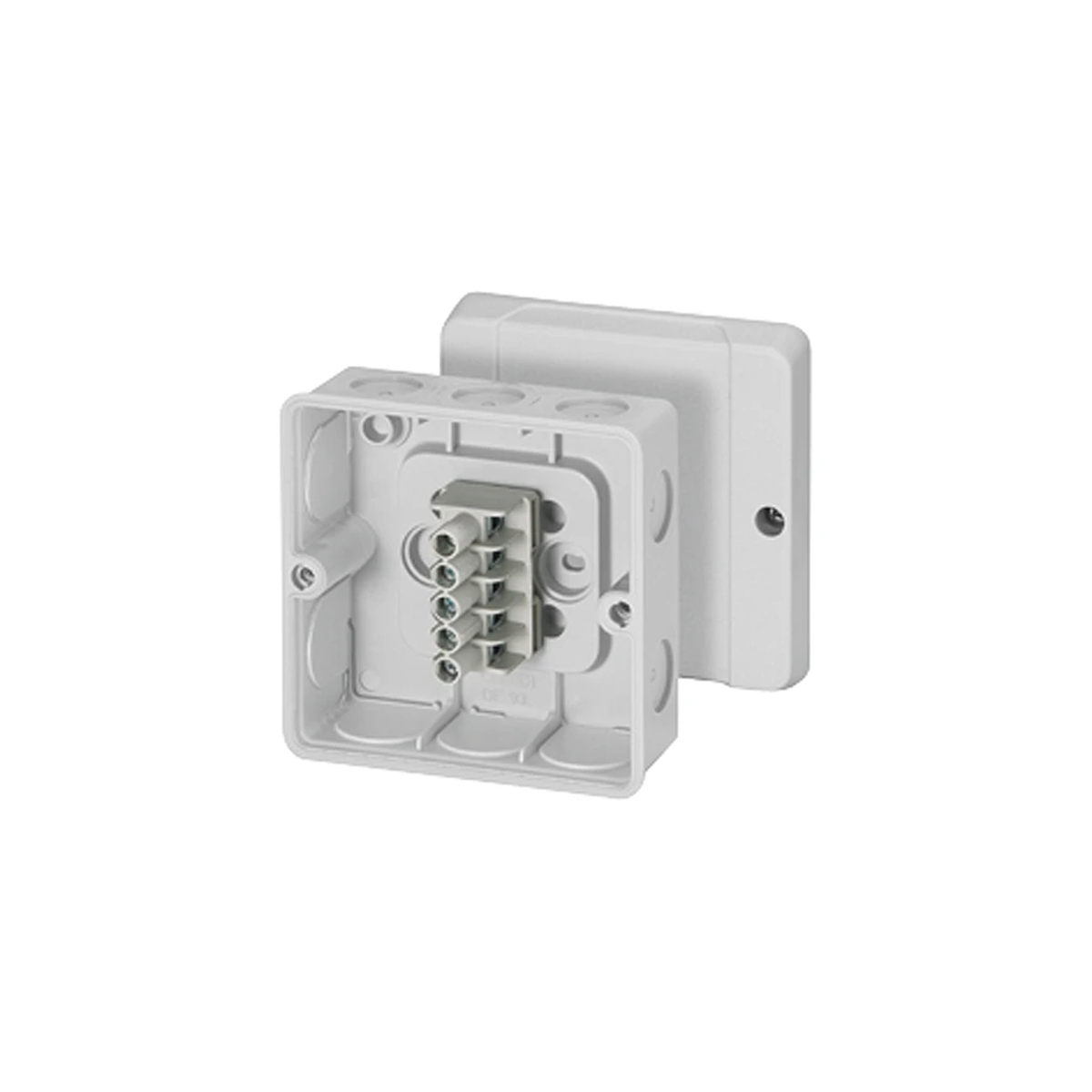

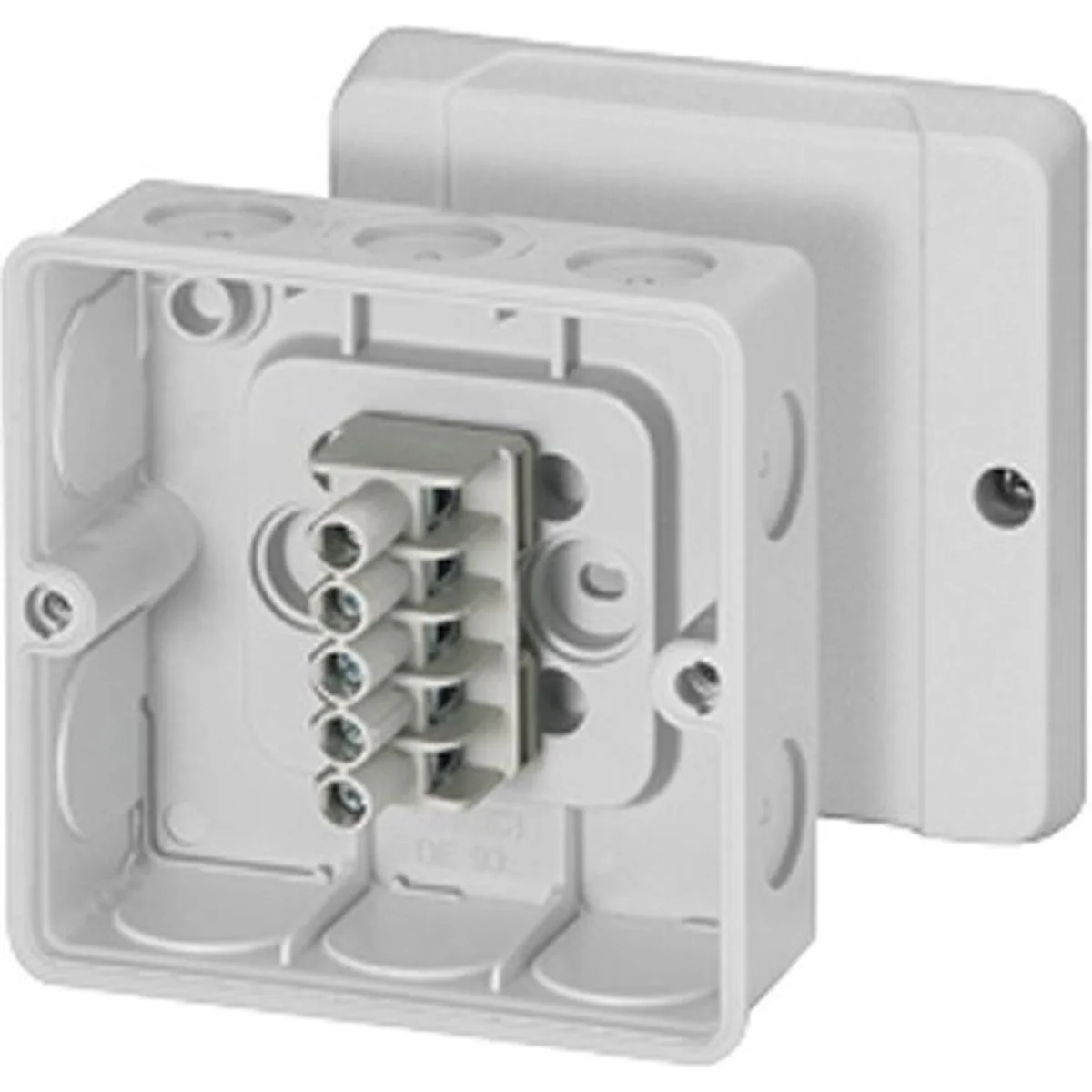

Indoor installation box DE 9345 membrane glands with terminals 5-pole 4mm2 Cu IP55 gray 62000268

local index:
MVN023HENS
Catalog No:
62000268
EAN code:
4012591602729
Manufacturer: HENSEL
Depth [mm]: 55
Color: Gray
Shape: Square
Price:
9,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Junction box with flexible membranes

  • 1.5-4 mm², Cu 3~
  • With screw terminals
  • 5 poles, for each pole 6 x 1.5 mm² g, 4 x 2.5mm² g, 3 x 4 mm² g, 2 x 6mm² g
  • 11 integrated diaphragm glands, closed glands, sealing range Ø 6–18 mm
  • With integrated membrane gland in the bottom of the box (sealing range Ø 6–18 mm)
  • With two cable fixing brackets, for cable ties up to 6 mm wide, 5mm

Technical data

  • Depth [mm]
    55
  • Shape
    Square
  • Tightening torque [Nm]
    1.2
  • Rated insulation voltage [V]
    690
  • Type
    Wall-mounted
  • Width [mm]
    98
  • Height [mm]
    98
  • Fire resistance
    Not applicable
  • With terminal strip
    Yes
  • Terminals [mm²]
    1.5-4
  • Color
    Gray
  • Material
    PP
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Level of security
    IP55
  • Type
    branching
  • Sealing range [mm]
    6-18
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    11
  • PKWIU
    27.33.13.0
