Indoor installation box DE 9326 membrane glands with terminals 5-pole 2.5 mm2 Cu IP55 white 62000270
local index:
MVN025HENS
Catalog No:
62000270
EAN code:
4012591603320
Price:
7,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

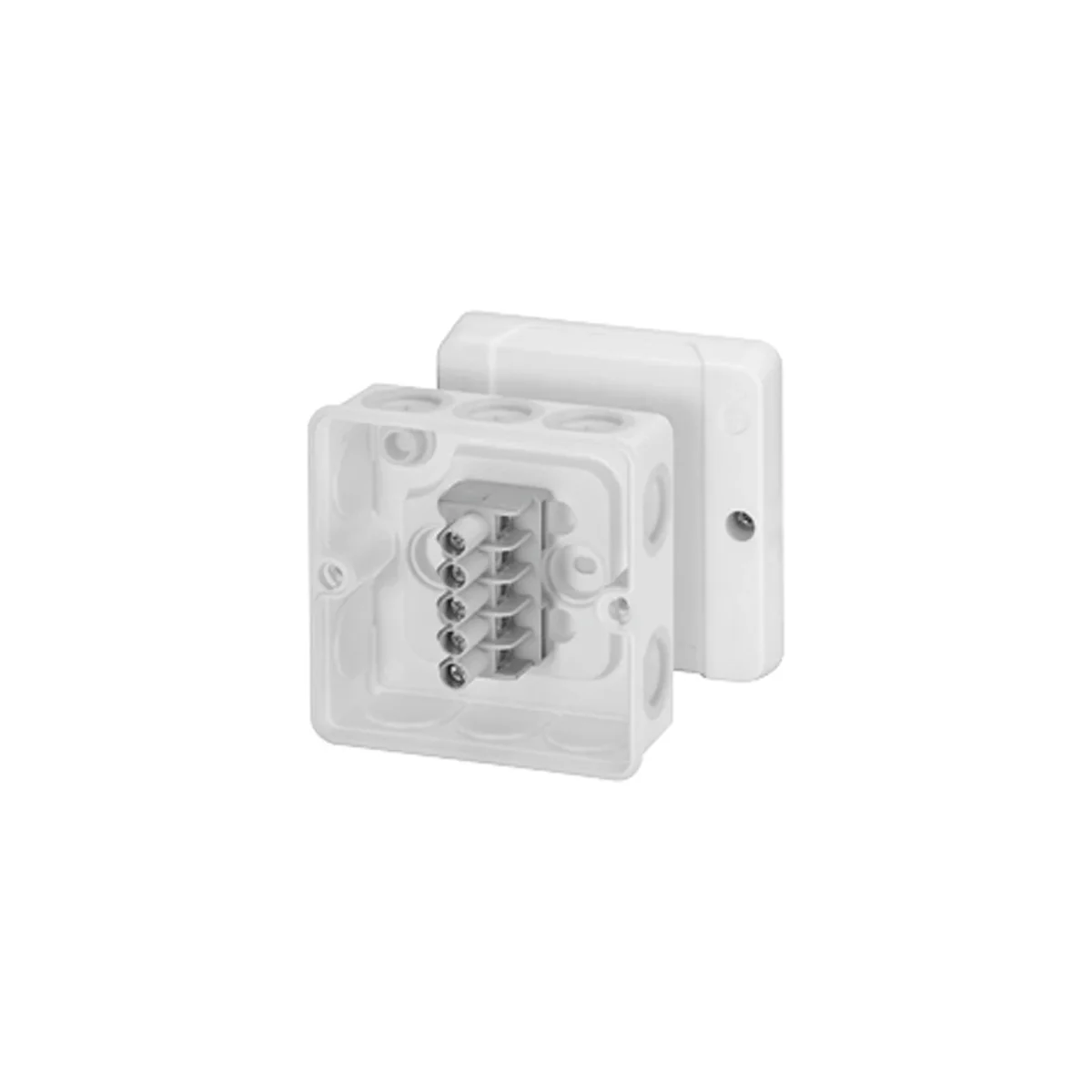

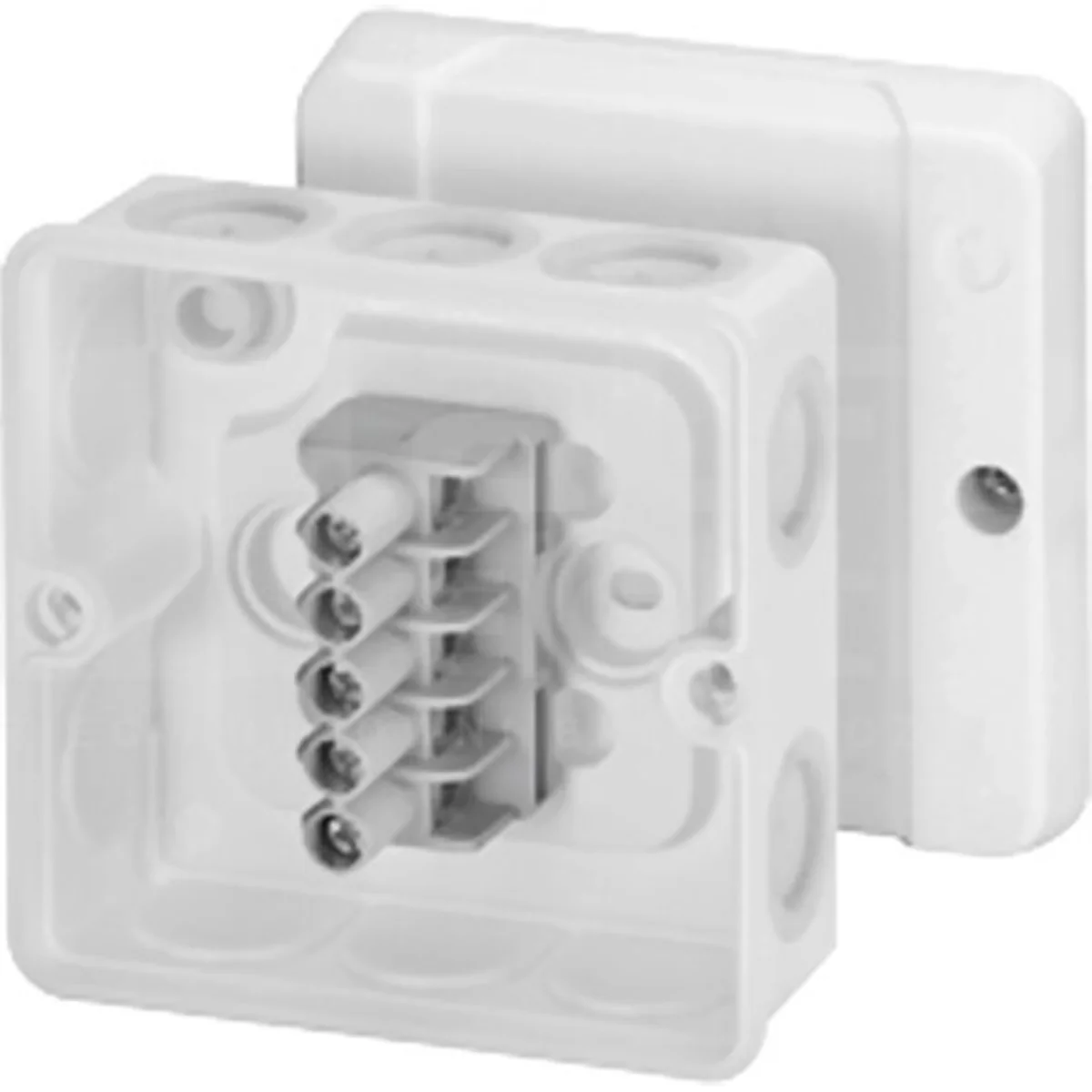

Junction box with flexible membranes
- 1.5-2.5 mm², Cu 3~
- With screw terminals< /li>
- 5 poles, for each pole 6 x 1.5 mm² g, 4 x 2.5mm² g, 3 x 4 mm² g
- 11 integrated membrane glands (Ø sealing range 6-16 mm)
- With integrated membrane gland in the bottom of the box (Ø sealing range 6-16 mm)
- With two cable clamping brackets, for cable ties up to 6.5 mm wide
Technical data
-
Depth [mm]50
-
ShapeSquare
-
Tightening torque [Nm]1.2
-
Rated insulation voltage [V]690
-
TypeWall-mounted
-
Width [mm]88
-
Height [mm]88
-
Fire resistanceNot applicable
-
With terminal stripYes
-
Terminals [mm²]1.5-2.5
-
ColorWhite
-
MaterialPP
-
InstallationSurface-mounted
-
CoverYes
-
Level of securityIP55
-
Typebranching
-
Sealing range [mm]6-16
-
For modular equipmentNot applicable
-
Number of stuffing boxes11
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerGustav Hensel GmbH & Co. KG
-
Address57368 Lennestadt Gustav-Hensel-Str 6 Niemcy
-
