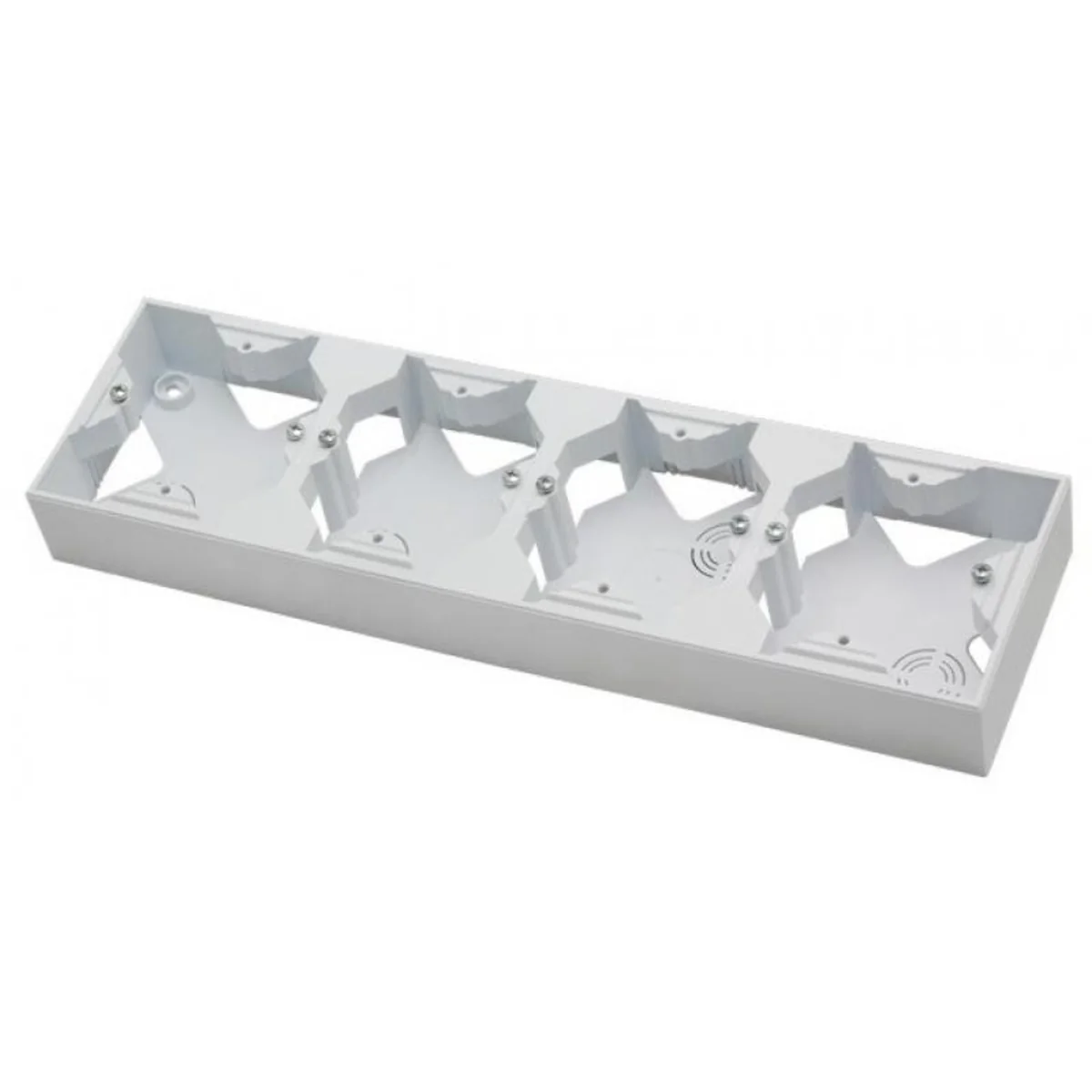

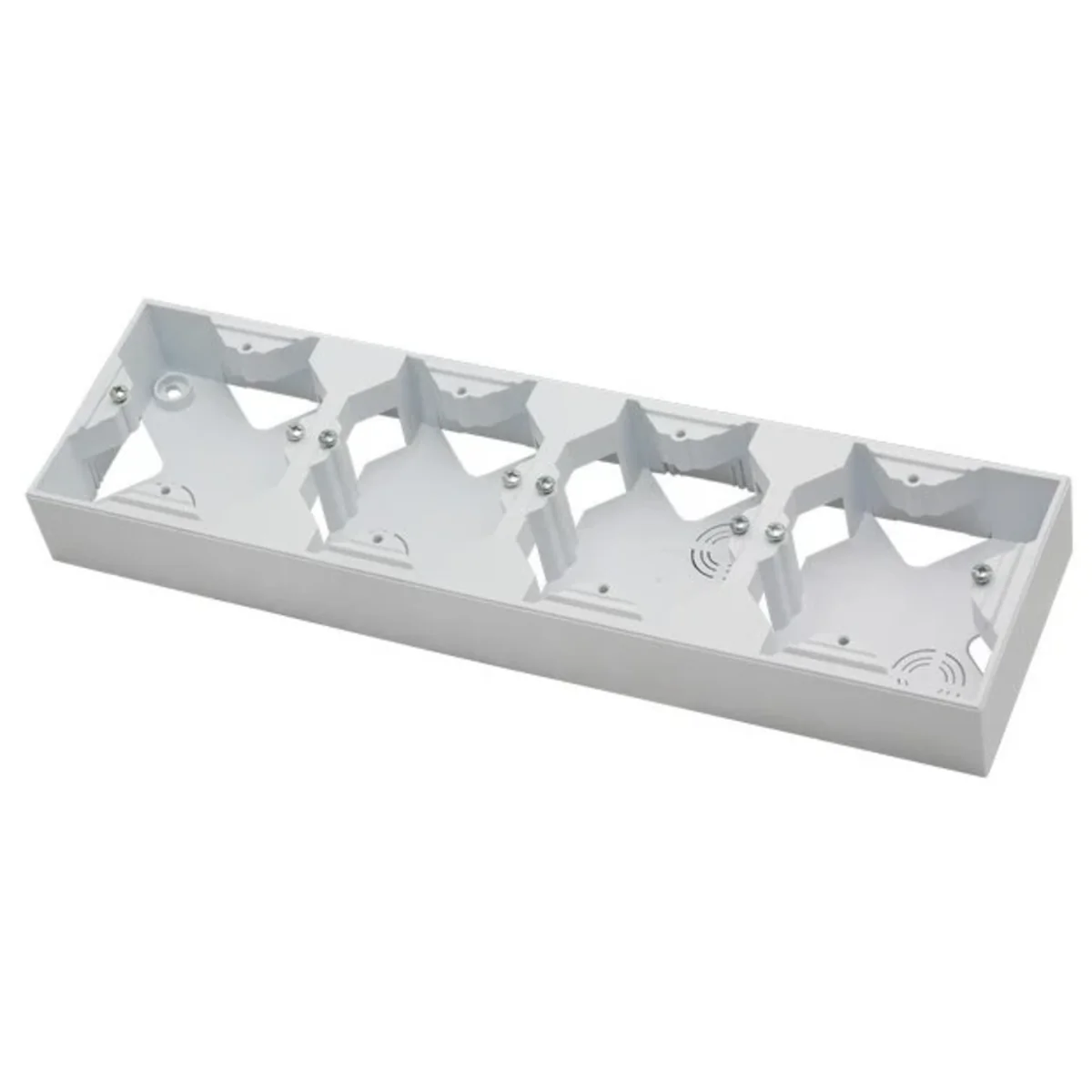

The surface-mounted box from the Impresja series allows you to transform any elements of the Impresja series into a surface-mounted version.

Products included in the Impresja series are a combination of functionality and classic aesthetics. Their design is based on a slightly convex line based on a square. Components are available in 6 colors, and the collection is completed Prestige frames made of glass and aluminum. This allows you to match individual elements to a classic, modernist or industrial style.

The collection includes a full range of electrical equipment: switches, sockets and dimmers. Additionally, multimedia sockets, motion sensors and temperature controllers are offered. Individual accessories will be coherently combined with the rest of the elements in specific rooms.

Halogen free

Yes
Color

White
Material

Plastic Metal
Cover

NO
Family

IMPRESSION

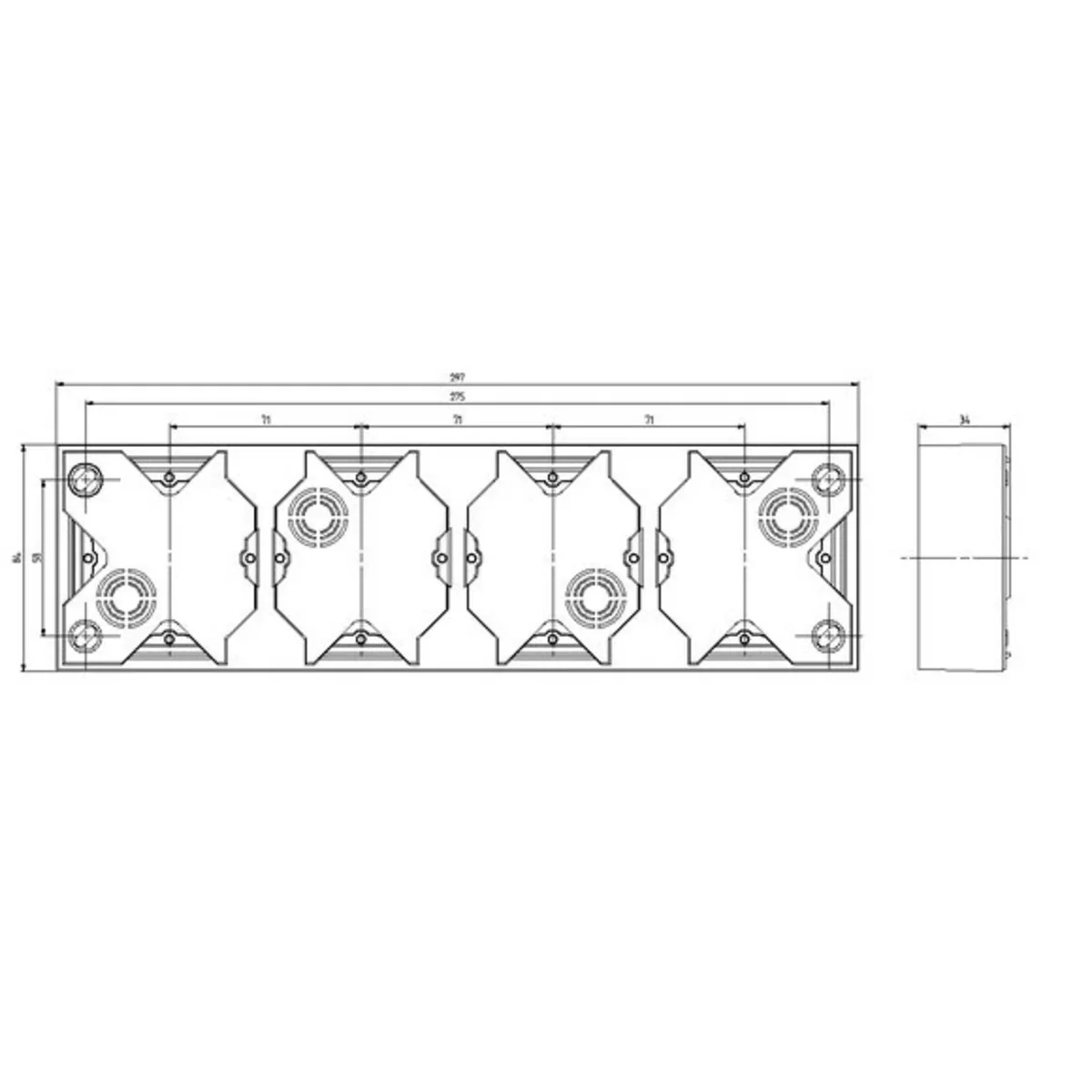

Width [mm]

297
Height [mm]

84
Number of bolts/screws

8
Fire resistance

Not applicable
Number of segments

4
With terminal strip

NO

Depth [mm]

34
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP20
Type

For attachments
Surface protection

Natural
Surface finish

Shiny
Mounting direction

Universal
For modular equipment

Not applicable
PKWIU

27.33.13.0

Other technical data

Assembly arrangement

Surface mounted box
Number of modules (module system)

4
Mounting direction

Horizontal and vertical
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
With duct entry

No
With screw gland entry

No
Degree of protection (IP)

IP20
Device height

84 mm

Suitable for modular domestic switching devices

Yes
Number of units

4
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
With cover frame

No
With cable entry

Yes
Shock resistant

No
Device width

297 mm
Device depth

34 mm

A kind of package		Pudełko
Quantity	1 pcs.	4 pcs.
Weight (kg)	0,140	-
Width (m)	0,084	0,130
Length (m)	0,297	0,350
Depth (m)	0,034	0,105
