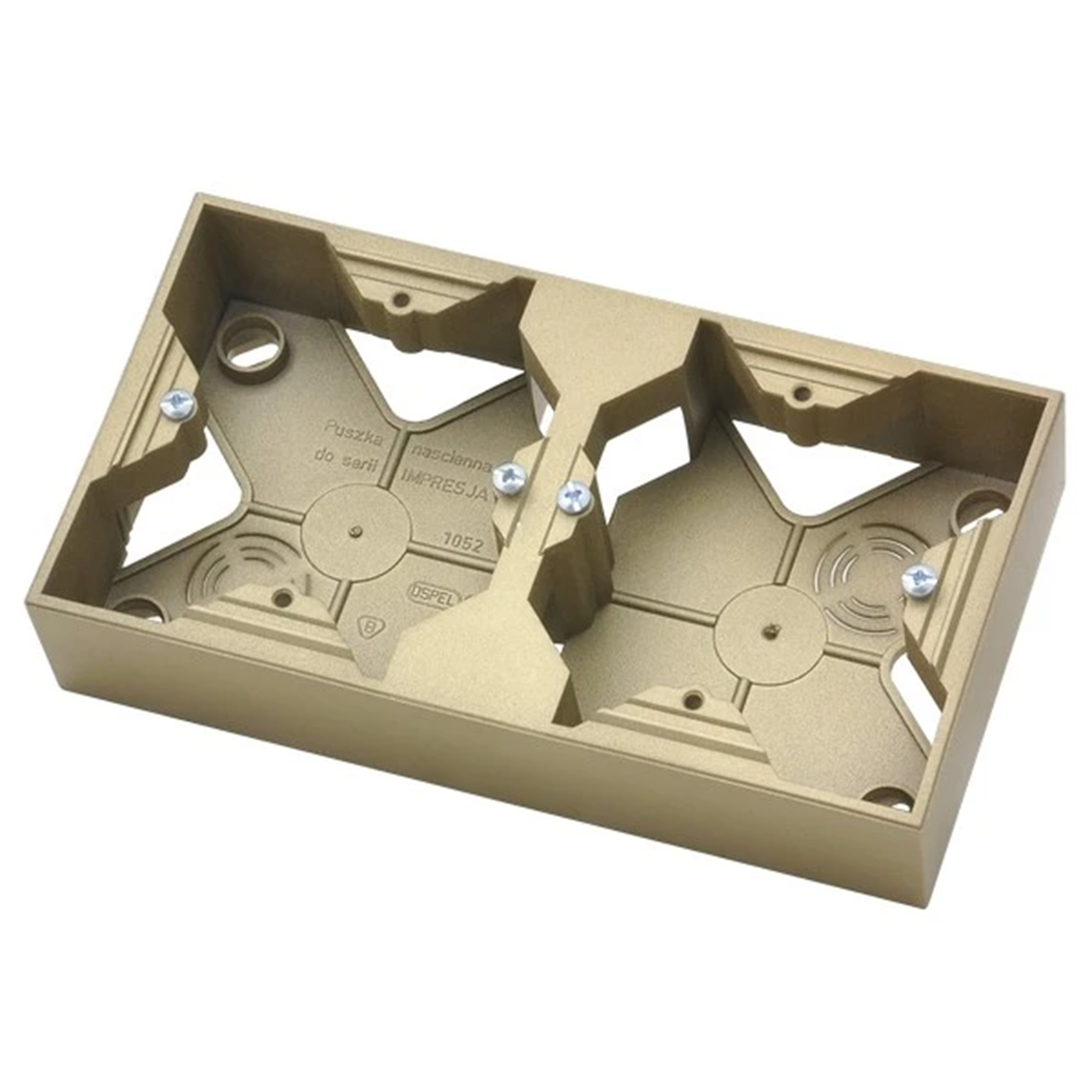

IMPRESJA Double wall-mounted golden metallic installation box PNP-2Y/28

local index:
MVN072OSPE
Catalog No:
PNP-2Y/28
EAN code:
5907577441821
Manufacturer: OSPEL
Halogen free: Yes
Depth [mm]: 34
Color: Golden
Price:
3,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The surface-mounted box of the Impresja series allows you to transform any elements of the Impresja series into a surface-mounted version.

Products included in the Impresja series  are a combination of functionality and classic aesthetics. Their design is based on a slightly convex line based on a square. Components are available in 6 colors, and the collection is completed Prestige frames made of glass and aluminum. This allows you to match individual elements to a classic, modernist or industrial style.

The collection includes a full range of electrical equipment: switches, sockets and dimmers. Additionally, multimedia sockets, motion sensors and temperature controllers are offered. Individual accessories will be coherently combined with the rest of the elements in specific rooms.

Technical data

  • Halogen free
    Yes
  • Color
    Golden
  • Material
    Plastic Metal
  • Cover
    NO
  • Family
    IMPRESSION

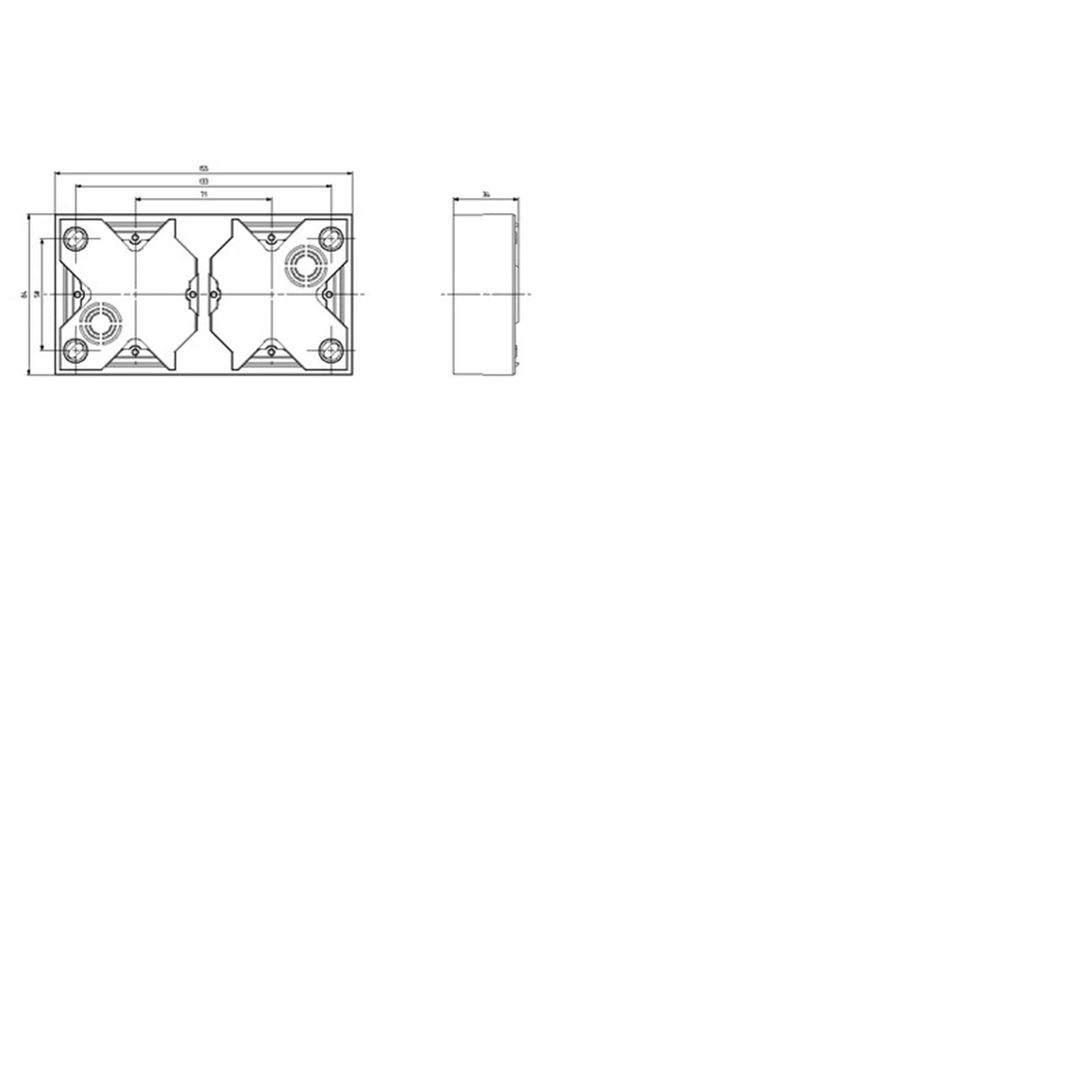

  • Width [mm]
    155
  • Height [mm]
    84
  • Number of bolts/screws
    4
  • Accurate color
    Golden metallic
  • Mounting direction
    Universal
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0
  • Depth [mm]
    34
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface protection
    varnishing
  • Surface finish
    Shiny
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    2
  • Mounting direction
    Horizontal and vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Gold
  • Transparent
    No
  • With duct entry
    No
  • With screw gland entry
    No
  • Degree of protection (IP)
    IP20
  • Device height
    84 mm
  • Suitable for modular domestic switching devices
    Yes
  • Number of units
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1036
  • With cover frame
    No
  • With cable entry
    Yes
  • Shock resistant
    No
  • Device width
    155 mm
  • Device depth
    34 mm

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 6 pcs.
Weight (kg) 0,078 -
Width (m) 0,084 0,162
Length (m) 0,155 0,250
Depth (m) 0,034 0,100
