Hollow wall box E5000 for electronics with a membrane, one-sided closed fi60mm orange 83199008

local index:
MVP065SIME
Catalog No:
83199008
EAN code:
4034338913042
Manufacturer: SIMET
Depth [mm]: 70
Color: Orange | Gray
Shape: Round
Price:
128,51 €
gross / pkg.
(including VAT 23%)
12,85 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

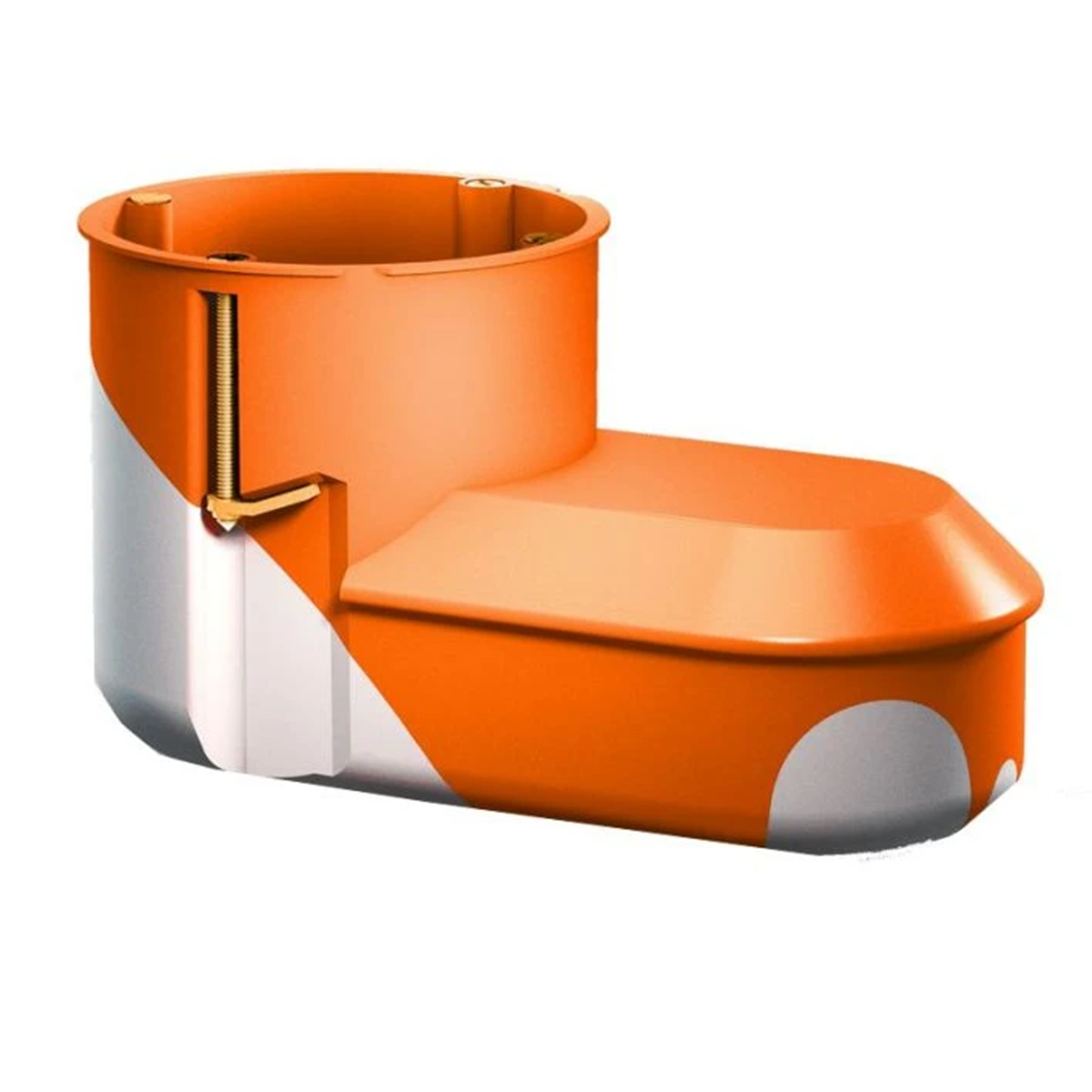

Fush-mounted box adapted for installation in hollow walls.

  • VDE certificate.
  • Pocket box (shoe), designed for embedding elementsó in electronics.
  • The flexible design of the side of the box allows it to be inserted into the opening ø 68mm from the front of the wall.
  • The box is equipped with ø 25mm.

Accessories matching the box:

  • PL60 cover plate
  • PD60x30 spacer ring
  • W16 screws , W25, W40

Technical data

  • Depth [mm]
    70
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    68
  • Mounting hole diameter [mm]
    68
  • Weight [g]
    43
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    850
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0
  • Color
    Orange Gray
  • Material
    PP
  • Cover
    NO
  • Level of security
    IP30
  • Pieces in the package
    10
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • Exact material
    TPE

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    132 mm
  • Depth
    70 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Seal membrane
  • Pipe locking
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP30
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    Yes
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
  • Shape
    Other
  • Model
    Single
  • Diameter
    60 mm
  • Width
    68 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    Other
  • Inlet from the rear
    Yes
  • Halogen free
    Yes
  • Colour
    Orange
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
