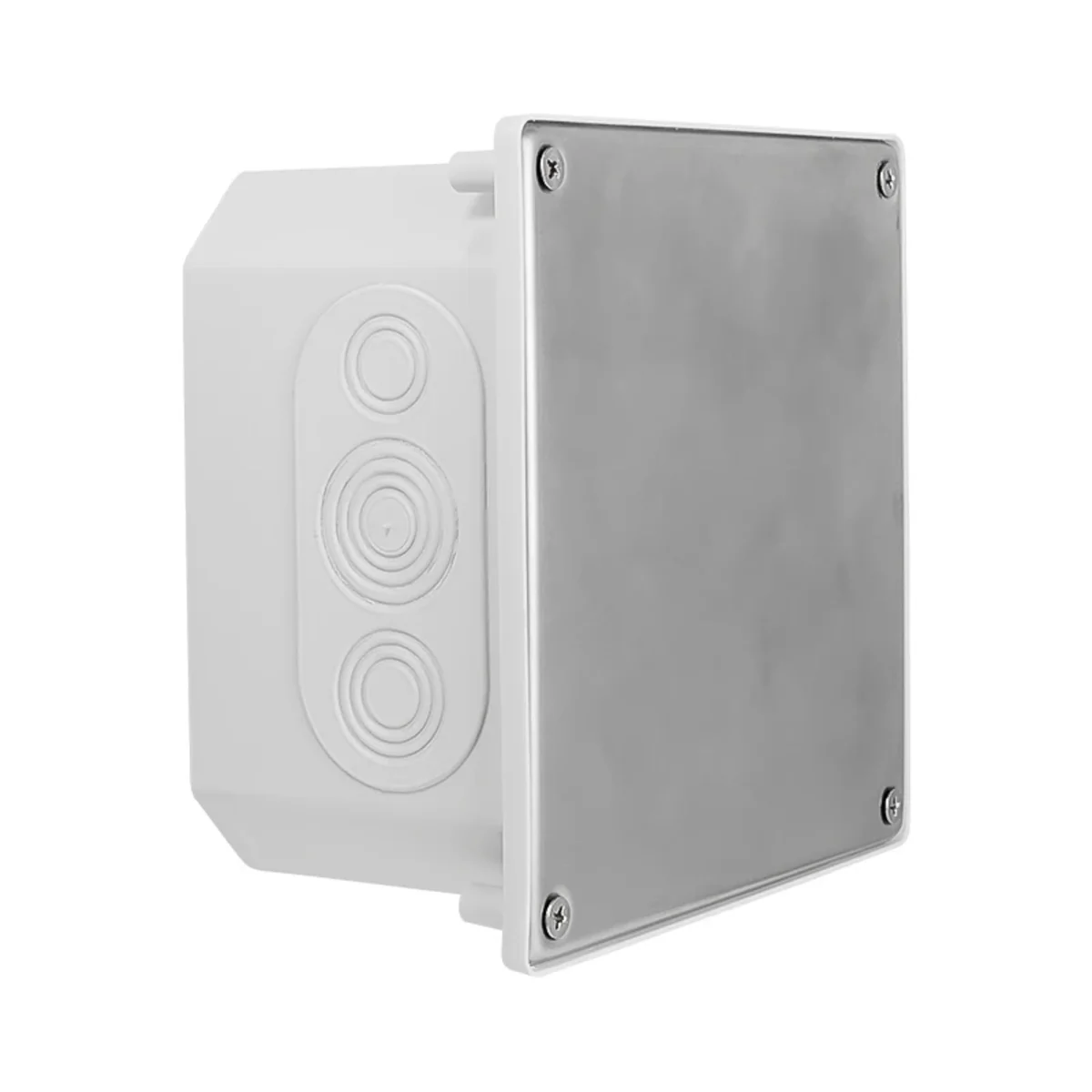

Name: Hermetic Flush-Mounted Facade Box Ppt-EH160 Gray INOX
Brand: ELEKTRO-PLAST OPATÓWEK
SKU: MVP013ELOP
Price: 52.43 PLN
Availability: BackOrder

Otros datos técnicos

Mounting method

Flush-mounted
Construction type

Built-in installation box (device box)
Provided with revolving ring

No
Equipped with

Other
Length

160 mm
Depth

88 ... 88 mm
For number of electric fittings

4
With screws

No
Number of adjustable device fixing lugs

0
Housing feed-through by seal membrane

Yes
Housing feed-through by step membrane

Yes
Suitable for cable diameter

8 ... 32 mm
Pipe locking optional

No
Number of inlets

6
Material

Stainless steel
Surface protection

Untreated
Degree of protection (IP)

IP65
Cover model

Suitable for snap-in connector (manufacturer specific)
Cover attachment

Screwed
Circuit integrity

None
Air tight

Yes
Number of poles of the clamp

0
Luminaire hook mounting

No
Special application

Other

Shape

Square
Model

Single
Couplable

No
Diameter

0 mm
Width

160 mm
Inner depth

76 mm
Mounting switching equipment

Screwing
Number of non-adjustable device fixing lugs

0
Housing feed-through by break-out opening

Yes
Housing feed-through by nozzle

Yes
For tube diameter

1 inch
Pipe locking

No
Inlet from the rear

No
Number of included spouts

6
Halogen free

Yes
Colour

Stainless steel
Degree of protection (NEMA)

4X
Transparent cover

No
Sealable

No
With screening

No
Max. conductor cross section

32 mm²
Clamp position fixed

No
Nozzle

Other
With partition panel

No

una especie de paquete	Sztuka
Cantidad	1 uds.
Peso (kg)	0,100
Ancho (m)	0,160
Longitud (m)	0,160
Profundidad (m)	0,090

Hermetic Flush-Mounted Facade Box Ppt-EH160 Gray INOX 64.160
