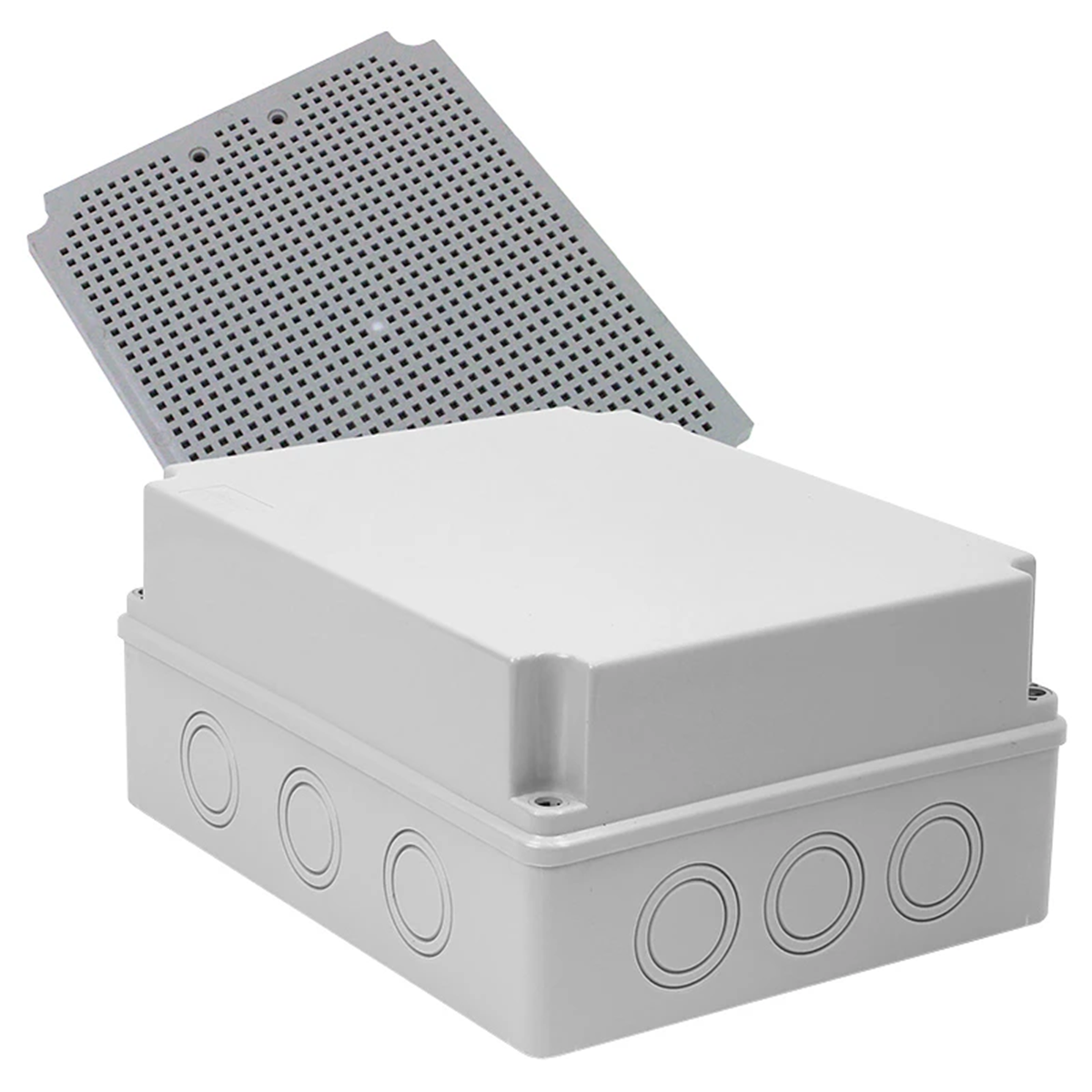

Hermetic box PH-4B.2P with knockouts for chokes + PMT-4 plate 28.451

local index:
MVN022ELOP
Catalog No:
28.451
EAN code:
5905548288109
Depth [mm]: 116
Color: Gray
Shape: Rectangular
Price:
10,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic boxesare widely used in surface-mounted installations, in particular in outdoor installations where a high degree of protection is required.

They are characterized by a simple construction consisting of a base and can cover. Base with knockouts for glands.

The base and cover of the box are joined together with screws made of plastic, which ensures a secure and corrosion-resistant connection. The box is equipped with a hermetic seal ensuring that the box is dust-tight and has a high degree of IP protection. Additionally, plugs were used as an insulating element, which protect the protruding fasteners from the electrical parts in the box. Equipped with PMT-4 mounting plate.

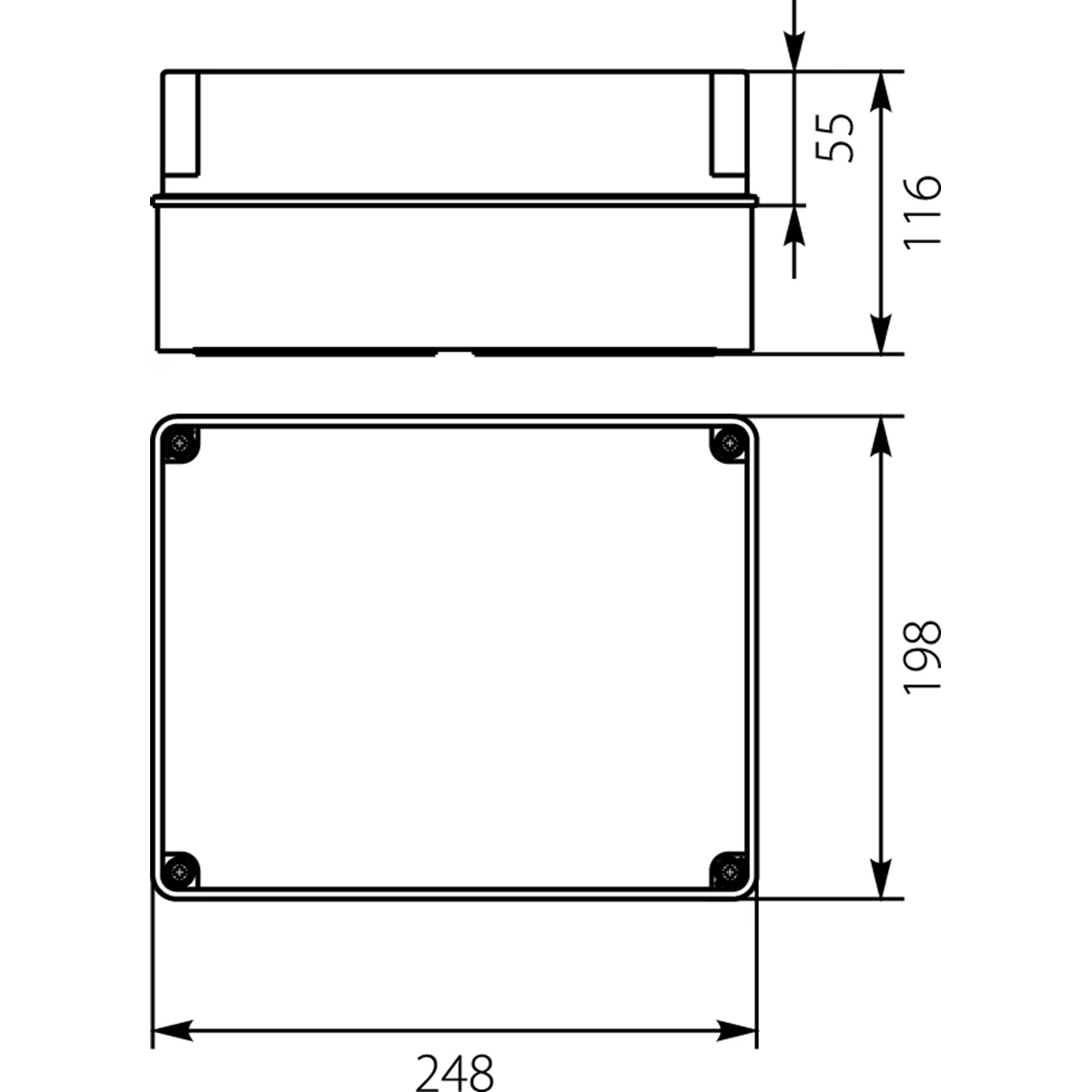

Technical data

  • Depth [mm]
    116
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Family
    PH
  • Width [mm]
    248
  • Height [mm]
    198
  • Operating temperature range [°C]
    -25 to +60
  • Fire resistance
    Not applicable
  • With terminal strip
    NO
  • Groove diameter [mm]
    29.5/37
  • Color
    Gray
  • Material
    ABS
  • Rated insulation voltage [V]
    500
  • Type
    Wall-mounted
  • Level of security
    IP65
  • Type
    branching
  • Surface protection
    Natural
  • Maximum conductor cross-section [mm²]
    10
  • For modular equipment
    Not applicable
  • Number of slots
    12
  • PKWIU
    27.33.13.0

Other technical data

  • Max. conductor cross section
    10 mm²
  • Shape
    Rectangular
  • Mounting in the soil
    No
  • For tube diameter
    Other
  • Length
    248 mm
  • Depth
    116 mm
  • Tackable
    No
  • Type of housing feed-through
    Preembossing
  • Halogen free
    Yes
  • Colour
    Grey
  • Degree of protection (NEMA)
    12
  • Transparent cover
    No
  • Castable
    No
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Equipped with
    Mounting plate
  • Mounting method
    Wall-/ceiling mounting
  • Mounting under water
    No
  • Inlet from the rear
    No
  • Width
    198 mm
  • Diameter
    0 mm
  • Number of inlets
    12
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP65
  • Cover model
    Blind cover
  • Cover attachment
    Screwed
  • With casting compound
    No
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -25 ... 60 °C
  • For Ex-zone gas
    None

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,668 -
