Hermetic box PH-1A.1 without weakening IP65 28.11

Índice local:
MVN002ELOP
Número de catálogo:
28.11
Código EAN:
5905548282114
Halogen free: Yes
Depth [mm]: 56
Color: Gray
Precio:
1,97 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta una semana (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

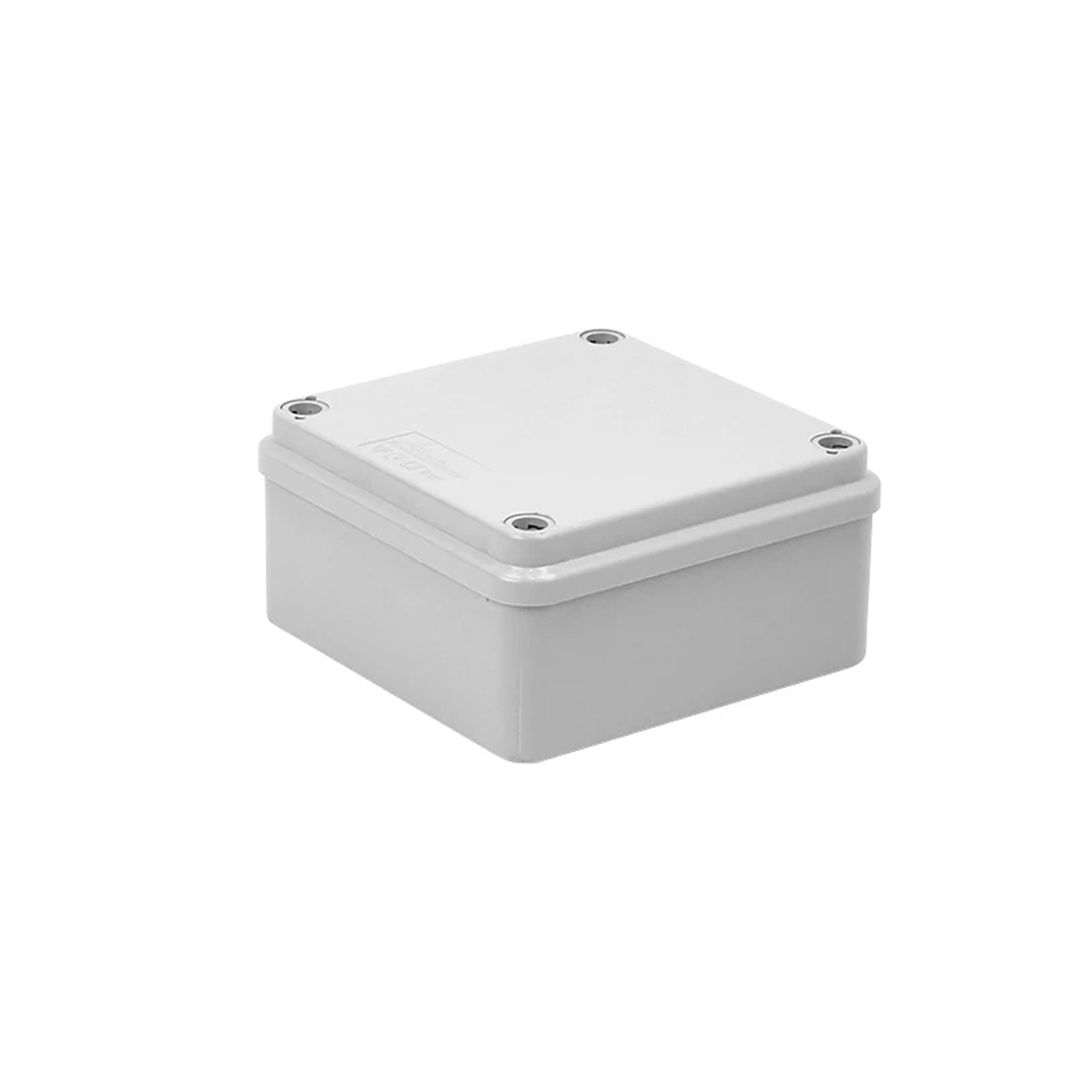

Hermetic boxesare widely used in surface-mounted installations, in particular in outdoor installations where a high degree of protection is required.

They are characterized by a simple construction consisting of a base and can cover. Base without weakenings.

The base and cover of the box are joined together with screws made of plastic, which ensures a secure and corrosion-resistant connection. The box is equipped with a hermetic seal ensuring that the box is dust-tight and has a high degree of IP protection. Additionally, plugs were used as an insulating element, which protect the protruding fasteners from the electrical parts in the box. The box can be additionally equipped with a terminal strip, mounting plate or Euro rail.

Datos técnicos

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    ABS
  • Rated insulation voltage [V]
    500
  • Type
    Wall-mounted
  • Level of security
    IP65
  • Type
    branching
  • Surface protection
    Natural
  • Maximum conductor cross-section [mm²]
    4
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0

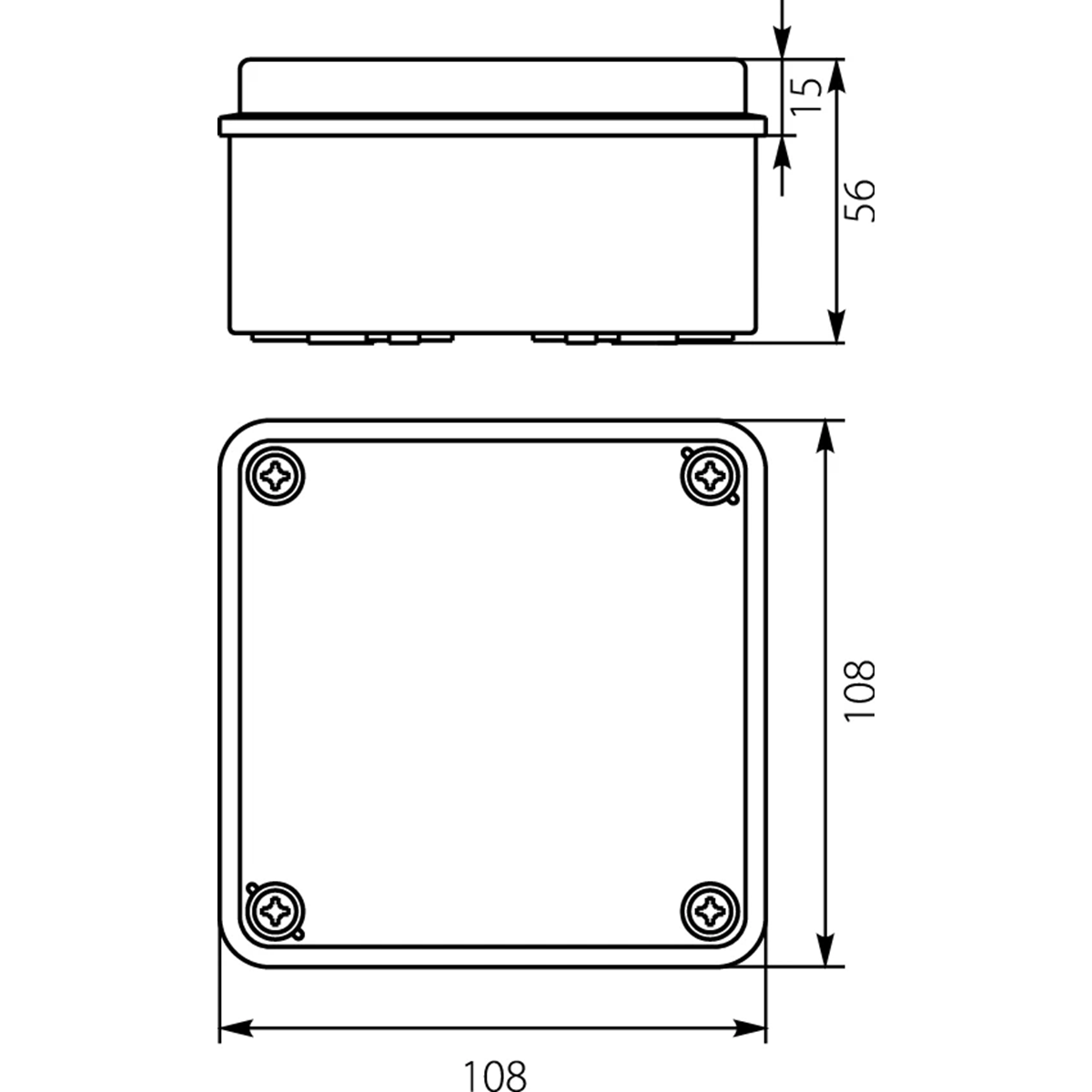

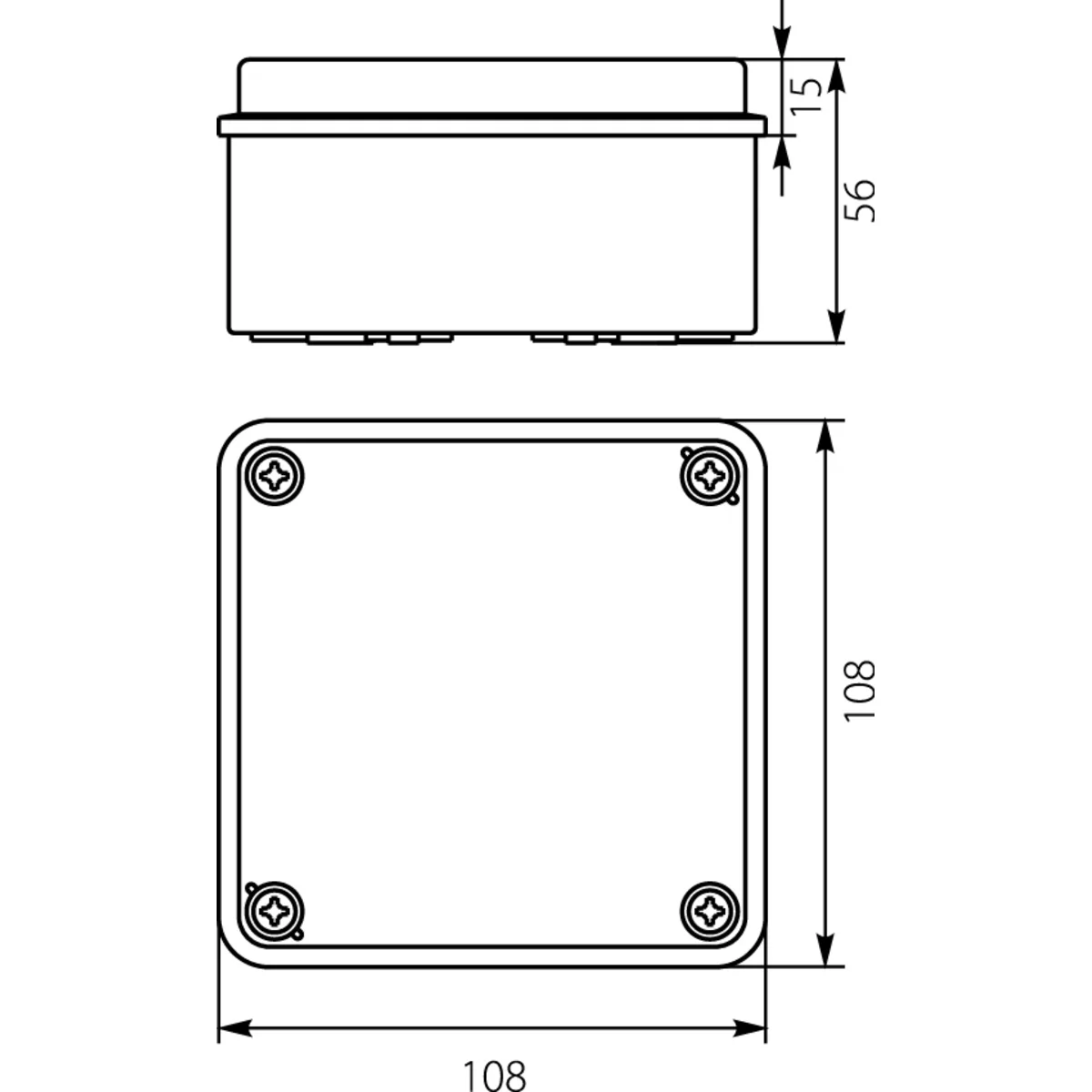

  • Depth [mm]
    56
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Family
    PH
  • Width [mm]
    108
  • Height [mm]
    108
  • Operating temperature range [°C]
    -25 to +60
  • Fire resistance
    Not applicable
  • With terminal strip
    NO

Otros datos técnicos

  • Max. conductor cross section
    4 mm²
  • Shape
    Square
  • Mounting in the soil
    No
  • For tube diameter
    Other
  • Length
    108 mm
  • Depth
    56 mm
  • Tackable
    No
  • Type of housing feed-through
    None
  • Halogen free
    Yes
  • Colour
    Grey
  • Degree of protection (NEMA)
    12
  • Transparent cover
    No
  • Castable
    No
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Equipped with
    Other
  • Mounting method
    Wall-/ceiling mounting
  • Mounting under water
    No
  • Inlet from the rear
    No
  • Width
    108 mm
  • Diameter
    0 mm
  • Number of inlets
    0
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP65
  • Cover model
    Blind cover
  • Cover attachment
    Screwed
  • With casting compound
    No
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -25 ... 60 °C
  • For Ex-zone gas
    None

Detalles del fabricante

  • Fabricante
    Z.P.H. ELEKTRO-PLAST Sp. z o.o.
  • Dirección
    62-860 Opatówek Rogatka 14 Polska

Empaquetado a granel

una especie de paquete Sztuka
Cantidad 1 uds. 1 uds.
Peso (kg) 0,126 -
