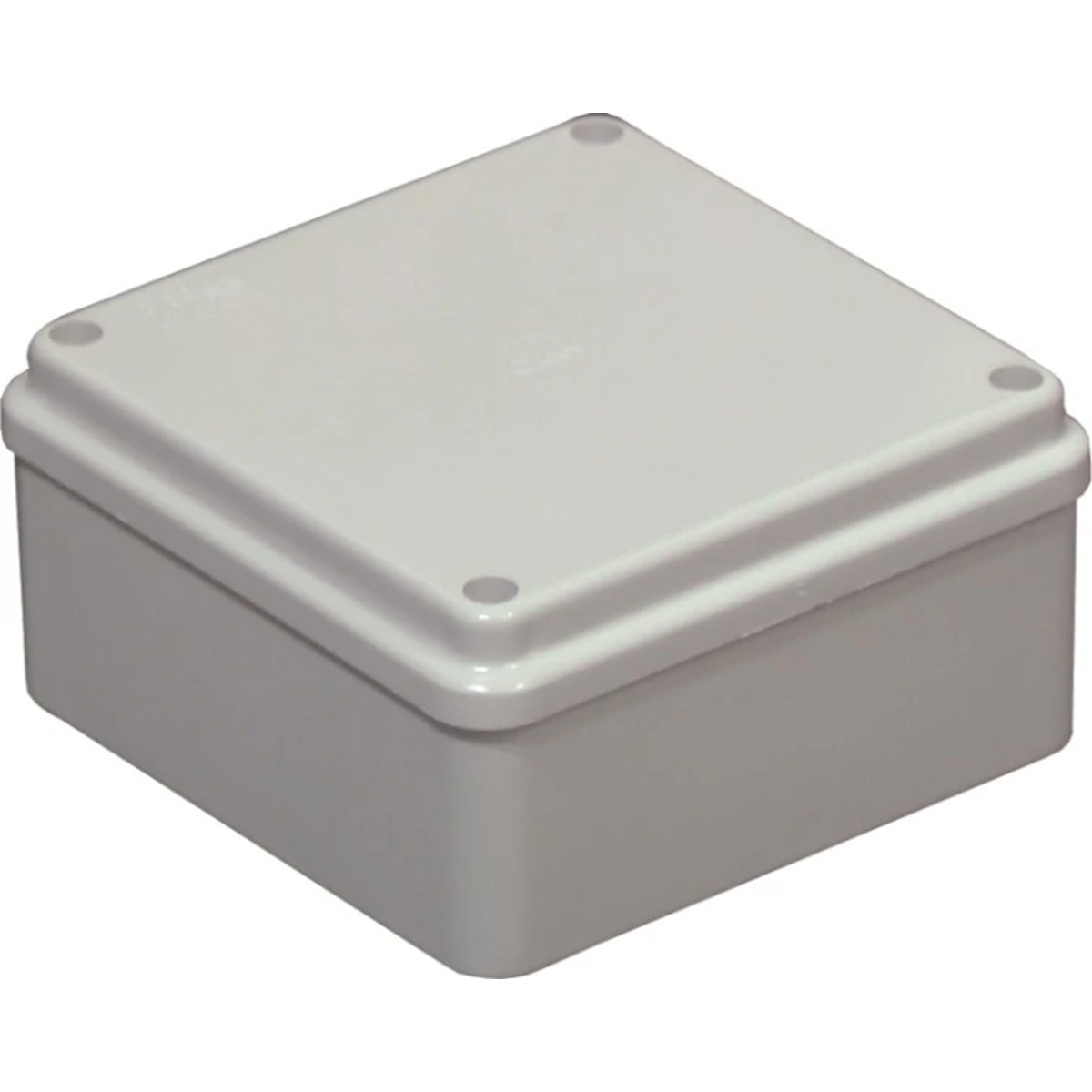

Hermetic box 100x100x50mm IP56 grey OL20021

local index:
MVN010BMPO
Catalog No:
OL20021
EAN code:
8026756200213
Manufacturer: EM GROUP
Halogen free: Yes
Depth [mm]: 50
Color: Gray
Price:
3,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cans are made of high-strength polymer materials. In accordance with IEC 695-2-1 standards, the boxes are resistant to: heat, shocks, weather conditions and UV. The modern design of the covers ensures optimal hermeticity and modern appearance. Double insulation function in accordance with CEI 64-8 standards. The boxes have auxiliary lines with holes φ 5 useful for fixing clamping strips and mounting galvanized plates of various sizes. Hermeticity ensured by quick pressing of steel screws. Plastic screws in boxes in the hinged version. Easy adaptation of the boxes to insert bundles of wires and cables with diameters from 5 to 32 mm.

  • With a solid cover.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    Plastic
  • Cover
    Yes
  • Level of security
    IP56
  • Type
    branching
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Depth [mm]
    50
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Width [mm]
    100
  • Height [mm]
    100
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
