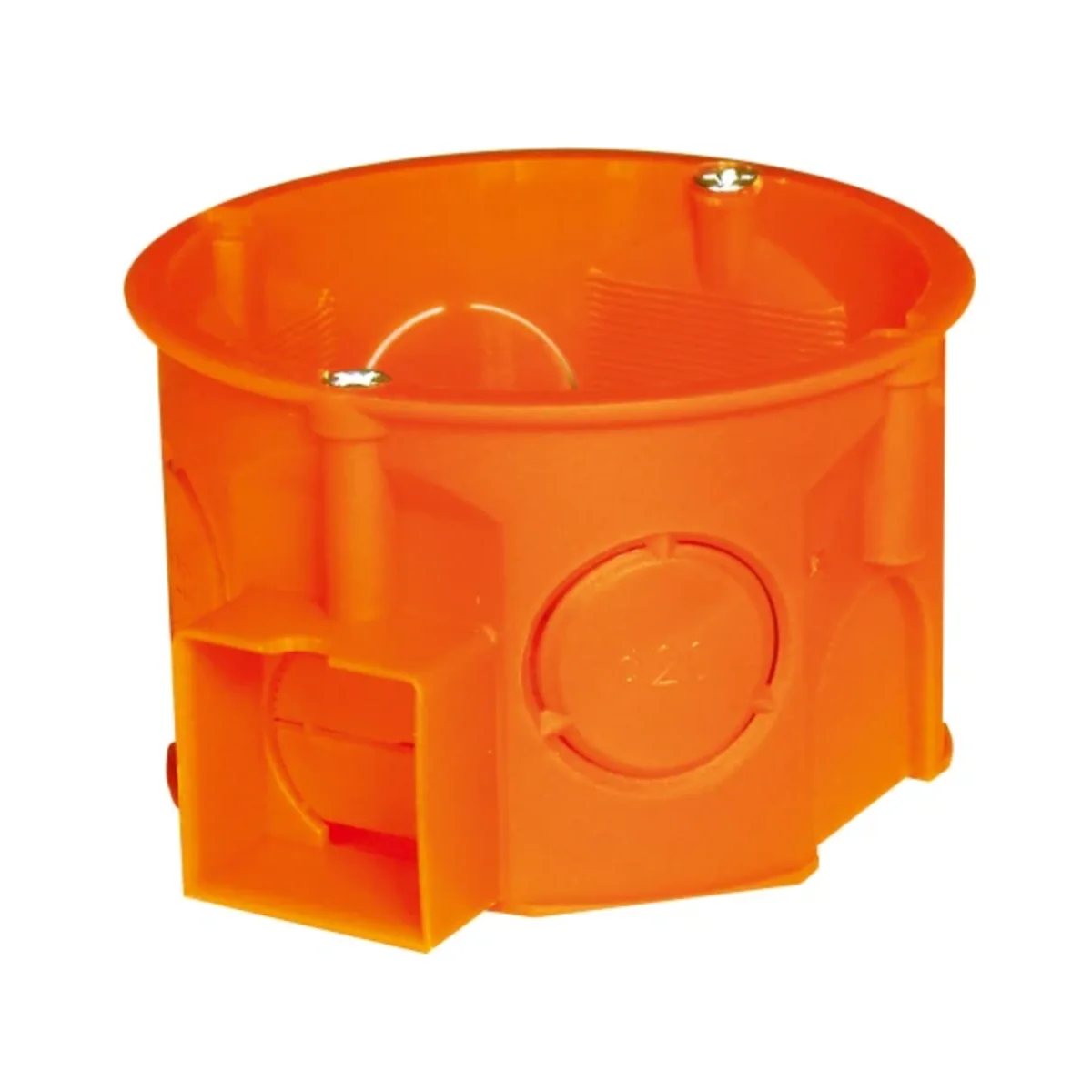

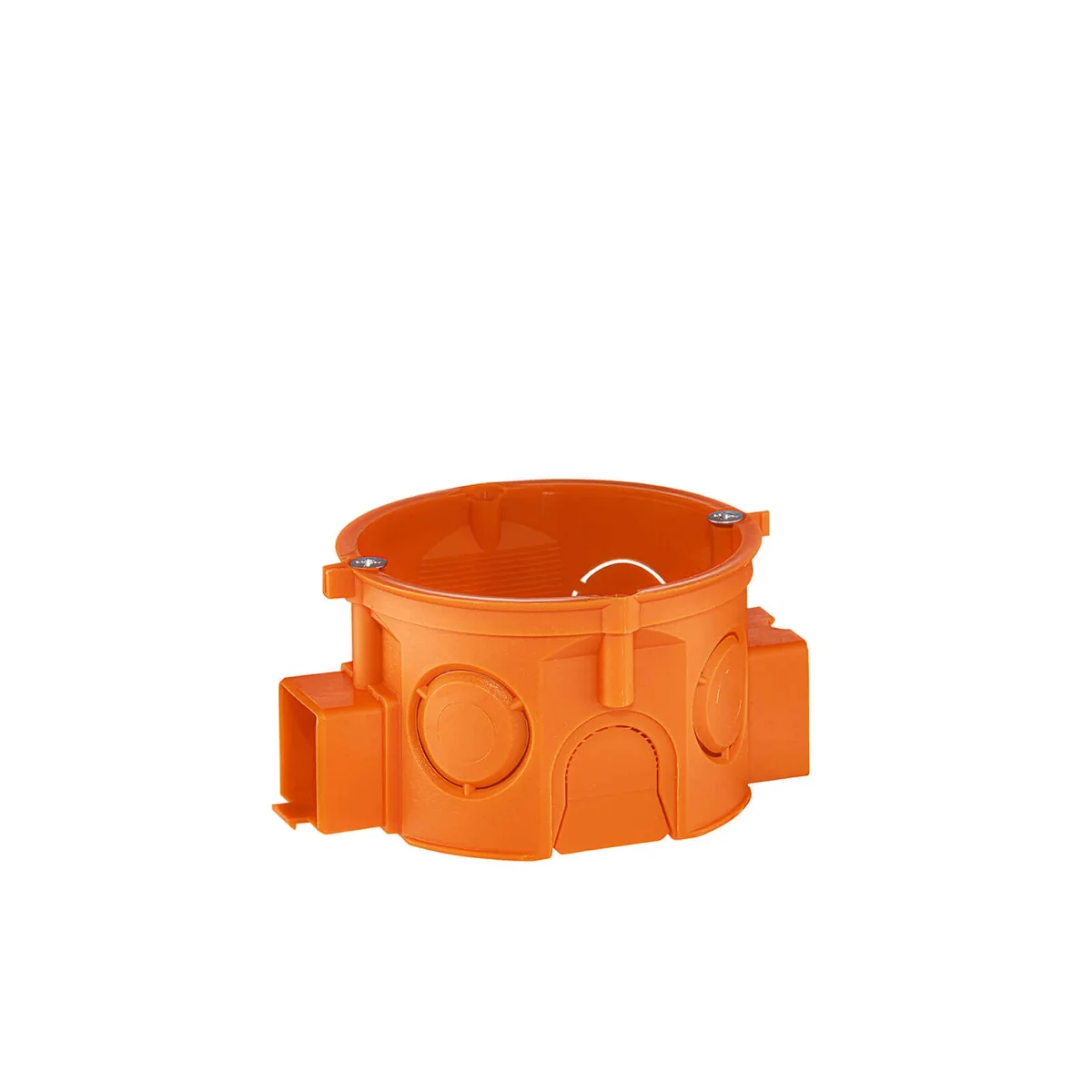

Flush-mounted serial box with screws S60KFw fi60mm, orange plate 33068008

local index:
MVP032SIME
Catalog No:
33068008
EAN code:
5907813203046
Manufacturer: SIMET
Depth [mm]: 41
Color: Orange
Shape: Round
Price:
0,36 €
gross / pcs.
(including VAT 23%)
18,95 € gross/kg.
Delivery in 3h
Accessible 1975 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

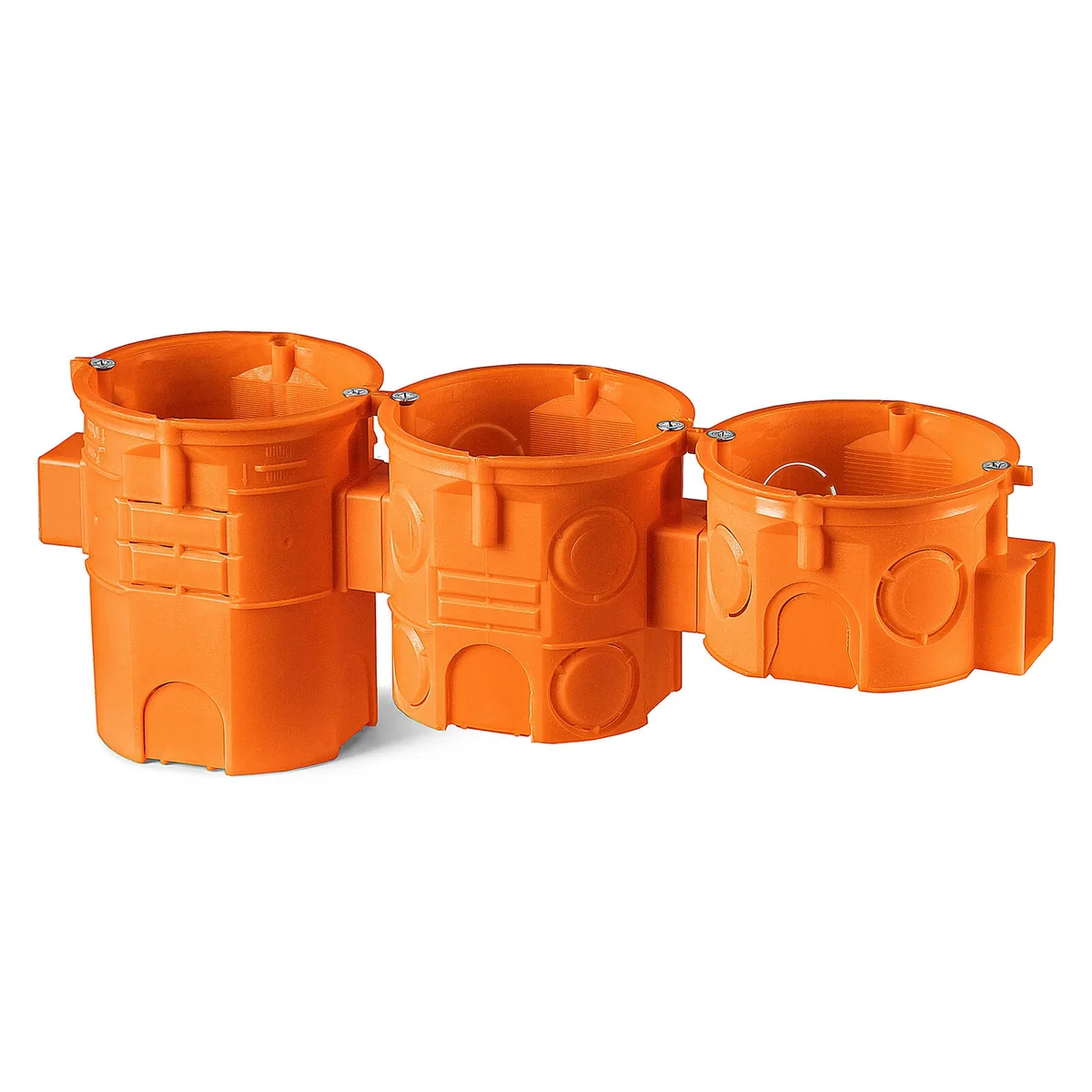

Box shallow, serial

  • 8 knockouts for ø 20 mm pipes in the side walls.
  • 1 knockout in the bottom of the box.
  • 2 screws for mounting accessories included.

Accessories matching the box:

  • KD12 spacer.
  • Spacing rings PD60x12, PD60x24, PD60x30.
  • PL60 cover.
  • W16, W25, W40 screws.
  • PS60 signaling cover.

Technical data

  • Depth [mm]
    41
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    19
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    65
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Number of slots
    9
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    None
  • Length
    65 mm
  • Depth
    41 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    Square branch pipe
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    65 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    8
  • Halogen free
    No
  • Colour
    Orange
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
