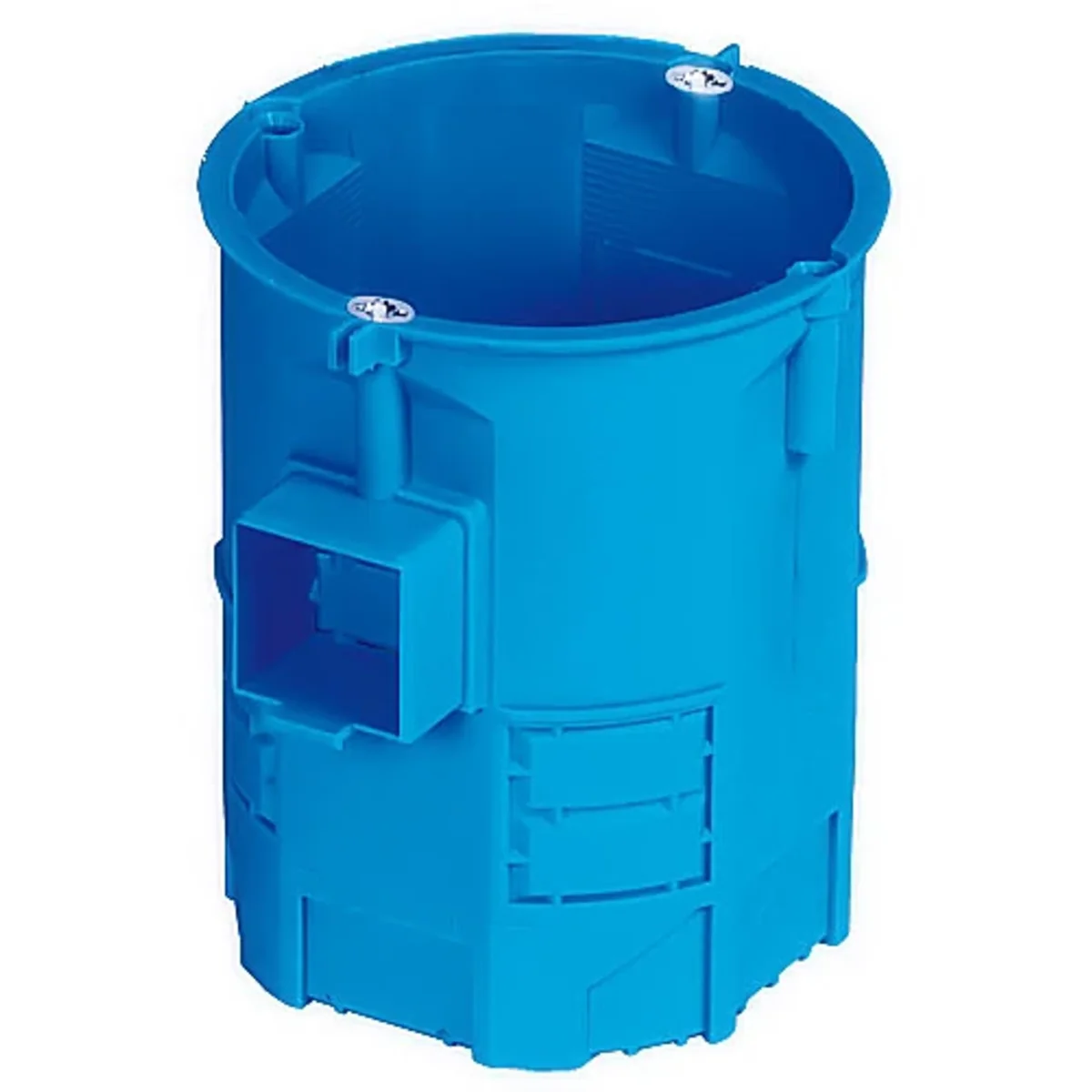

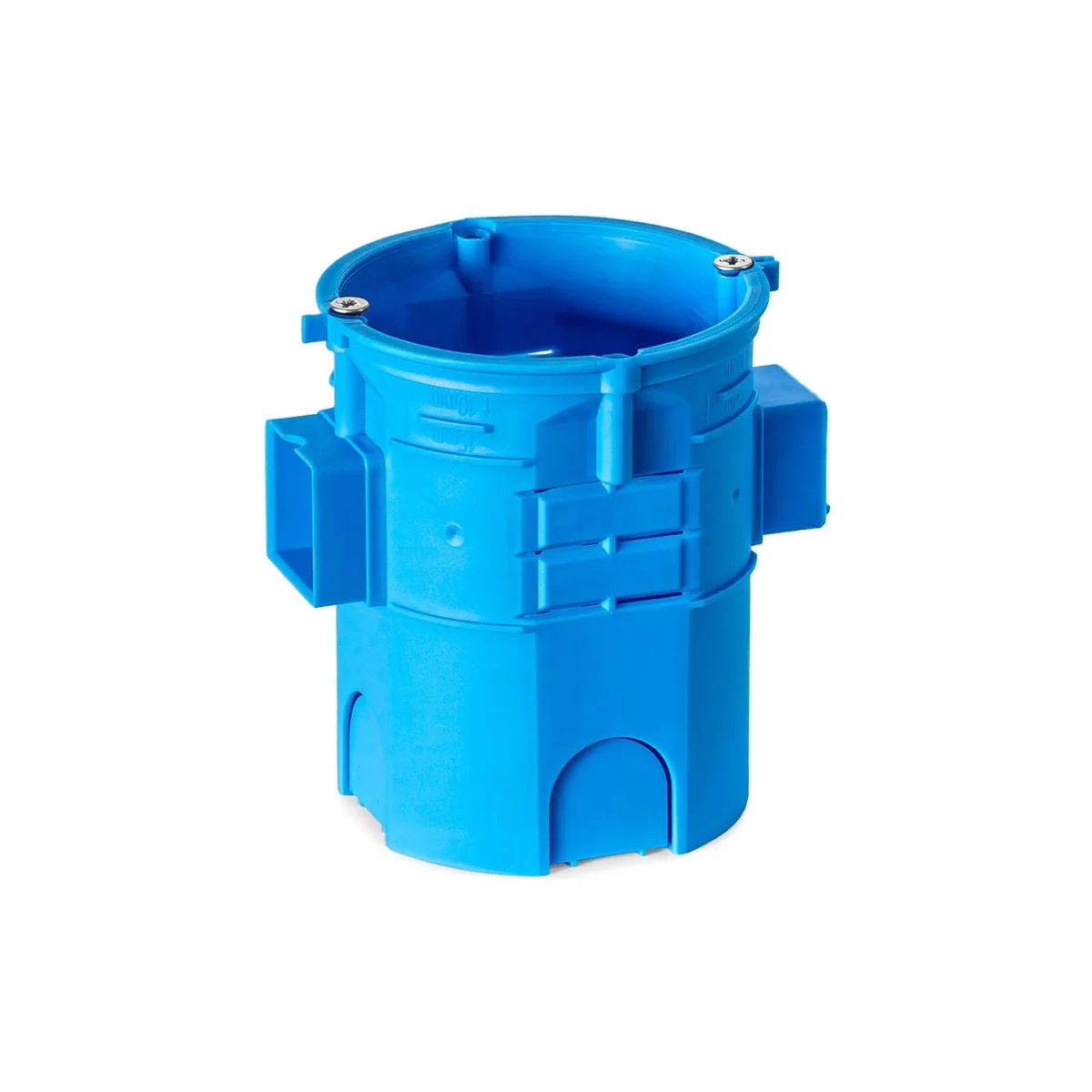

Flush-mounted serial box with screws S60Gw fi80mm deep 80mm blue 34009203

local index:
MVP042SIME
Catalog No:
34009203
EAN code:
5907813229336
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 80
Color: Blue
Price:
29,18 €
gross / pkg.
(including VAT 23%)
0,83 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Box extra-deep, serial

  • Box with special rectangular knockouts and large break-out surfaces.
  • Includes 2 screws for mounting accessories.

Accessories matching the box:

  • Spacing rings PD60x12, PD60x24, PD60x30.
  • Cover cover W60 or PL60, KD12 spacer.
  • W16, W25, W40 screws.
  • PS60 signaling cover.

Technical data

  • Halogen free
    Yes
  • Color
    Blue
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    62
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    22
  • Number of bolts/screws
    2
  • Number of segments
    1
  • Fire resistance [°C]
    850
  • Attachment diameter [mm]
    60
  • Depth [mm]
    80
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Pieces in the package
    35
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V2
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    62 mm
  • Depth
    81 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    ... 20 mm
  • Inlet from the rear
    No
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    62 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    Square branch pipe
