SIMET

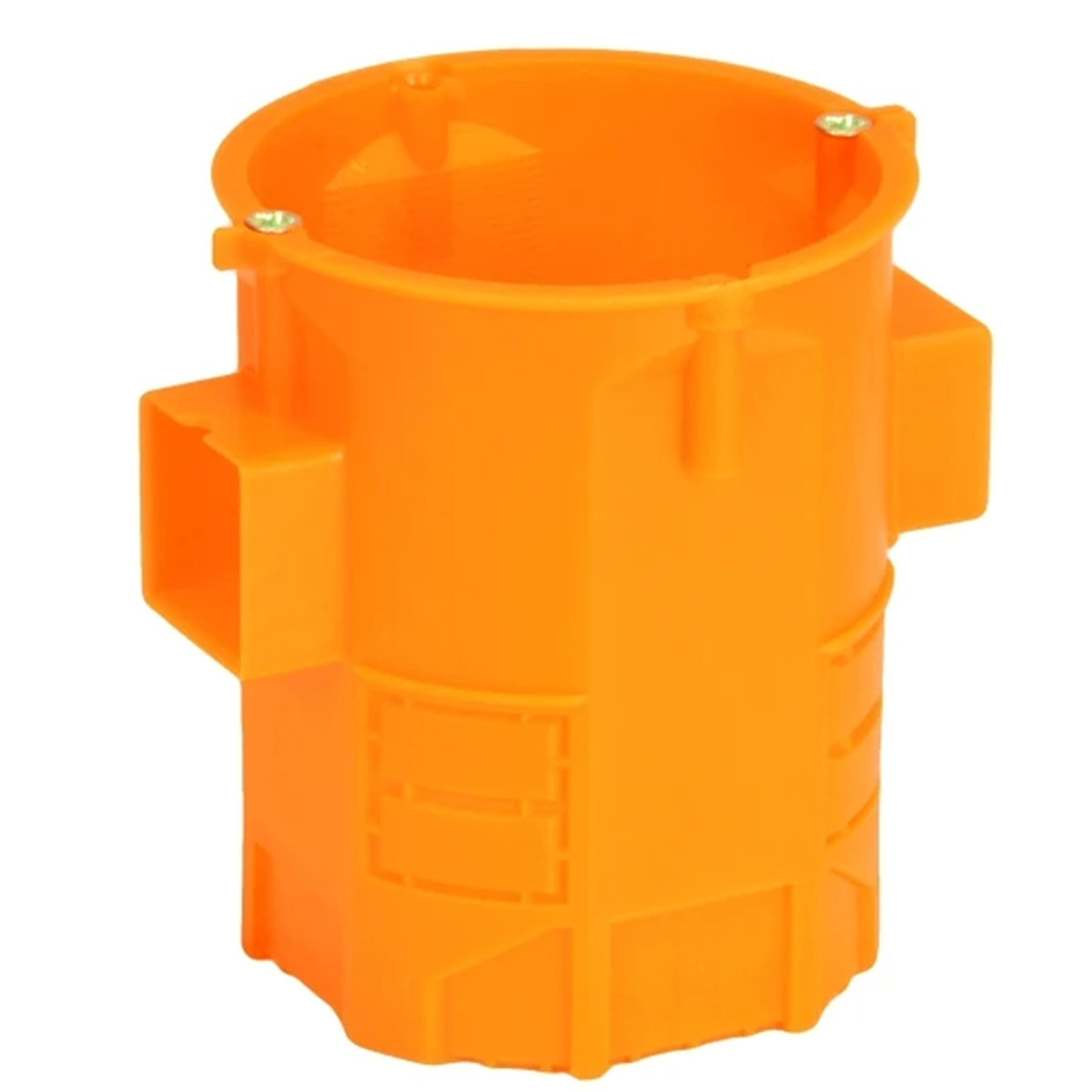

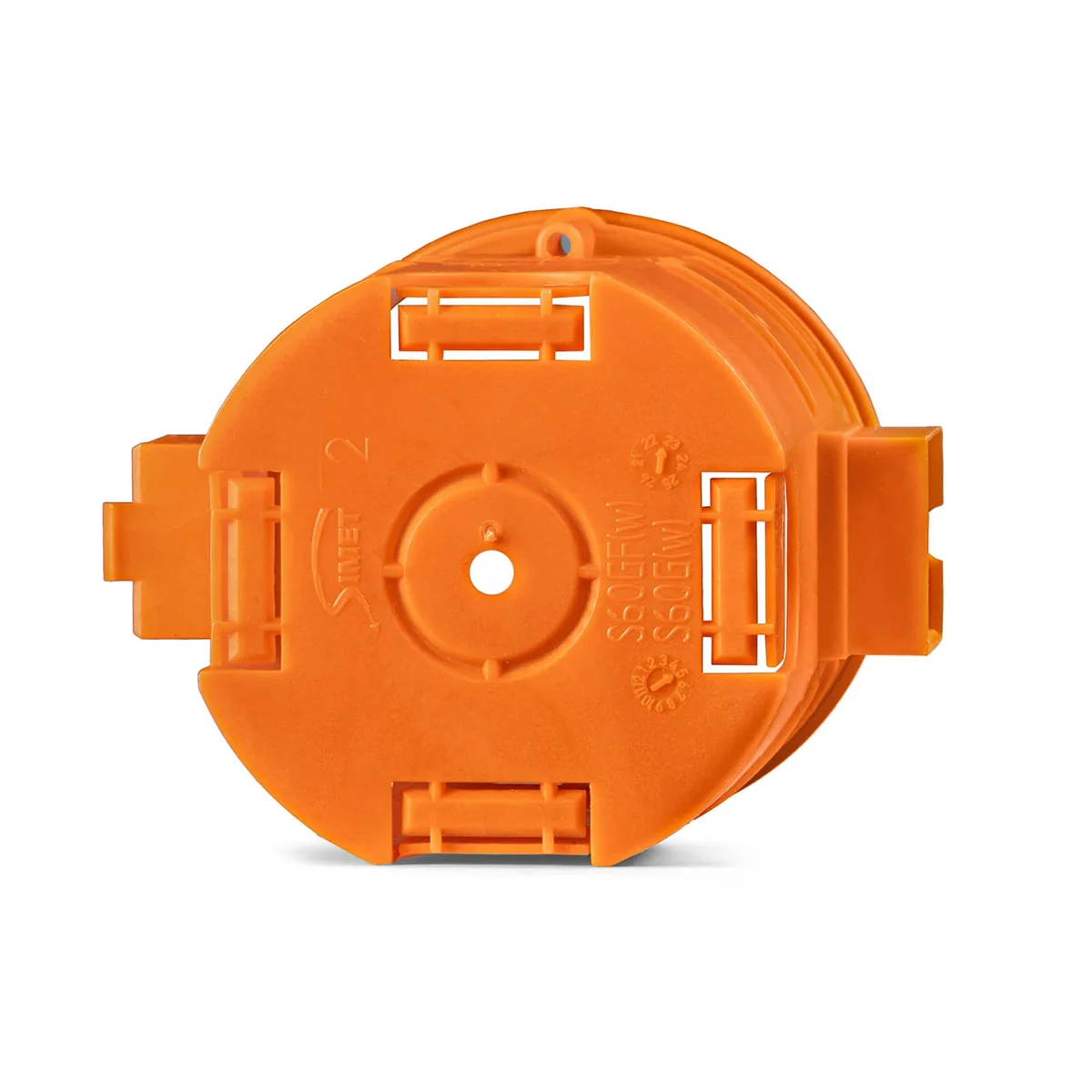

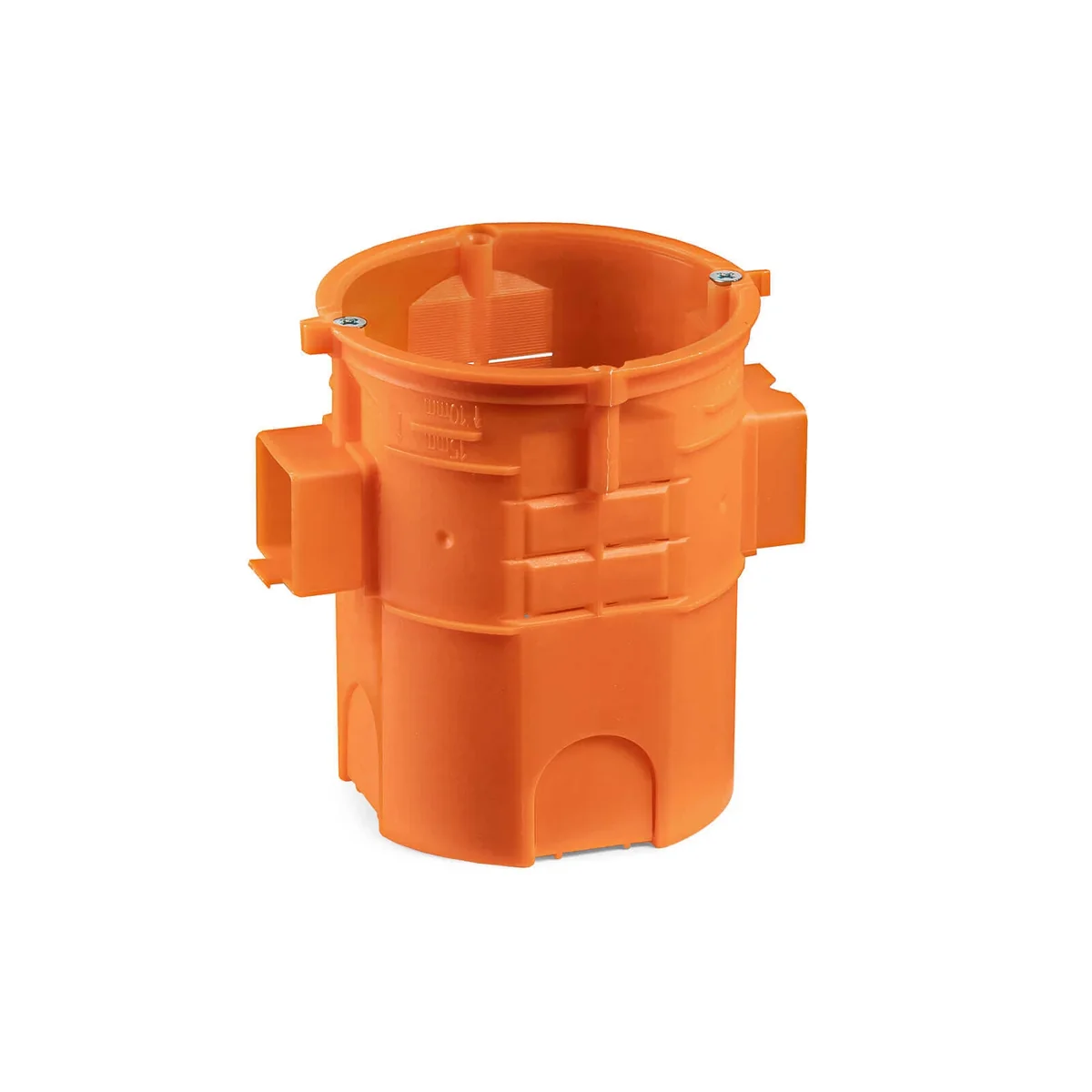

Flush-mounted serial box with screws S60GFw fi60mm deep orange 33009008

local index:
MVP024SIME
Catalog No:
33009008
EAN code:
5907813229343
Price:
16,92 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Guide flush-mounted box 60 mm in series, extra-deep (80mm).

  • Super-deep flush-mounted box with the possibility of connecting into 71mm frame systems. 4 holes for screws.

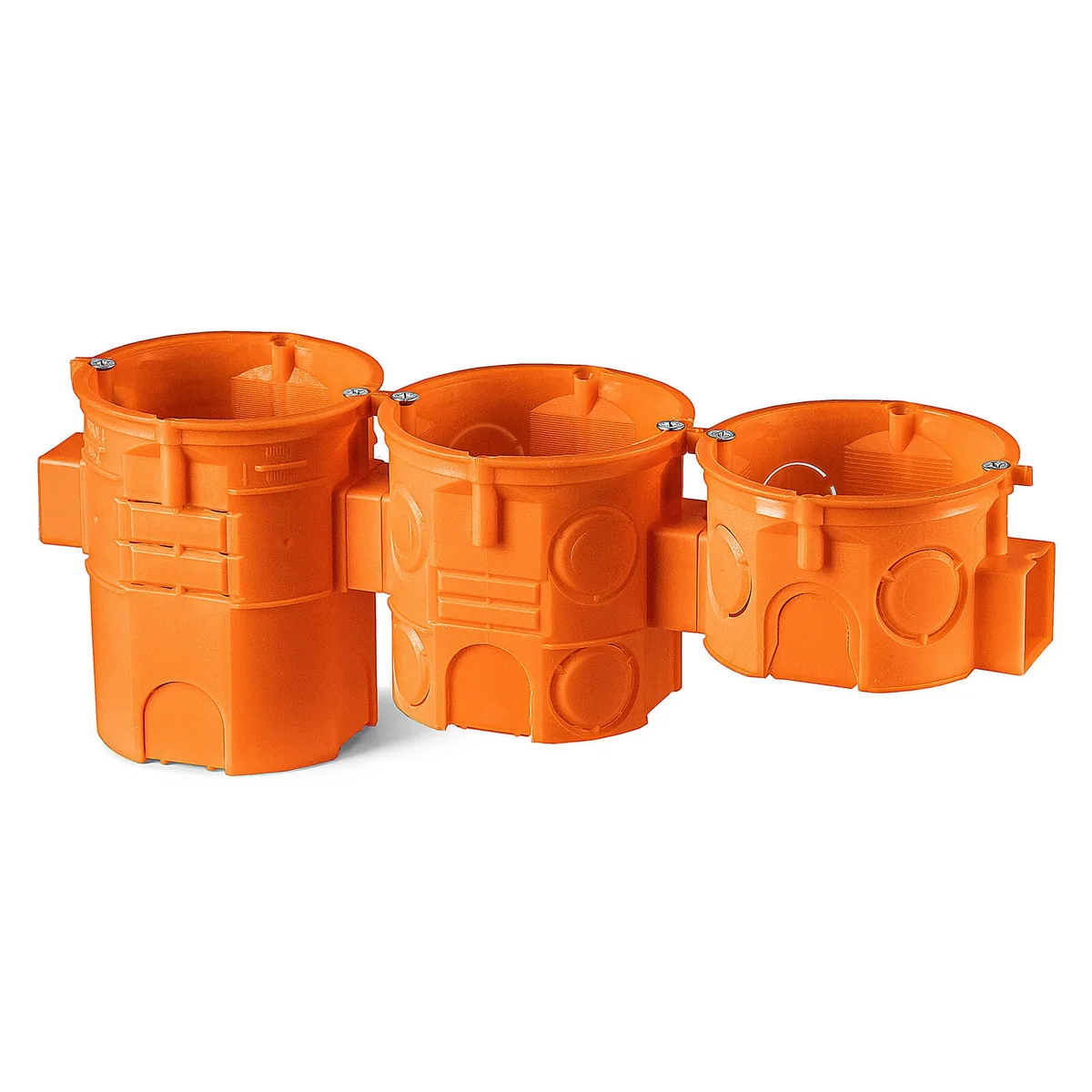

  • The connector can be extended with a KD12 spacer. This is done for “unframe” installed next to each other.
  • The box is adapted for W16, W25 or W40 screws. It can be deepened with a PD60x30 spacer ring. In plastering works, it is closed with the WS60 cover.
  • Convenient weakenings for inserting pipes and wires. Round Ø20mm and flat. In the lower part, special weakenings to reveal a large space in the can.

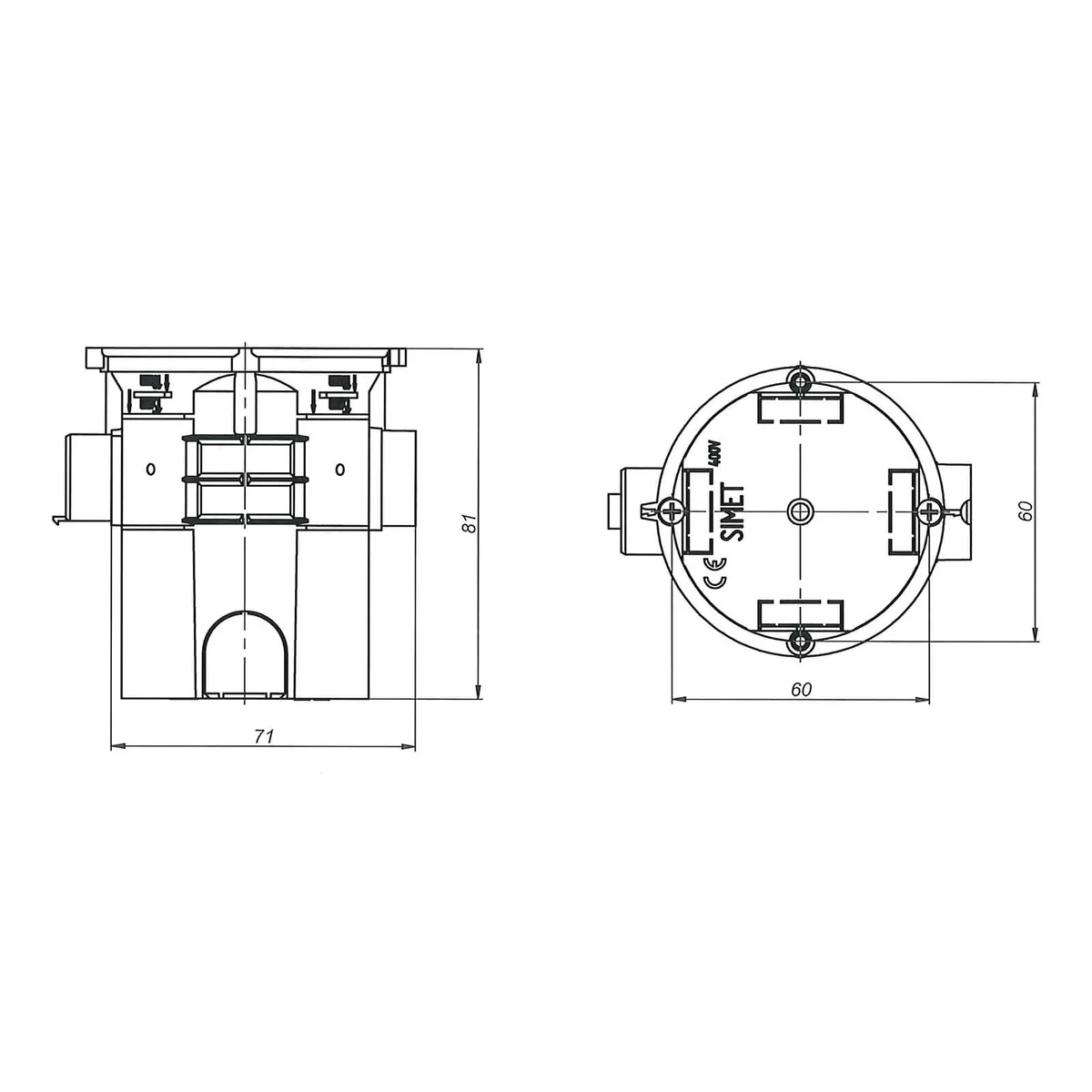

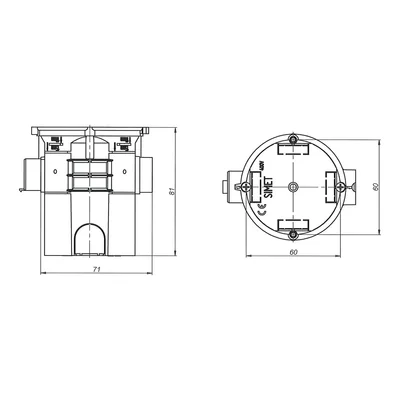

Technical data

  • Depth [mm]
    81
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Pieces in the package
    35
  • Type
    For attachments
  • Number of bolts/screws
    2
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    62
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    23
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Attachment diameter [mm]
    60

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    None
  • Length
    62 mm
  • Depth
    81 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    ... 20 mm
  • Inlet from the rear
    no
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    no
  • With screening
    no
  • Clamp position fixed
    no
  • Nozzle
    Square branch pipe
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    62 mm
  • For number of electric fittings
    1
  • With screws
    no
  • For tube diameter
    20 mm
  • Pipe locking
    no
  • Number of inlets
    8
  • Halogen free
    no
  • Colour
    Orange
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    no
  • Luminaire hook mounting
    no
  • Z zaczepami pazurkowatymi
    no
