SIMET

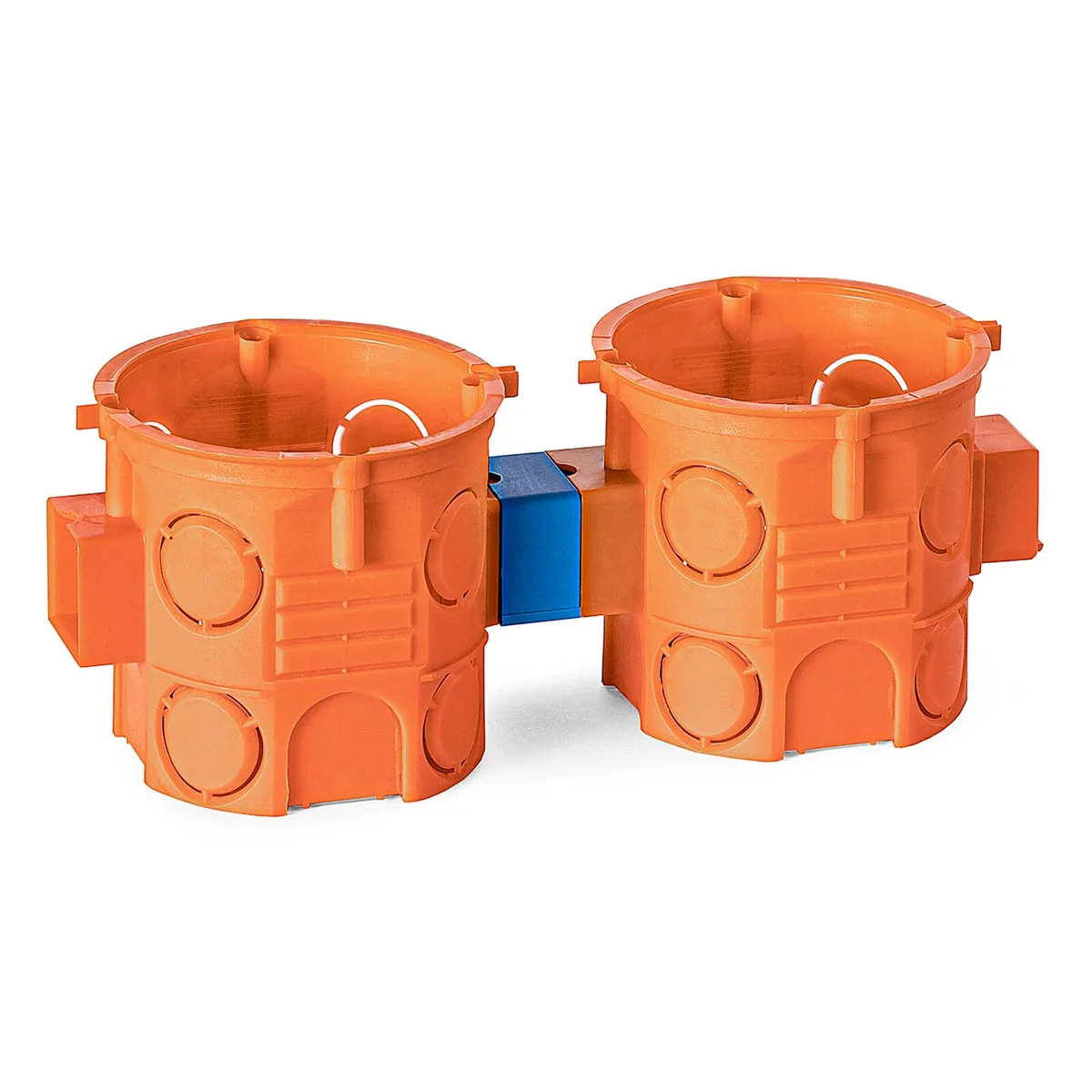

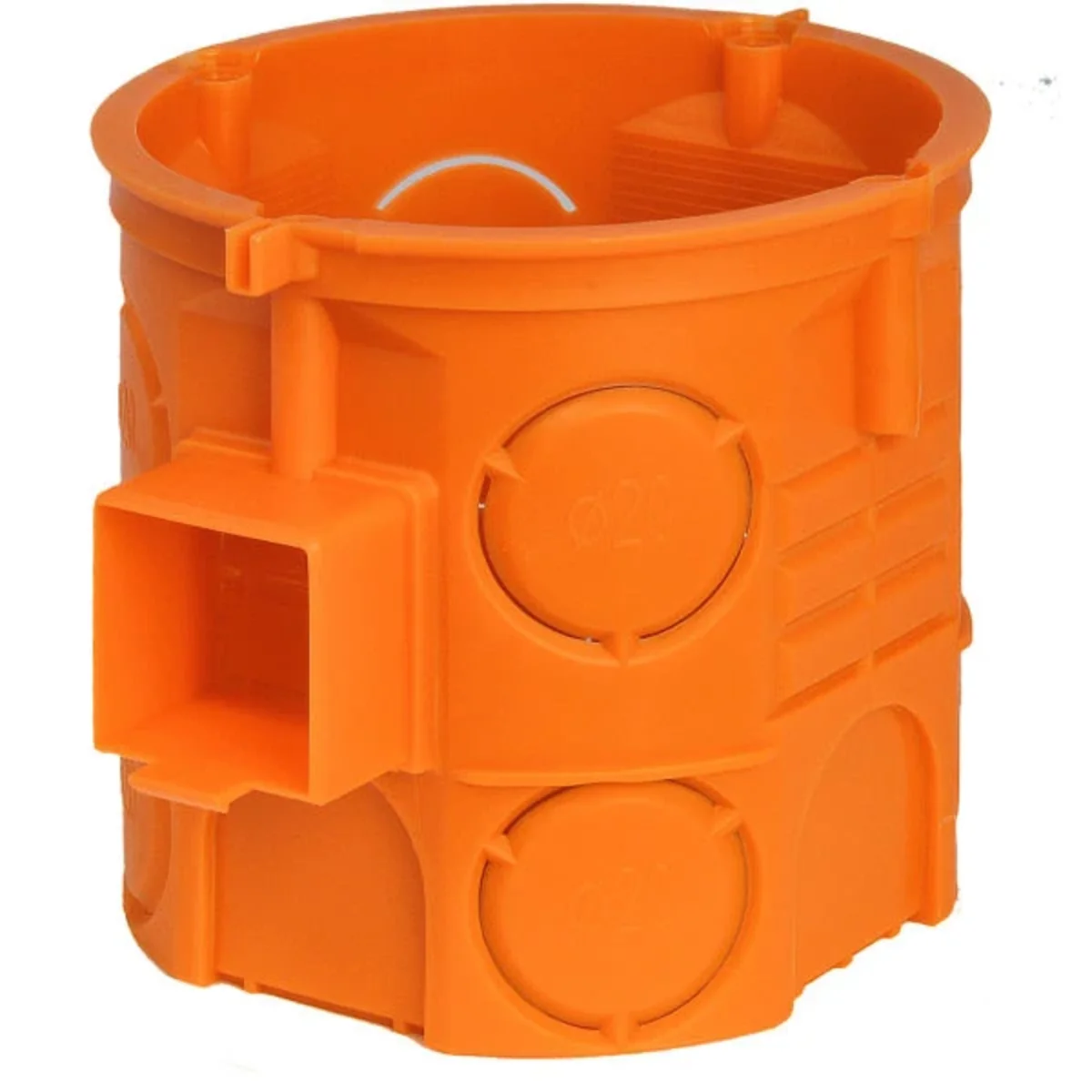

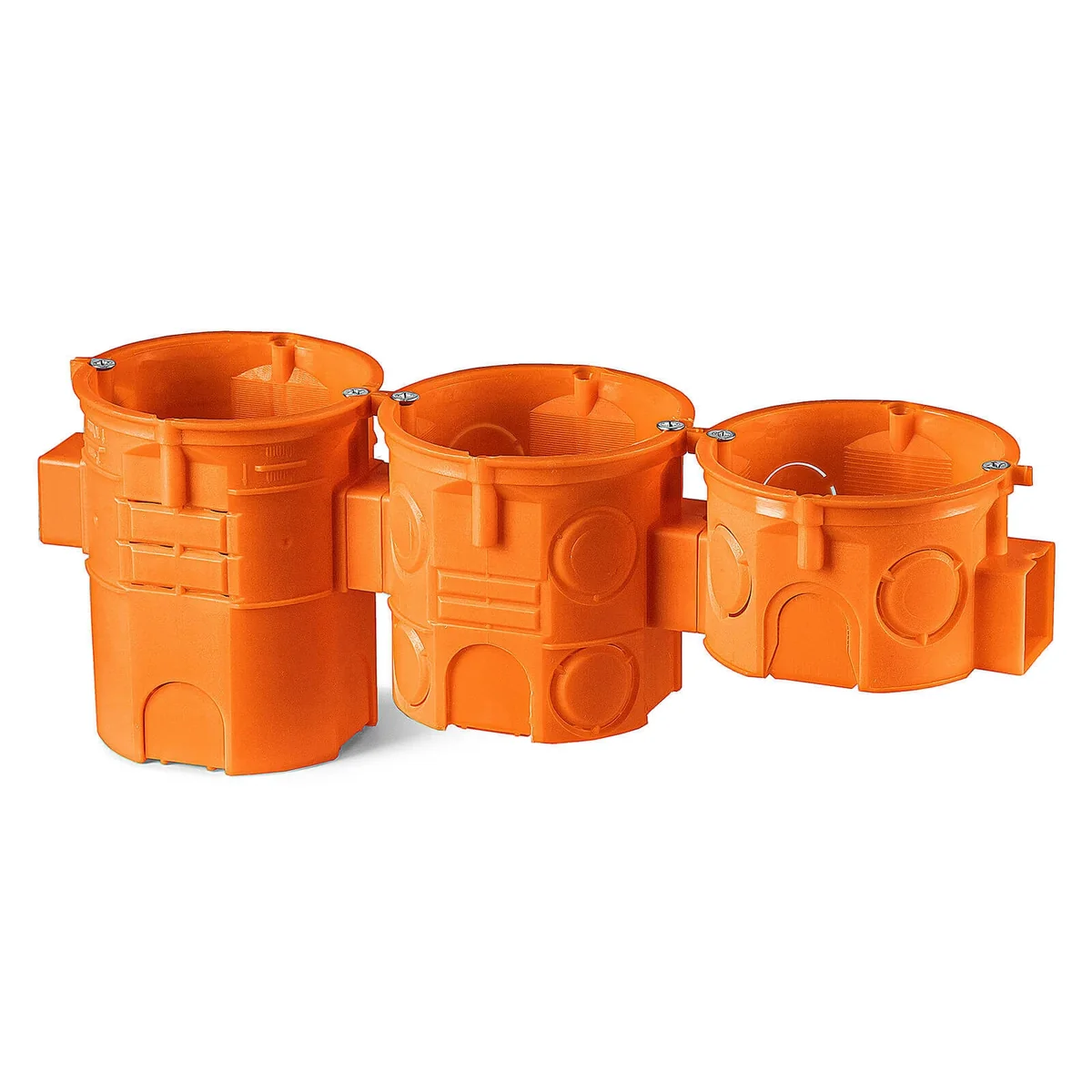

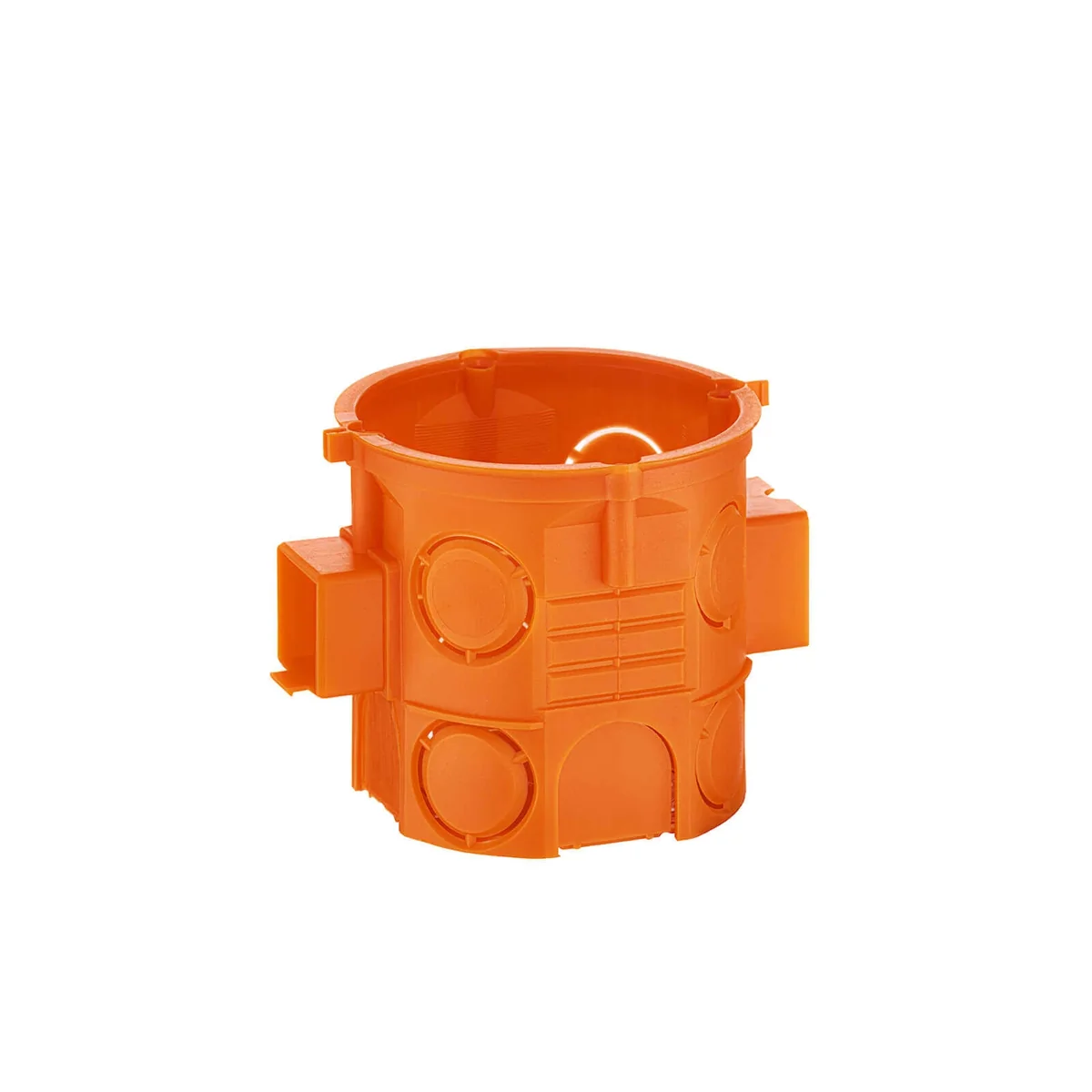

Flush-mounted serial box S60DF fi60mm deep orange 33057008

local index:
MVP031SIME
Catalog No:
33057008
EAN code:
5907813201417
Price:
0,32 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 8792 pcs.
Delivery:
From 3,46 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Boxdeep, serial

  • 14 knockouts for ø 20 mm pipes in the side walls.
  • Special design with additional rectangular knockouts and connectors improving rigidity.

Accessories matching the box:

  • KD12 spacer.
  • PD60x12 spacer rings , PD60x24, PD60x30.
  • PL60 cover.
  • W16, W25, W40 screws.
  • PS60 signal cover.

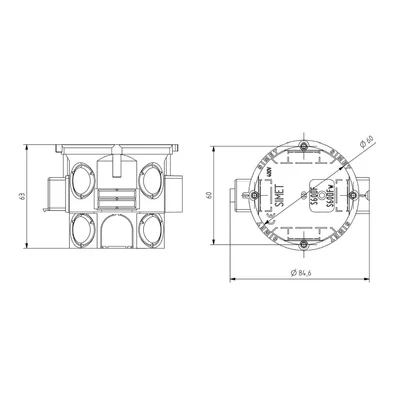

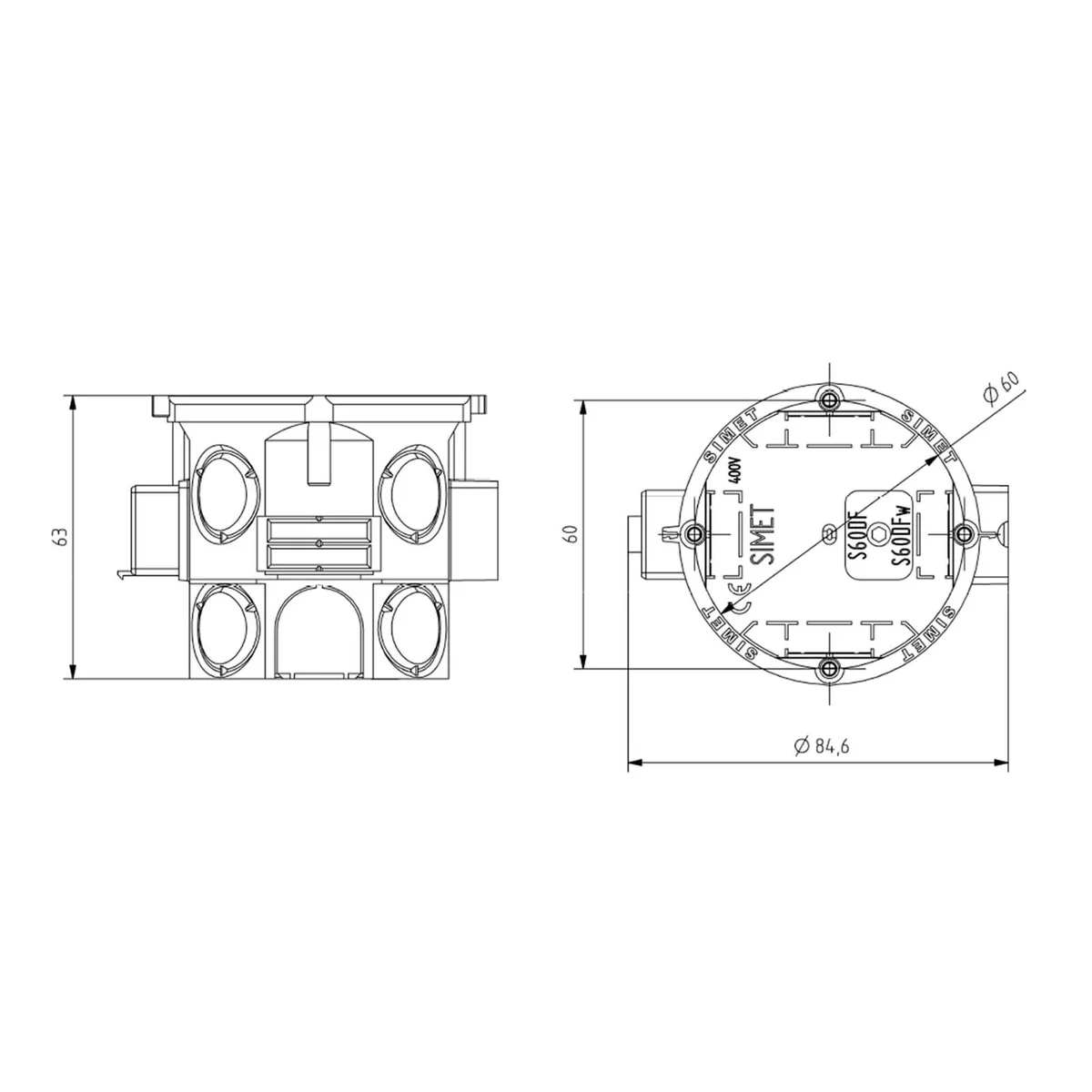

Technical data

  • Depth [mm]
    61
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    21
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    65
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Number of slots
    14

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    None
  • Length
    65 mm
  • Depth
    61 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    no
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    no
  • With screening
    no
  • Clamp position fixed
    no
  • Nozzle
    Square branch pipe
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    65 mm
  • For number of electric fittings
    1
  • With screws
    no
  • For tube diameter
    20 mm
  • Pipe locking
    no
  • Number of inlets
    14
  • Halogen free
    no
  • Colour
    Orange
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    no
  • Luminaire hook mounting
    no
  • Z zaczepami pazurkowatymi
    no
