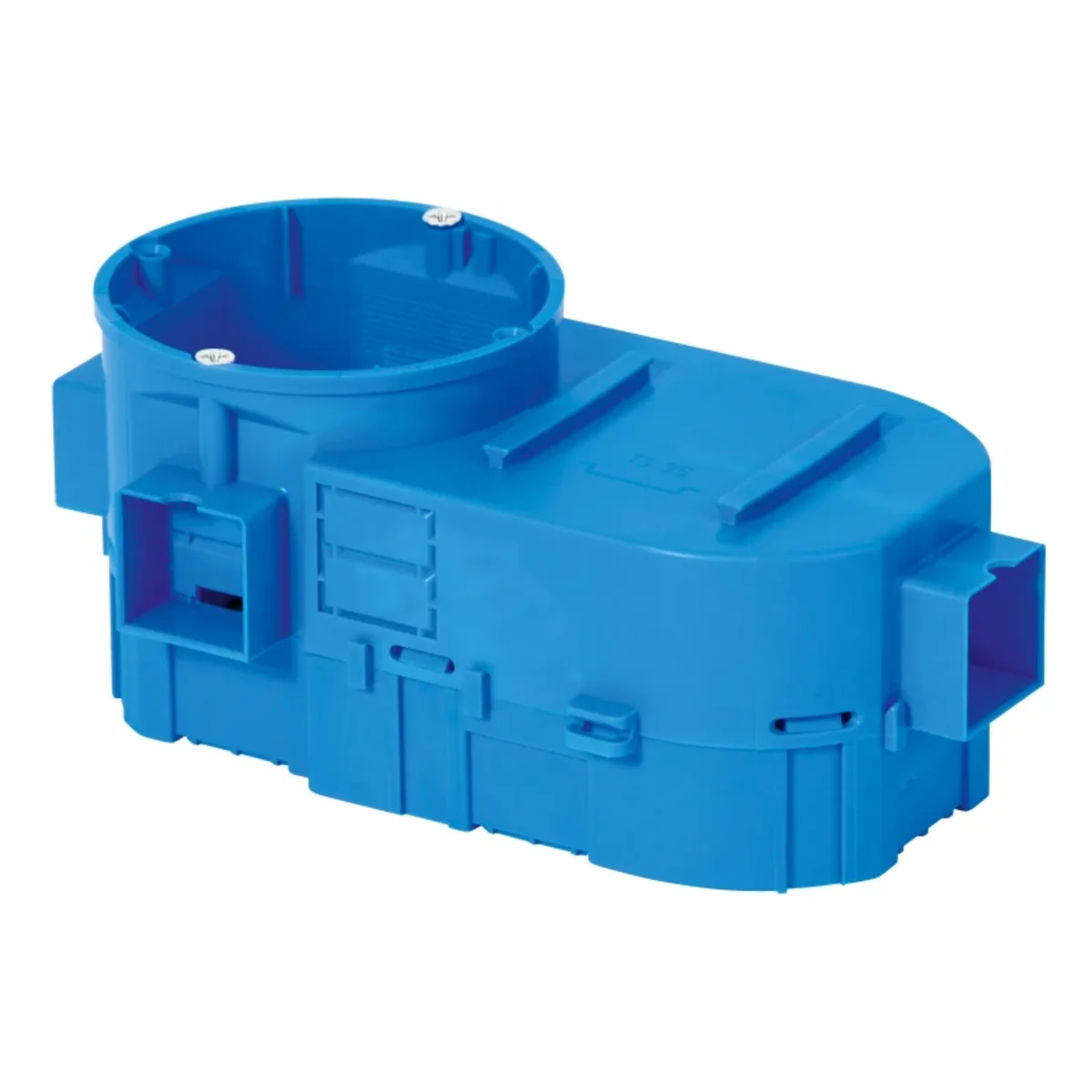

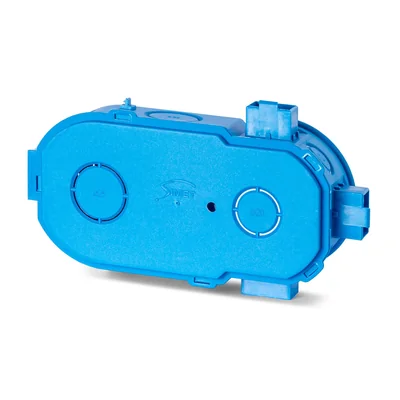

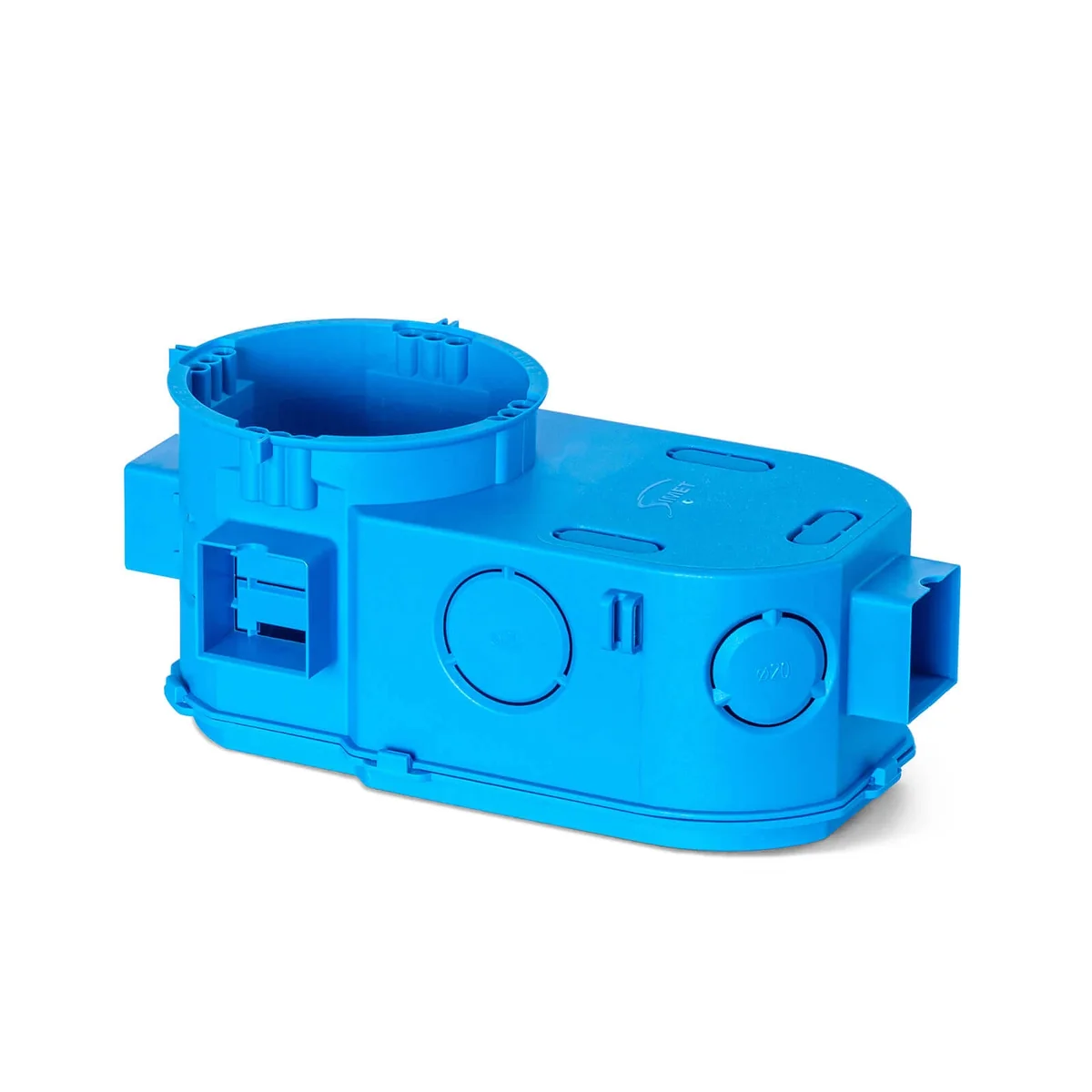

Flush-mounted serial box for electronics, one-sided closed SE2x60 2xfi60 deep blue 34117203

local index:
MVP046SIME
Catalog No:
34117203
EAN code:
5907813212369
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 63
Color: Blue
Price:
6,14 €
gross / pcs.
(including VAT 23%)
109,84 € gross/kg.
Delivery in 3h
Accessible 265 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

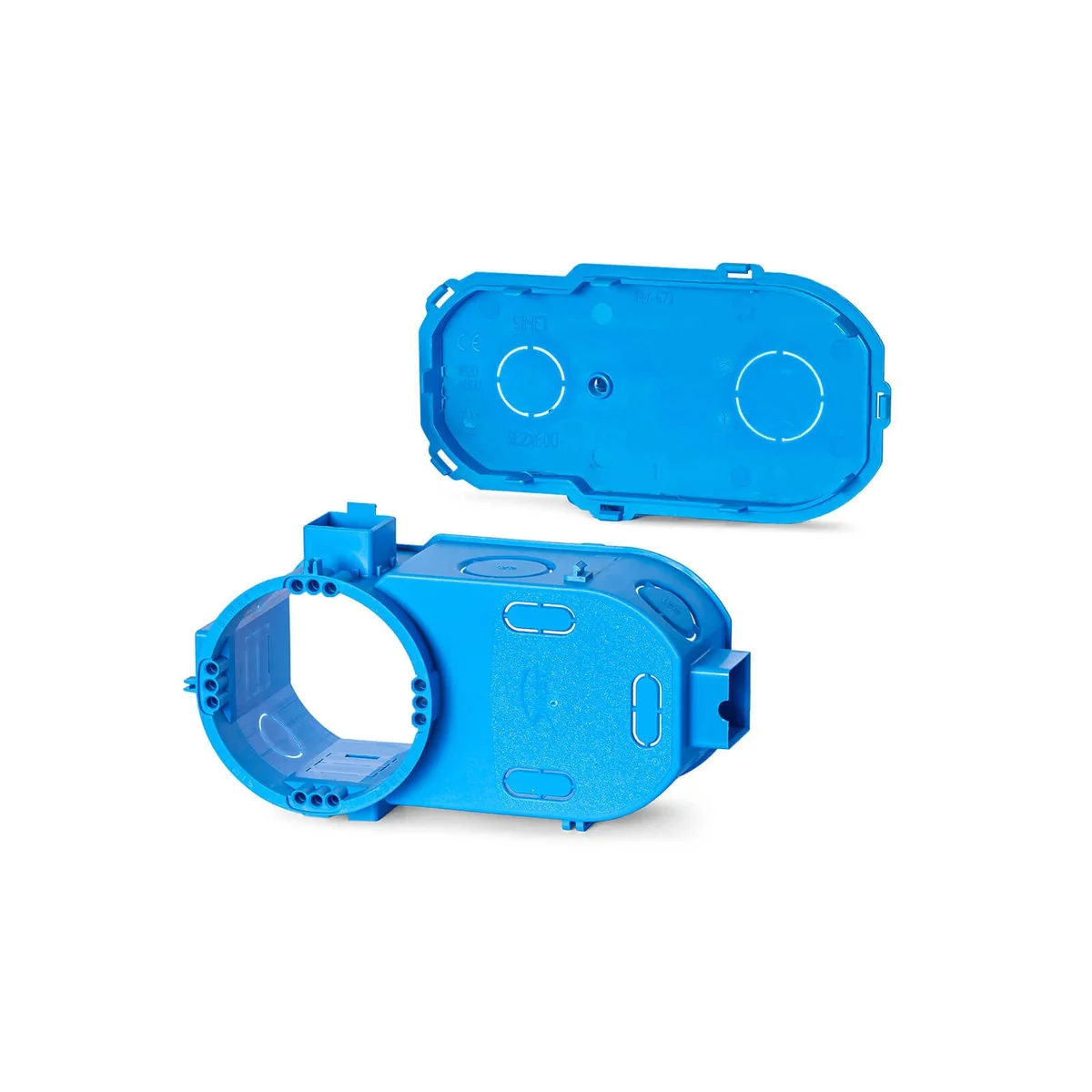

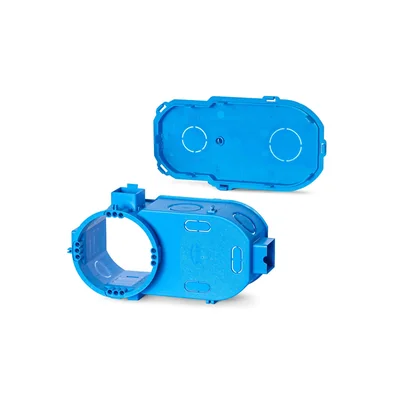

The box SE2x60 is adapted to embedding specialized electrical and electronic devices. Specially widened interior gives the possibility of placing additional elements next to the built-in flange of the control element box. It is also possible to use the entire internal space of the box to place various types of devices in it. Then it is closed from the top with the PL60 cover. The box has a serial construction that allows for multiple blocks of boxes. Its construction consists of two separate elements connected with each other by means of latches. This gives the possibility of embedding larger spatial elements in the box. The LPA12-1.5 connector with washer is recommended for connecting electronic wires.

  • Rectangular knockouts in the bottom and walls for flat wires.
  • The box can be mounted on a rail.
  • PS60 signal cover
  • W16, W25, W40 screws

Technical data

  • Halogen free
    Yes
  • Color
    Blue
  • Material
    Polyamide
  • Cover
    NO
  • Width [mm]
    65
  • Weight [g]
    55.9
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    960
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0
  • Depth [mm]
    63
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Type
    For attachments
  • Height [mm]
    153
  • Number of bolts/screws
    2
  • Number of segments
    2
  • For modular equipment
    Not applicable
  • Exact material
    PA6

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    153 mm
  • Depth
    63 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Inlet from the rear
    No
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
  • Shape
    Oval
  • Model
    Double
  • Diameter
    60 mm
  • Width
    65 mm
  • For number of electric fittings
    2
  • With screws
    Yes
  • Pipe locking
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    Square branch pipe
