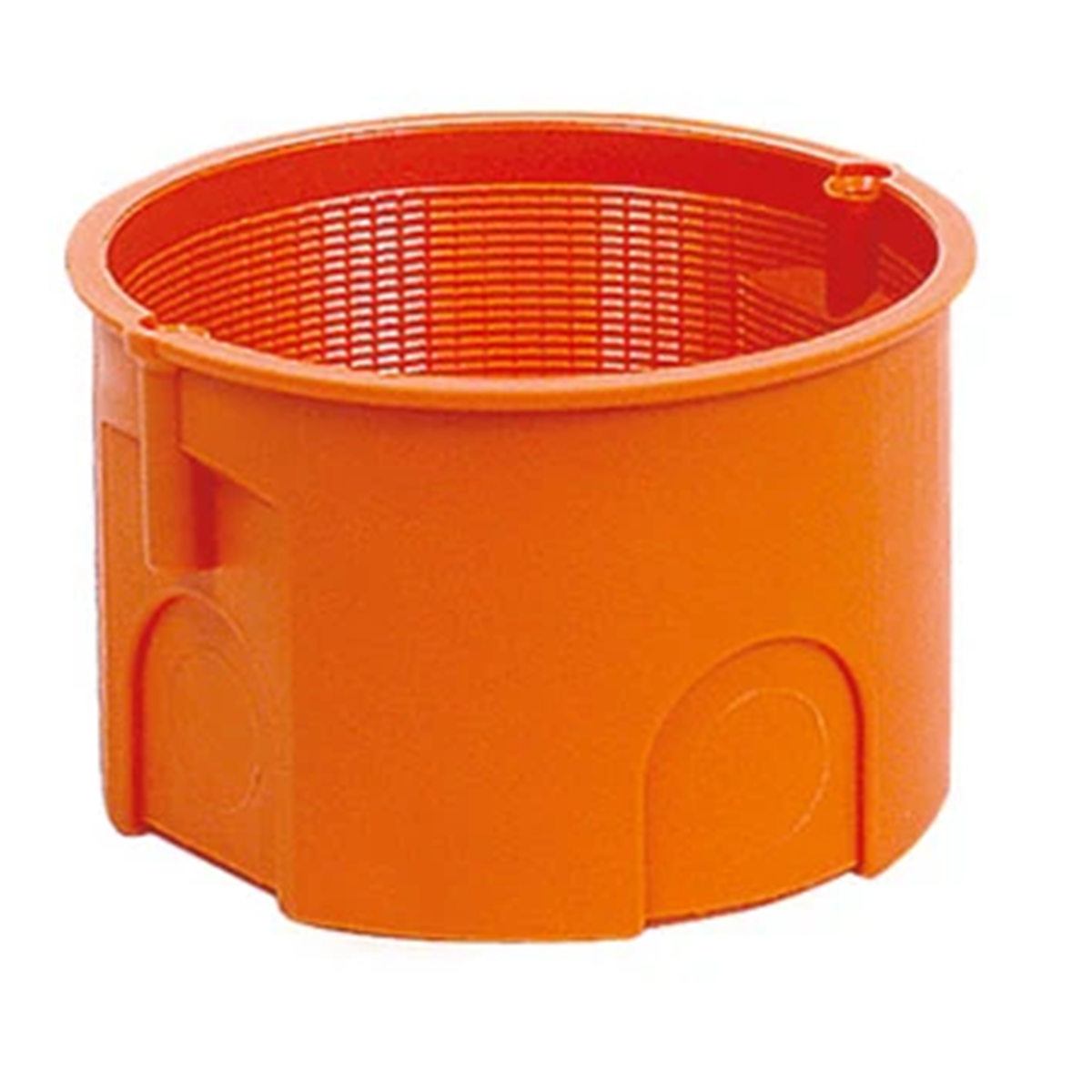

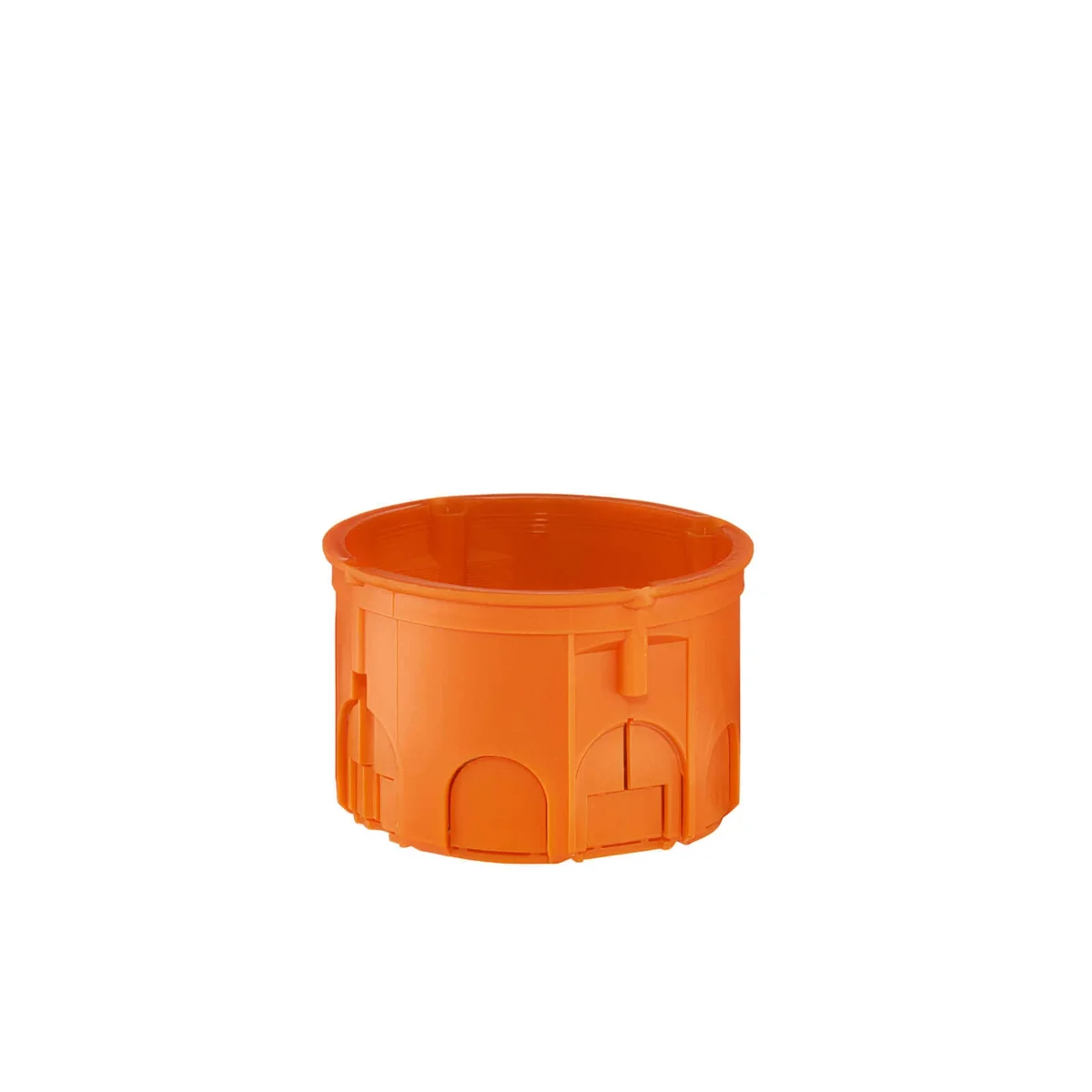

Flush-mounted box Z60KF fi60mm, orange plate 33048008
local index:
MVP028SIME
Catalog No:
33048008
EAN code:
5907813205651
Price:
0,25 €
gross / pcs.
(including VAT 23%)
19,53 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Box recessed plate
- 4 knockouts for ø 20 mm in side walls
Accessories matching the box:
- Spacing rings PD60x12, PD60x24, PD60x30.
- PL60 or WS60 cover.
- W16, W25, W40 screws.
- PS60 signaling cover.
Technical data
-
Depth [mm]41
-
ShapeRound
-
InstallationFlush-mounted
-
TypeTo the wall
-
TypeFor attachments
-
Fire resistanceNot applicable
-
Fire resistance [°C]650
-
Number of slots4
-
PKWIU27.33.13.0
-
ColorOrange
-
MaterialPP
-
CoverNO
-
Width [mm]63
-
Weight [g]12.8
-
Number of segments1
-
For modular equipmentNot applicable
-
Attachment diameter [mm]60
Other technical data
-
Mounting methodFlush-mounted
-
Construction typeBuilt-in installation box (device box)
-
Equipped withOther
-
Length63 mm
-
Depth41 mm
-
Mounting switching equipmentScrewing
-
Type of housing feed-throughPreembossing
-
Suitable for cable diameter... 20 mm
-
Inlet from the rearNo
-
MaterialPlastic
-
Surface protectionOther
-
PokrywaNone
-
SealableNo
-
With screeningNo
-
Clamp position fixedNo
-
NozzleNone
-
ShapeRound
-
ModelSingle
-
Diameter60 mm
-
Width63 mm
-
For number of electric fittings1
-
With screwsYes
-
For tube diameter20 mm
-
Pipe lockingNo
-
Number of inlets4
-
Halogen freeNo
-
ColourOrange
-
Cover attachmentScrewed
-
Circuit integrityNone
-
Air tightNo
-
Luminaire hook mountingNo
-
Z zaczepami pazurkowatymiNo
