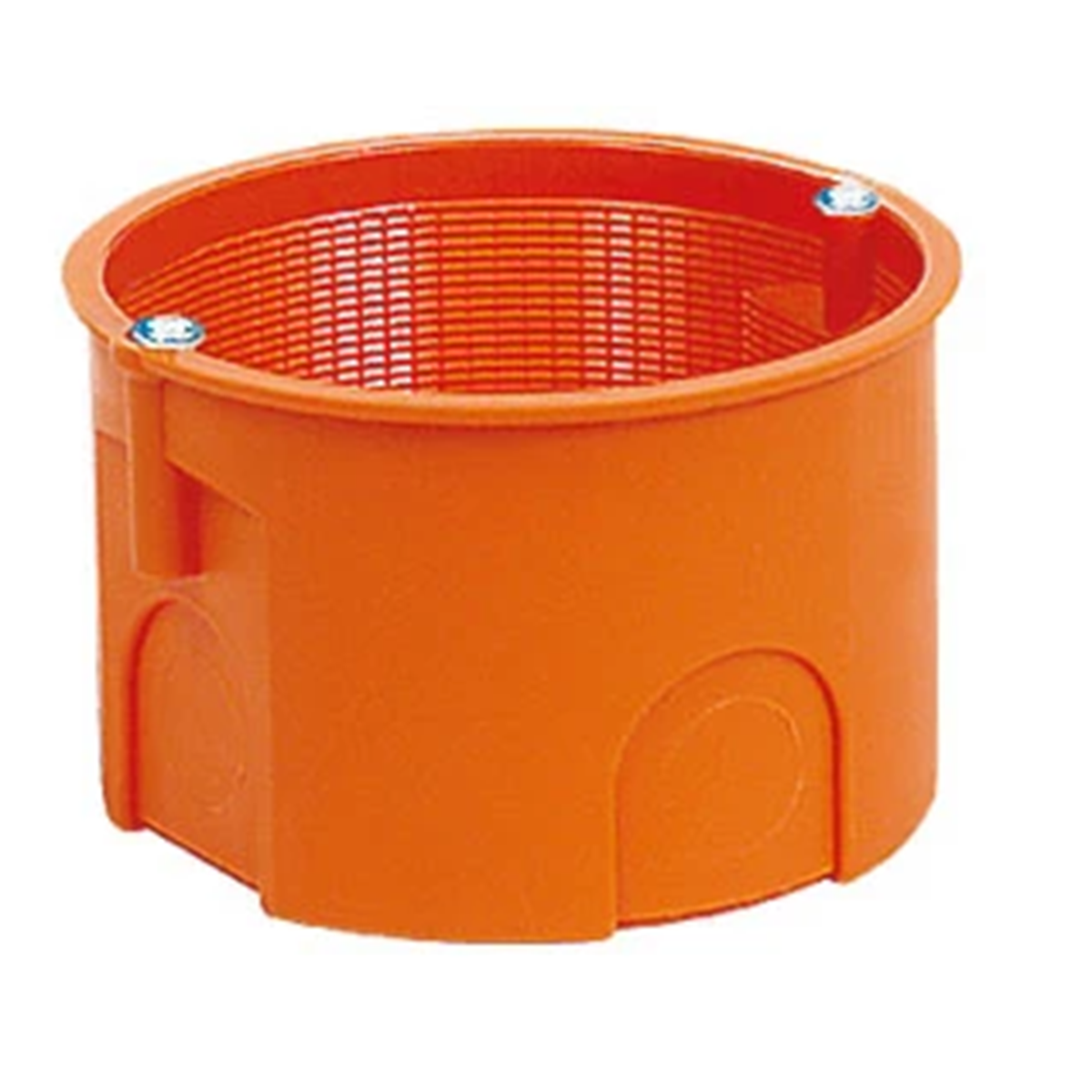

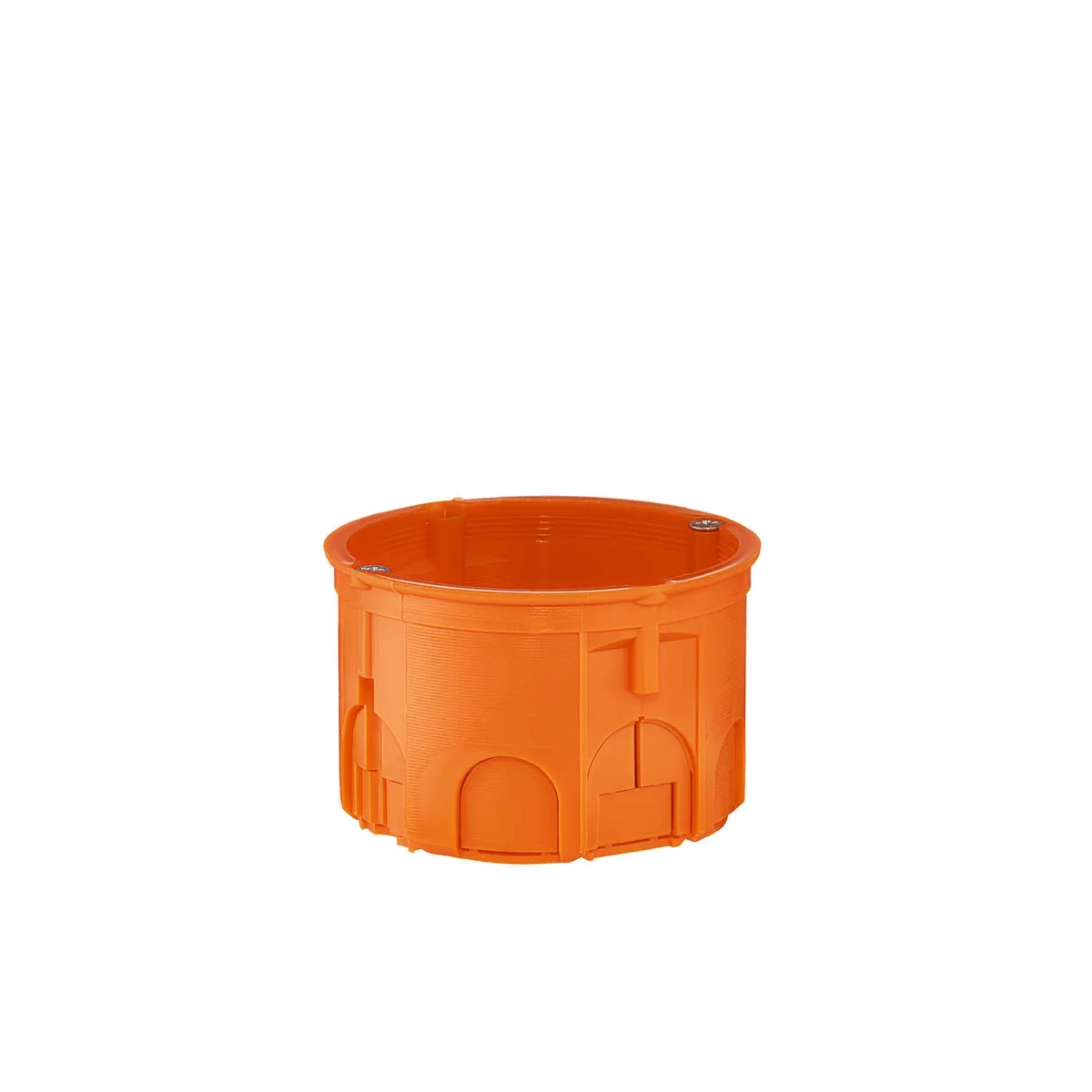

Flush-mounted box with screws Z60KFw fi60mm, orange plate 33049008

Índice local:
MVP029SIME
Número de catálogo:
33049008
Código EAN:
5907813205705
Fabricante: SIMET
Depth [mm]: 41
Color: Orange
Shape: Round
Precio:
0,36 €
gross / uds.
(IVA incluido 23%)
27,48 € gross/kg.
Entrega en 3h
Accesible 1527 uds.
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Box recessed plate

  • 4 knockouts for ø 20 mm in the side walls.
  • 2 screws for mounting accessories included.

Accessories matching the box:

  • Spacing rings PD60x12, PD60x24, PD60x30.
  • PL60 or WS60 cover.
  • W16, W25, W40 screws.
  • PS60 signaling cover.< /li>

Datos técnicos

  • Depth [mm]
    41
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Type
    For attachments
  • Number of bolts/screws
    2
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    63
  • Weight [g]
    13.1
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Number of slots
    4
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    None
  • Length
    63 mm
  • Depth
    41 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    63 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    4
  • Halogen free
    No
  • Colour
    Orange
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Detalles del fabricante

  • Fabricante
    SIMET S.A.
  • Dirección
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska

Empaquetado a granel

una especie de paquete Pakiet
Cantidad 1 uds.
Profundidad (m) 0,040
