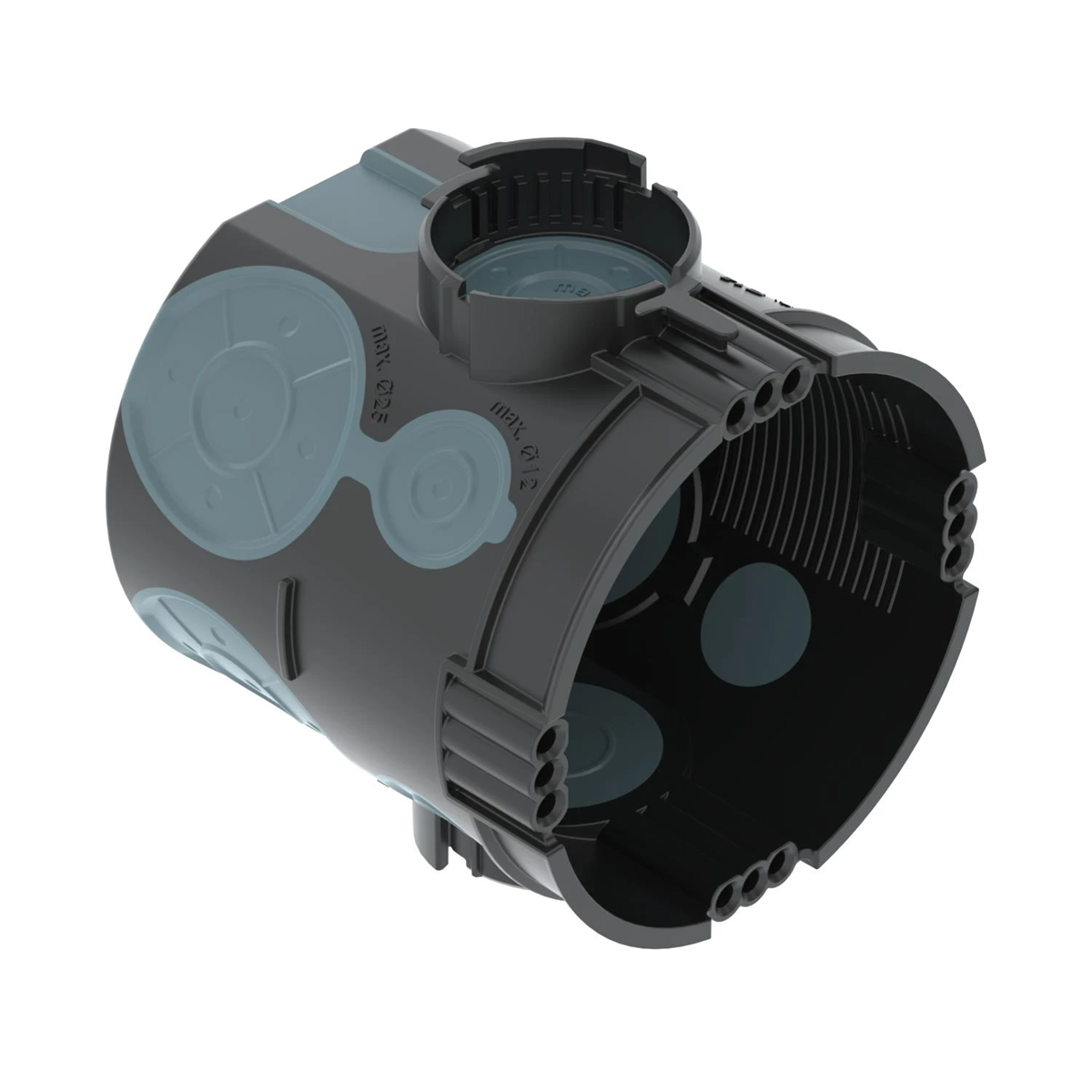

Flush-mounted box UG 66-L for hermetic electronics with a black membrane 2003708

local index:
MVP004OBOB
Catalog No:
2003708
EAN code:
4012196715909
Price:
1,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 59 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted box with hermetic membrane entries, for use in masonry with a depth of at least 66 mm.
• 4 x 3 screw domes
• Connector with a bayonet lock that can be connected from both sides of the boxes
• 4 combination penetrations for Ø 20 and 25mm
• 2 entrances to Ø 20mm
• 6 entries to Ø 12mm
• 2 entrances to Ø 12 mm at the base

Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 25 pcs. 200 pcs. 1600 pcs.
Weight (kg) 0,629 5,676 67,908
Volume (m3) 0,014 0,085 0,912
Width (m) 0,330 0,385 0,800
Length (m) 0,620 0,590 1,200
Depth (m) 0,070 0,375 0,950
