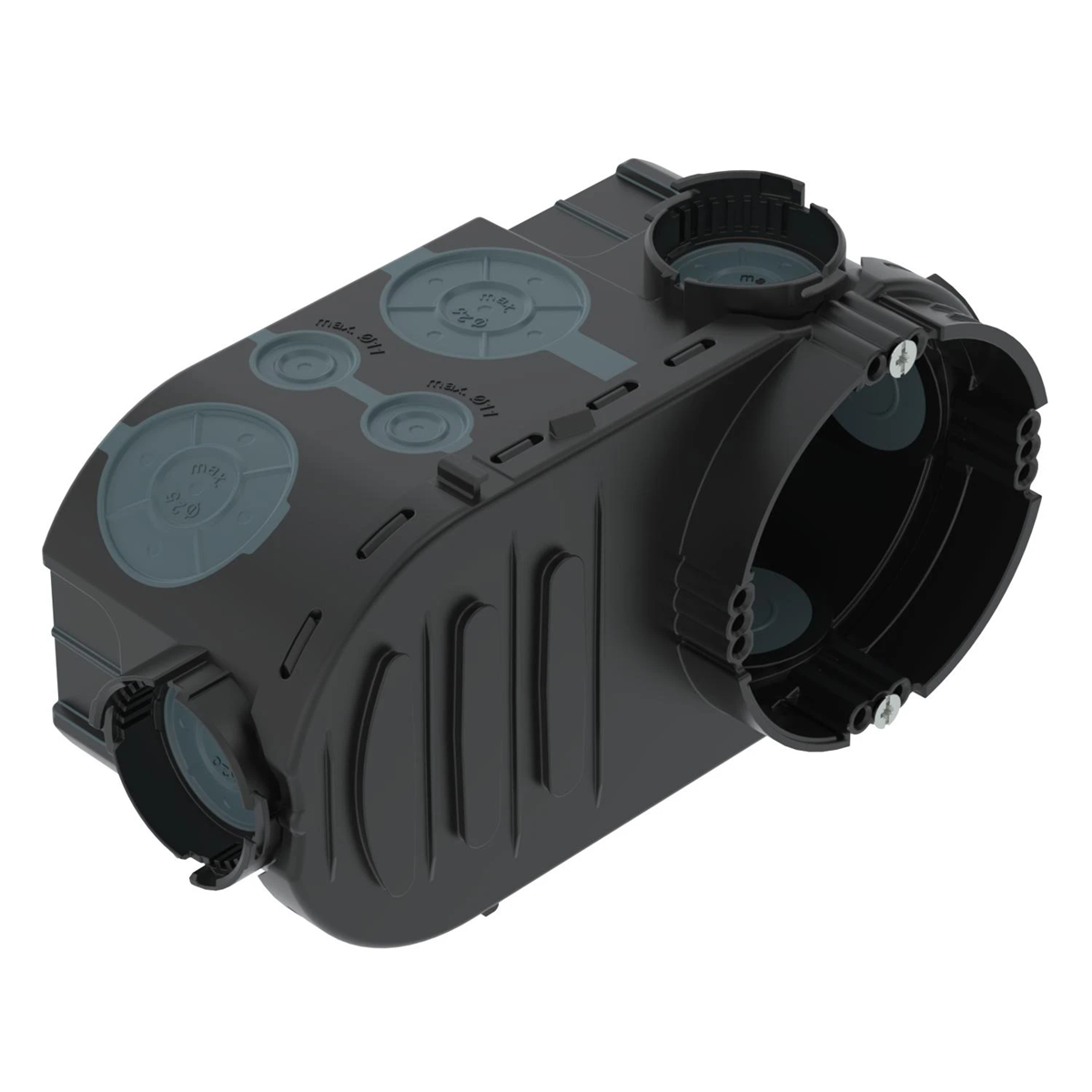

Flush-mounted box UE 66-L for electronics 66 hermetic black 2003727

local index:
MVP002OBOB
Catalog No:
2003727
EAN code:
4012196856596
Manufacturer: OBO BETTERMANN
Depth [mm]: 67
Color: Black
Shape: Oval
Price:
5,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 435 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted electronics box with lateral connection space and hermetic membrane entries, for use in masonry with an installation depth of at least 67 mm
• with 4 bayonet lock connectors
• 4 Ø 20 and 25mm
• 4 entrances to Ø 20mm
• 14 entries to Ø 11mm
• 2 entrances to Ø 20 mm at the base
• Wall dividing the box chambers, with knockout holes
• 4 x 3 screw domes

Tested according to DIN EN 60670-1, DIN…

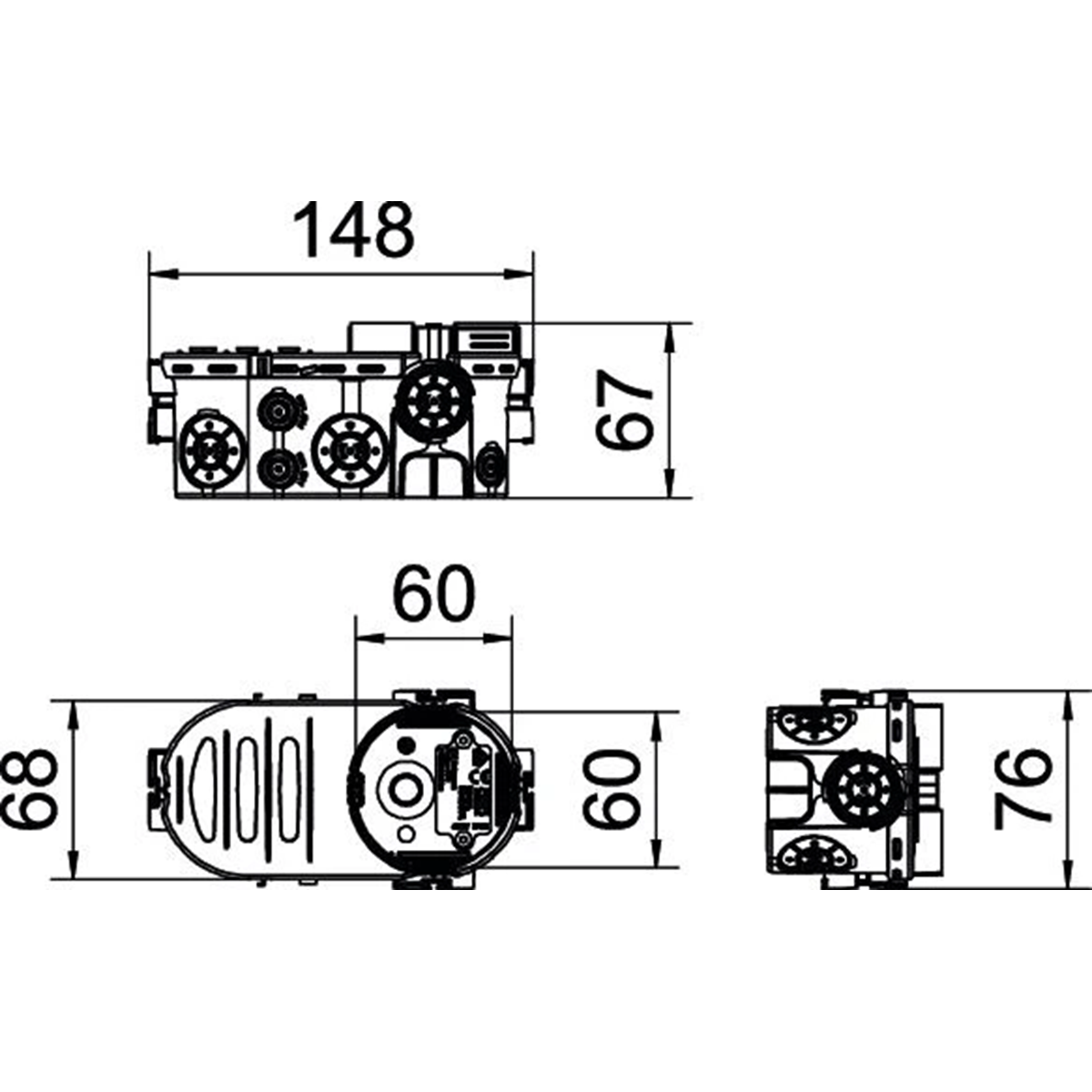

Technical data

  • Depth [mm]
    67
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Width [mm]
    76
  • Number of segments
    2
  • PKWIU
    22.23.19.0
  • Color
    Black
  • Material
    PP Thermoplastic
  • Cover
    NO
  • Level of security
    IP30
  • Fire resistance
    Non-flammable
  • For modular equipment
    Not applicable

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 10 pcs. 80 pcs. 640 pcs.
Weight (kg) 0,661 5,932 69,956
Volume (m3) 0,015 0,085 0,912
Width (m) 0,330 0,385 0,800
Length (m) 0,580 0,590 1,200
Depth (m) 0,080 0,375 0,950
