Flush-mounted box for connecting 3-phase devices HAD-3-F

local index:
MVP002BORP
Catalog No:
HAD-3-F
EAN code:
4025221395069
Manufacturer: TRYTYT
Depth [mm]: 21
Color: White
Shape: Square
Price:
4,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 52 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

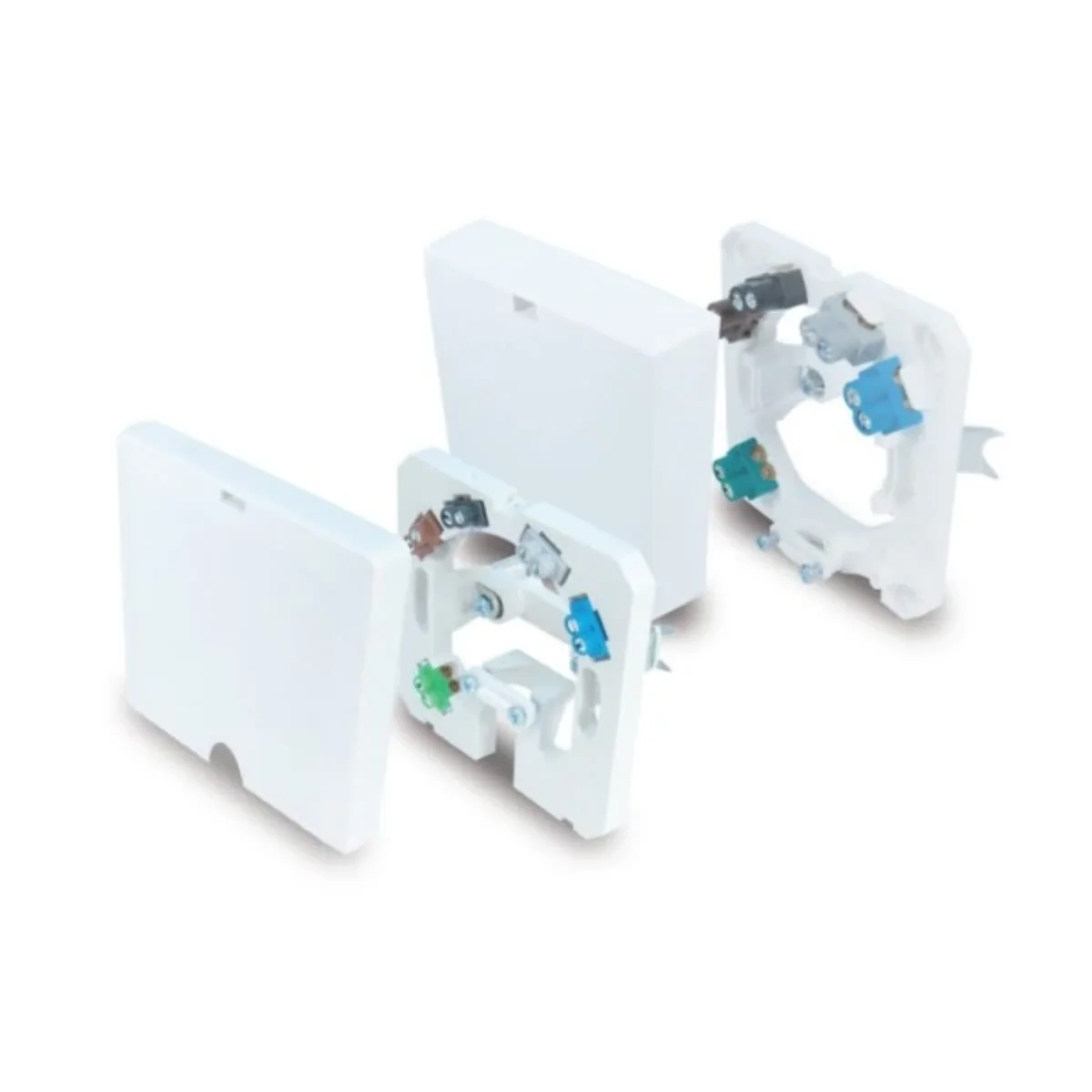

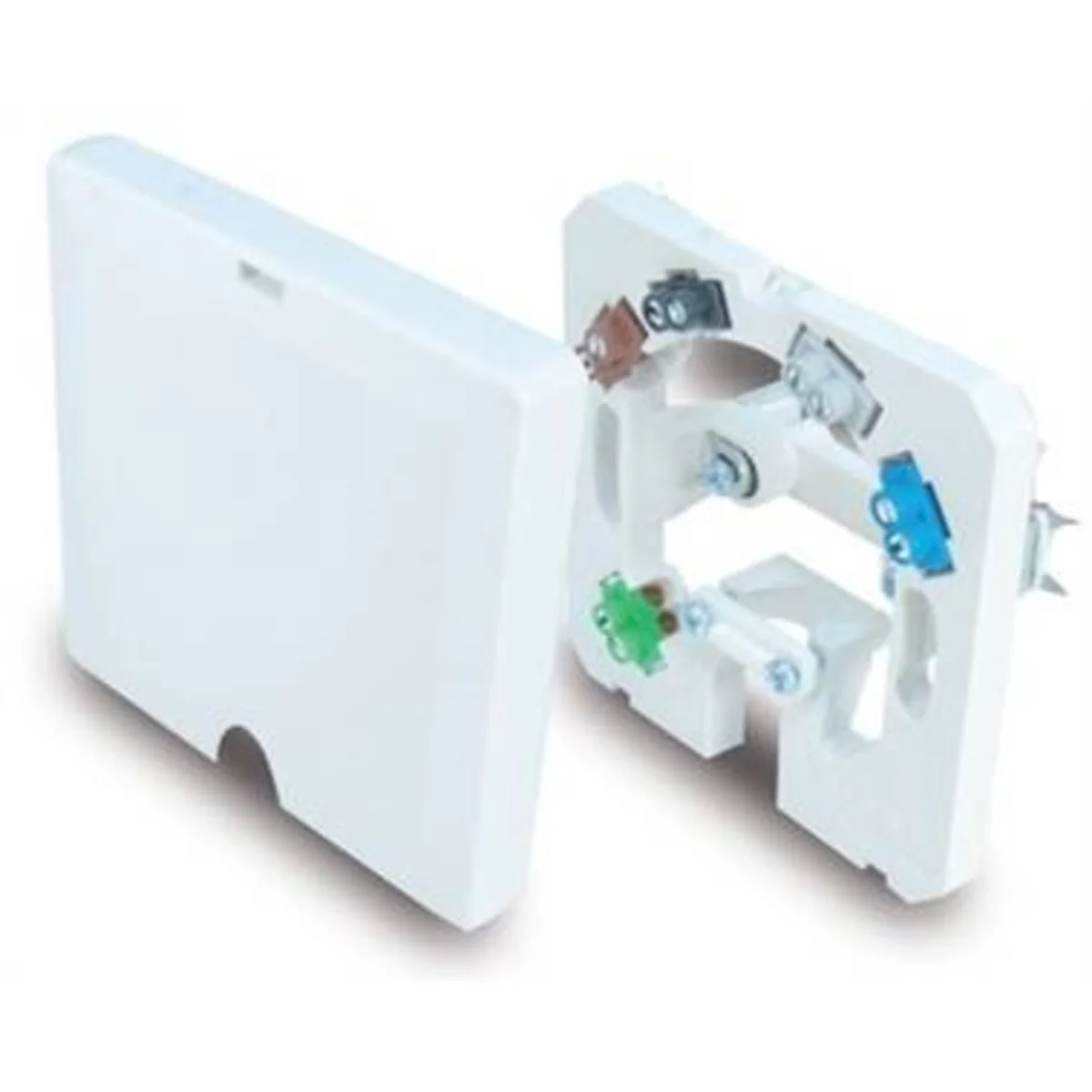

HAD 3-F socket for flush mounting

The HAD 3-F socket made of high-quality plastic with a low profile cover, equipped with five terminals for connecting 3-phase devices. Snap-on cover adapted to output one cable. Simplified connection of wires thanks to the marking of the terminals/pole colors according to the standard wire marking. Product quality confirmed by the VDE certificate.

Technical data

  • Depth [mm]
    21
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    82
  • Height [mm]
    82
  • Number of segments
    1
  • Terminals [mm²]
    5x2.5
  • Color
    White
  • Material
    Plastic
  • Cover
    NO
  • Level of security
    IP44
  • Type
    For branch plates
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0
