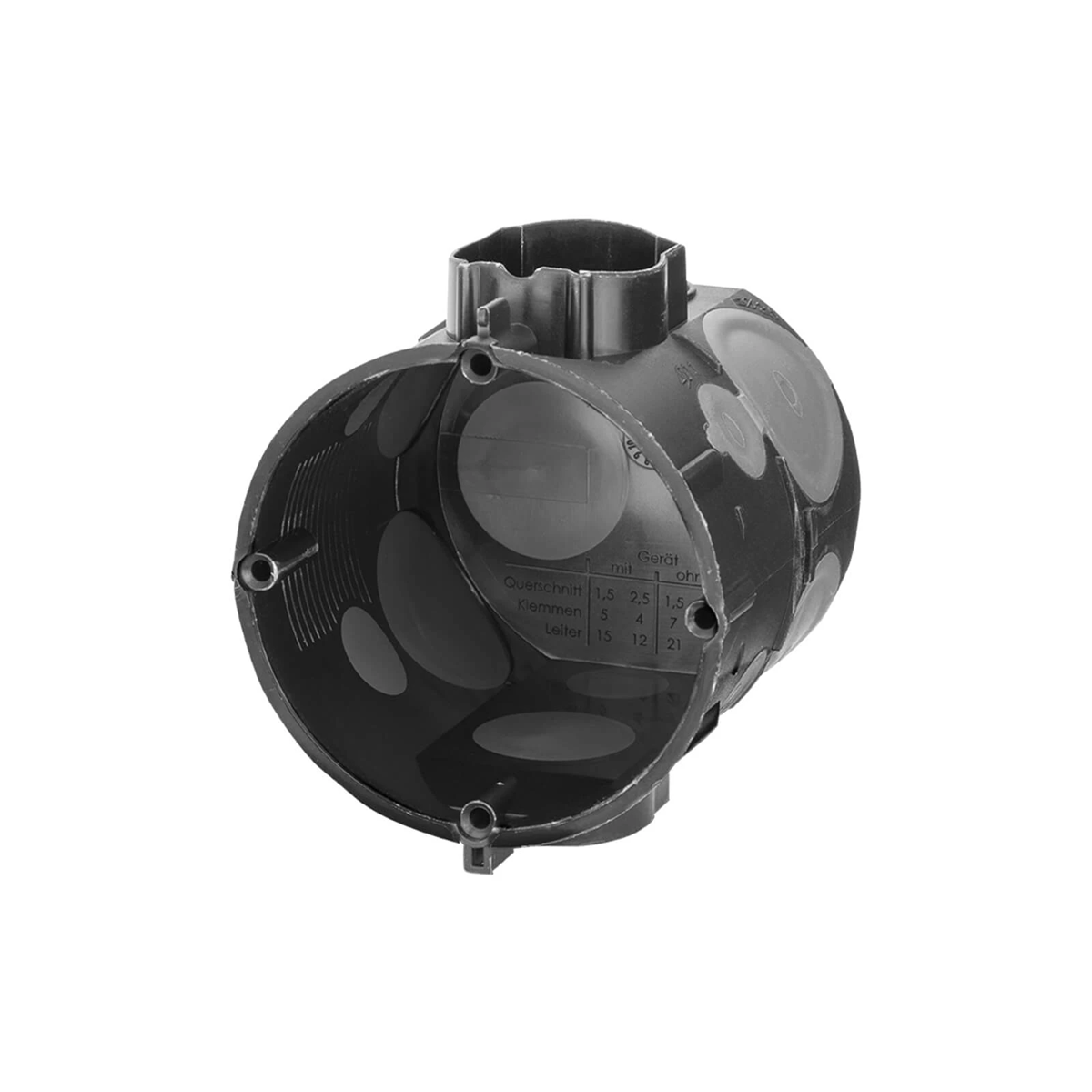

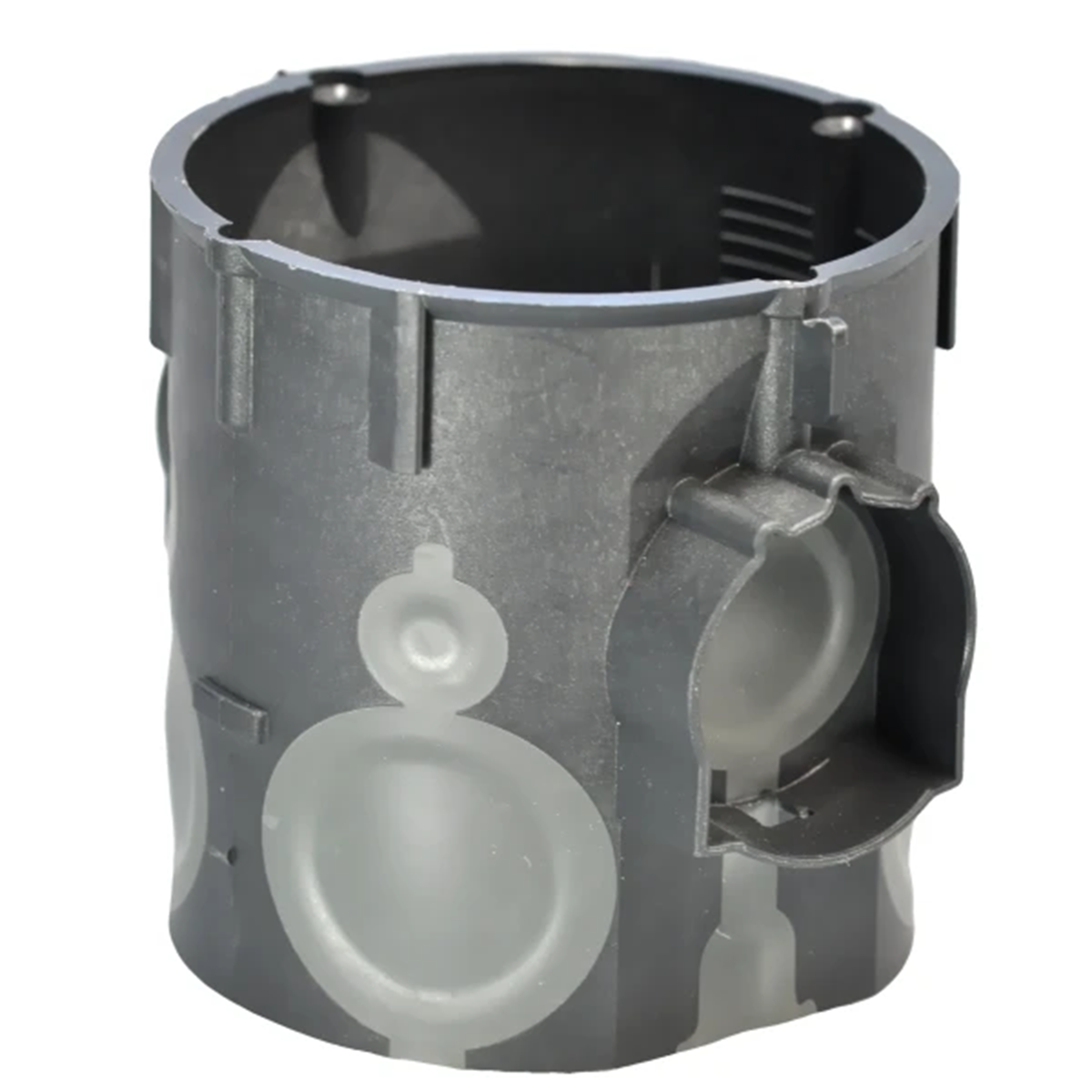

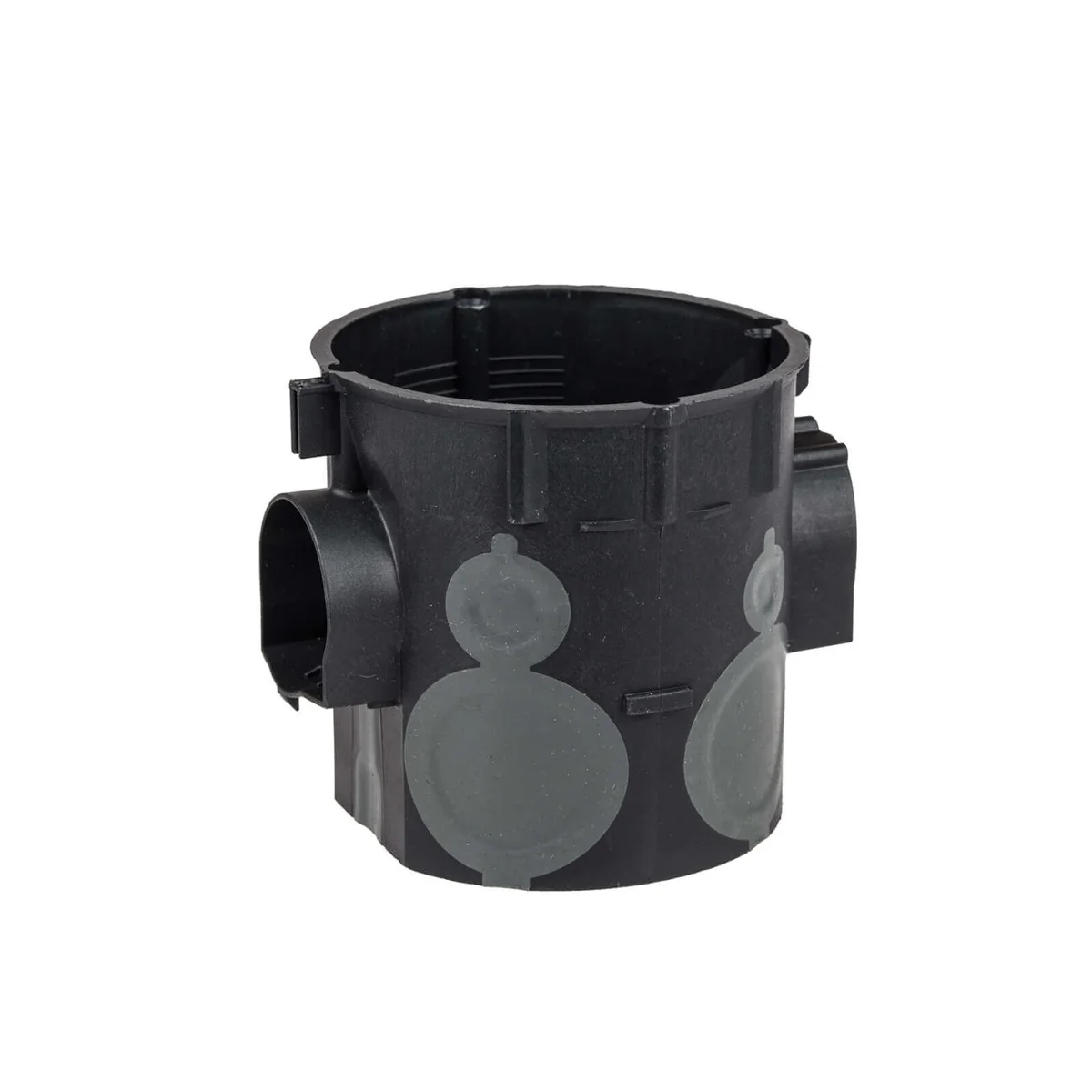

Flush-mounted box combined with puncture membranes E107-2K fi60mm deep black 83107007

local index:
MVP059SIME
Catalog No:
83107007
EAN code:
4034338915473
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 62
Color: Black
Price:
1,18 €
gross / pcs.
(including VAT 23%)
47,20 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Membranewindproof bay

  • VDE certificate
  • Where it is necessary to avoid cumbersome air circulation in the electrical installation for reasons of efficiency energy or required clean room and hygiene conditions, airtightness is important. Cables or pipes can be inserted through the membrane without the use of additional tools, which saves work time.
  • The structure uses: 4 holes for installation screws, 10 membrane holes Ø 20 mm.
  • Box for 71 mm frame module.

Accessories matching the box:

  • PS60 signaling cover, PL60 protective cover , WS60
  • Spacer rings PD60x12, PD60x24, PD60x30
  • Mounting bracket, Screws W16, W25, W40

Technical data

  • Halogen free
    Yes
  • Color
    Black
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    62
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Number of slots
    10
  • Exact material
    PP TPE
  • Depth [mm]
    62
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    25
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    62 mm
  • Depth
    60 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Seal membrane
  • Pipe locking
    No
  • Number of inlets
    10
  • Halogen free
    Yes
  • Colour
    Black
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    Yes
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
  • Shape
    Round
  • Model
    Single
  • Diameter
    60 mm
  • Width
    62 mm
  • For number of electric fittings
    1
  • With screws
    No
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    Pipe socket
