Flush-mounted box, 80mm deep, 68 mm diameter, connection, with screws, for electronics, orange, IP30 A.0083

Name: Flush-mounted box, 80mm deep, 68 mm diameter, connection, with screws, for electronics, orange, IP30
Brand: PAWBOL
SKU: MVP007PAWB
Price: 18.50 PLN
Availability: BackOrder

Índice local:

MVP007PAWB

Número de catálogo:

A.0083

Código EAN:

5902983365778

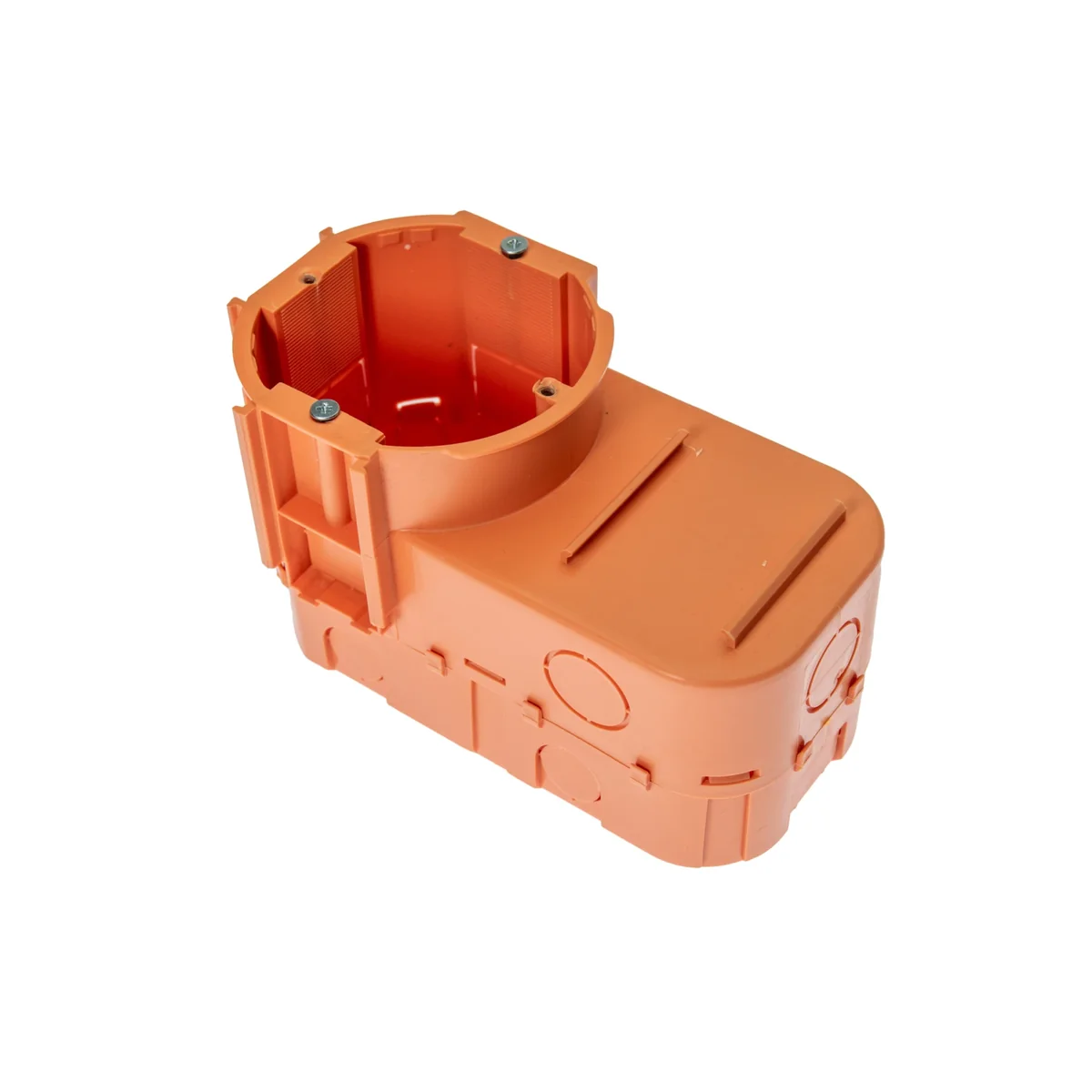

Flush-mounted box, 80mm deep, 68 mm diameter, connection, with screws, for electronics, orange, IP30

Haga clic en la foto para ampliar

Fabricante: PAWBOL

Precio:

18,50 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

PKWIU

27.33.14.0

Otros datos técnicos

Mounting method

Flush-mounted
Construction type

Cable junction box
Provided with revolving ring

No
Equipped with

None
Length

137 mm
Depth

80 ... 80 mm
For number of electric fittings

0
With screws

Yes
Number of adjustable device fixing lugs

0
Housing feed-through by seal membrane

No
Housing feed-through by step membrane

No
Pipe locking

No
Inlet from the rear

Yes
Number of included spouts

0
Halogen free

Yes
Colour

Orange
Degree of protection (NEMA)

Other
Transparent cover

No
Sealable

No
With screening

No
Number of poles of the clamp

0
Luminaire hook mounting

No
Special application

None

Shape

Other
Model

Other
Couplable

Yes
Diameter

68 mm
Width

74 mm
Inner depth

80 mm
Mounting switching equipment

Screw or spread out
Number of non-adjustable device fixing lugs

0
Housing feed-through by break-out opening

Yes
Housing feed-through by nozzle

Yes
For tube diameter

20 mm
Pipe locking optional

No
Number of inlets

10
Material

Plastic
Surface protection

Untreated
Degree of protection (IP)

IP30
Cover model

None
Cover attachment

Centre mounting
Circuit integrity

None
Air tight

No
Clamp position fixed

No
Nozzle

None
With partition panel

No

Detalles del fabricante

Fabricante

PAWBOL Sp. z o.o.
Dirección

32-640 Zator Władysława Grabskiego 29 Polska
Email

firma@pawbol.pl

Empaquetado a granel

una especie de paquete	Bez opakowania	Karton
Cantidad	1 uds.	30 uds.
Peso (kg)	0,060	-
Ancho (m)	0,074	-
Longitud (m)	0,137	-
Profundidad (m)	0,082	-
