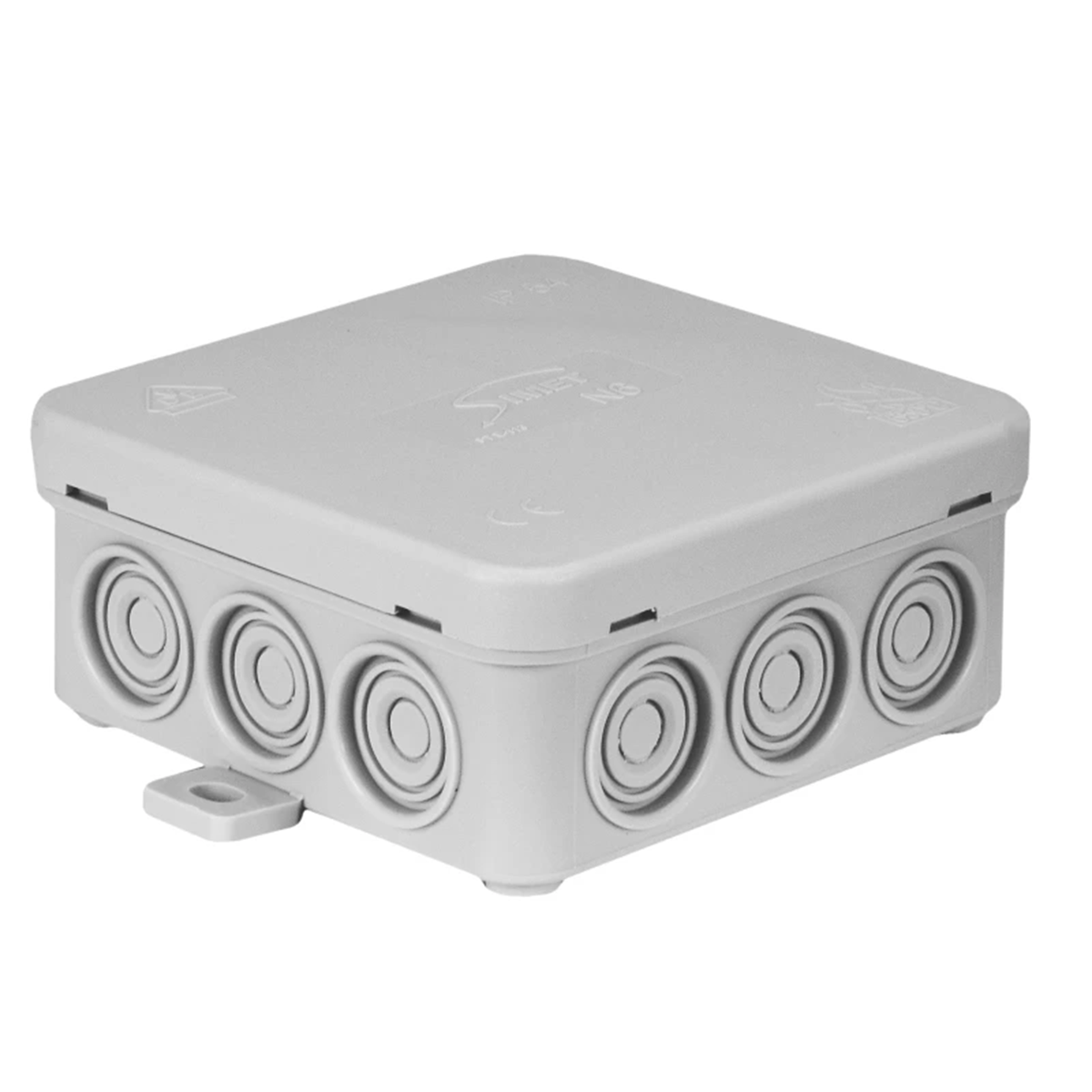

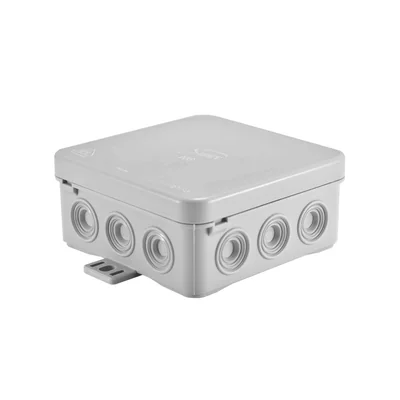

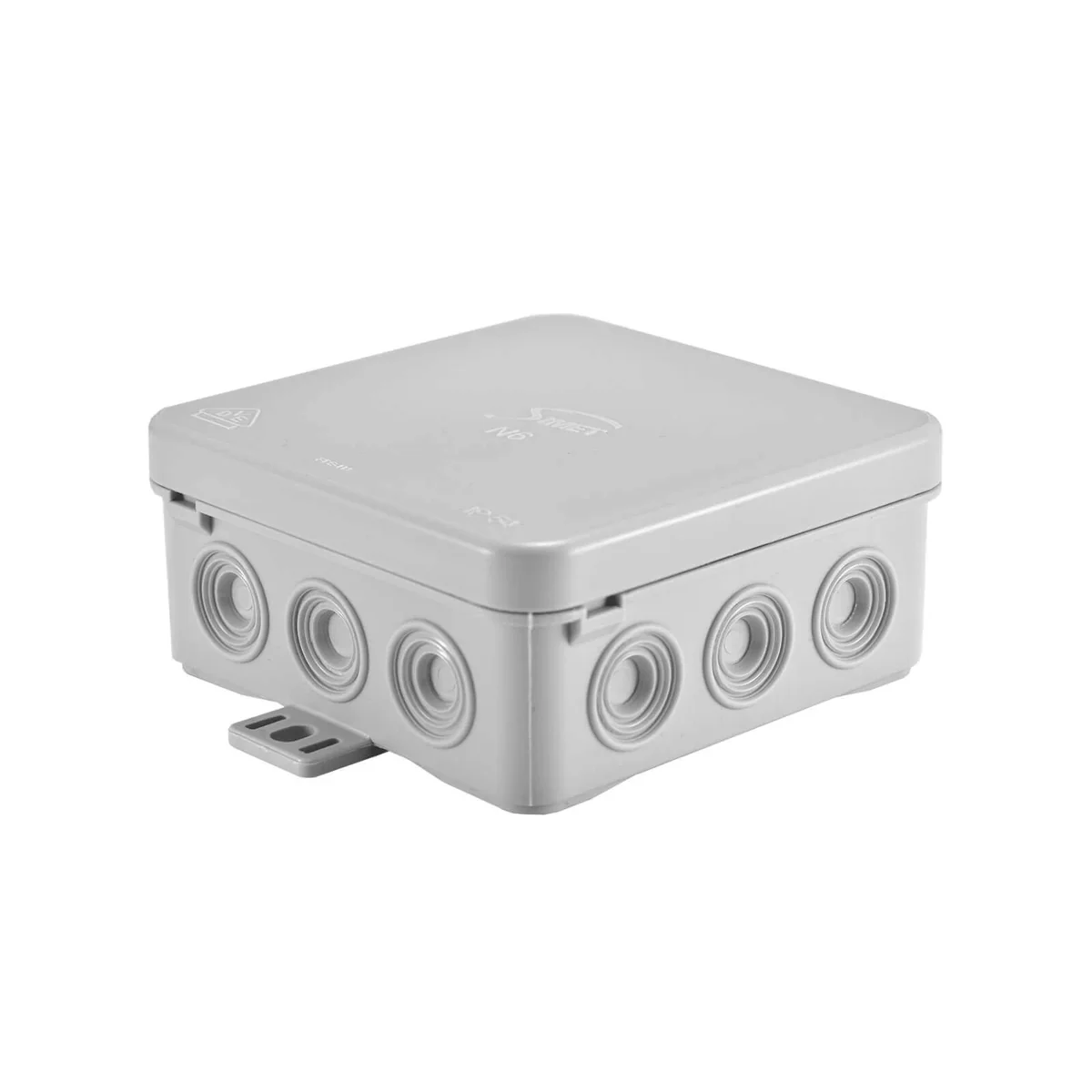

FASTBOX Gland wall box 85x85mm IP54 grey 83006002
Índice local:
MVN017SIME
Número de catálogo:
83006002
Código EAN:
5907813219788
Precio:
140,82 €
gross / pack
(IVA incluido 23%)
1,56 € gross/uds.
Entrega en 3h
Recogida en 1h
Cantidad pack
(múltiple:
1
)
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Wall box with good IP 54 tightness.
- Quick installation on the wall and convenient insertion of cables or pipes.
- Mounted cover snap to the body.
- Convenient knockouts for inserting pipes and wires. They are cut from the inside of the box, at the selected level to obtain the appropriate diameter (6, 11 or 16 mm).
- Convenient mounting to the wall surface thanks to the handles attached to the bottom of the box.
Datos técnicos
-
Halogen freeYes
-
ColorGray
-
MaterialPE
-
CoverYes
-
FamilyFASTBOX
-
Width [mm]85
-
Typebranching
-
Self-extinguishingYes
-
Fire resistance [°C]650
-
With terminal stripNO
-
PKWIU27.33.13.0
-
Depth [mm]40
-
ShapeSquare
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP54
-
Pieces in the package90
-
Height [mm]85
-
Fire resistanceNot applicable
-
For modular equipmentNot applicable
-
Number of stuffing boxes12
Otros datos técnicos
-
Equipped withOther
-
Mounting methodWall-/ceiling mounting
-
Length85 mm
-
Depth38 mm
-
Number of inlets12
-
MaterialPlastic
-
Surface protectionOther
-
Degree of protection (IP)IP54
-
Cover attachmentSnapped on
-
With screeningNo
-
Zakres temperatur pracy... 650 °C
-
ShapeSquare
-
Inlet from the rearNo
-
Width85 mm
-
TackableYes
-
Type of housing feed-throughTrimmable step membrane
-
Halogen freeYes
-
ColourGrey
-
PokrywaNieprzezroczyste
-
SealableNo
-
WeatherproofNo
-
Explosion-tested version
Detalles del fabricante
-
FabricanteSIMET S.A.
-
Dirección58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
