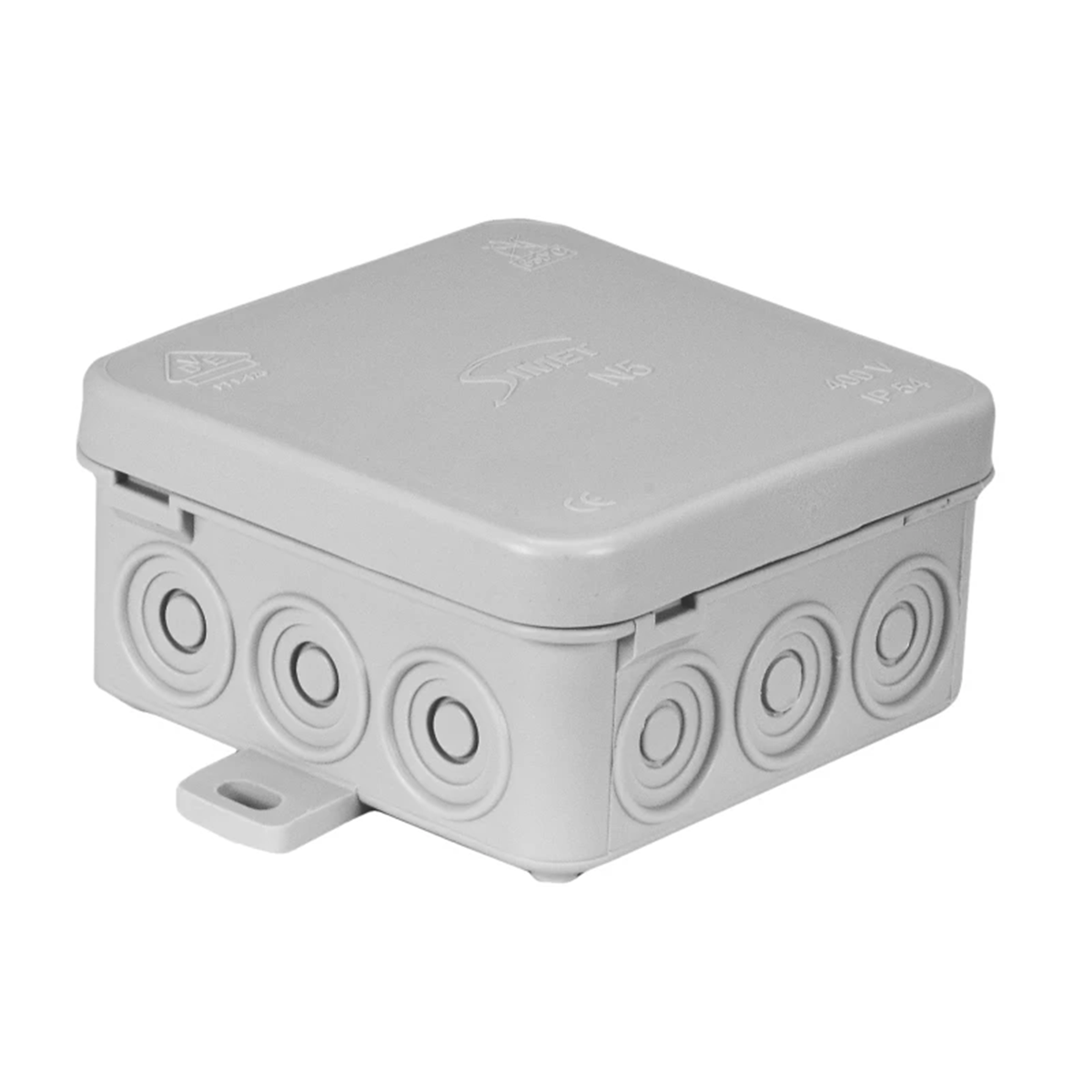

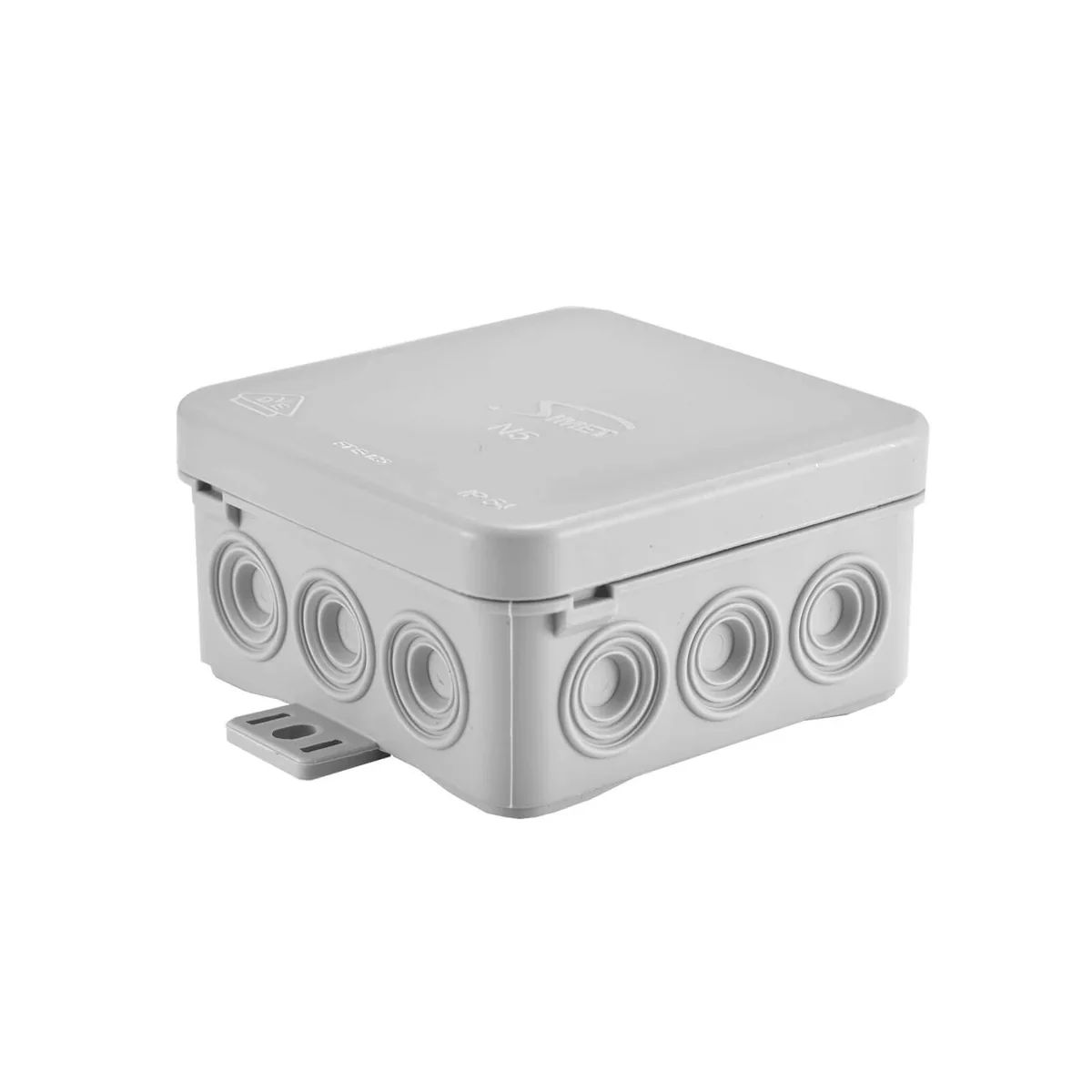

FASTBOX Gland wall box 75x75mm IP54 grey 83005002

Lokaler Index:
MVN039SIME
Katalognummer:
83005002
EAN-Code:
5907813219771
Hersteller: SIMET
Halogen free: Yes
Depth [mm]: 40
Color: Gray
Preis:
5,73 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 104 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Wall box with good IP 54 tightness.

  • Quick installation on the wall and convenient insertion of cables or pipes.
  • Mounted cover snap to the body.
  • Convenient knockouts for inserting pipes and wires. They are cut from the inside of the box, at the selected level to obtain the appropriate diameter (6, 11 or 16 mm).
  • Convenient mounting to the wall surface thanks to the handles attached to the bottom of the box.

Technische Daten

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    PE
  • Cover
    Yes
  • Family
    FASTBOX
  • Width [mm]
    75
  • Height [mm]
    75
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    12
  • Depth [mm]
    40
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP54
  • Type
    branching
  • Self-extinguishing
    Yes
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • PKWIU
    27.33.13.0

Weitere technische Daten

  • Equipped with
    Other
  • Mounting method
    Wall-/ceiling mounting
  • Length
    74 mm
  • Depth
    39 mm
  • Number of inlets
    12
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP54
  • Cover attachment
    Snapped on
  • With screening
    No
  • Zakres temperatur pracy
    ... 650 °C
  • Shape
    Square
  • Inlet from the rear
    No
  • Width
    74 mm
  • Tackable
    Yes
  • Type of housing feed-through
    Trimmable step membrane
  • Halogen free
    Yes
  • Colour
    Grey
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • Weatherproof
    No
  • Explosion-tested version

Hersteller-Details

  • Hersteller
    SIMET S.A.
  • Adresse
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska

Großpackungen

Eine Art Paket Pakiet
Menge 1 stk.
Breite (m) 0,075
Länge (m) 0,075
