FALA Single socket with grounding, white, transparent cover, equipped with shutters for current paths GNH-1HZP/00/D
local index:
MFB071OSPE
Catalog No:
GNH-1HZP/00/D
EAN code:
5907577430542
Price:
4,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

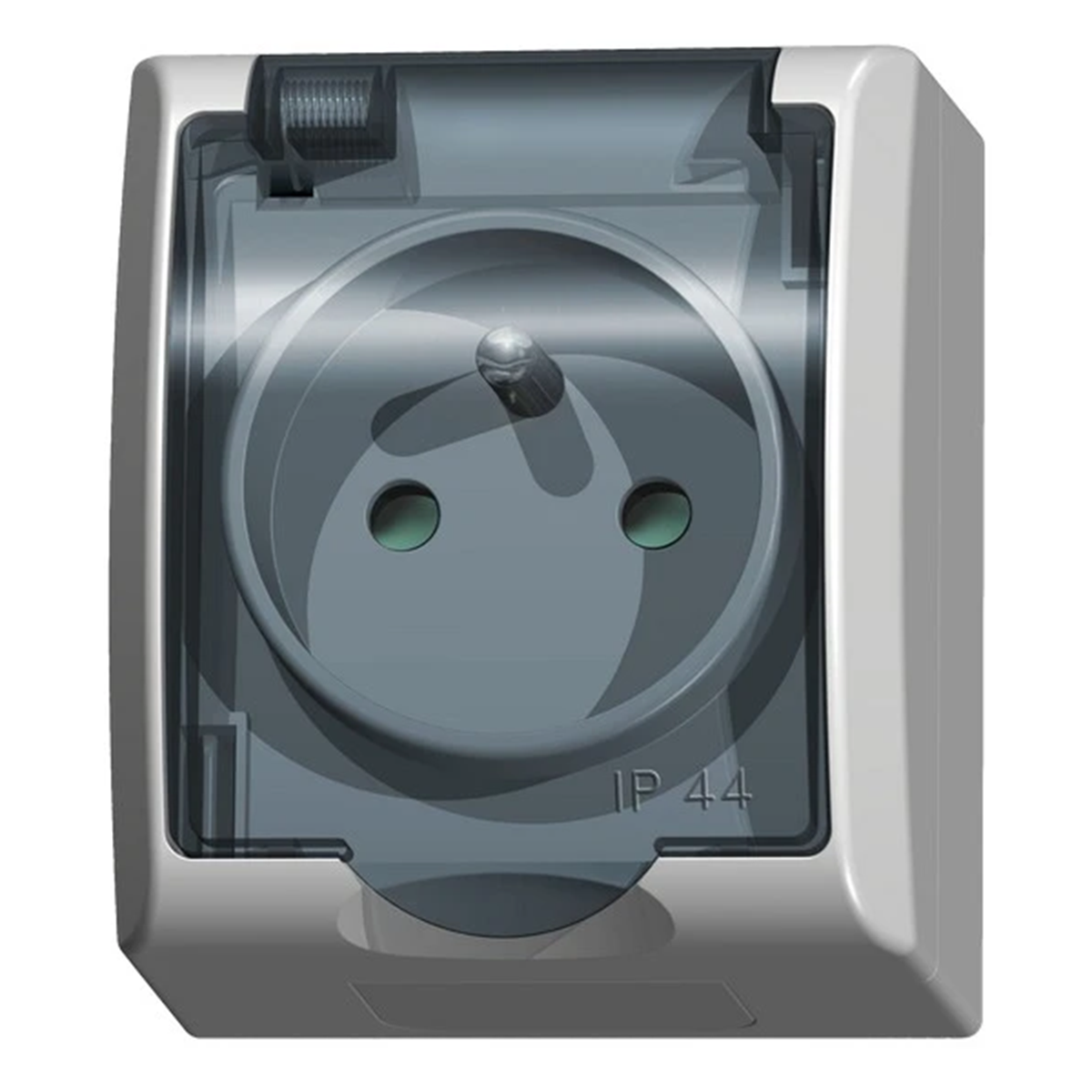

Hermetic wall-mounted electric socket from the Wave series, from Ospel. The product part number is GNH-1HZP/00/D.
FEATURES
- Single .
- Grounded; ground pin.
- With shutters for current paths.
- Thread terminals.
- Socket color ;white.
- Transparent lid.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP44.
- surface mounting.
Technical data
-
Depth [mm]52
-
ColorWhite
-
MaterialPlastic
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyWAVE
-
Width [mm]60
-
GroundHurt
-
Surface protectionNatural
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemNO
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeRectangular
-
Fixingscrews
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeSurface-mounted
-
Height [mm]70
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorTransparent
-
PKWIU27.33.13.0
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Imprint/indicationDegree of protection (IP)
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableYes
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP44
-
Device width60 mm
-
Device depth52 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentYes
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height70 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,079 |
