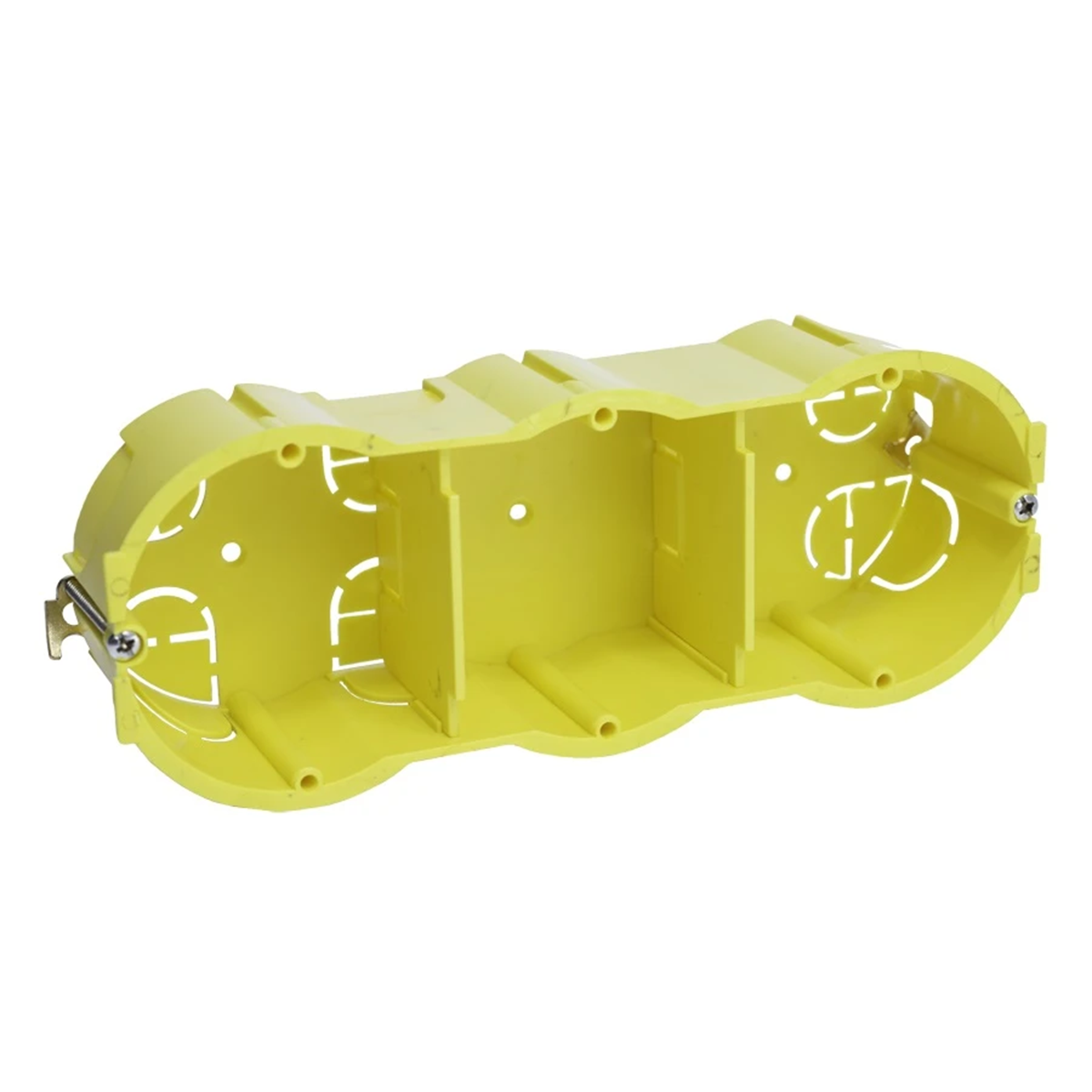

End insulation box for plaster walls, 6-module yellow PU-6/FU/FA-1220TD

Índice local:
MVP012EMSO
Número de catálogo:
PU-6/FU/FA-1220TD
Código EAN:
5906764104044
Fabricante: EMITER
Depth [mm]: 40
Color: Yellow
Shape: Oval
Precio:
10,27 zł
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta una semana (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Installation box flush-mounted allows installation of fittings in the 45x45 mosaic standard under plaster or in a plaster wall.

Mounting method: Installation of sockets is possible in combination with a frame of appropriate size FRAME. Screw the mounting bracket of the frame to the box. We plug in a network or computer socket. Snap the masking frame onto the mounting bracket. In the case of mixed installation of power socket modules with computer (or other) sockets or integrated power sockets, it is possible that not all combinations fit together.

Datos técnicos

  • Depth [mm]
    40
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • For modular equipment
    MOSAIC
  • Color
    Yellow
  • Material
    PP
  • Cover
    NO
  • Width [mm]
    170
  • Height [mm]
    65
  • Number of segments
    3 6
  • Attachment diameter [mm]
    45

Otros datos técnicos

  • Mounting method
    Flush-mounted
  • Construction type
    Device connection box (round/square)
  • Provided with revolving ring
    No
  • Equipped with
    None
  • Width
    170 mm
  • For number of electric fittings
    3
  • With screws
    No
  • Housing feed-through by seal membrane
    No
  • Housing feed-through by step membrane
    No
  • Pipe locking optional
    No
  • Number of included spouts
    0
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP00
  • Circuit integrity
    None
  • Air tight
    No
  • Nozzle
    None
  • Special application
    None
  • Shape
    Oval
  • Model
    3-fold
  • Couplable
    No
  • Length
    65 mm
  • Depth
    40 ... 40 mm
  • Mounting switching equipment
    Screwing
  • Housing feed-through by break-out opening
    Yes
  • Housing feed-through by nozzle
    No
  • Pipe locking
    No
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Colour
    Yellow
  • Cover model
    None
  • With screening
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes

Detalles del fabricante

  • Fabricante
    Emiter Sp. z o.o.
  • Dirección
    40-241 Katowice Porcelanowa 27 Polska
