Empty wall box with cover PV70 fi70mm blue 32150203

local index:
MVP017SIME
Catalog No:
32150203
EAN code:
5907813217616
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 58.5
Color: Blue | White
Price:
20,97 €
gross / pkg.
(including VAT 23%)
1,75 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

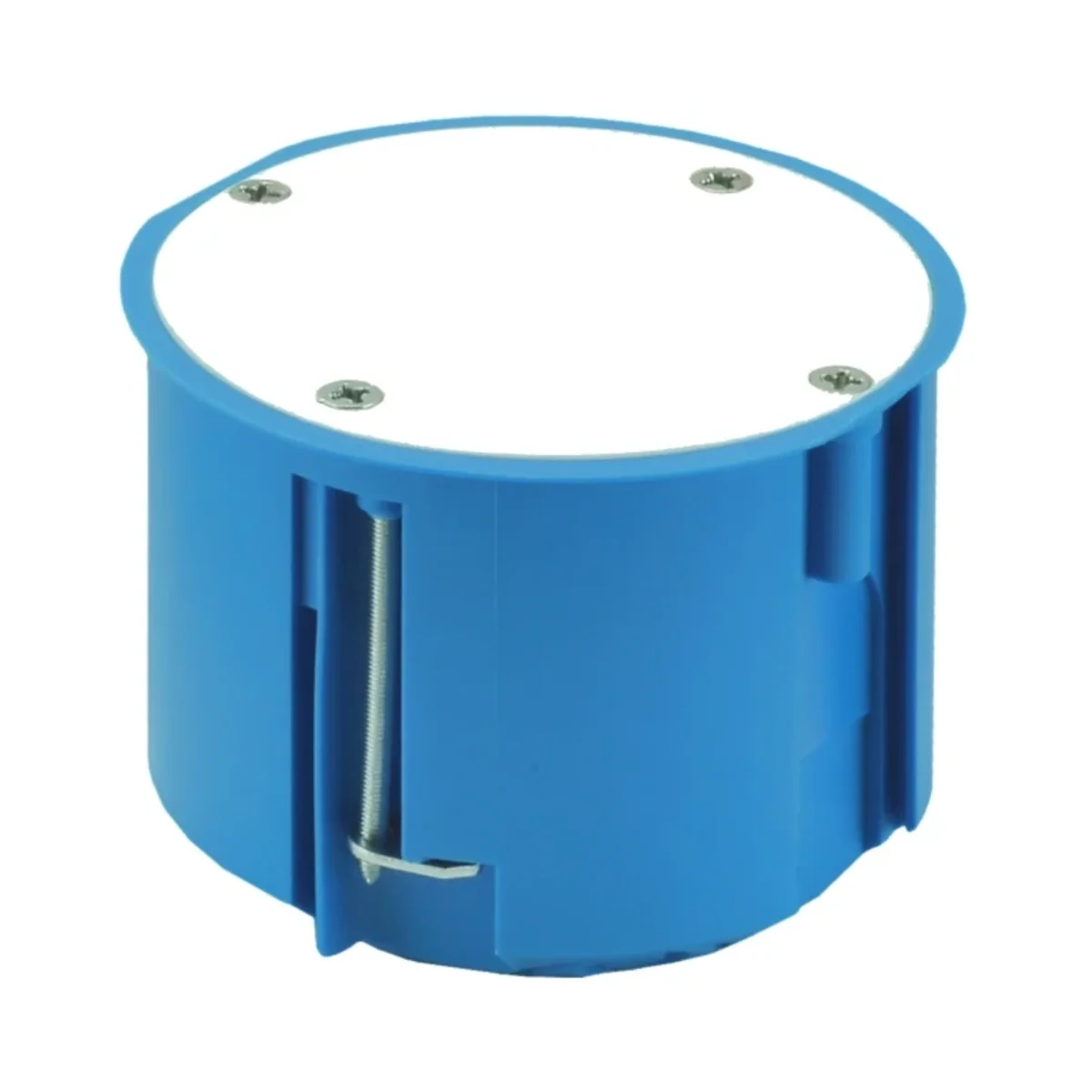

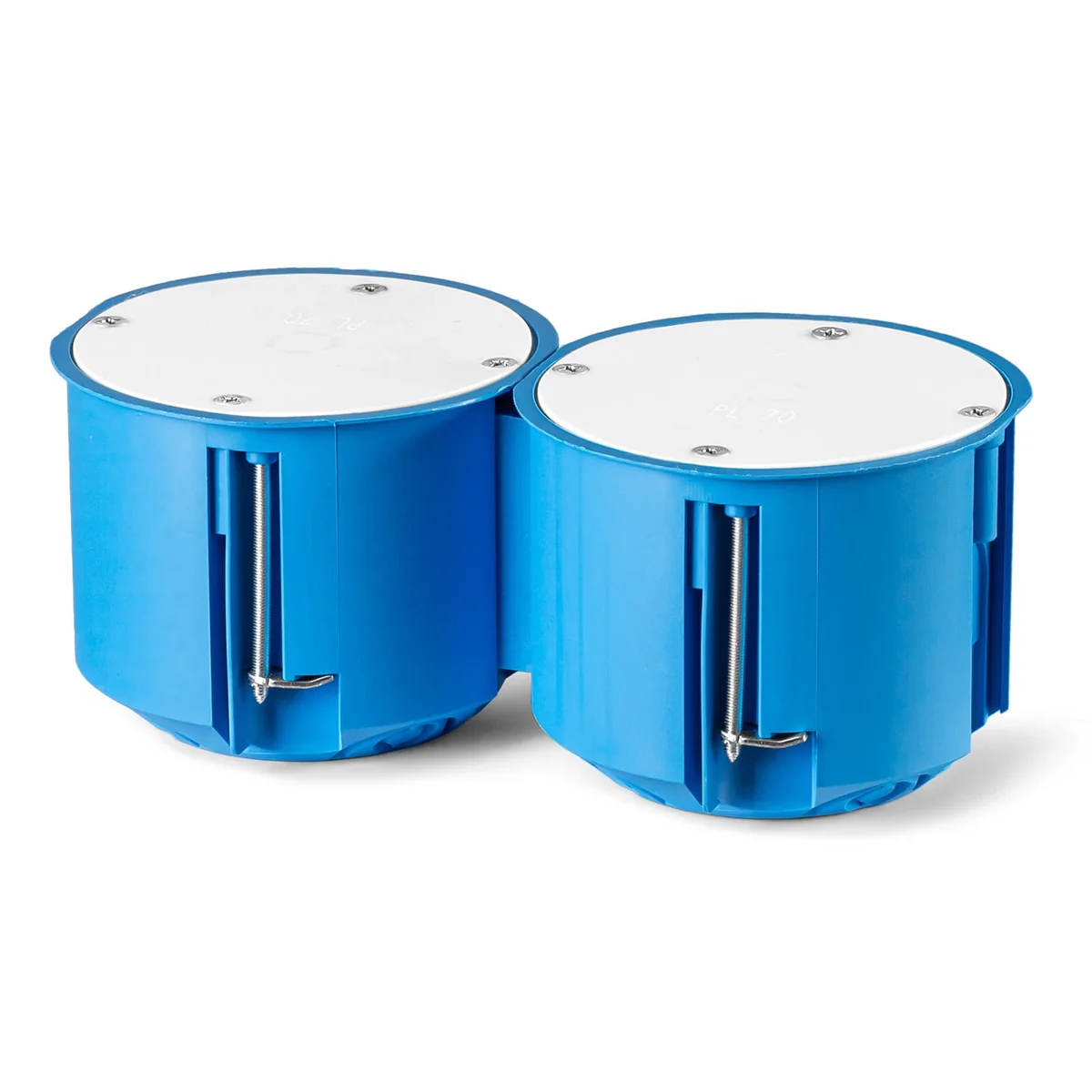

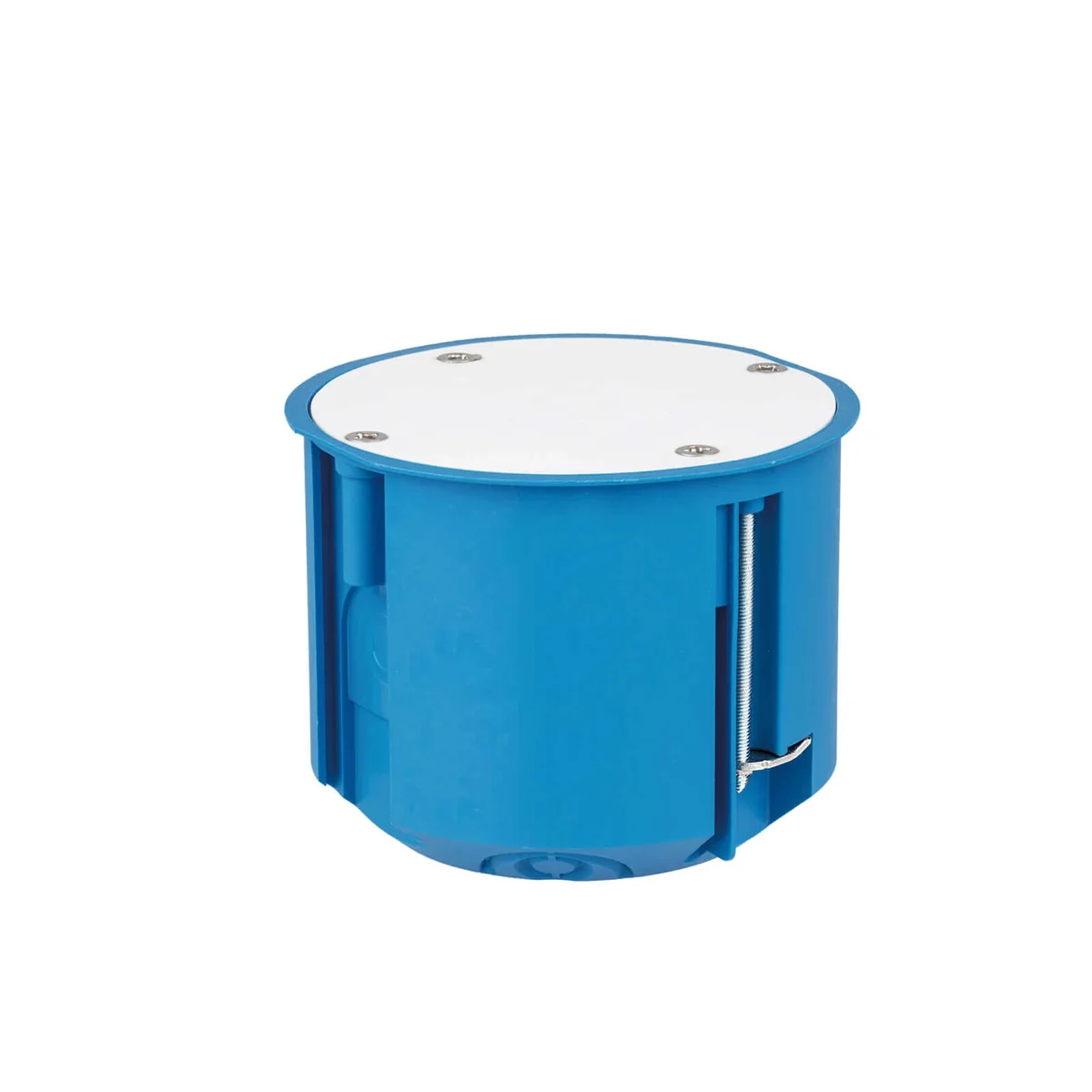

The box is equipped with a cover screwed on with 4 acid-resistant screws. PV70 is an innovative universal solution allowing for versatile applications. Accessories can be attached to it. Installation branches can be made in it, it can be used as a place for embedding electronic components. The set includes a tightly screwed cover entering the inside of the box. Optionally, you can buy a connector that allows you to create multiple blocks of boxes. The single frame of the standard electrotechnical equipment covers the box flange. When connecting boxes with the KD71 connector, multiple frames cannot be used, due to a different spacing between the axes of the connected boxes.

Technical data

  • Halogen free
    Yes
  • Color
    Blue White
  • Material
    Polyamide
  • Cover
    Yes
  • Level of security
    IP20
  • Pieces in the package
    12
  • Weight [g]
    46.5
  • Number of bolts/screws
    4
  • Number of segments
    1
  • Fire resistance [°C]
    960
  • Attachment diameter [mm]
    70
  • PKWIU
    27.33.13.0
  • Depth [mm]
    58.5
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    73
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Exact material
    PA6

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Cable junction box
  • Equipped with
    Other
  • Width
    73 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    14
  • Halogen free
    Yes
  • Colour
    Blue
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Round
  • Model
    Single
  • Diameter
    70 mm
  • Depth
    60 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    16 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP20
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
