Double socket with earthing - grey, IP55 AQUANT 1242-10

local index:
MFB031ELNA
Catalog No:
1242-10
EAN code:
5901130487875
Depth [mm]: 56
Number of sockets: 2
Color: White
Price:
11,87 €
gross / pcs.
(including VAT 23%)
1,19 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

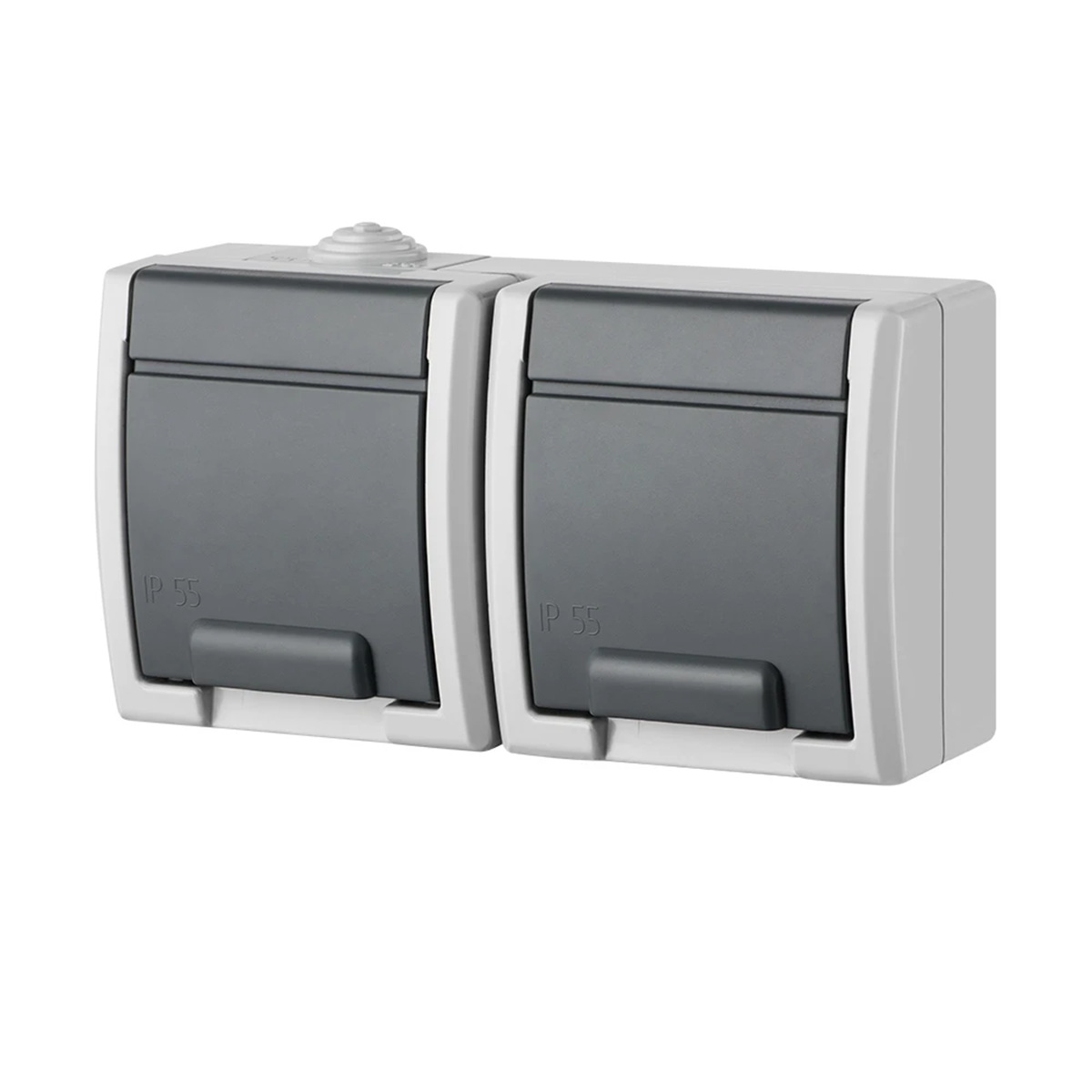

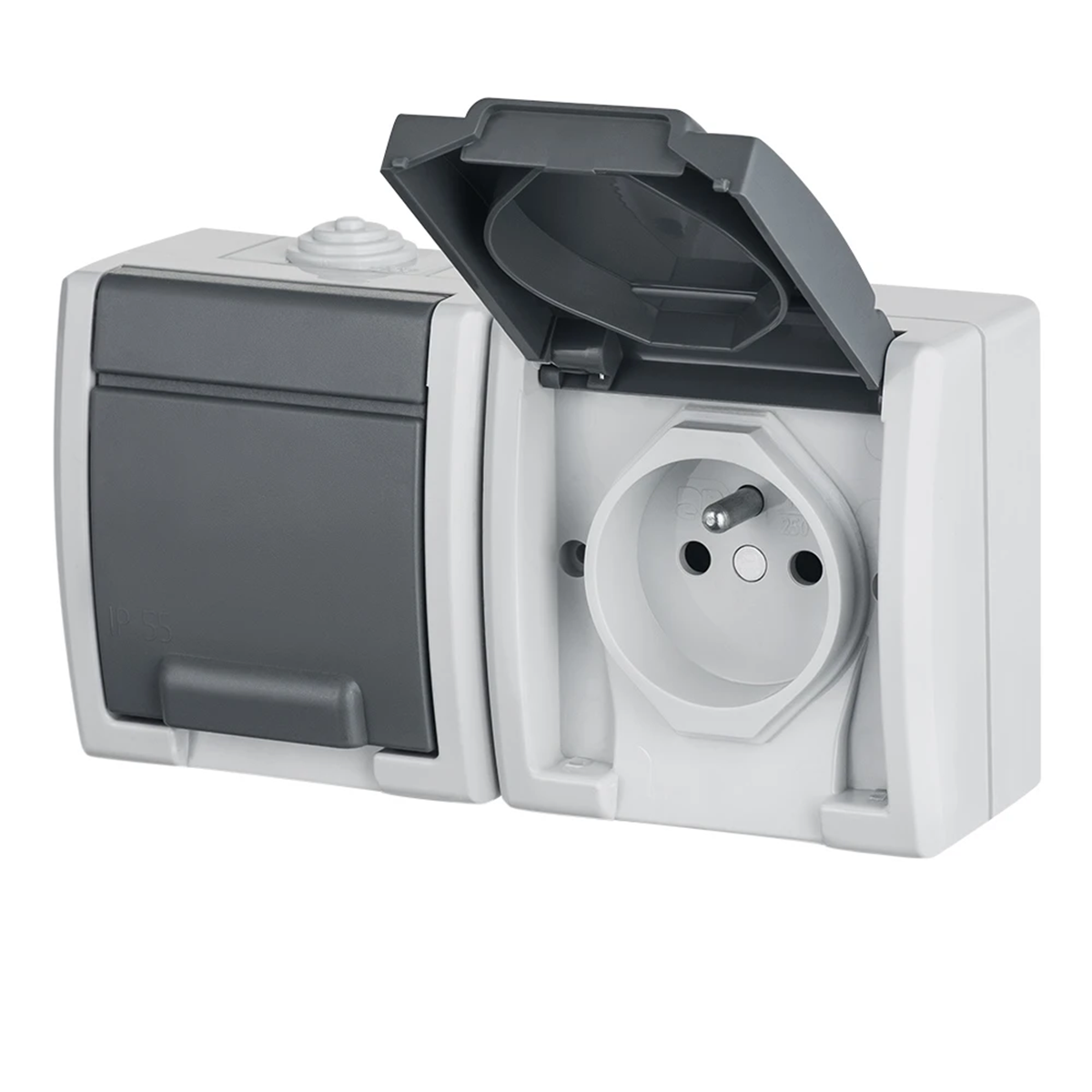

Double hermetic socket 2P+Z from the Aquant series, from the manufacturer ELEKTRO-PLAST. The product's catalog number is 1242-10.

  • Solid housing construction.
  • Increased UV resistance.
  • Track shields (for the safety of the youngest).
  • Durable mechanism with a proven design.



SERIES DESCRIPTION

Aquant is a series of surface-mounted fittings, for which the 2K technology is used. The high degree of protection IP55 ensures resistance to water and dust. The electrical socket hermetic characterizes the features of this unique series.

Technical data

  • Depth [mm]
    56
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Pieces in the package
    10
  • Ground
    Hurt
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    AQUANT
  • Width [mm]
    153
  • Type
    Surface-mounted
  • Height [mm]
    81
  • Accurate color
    Gray
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    ABS
