DELFINA Single socket-outlet with earthing schuko grey GNH-1DS/30/W

local index:
MFB063OSPE
Catalog No:
GNH-1DS/30/W
EAN code:
5907577410315
Manufacturer: OSPEL
Depth [mm]: 51
Number of sockets: 1
Color: Gray
Price:
5,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

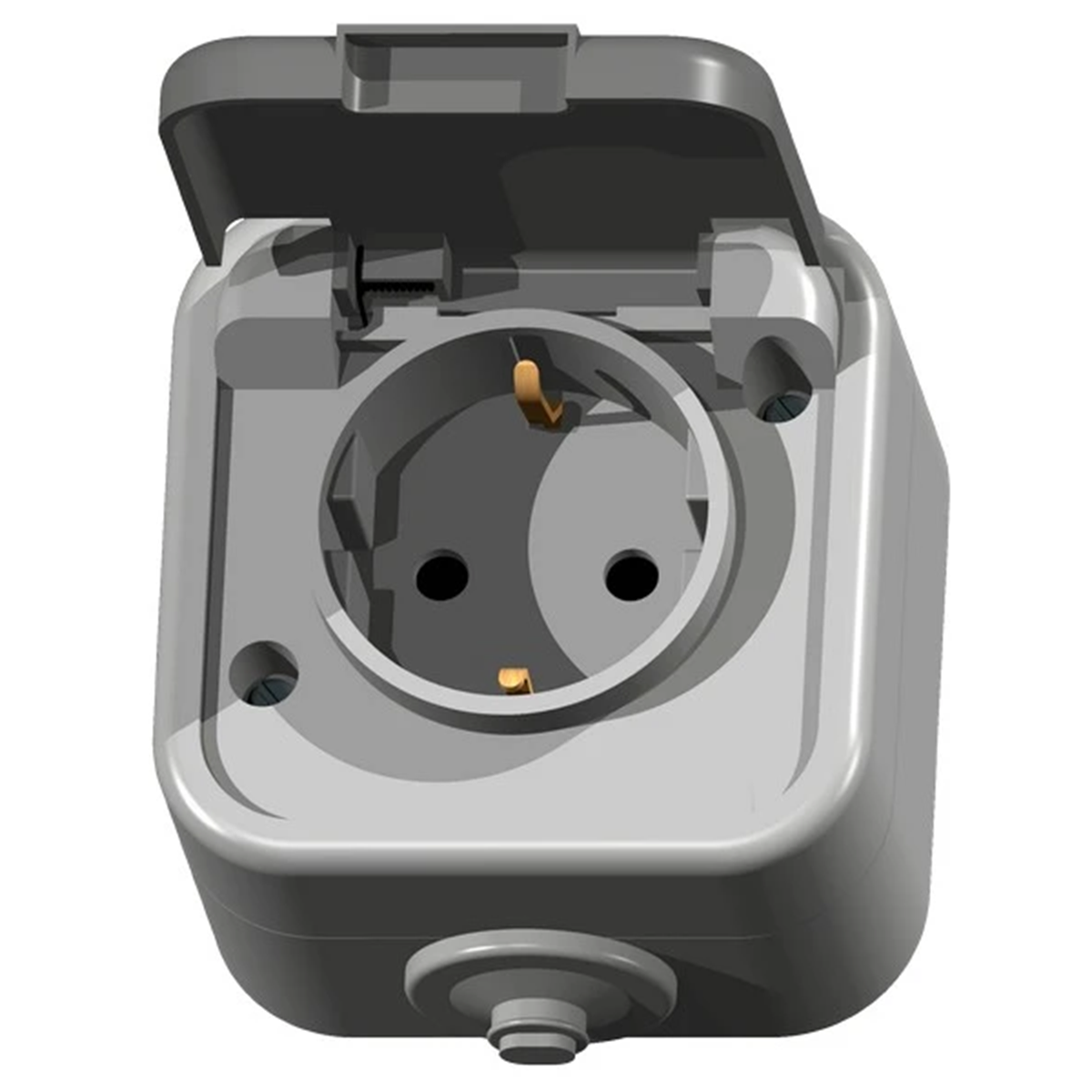

Hermetic wall-mounted electric socket from the Delfina series, from Ospel. The product catalog number is GNH-1DS/30/W.



FEATURES

  • Single .
  • Earth SCHUKO.
  • Thread terminals.
  • Color < strong>grey.
  • Grey lid.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP44.
  • surface mounting.

Technical data

  • Depth [mm]
    51
  • Color
    Gray
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    DELPHI
  • Width [mm]
    72
  • Ground
    schuko
  • Surface protection
    Natural
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Surface-mounted
  • Height [mm]
    90
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    90 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7003
  • Lockable
    Yes
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    72 mm
  • Device depth
    51 mm

Bulk packaging

A kind of package Pudełko
Quantity 8 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
