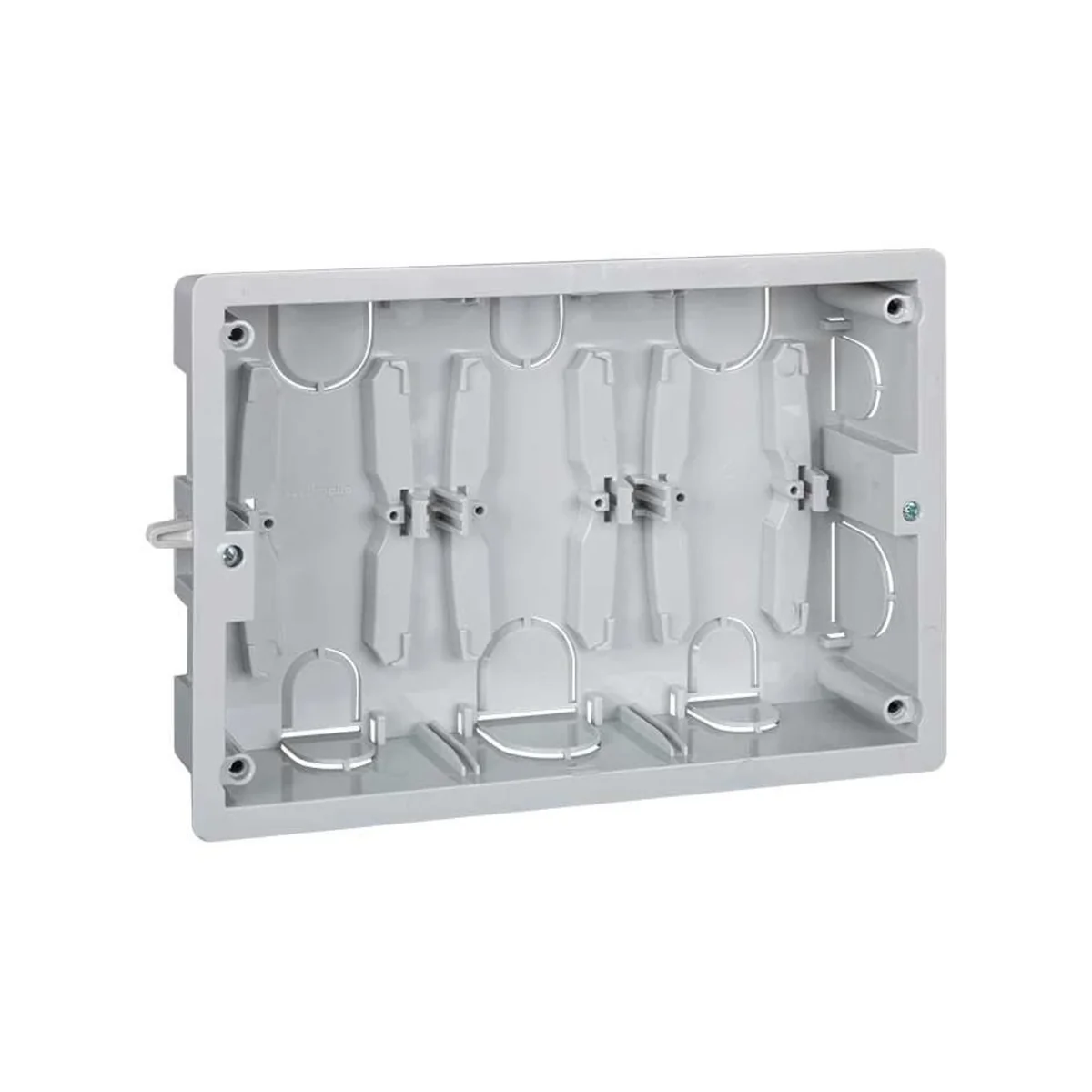

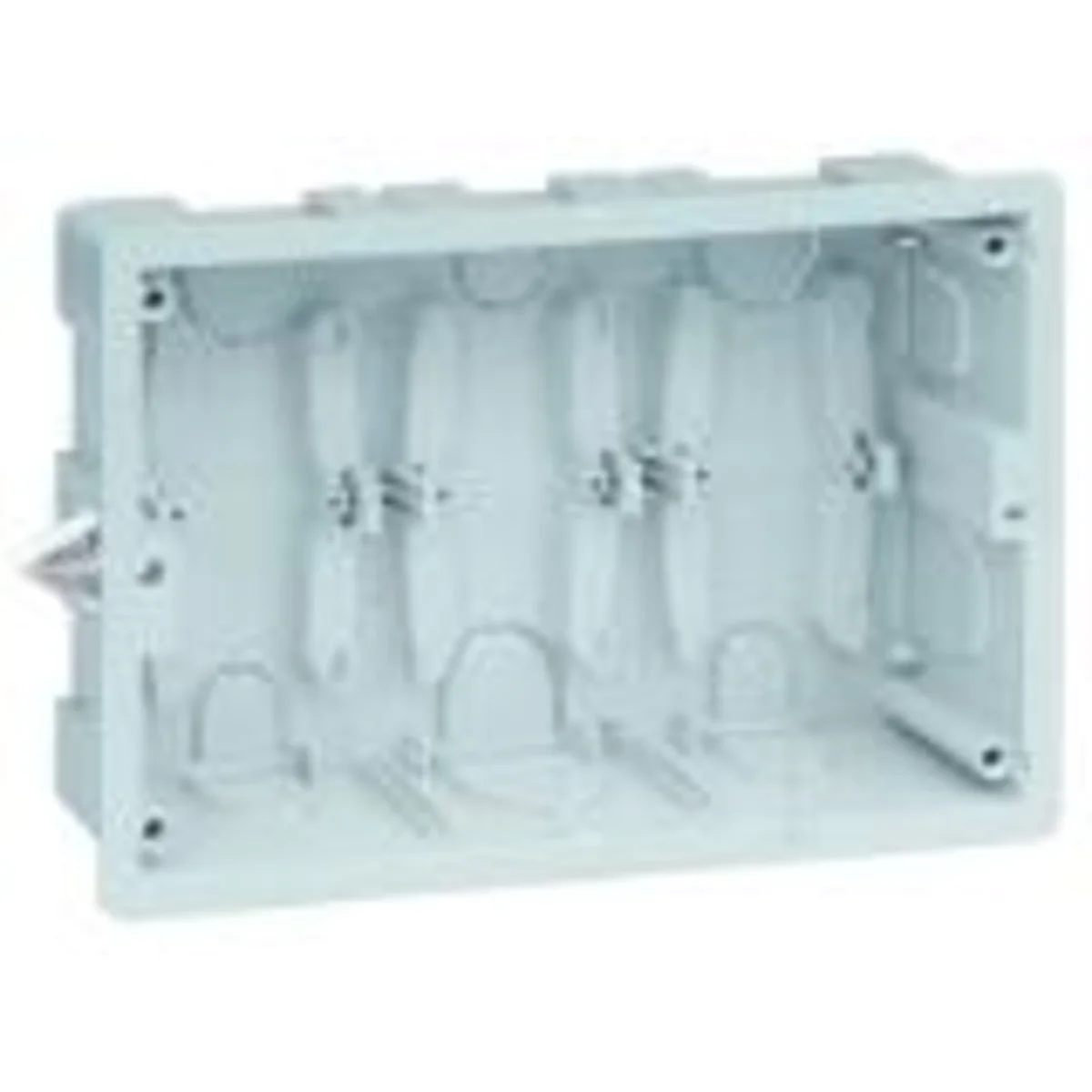

Name: CIMA PRO Flush-mounted box for SBMT/SBM302 6×K45 grey
Brand: KONTAKT-SIMON
SKU: MVP014KONT
Price: 19.31 PLN

CIMA PRO flush-mounted enclosures have been designed with modern office spaces in mind. Installation of any equipment in enclosures enables the creation of advanced installations tailored to the needs of the most demanding users.

CIMA PRO flush-mounted enclosures are available in 3 sizes for 2, 3 and 4 CIMA PRO modules (108x52mm). After using adapters for K45 modules, it is possible to mount from 4 to 8 modules in size 45x45mm.

The enclosures have mounting hooks for mounting in plasterboard walls.
In order to mount the K45 modules (45x45mm) in the housings, appropriate CIMA adapters should be used.

Halogen free

Yes
Color

Gray
Material

Plastic
Cover

NO
Family

CIMA PRO
Width [mm]

148
Height [mm]

219
Fire resistance

Not applicable
For modular equipment

K45 Simon CIMA
PKWIU

27.12.40.0

Depth [mm]

49
Shape

Rectangular
Installation

Flush-mounted
Type

For plasterboards
Level of security

IP40
Type

For attachments
Mounting dimensions [mm]

219 × 148
Number of segments

3 6
Number of CIMA modules

3

Other technical data

Mounting method

Flush-mounted
For number of electric fittings

6
Surface protection

Untreated

Shape

Rectangular
Material

Plastic
Colour

Grey

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	0,350	0,350	0,300
Width (m)	-	-	0,165
Length (m)	0,148	-	0,235
Depth (m)	0,049	-	0,055
