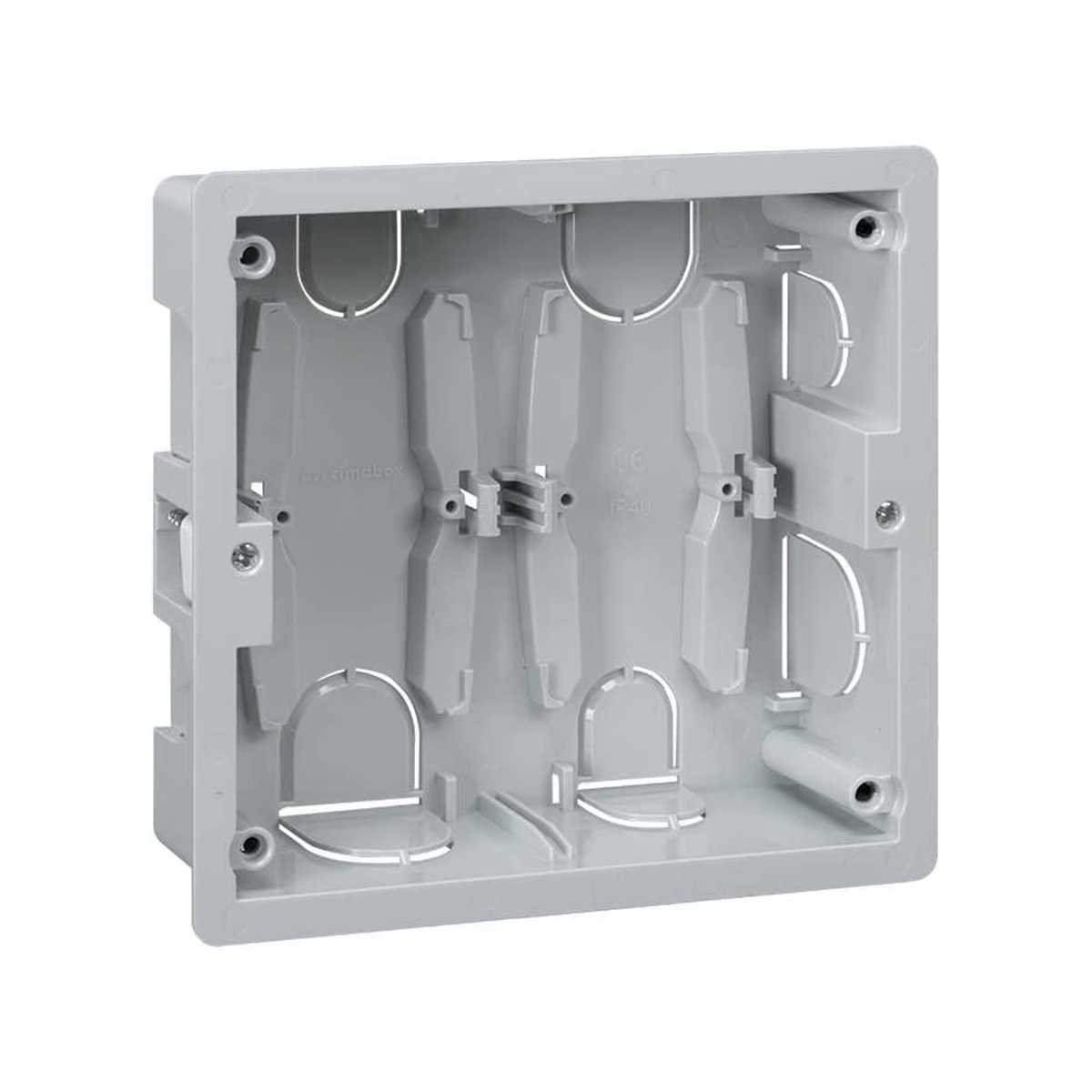

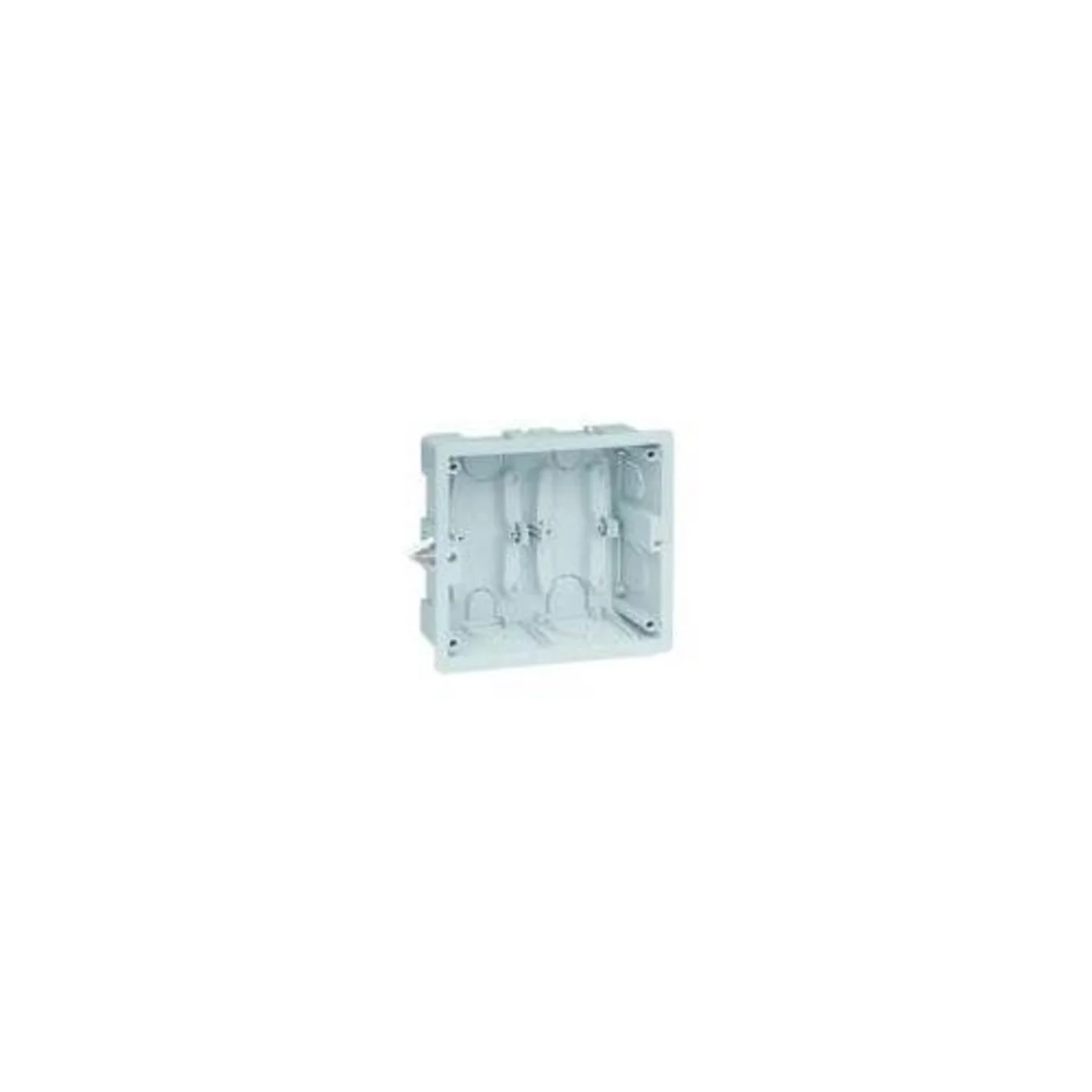

CIMA PRO Flush-mounted box for SBMT/SBM202 4×K45 grey SBM250

local index:
MVP013KONT
Catalog No:
SBM250
EAN code:
8426436038653
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 49
Color: Gray
Price:
15,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CIMA PRO flush-mounted enclosures have been designed with modern office spaces in mind. Installation of any equipment in enclosures enables the creation of advanced installations tailored to the needs of the most demanding users.

CIMA PRO flush-mounted enclosures are available in 3 sizes for 2, 3 and 4 CIMA PRO modules (108x52mm). After using adapters for K45 modules, it is possible to mount from 4 to 8 modules in size 45x45mm.

  • The enclosures have mounting hooks for mounting in plasterboard walls.
  • < li>Weakenings in the housing's flush-mounted box enable the installation to be introduced from any side.
  • In order to mount K45 modules (45x45mm) in the housing, appropriate CIMA adapters should be used.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    Plastic
  • Cover
    NO
  • Family
    CIMA PRO
  • Width [mm]
    148
  • Height [mm]
    156
  • Fire resistance
    Not applicable
  • For modular equipment
    K45 Simon CIMA
  • PKWIU
    27.12.40.0
  • Depth [mm]
    49
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Level of security
    IP40
  • Type
    For attachments
  • Mounting dimensions [mm]
    156×148
  • Number of segments
    2 4
  • Number of CIMA modules
    2

Other technical data

  • Mounting method
    Flush-mounted
  • For number of electric fittings
    4
  • Surface protection
    Untreated
  • Shape
    Rectangular
  • Material
    Plastic
  • Colour
    Grey

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,230 0,230 0,230
Width (m) - - 0,165
Length (m) 0,148 - 0,170
Depth (m) 0,049 - 0,055
