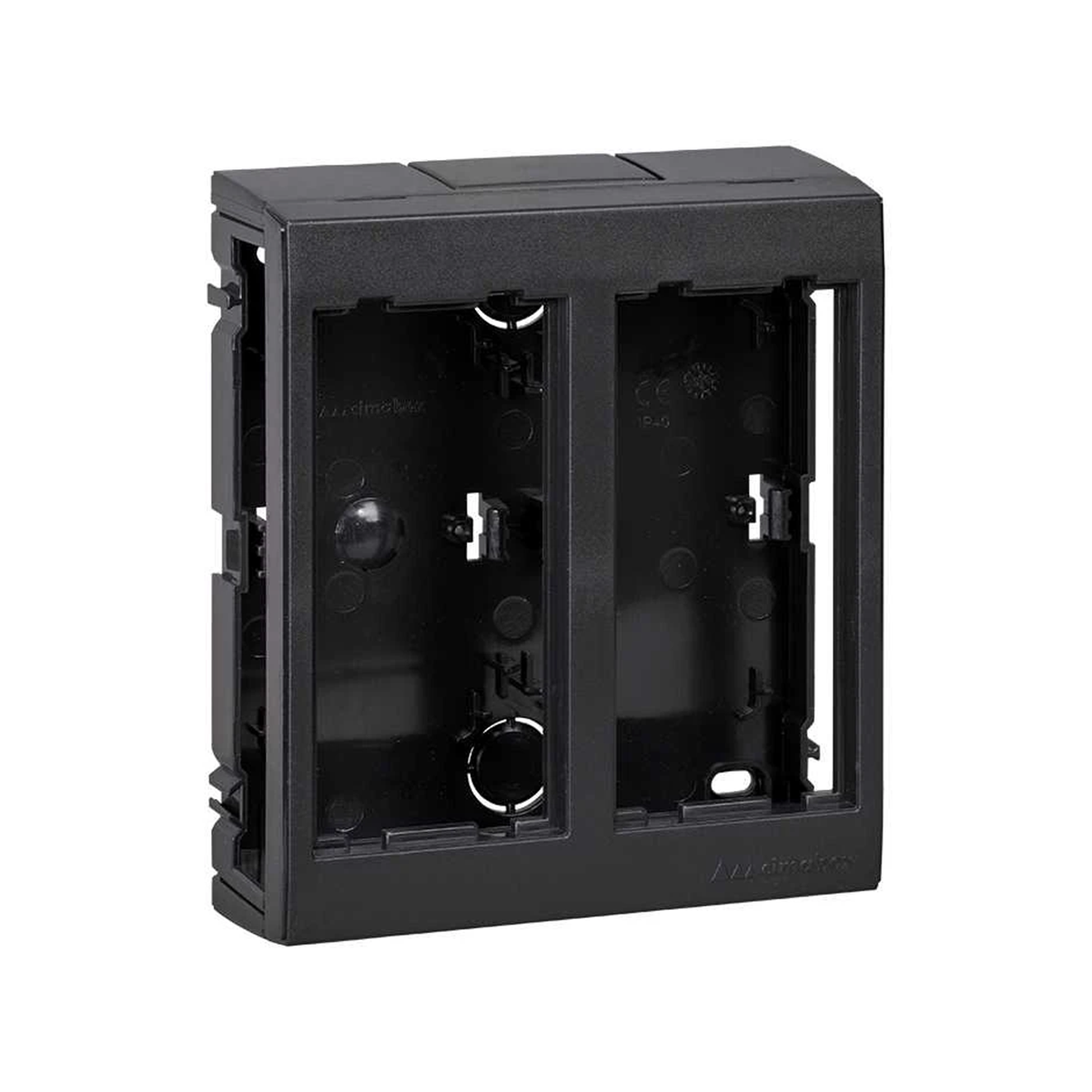

CIMA PRO 2-module surface-mounted housing 4xK45 without side covers, graphite gray SBC250/14

local index:
MVN127KONT
Catalog No:
SBC250/14
EAN code:
8426436038523
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 49
Color: Graphite
Price:
14,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CIMA PRO surface-mounted enclosures are an ideal solution for office buildings, retail and service outlets, schools, hotels and places where simple and quick access to media is important ;w.

They come in 4 sizes for 1, 2, 3 and 4 CIMA modules (108x52). After using adapters for K45 modules, it is possible to mount from 2 to 8 modules in size 45x45mm.

The housings can be combined with each other, thanks to which it is possible to additionally expand the installation if additional connection points are required .

  • Without side covers.

Technical data

  • Halogen free
    Yes
  • Color
    Graphite
  • Material
    Plastic
  • Cover
    NO
  • Family
    CIMA PRO
  • Width [mm]
    128
  • Height [mm]
    153
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    2 4
  • With terminal strip
    NO
  • Number of CIMA modules
    2
  • Depth [mm]
    49
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP40
  • Type
    For attachments
  • Surface protection
    Natural
  • Accurate color
    Gray graphite
  • Mounting direction
    Universal
  • For modular equipment
    45x45 Simon CIMA
  • Number of modules 45x45
    4
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Surface mounted frame with loose bottom plate
  • Material
    Plastic
  • Surface finishing
    Matt
  • Number of units
    4
  • Surface protection
    Untreated
  • Colour
    Anthracite

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,265 0,265 0,268
Width (m) 0,153 - 0,150
Length (m) 0,128 - 0,156
Depth (m) 0,049 - 0,063
