Cedar Plus single socket 2P+PE with blue cover IP44 white WDE000542
local index:
MFB018SCHN
Catalog No:
WDE000542
EAN code:
3303432400453
Price:
5,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

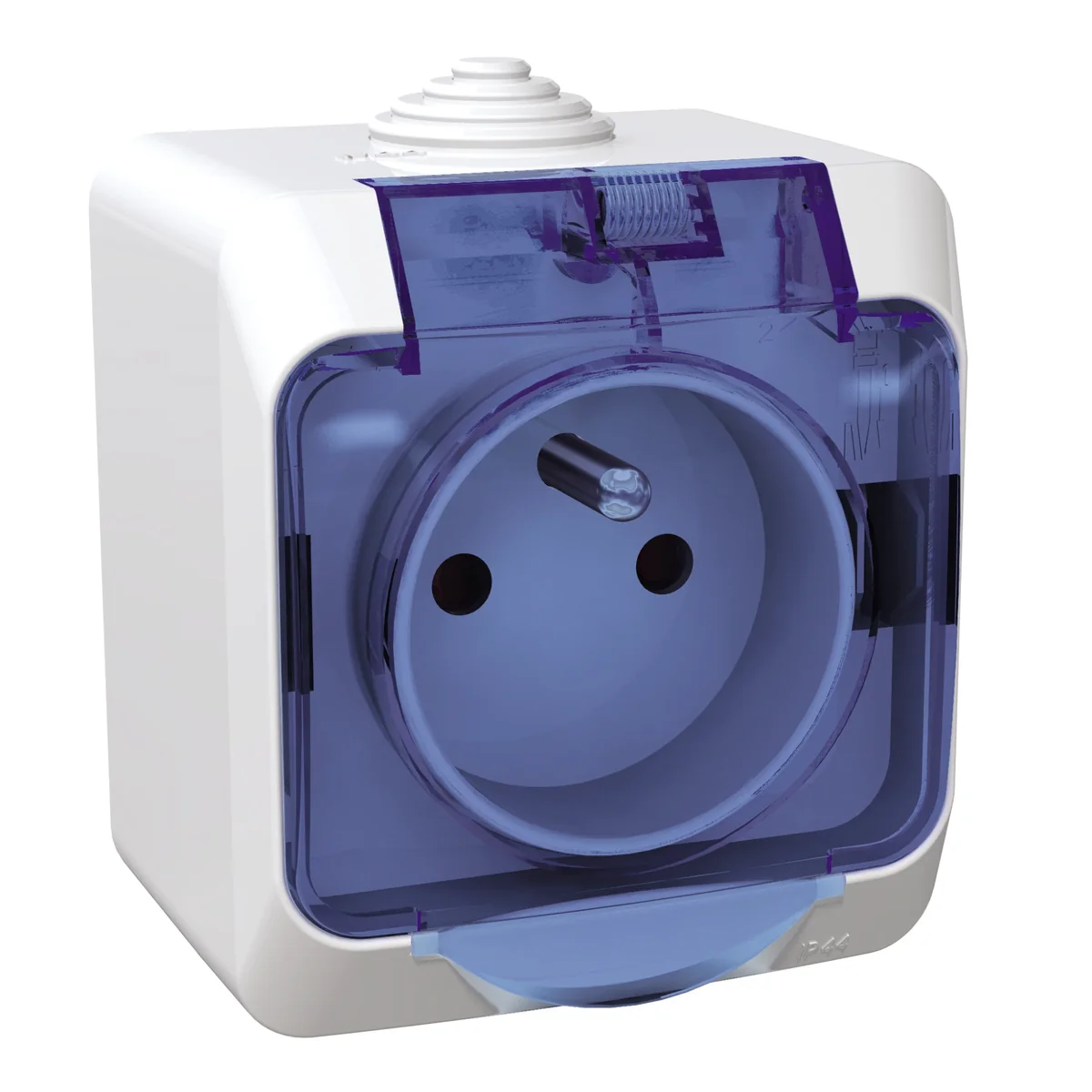

Hermetic wall-mounted electrical socket from the Cedar Plus series, from Schneider Electric. The product part number is WDE000542.
FEATURES
- Single.< /li>
- 2P+PE.
- With earthing; ground pin.
- With shutters for current paths.
- Screw terminals.
- Socket color white.
- With transparent blue cover.
- Rated current 16 A.
- Voltage rated 230 V.
- Ingress protection IP44.
- Mounting surface mounting.
- Complete product.
- Strip length of the cable: 11 mm.
Technical data
-
Depth [mm]52
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeSurface-mounted
-
Height [mm]79
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorTransparent
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeRectangular
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyCEDAR PLUS
-
Width [mm]66
-
GroundHurt
-
Surface finishShiny
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemNO
-
Exact materialPA6
Other technical data
-
ModelOther
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthOther
-
Device height79 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
Connection typeOther
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentYes
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP44
-
Device width66 mm
-
Device depth52 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
