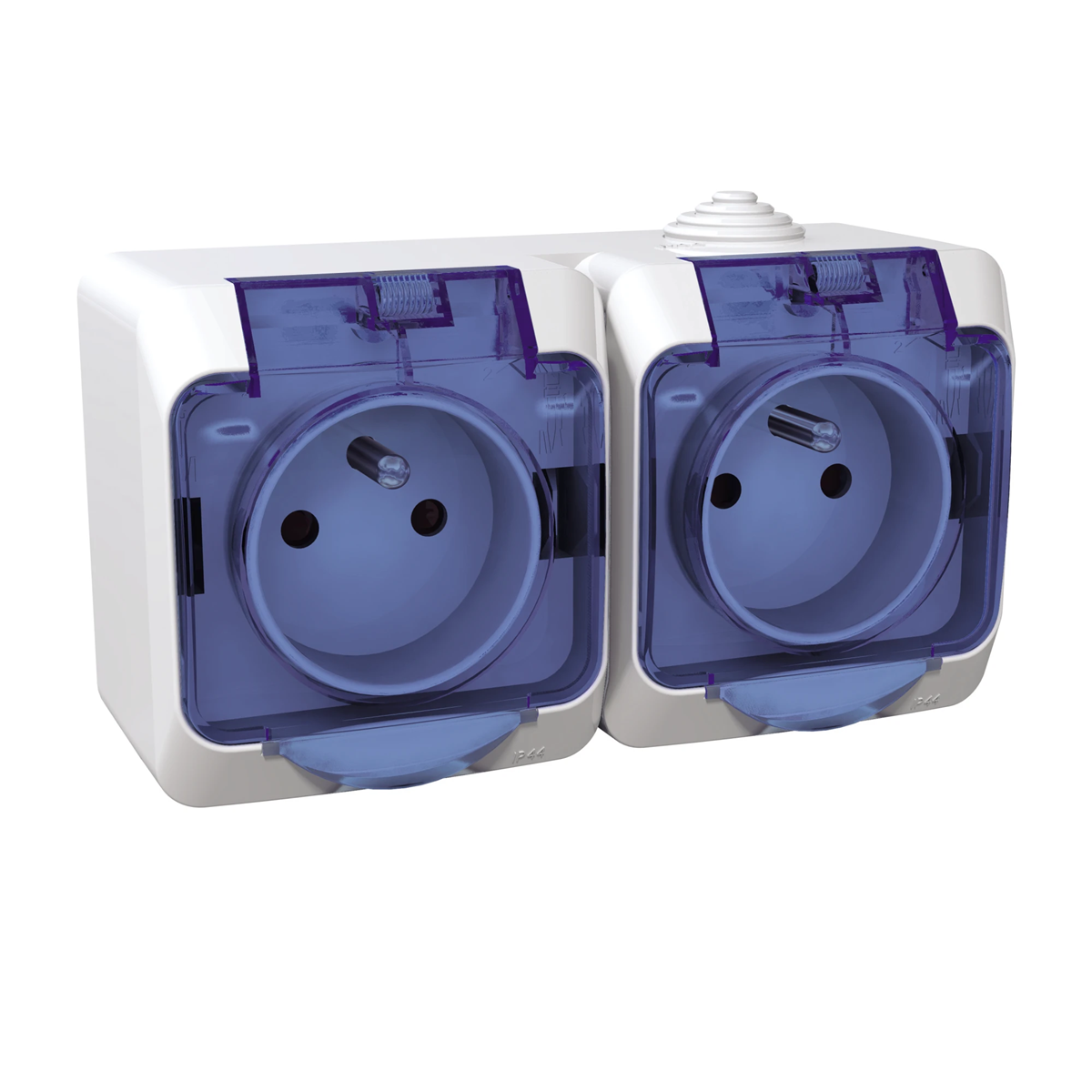

Cedar Plus double socket 2P+PE with blue cover IP44 white WDE000524

local index:
MFB017SCHN
Catalog No:
WDE000524
EAN code:
3303432400538
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 52
Number of sockets: 2
Color: White
Price:
8,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electrical socket from the Cedar Plus series, from Schneider Electric. The product part number is WDE000524.



FEATURES

  • Double .
  • 2P+PE.
  • With earthing; ground pin.
  • With shutters for current paths.
  • Screw terminals.
  • Socket color white.
  • With transparent blue cover.
  • Rated current 16 A.
  • Voltage rated 230 V.
  • Ingress protection IP44.
  • Mounting surface mounting.
  • Complete product.
  • Strip length of the cable: 11 mm.

Technical data

  • Depth [mm]
    52
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Surface-mounted
  • Height [mm]
    79
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    CEDAR PLUS
  • Width [mm]
    132
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    PA6

Other technical data

  • Model
    Other
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    9003
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    Other
  • Device height
    79 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    Yes
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    132 mm
  • Device depth
    52 mm
