Branch box B9/T 2001810

Lokaler Index:

MVN010OBOB

Katalognummer:

2001810

EAN-Code:

4012195335474

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: OBO BETTERMANN

Halogen free: Yes

Depth [mm]: 50

Color: Gray

Siehe vollständige Beschreibung

Preis:

40,33 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

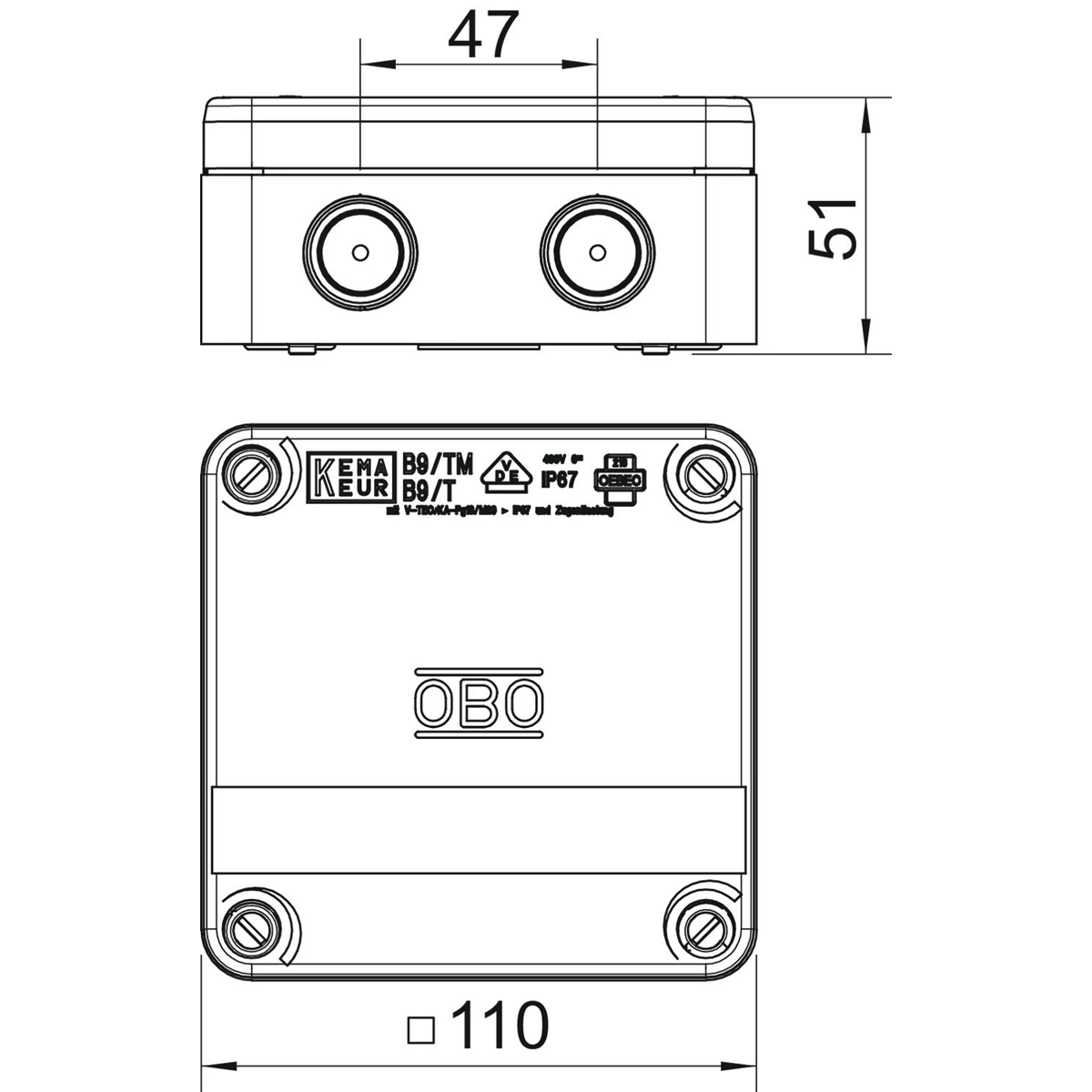

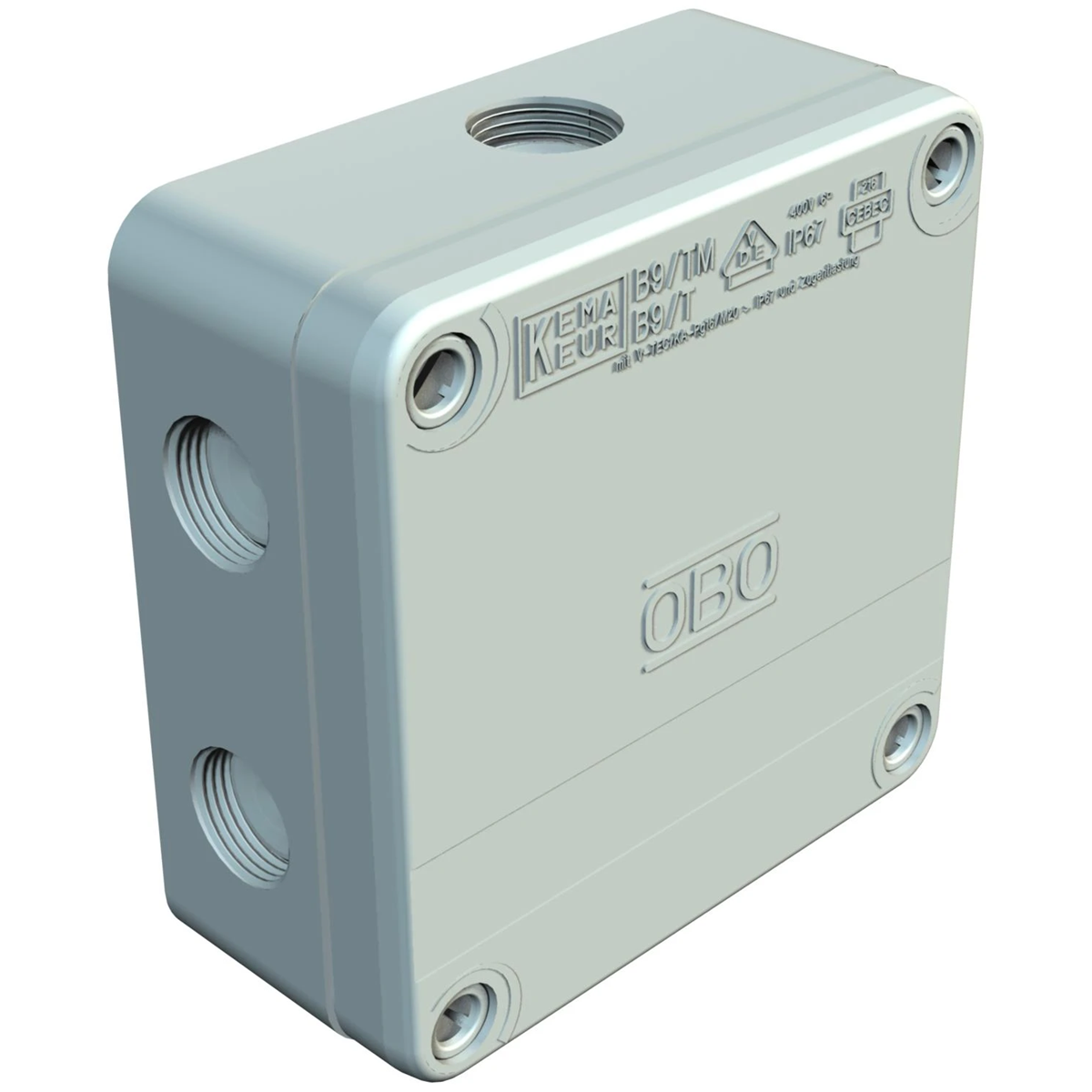

Junction box hermetic for damp rooms.

8 unthreaded entries, additionally 1 entry in the bottom, with self-sealing membranes (for cables up to 15 mm diameter). Light grey, flame retardant: 750 °C, halogen free material, IP 67, cover screwed with 4 quick fasteners, secured against loss. The mounting holes in the bottom are additionally covered with a soft plastic material, intended for screws with a diameter of 5 mm.

Technische Daten

Halogen free

Yes
Color

Gray
Material

Plastic
Rated insulation voltage [V]

400
Type

Wall-mounted
Width [mm]

110
Height [mm]

110
Maximum conductor cross-section [mm²]

4
Fire resistance

Non-flammable
For modular equipment

Not applicable
Number of slots

9

Depth [mm]

50
Shape

Square
Installation

Surface-mounted
Cover

Yes
Level of security

IP67
Type

branching
Operating temperature range [°C]

-5 to +60
Accurate color

light gray
Fire resistance [°C]

750
With terminal strip

NO
PKWIU

22.29.29.0

Weitere technische Daten

Max. conductor cross section

6 mm²
Number of inlets

9
Length

110 mm
Depth

51 mm
Type of housing feed-through

Thread and closing membrane
Halogen free

Yes
RAL-number (similar)

7035
Sealable

Yes
Circuit integrity

None
Operating temperature

-5 ... 60 °C
For Ex-zone gas

None

Mounting method

Wall-/ceiling mounting
Inlet from the rear

Yes
Width

110 mm
Tackable

Yes
Material

Plastic
Colour

Grey
Degree of protection (IP)

IP67
Rated insulation voltage Ui

400 V
Weatherproof

No
Explosion-tested version

No
For Ex-Zone dust

None

Hersteller-Details

Hersteller

OBO Bettermann Holding GmbH & Co. KG
Adresse

58710 Menden Hüingser Ring 52 Niemcy
E-Mail

oferty@obo.pl

Großpackungen

Eine Art Paket	Skrzynia	Karton	Paleta
Menge	5 stk.	40 stk.	720 stk.
Gewicht (kg)	1,127	9,524	193,932
Volumen (m3)	0,003	0,038	0,912
Breite (m)	0,113	0,388	0,800
Länge (m)	0,266	0,395	1,200
Tiefe (m)	0,113	0,249	0,950
