Box for walls with polystyrene 60mm embedded in a polystyrene block 200x184x184mm 83113003

local index:
MVP061SIME
Catalog No:
83113003
EAN code:
4034338913264
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 200
Color: white | Blue
Price:
25,50 €
gross / pcs.
(including VAT 23%)
45,54 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

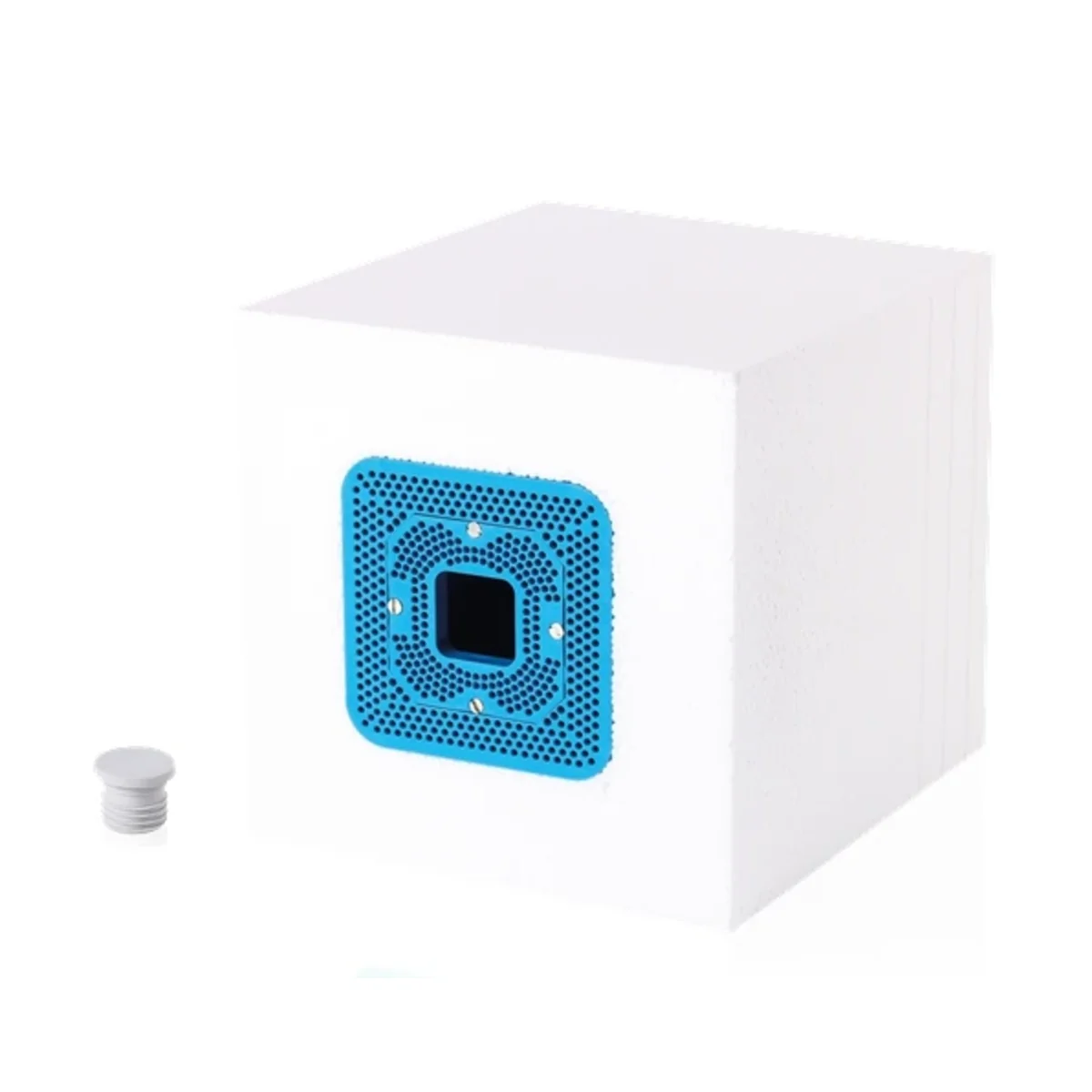

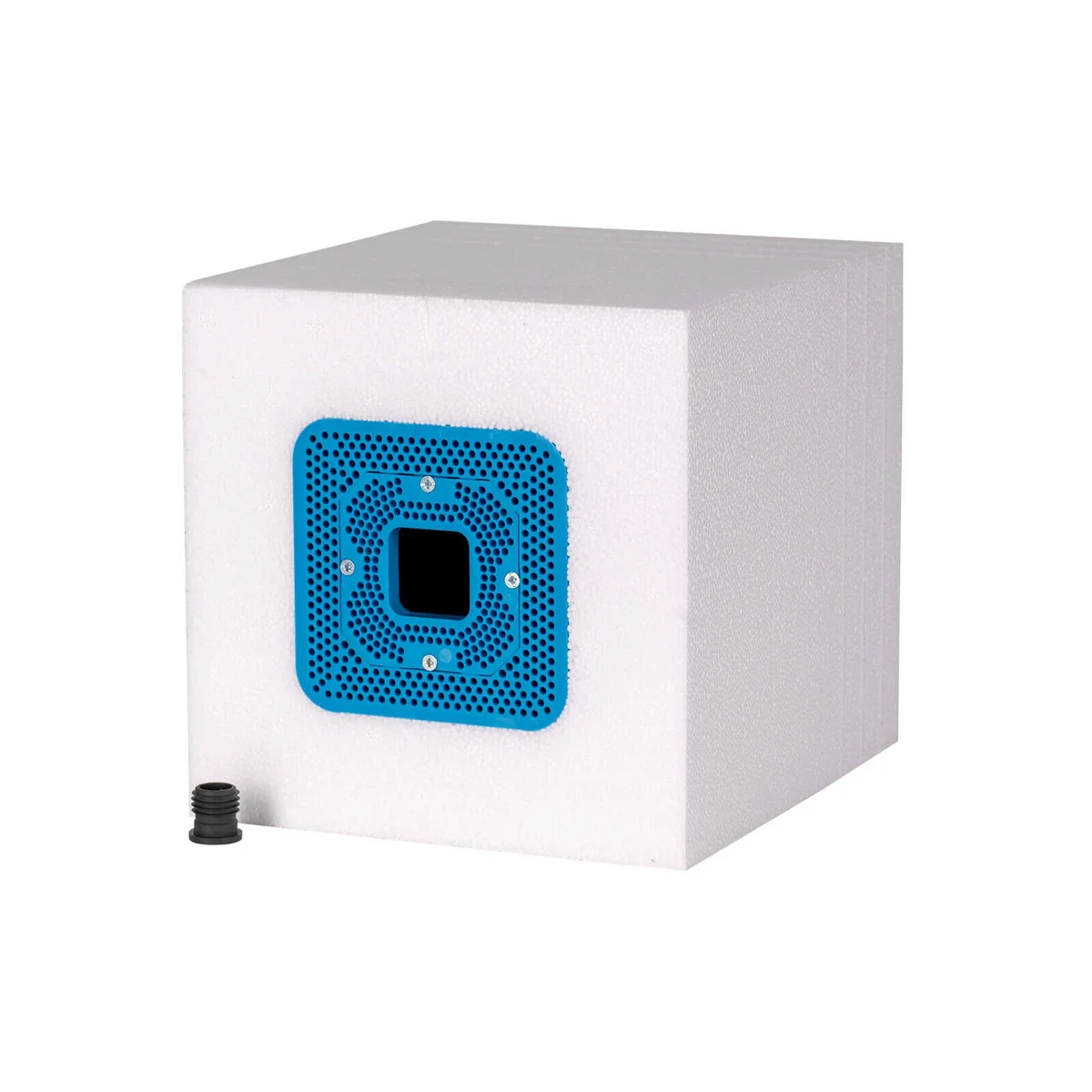

Styrofoam block with a box

The block is attached when the wall is covered with a layer of insulation, due to the need to glue it to the surface of the main wall. The block with the embedded box has a depth of 200mm and allows you to adjust its depth within the range of 80-200mm depending on the thickness of the insulation. For this purpose, the lower part of the polystyrene is cut. Mounting on the wall is done by gluing the EPS20 block to the wall surface, preferably with a special adhesive (251-KL) or other construction adhesive. Then, it is insulated with insulation, obtaining a compact, solid construction with the wall. The structure additionally has an insert for attaching elements to the surface of polystyrene, such as cameras, sensors, antennas, etc.

Technical data

  • Halogen free
    Yes
  • Color
    white Blue
  • Material
    Plastic
  • Cover
    NO
  • Width [mm]
    184
  • Weight [g]
    560
  • load capacity [kg]
    12
  • Number of segments
    1
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0
  • Depth [mm]
    200
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For Styrofoam
  • Type
    For attachments
  • Height [mm]
    184
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Attachment diameter [mm]
    60
